6GK5204-2BC00-2AF2 SIEMENS SCALANCE XF204-2 Flat Managed IE Switch with Fiber Ports Original Brand New

SIEMENS SCALANCE XF204-2 – 6GK5204-2BC00-2AF2

Managed Industrial Ethernet switch in flat ET 200S-style housing with 4x 10/100 Mbps RJ45 electrical ports and 2x 100 Mbps ST/BFOC fiber optic ports. Features include redundant 24 V DC power input, error signaling contact with SET pushbutton, integrated Redundancy Manager, and full PROFINET IO diagnostics support. Supplied with CD-ROM manual. C-PLUG optional.

Overview

The SCALANCE XF204-2 is tailored for small control boxes and optimized for creating fast industrial Ethernet networks in line, star, or ring topologies using both copper and fiber connections.

• Dual-media connectivity: 4x RJ45 + 2x fiber optic ports
• Redundancy Manager ensures bumpless ring recovery
• Auto email alerts and web-based diagnostics via SNMP or SINEC NMS
• Mounts easily in compact automation cabinets
• Designed for multimode FOC up to 5 km via ST/BFOC

Product Variants

• SCALANCE XF204-2 (this unit): 4x RJ45 + 2x ST/BFOC
• SCALANCE XF206-1: 6x RJ45 + 1x ST/BFOC
• SCALANCE XF204G: 4x RJ45 (10/100/1000 Mbps)
• SCALANCE XF204: 4x RJ45 (10/100 Mbps)
• SCALANCE XF208: 8x RJ45 (10/100 Mbps)

Design

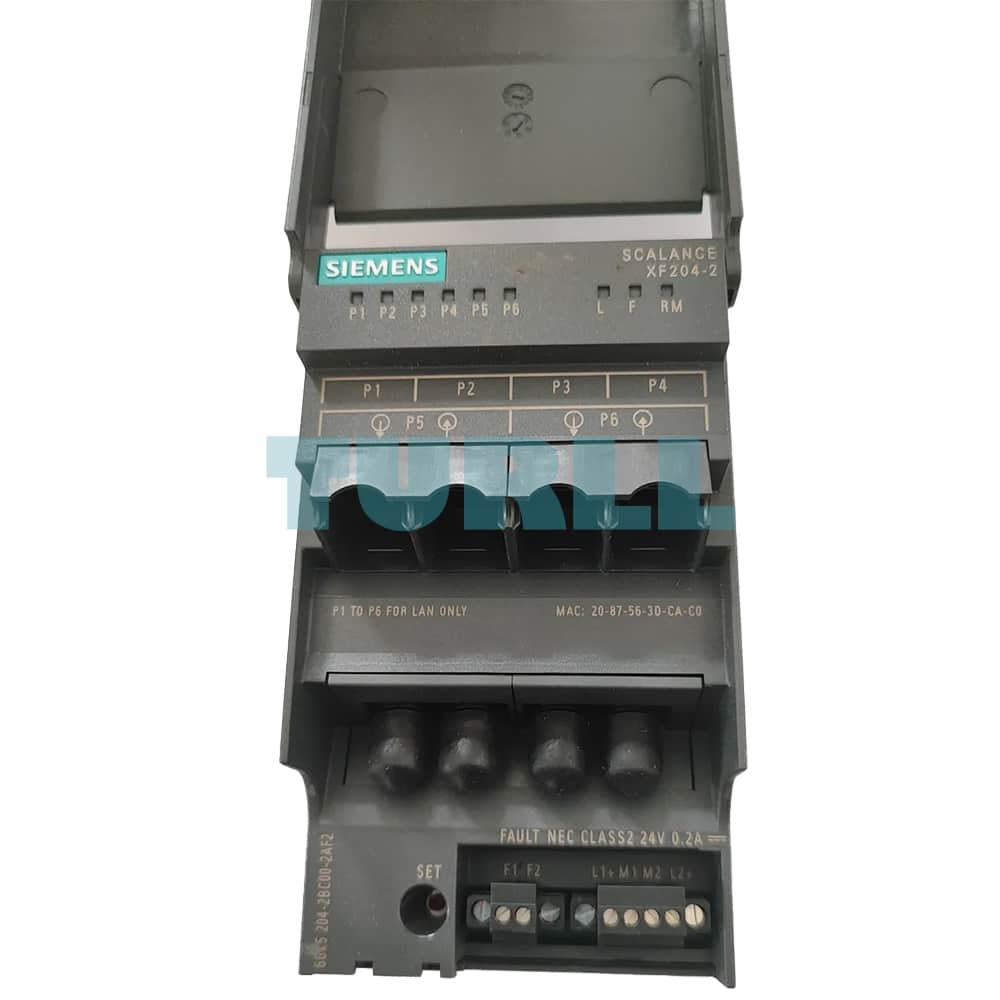

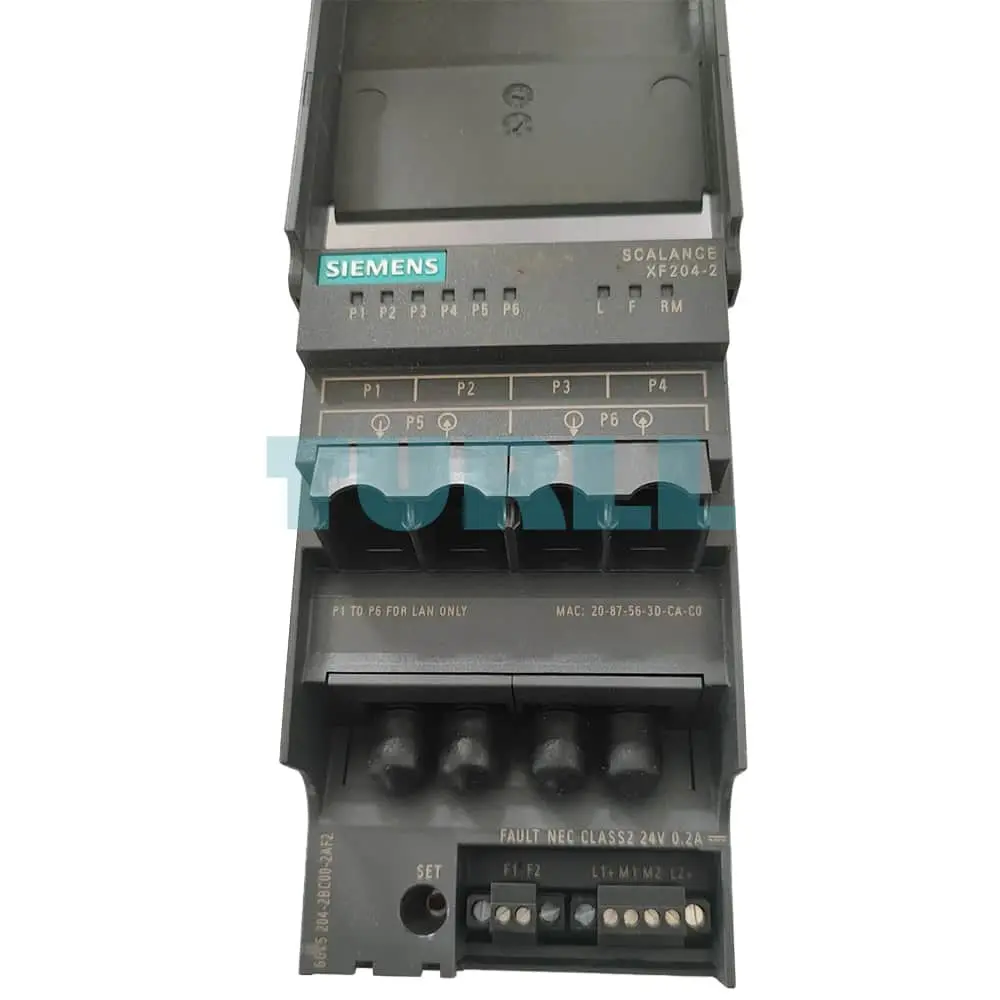

• Flat-profile housing in SIMATIC ET 200S design
• IP20 enclosure for DIN rail or wall mounting
• 4-pin terminal for redundant supply (2 × 24 V DC)

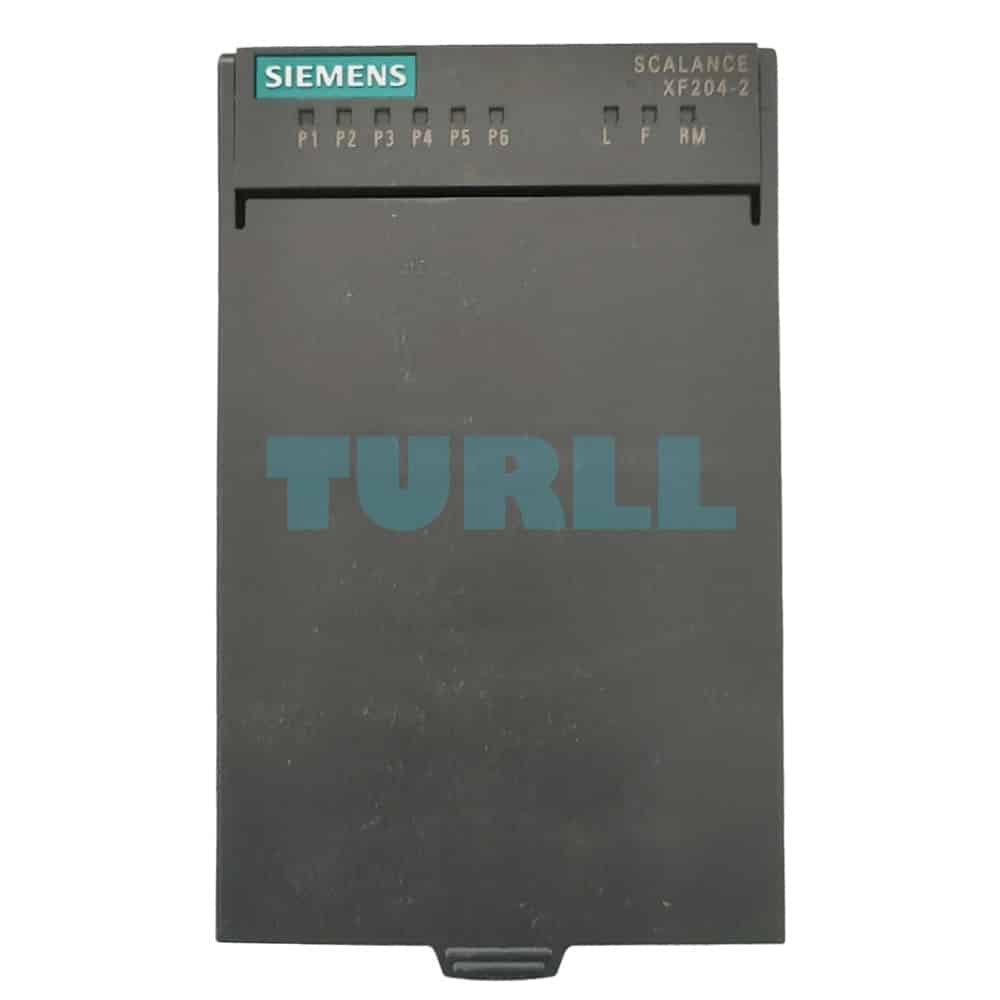

• LED row shows power, link, traffic, voltage, and fault conditions
• SET button allows local alarm configuration
• 2-pin terminal for floating signal contact

Port Types Available

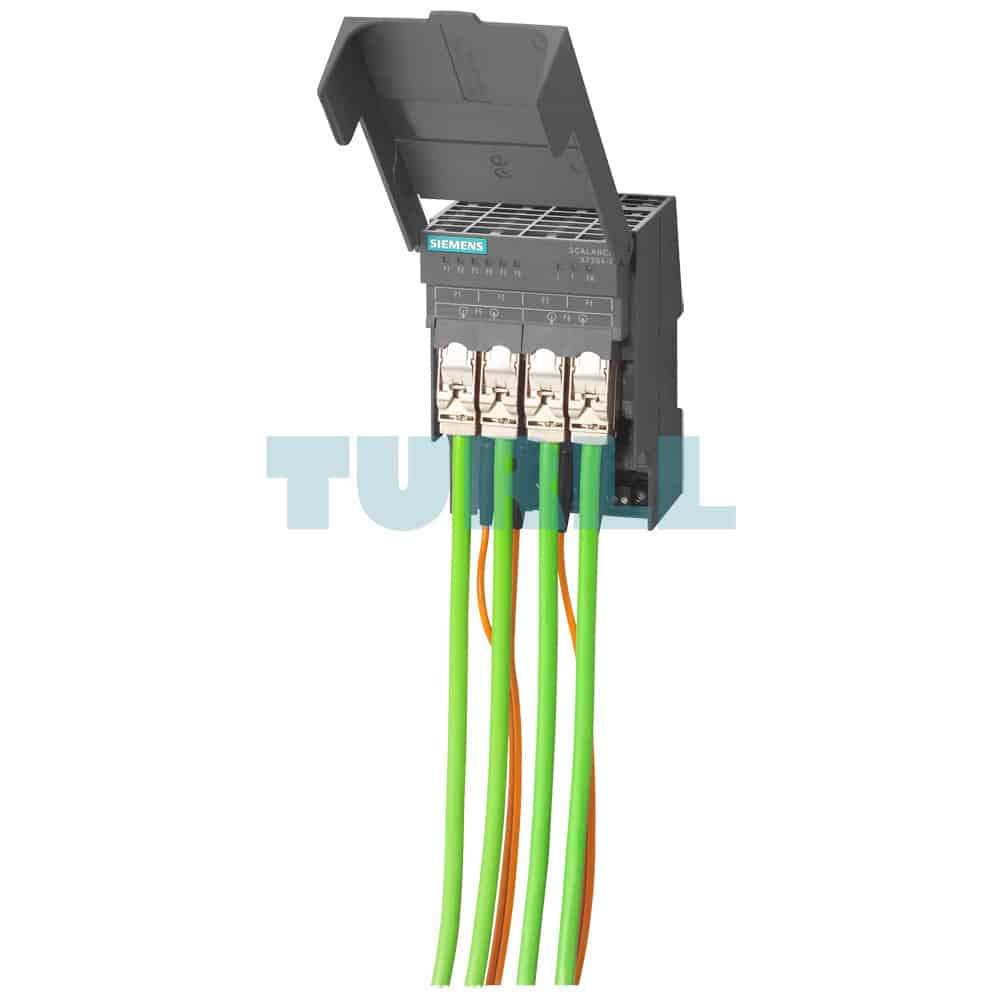

• 4 x 10/100BaseTX RJ45
  • Auto-negotiation, auto-crossover
  • IE FC RJ45 Plug 180 compatible
• 2 x 100BaseFX ST/BFOC (optical)
  • Multimode glass fiber connection up to 5 km

Product code: 6GK5204-2BC00-2AF2
