6GK5205-3BB00-2AB2 SIEMENS SCALANCE XB205-3 Managed Layer 2 IE Switch Fiber + RJ45 Original Brand New

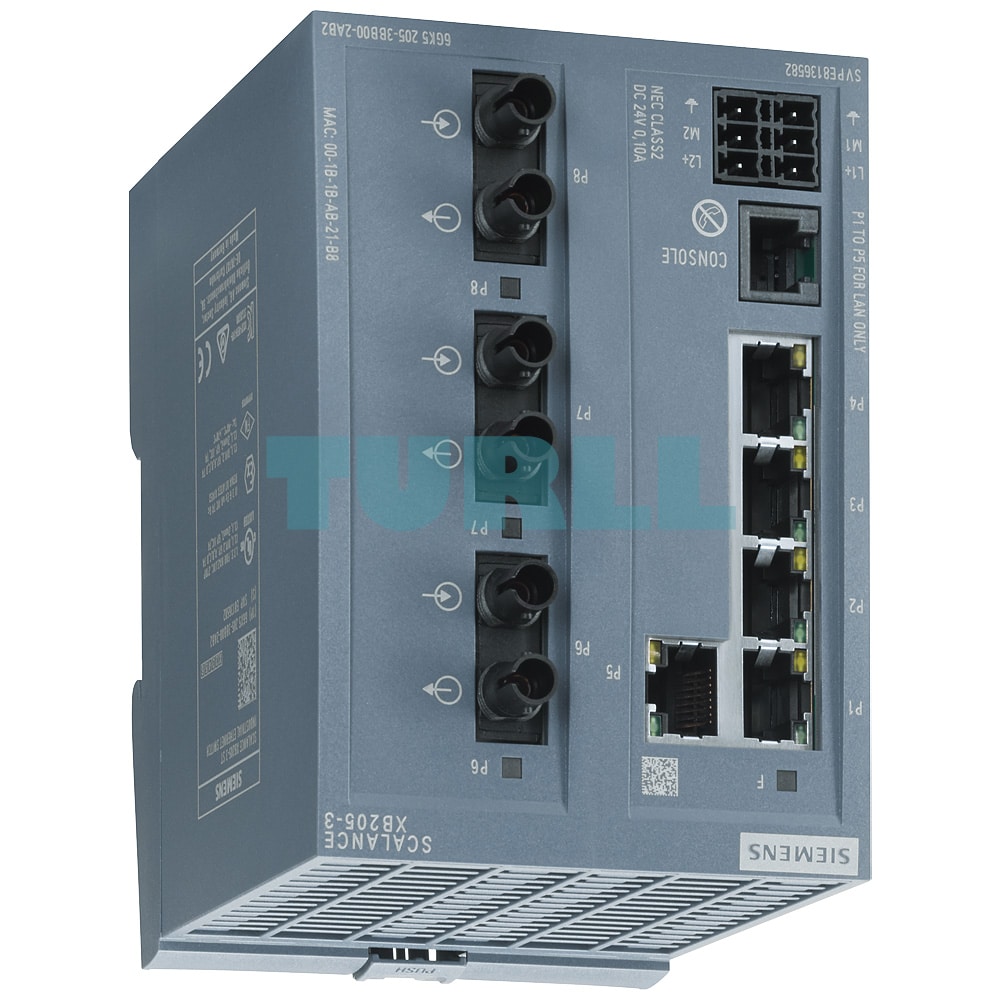

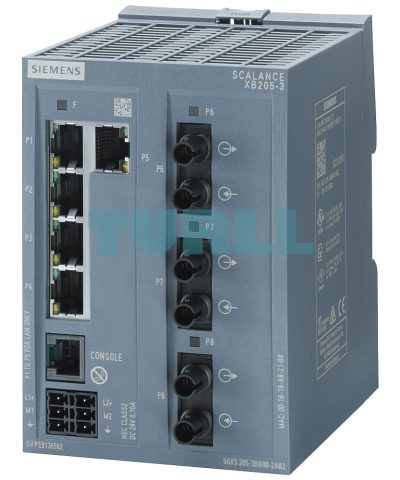

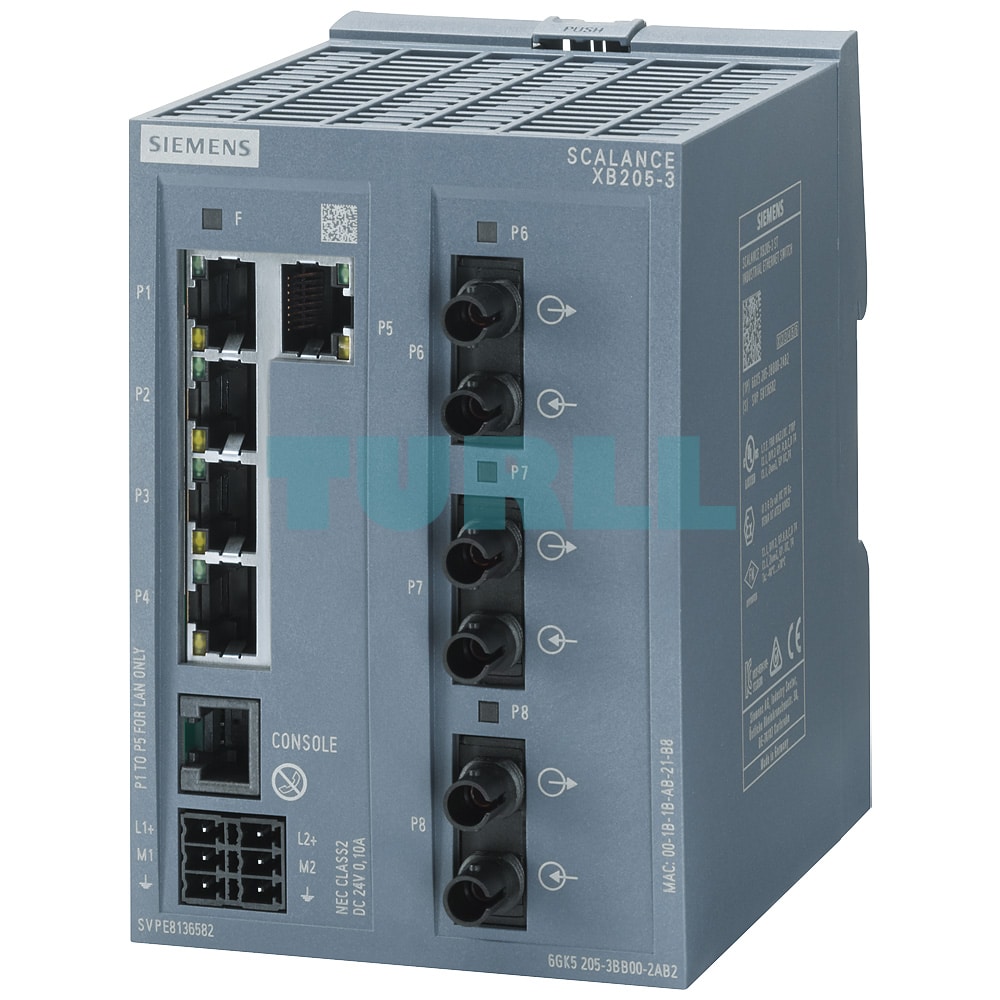

SIEMENS SCALANCE XB205-3 – 6GK5205-3BB00-2AB2

Managed Layer 2 Industrial Ethernet switch with 5x 10/100 Mbps RJ45 ports and 3x 100 Mbps ST multimode fiber ports. Includes 1x console port for configuration, LED diagnostics, redundant 24 V DC power inputs, and DIN rail mounting. IEC 62443-4-2 certified for secure industrial networking. PROFINET default mode enabled.

Overview

The SCALANCE XB205-3 is ideal for robust and secure industrial Ethernet environments requiring a mix of electrical and fiber-optic connectivity at 10/100 Mbps.

• 5 x RJ45 electrical ports for flexible network expansion
• 3 x multimode ST fiber ports for EMI-resistant long-distance connectivity
• Integrated console port for local switch management
• Redundant power supply for increased reliability
• LED indicators for power, traffic, link status, and errors
• Operating temperature range: 0 °C to +60 °C
• Certified to IEC 62443-4-2 for network security compliance

Product Variants

• SCALANCE XB205-3 (this unit): 5x RJ45 + 3x ST fiber + console
• SCALANCE XB208: 8x RJ45 electrical ports
• SCALANCE XB004G: 4x 10/100/1000 Mbps Gigabit RJ45 ports
• SCALANCE XB005-1: 5x RJ45 + 1x ST/BFOC

Design

• Compact IP20 enclosure for DIN rail mounting
• Designed for industrial cabinets and control panels
• Redundant 24 V DC power input via 4-pin terminal block
• Integrated diagnostics via LEDs and web interface
• Console port (RS232) for serial configuration

Port Types Available

• 5 x 10/100BaseTX RJ45
  • Autosensing/autocrossover, IEEE 802.3 compliant
• 3 x 100BaseFX ST (Multimode Fiber)
  • Glass fiber up to 5 km, 1310 nm wavelength
• 1 x RS232 console port for local setup

Product code: 6GK5205-3BB00-2AB2
