6GK5208-0HA00-2AS6 SIEMENS SCALANCE XP208 Exclusive Managed IE Switch Brand New Original

6GK5208-0HA00-2AS6 SIEMENS SCALANCE XP208 Exclusive Managed IE Switch Brand New Original

SCALANCE XP208 managed IE switch; 8x 10/100 Mbit/s M12 ports; IP65 protection; LED diagnostics; error signaling contact; redundant power supply; IEC 62443-4-2 certified; PROFINET IO device; integrated network management; supports redundant ring operation; dust caps included; electronic manual on CD-ROM; optional C-PLUG

Overview

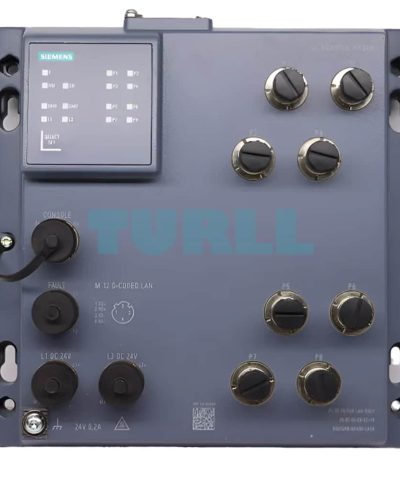

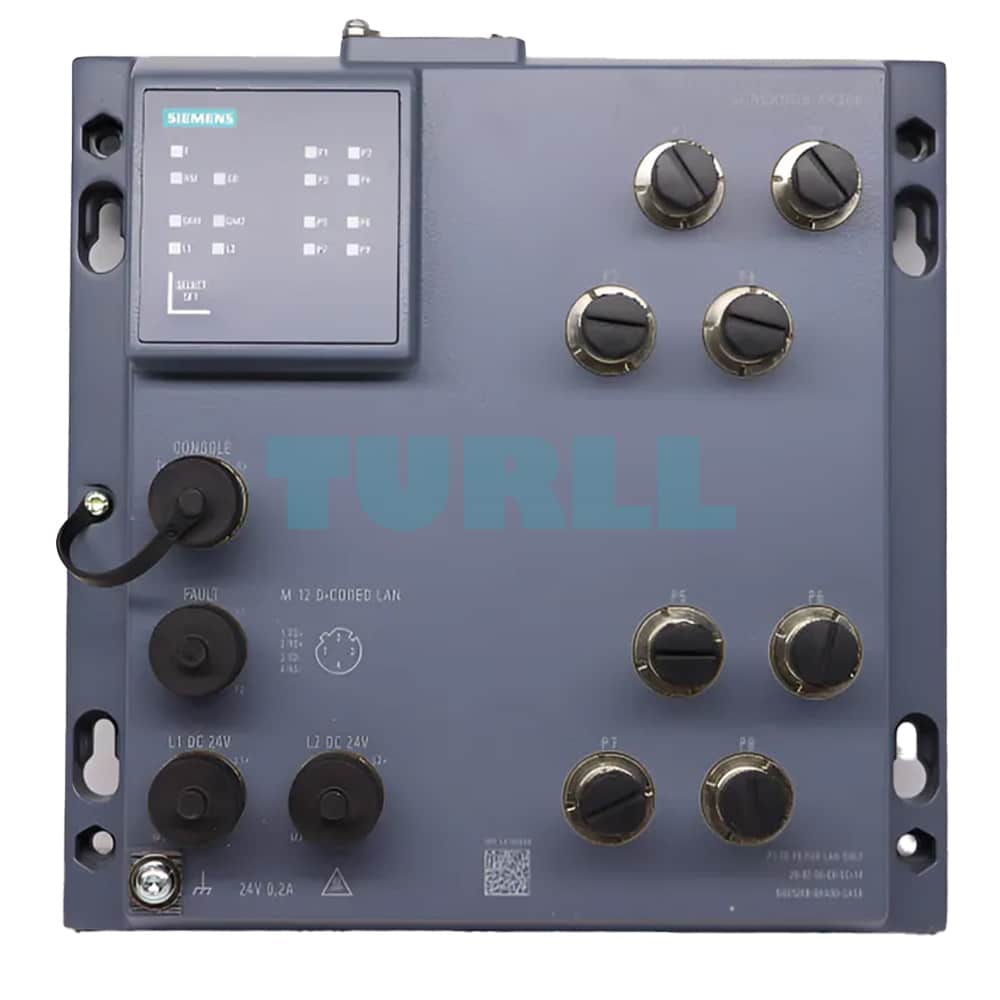

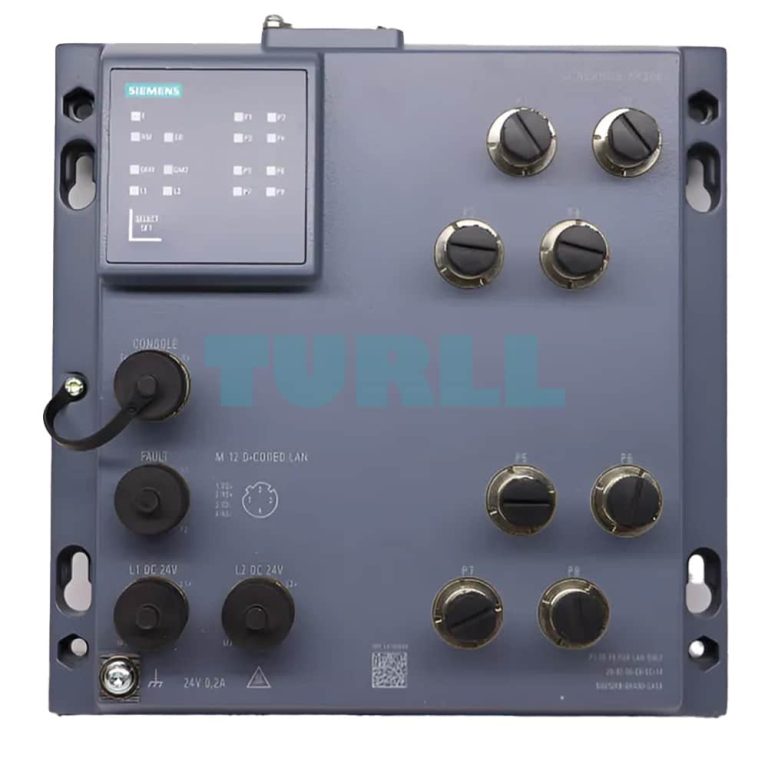

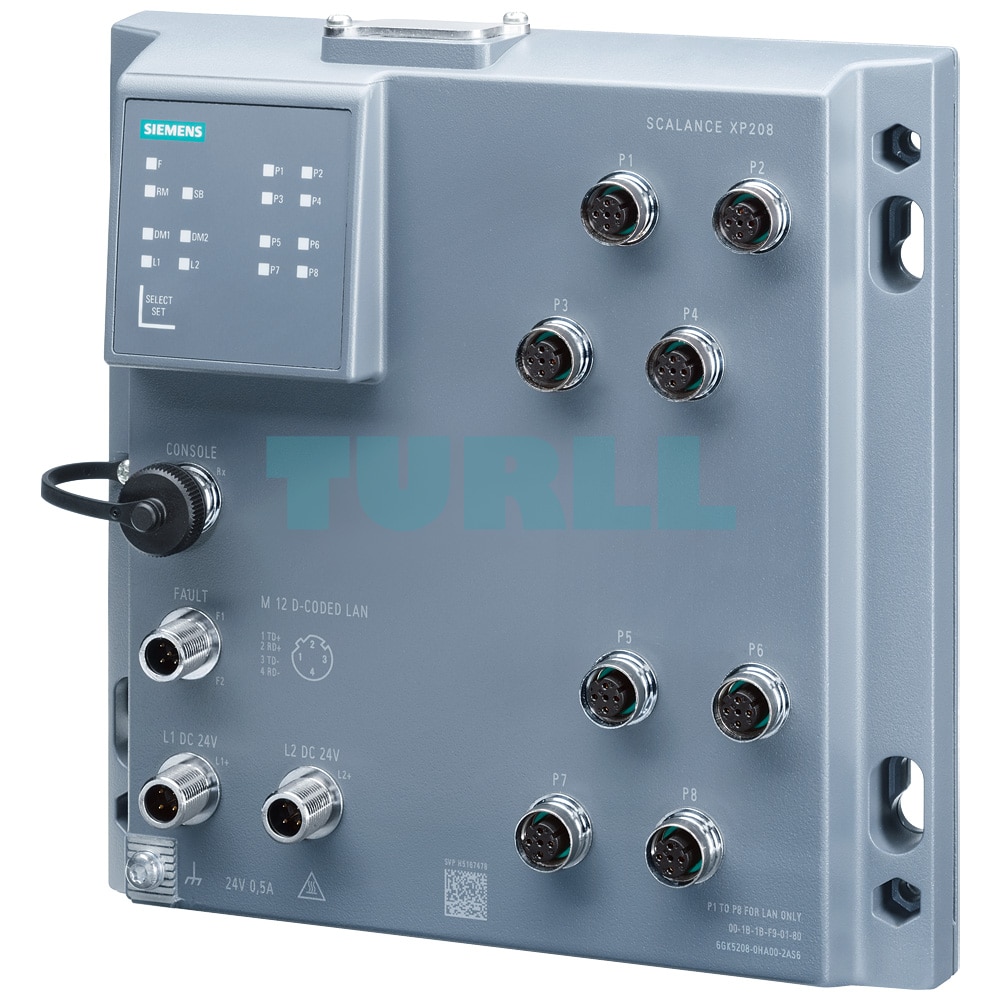

The Siemens SCALANCE XP208 (6GK5208-0HA00-2AS6) is an exclusive managed Layer 2 Industrial Ethernet switch designed for cabinet-free automation in harsh environments. With eight M12 D-coded ports supporting 10/100 Mbit/s and IP65-rated aluminum housing, it enables reliable communication in line, star, or ring topologies.

This model features an integrated redundancy manager for high-availability networks, LED diagnostics, and a signaling contact with SELECT/SET button. It supports redundant 24 V DC power input via M12 connectors and includes a console port for local configuration. Certified to IEC 62443-4-2, it ensures robust cybersecurity and integrates seamlessly with PROFINET systems and the SINEC NMS network management platform.

With support for VLAN, RSTP, ACL, IGMP snooping, and IEEE 802.1X authentication, the XP208 is an exclusive solution for rugged, secure, and space-efficient industrial networking.

Key Features

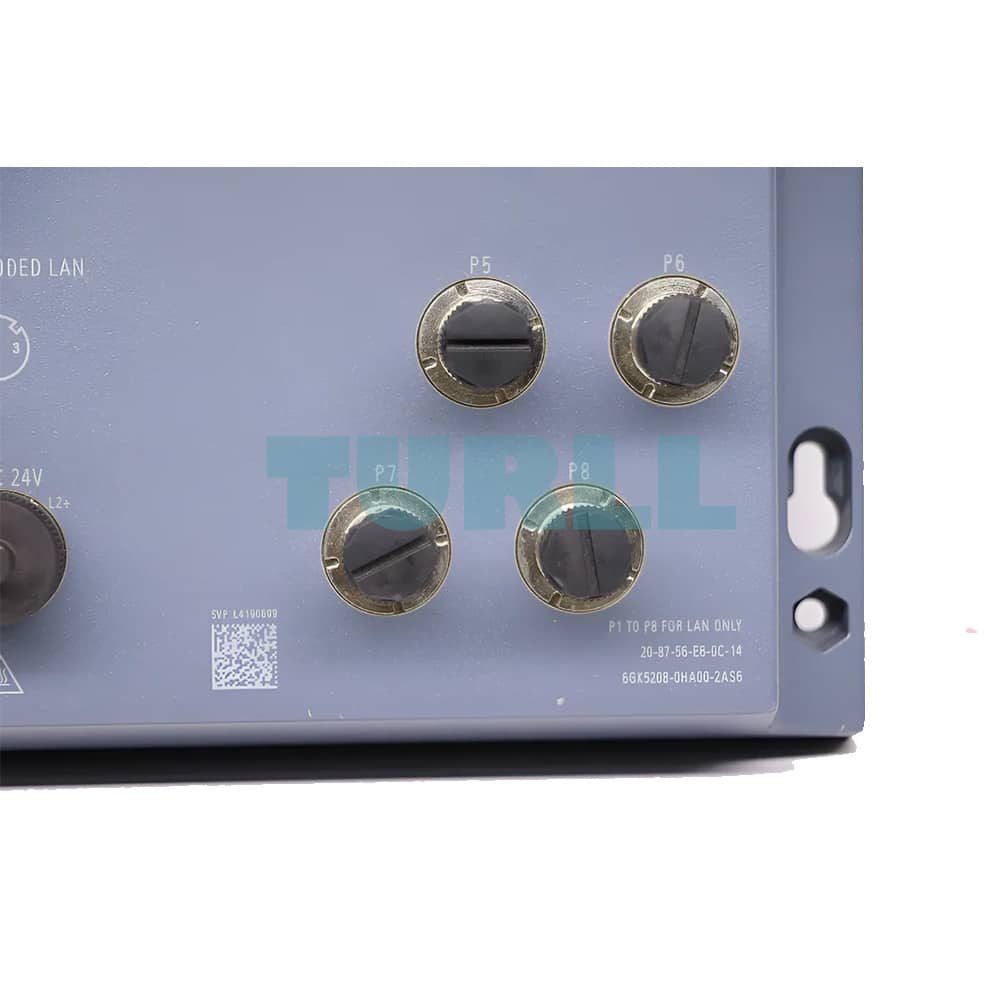

• 8 x 10/100 Mbit/s M12 D-coded ports
• IP65-rated aluminum enclosure for outdoor/cabinet-free use
• IEC 62443-4-2 certified for industrial cybersecurity
• Redundant 24 V DC power supply via M12 connectors

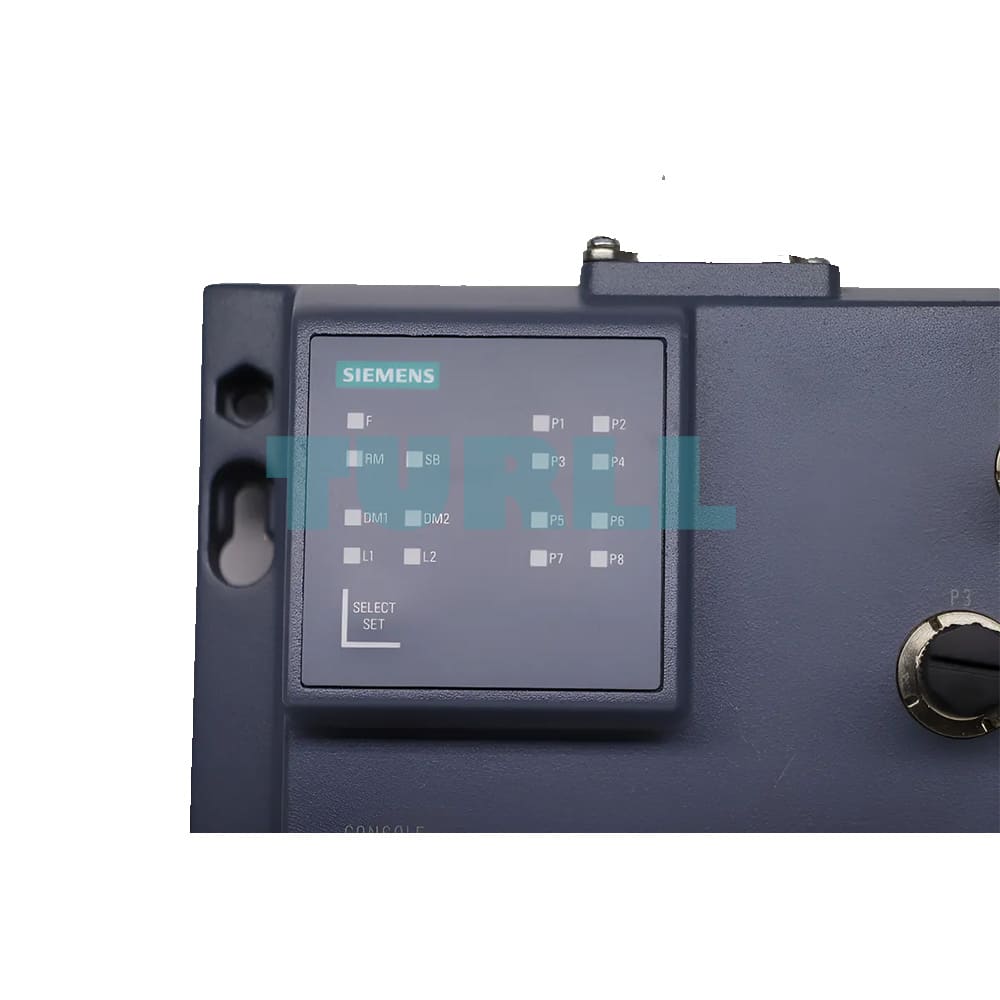

• LED diagnostics and error signaling contact
• Console port (M12 D-coded) for local access
• VLAN, RSTP, ACL, IGMP snooping, IEEE 802.1X
• PROFINET IO and EtherNet/IP compatible
• C-PLUG slot for fast device replacement
• Operating temperature: –40 °C to +70 °C

Product Code: 6GK5208-0HA00-2AS6 More Siemens products at Turll.com
