6GK5208-0UA00-5ES6 SIEMENS SCALANCE XP208PoE EEC Exclusive Managed IE Switch Brand New Original
$3,869.33

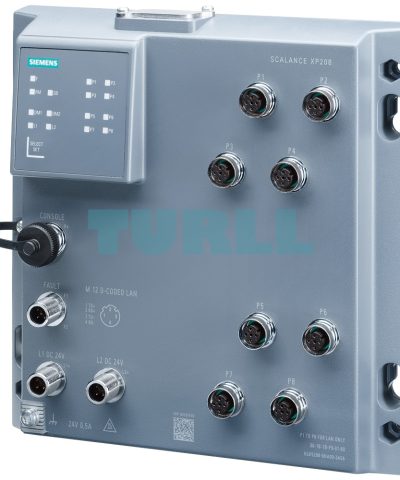

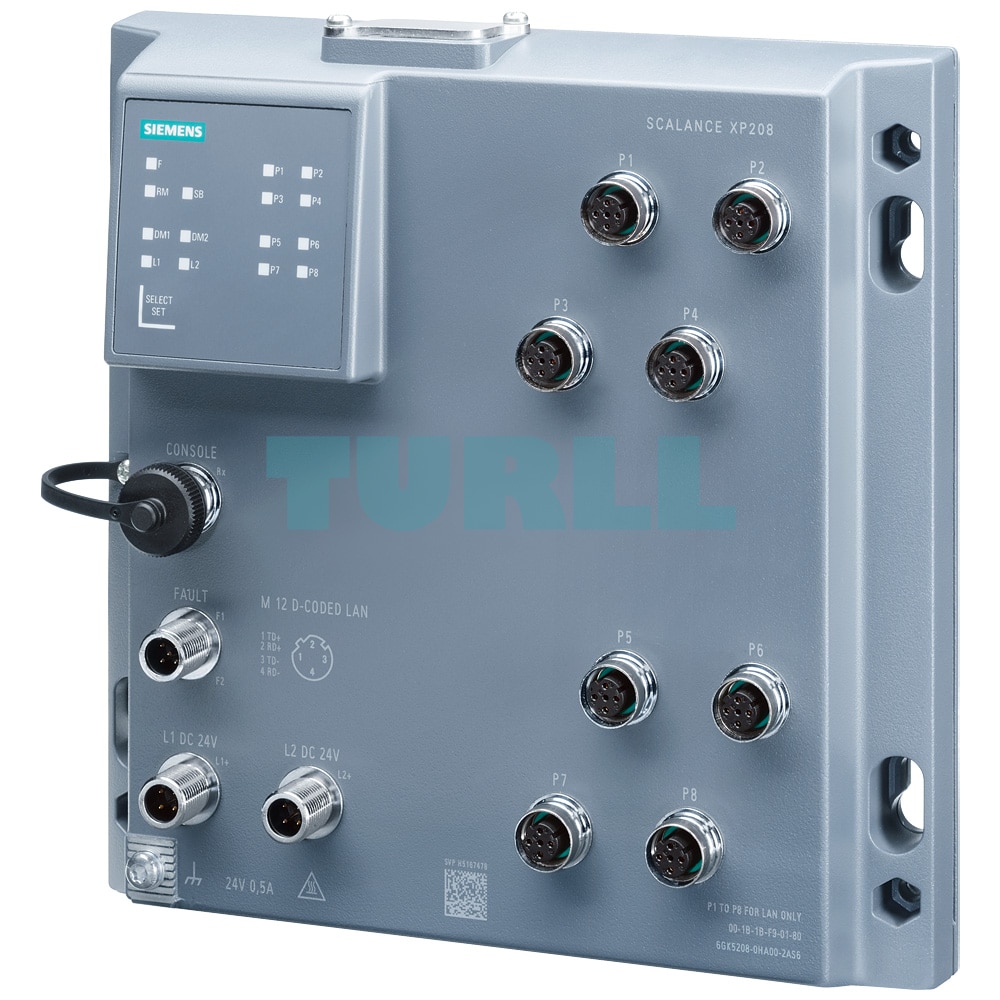

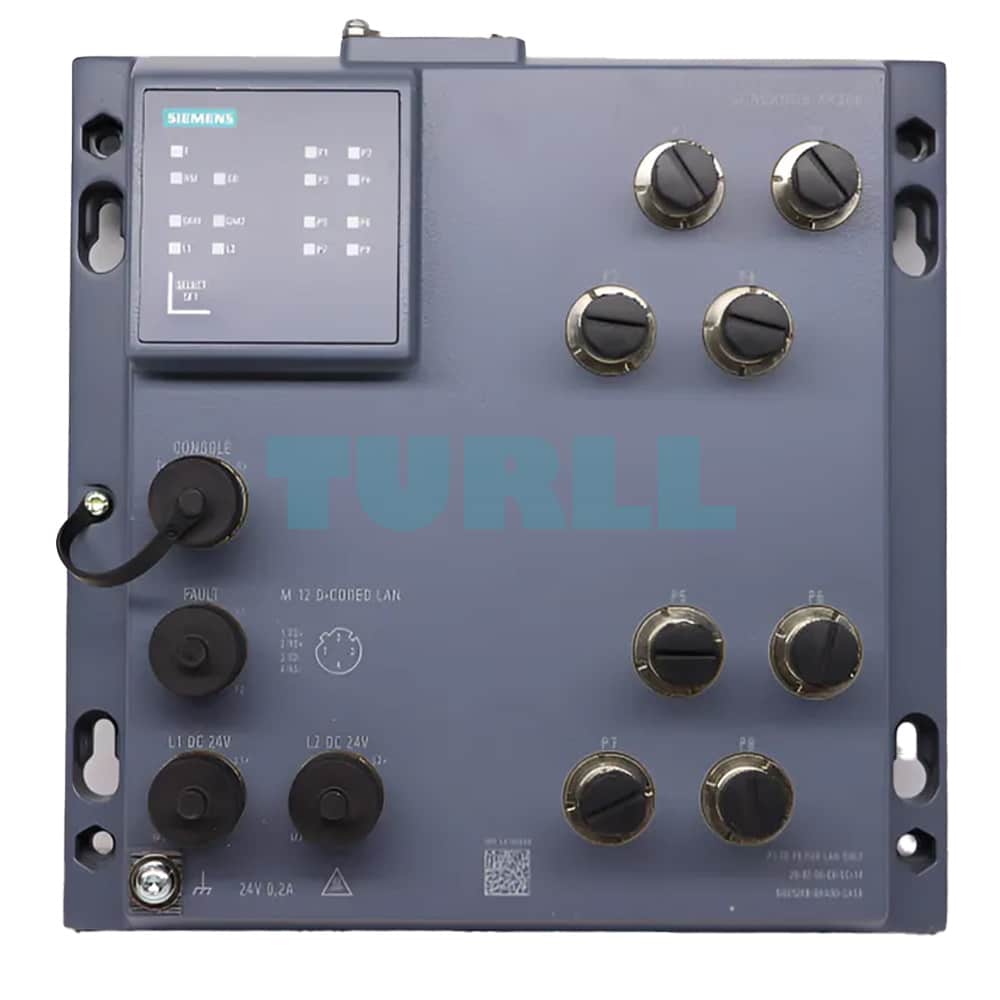

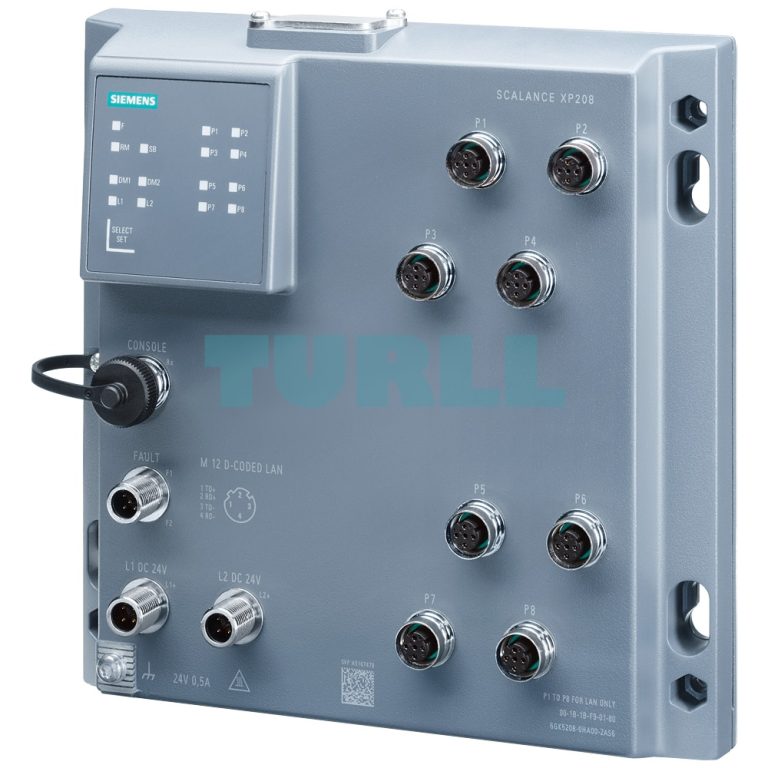

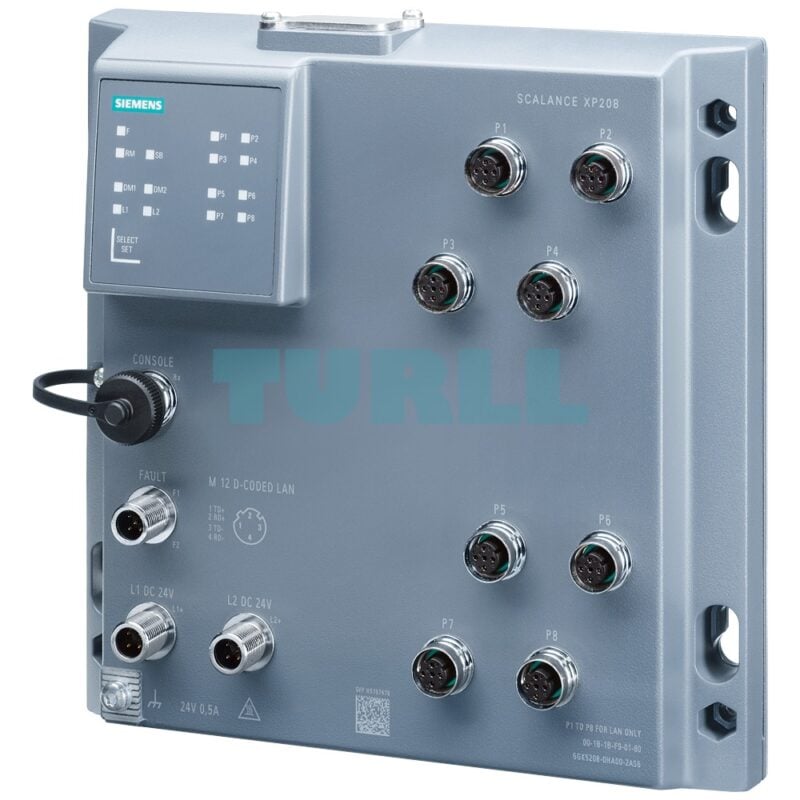

6GK5208-0UA00-5ES6 Siemens SCALANCE XP208PoE EEC exclusive managed switch with 8 M12 ports, IP65, PoE, IEC 62443-4-2 certified, and PROFINET support.
6GK5208-0UA00-5ES6 SIEMENS SCALANCE XP208PoE EEC Exclusive Managed IE Switch Brand New Original
SCALANCE XP208PoE EEC managed IE switch; 8x 10/100 Mbit/s M12 ports; IP65 protection; IEC 62443-4-2 certified; LED diagnostics; error signaling contact; redundant power supply; PROFINET IO device; network management; supports redundant ring operation; dust caps included; electronic manual on CD-ROM; optional C-PLUG
Overview
The Siemens SCALANCE XP208PoE EEC (6GK5208-0UA00-5ES6) is an exclusive managed Layer 2 Industrial Ethernet switch with integrated Power over Ethernet (PoE), designed for rugged, cabinet-free automation environments. With eight M12 D-coded ports supporting 10/100 Mbit/s and IP65-rated metal housing, it enables reliable communication in line, star, or ring topologies.
Certified to IEC 62443-4-2 and optimized for process automation, this model features conformal-coated PCBs, redundant 24 V DC power input via M12 connectors, and extended temperature operation from –40 °C to +70 °C. It supports PROFINET diagnostics, VLAN segmentation, RSTP, ACLs, IGMP snooping, and IEEE 802.1X authentication.
With LED diagnostics, a configurable error signaling contact, and integration into the SINEC NMS platform, the XP208PoE EEC is an exclusive solution for secure, high-availability, and rail-compliant industrial networks.
Key Features

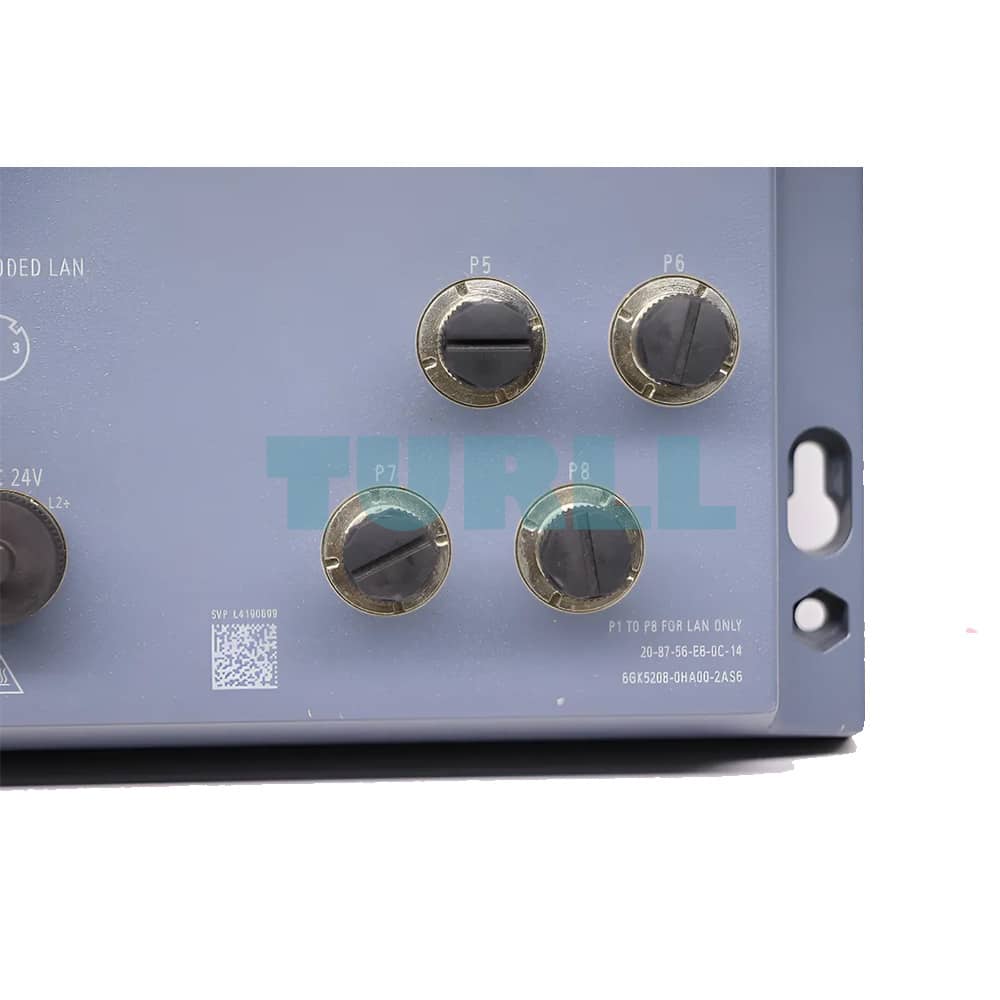

- 8 x 10/100 Mbit/s M12 D-coded ports with PoE
- IP65-rated metal enclosure for outdoor/cabinet-free use
- IEC 62443-4-2 certified; EN 50155/45545 rail-compliant
- Conformal-coated PCBs for harsh environments
- Redundant 24 V DC power supply via M12 connectors

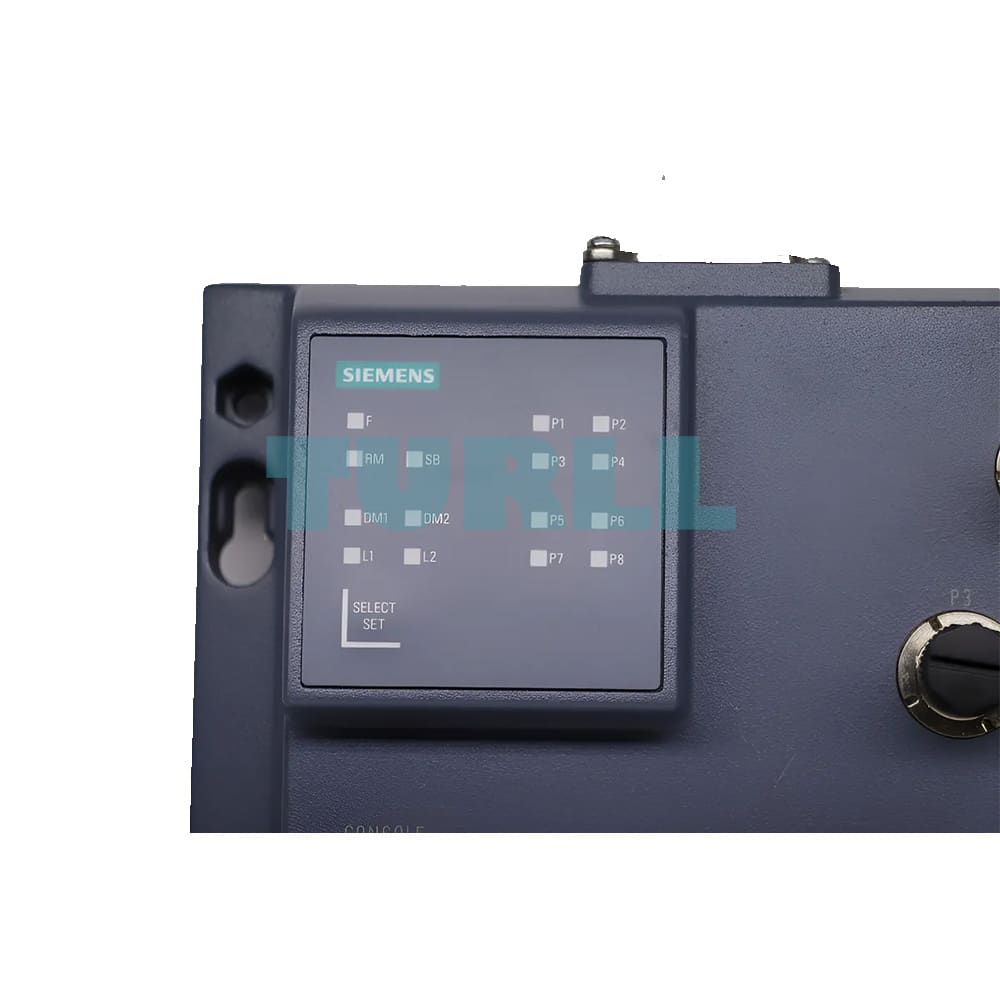

- LED diagnostics and error signaling contact
- Console port (M12 D-coded) for local access
- VLAN, RSTP, ACL, IGMP snooping, IEEE 802.1X
- PROFINET IO and EtherNet/IP compatible
- C-PLUG slot for fast device replacement
- Operating temperature: –40 °C to +70 °C
Product Code: 6GK5208-0UA00-5ES6
| Weight | 0.6 kg |
|---|---|
| Dimensions | 120 × 109 × 117 mm |
