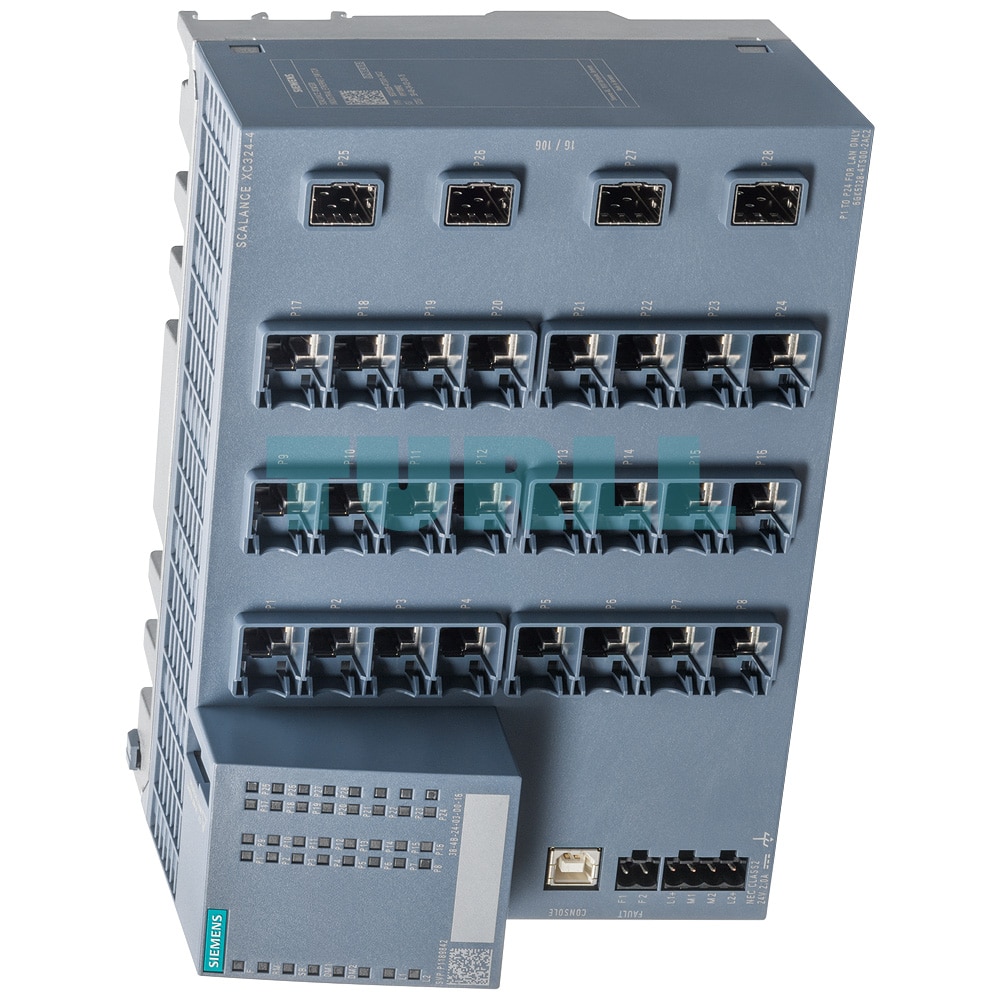

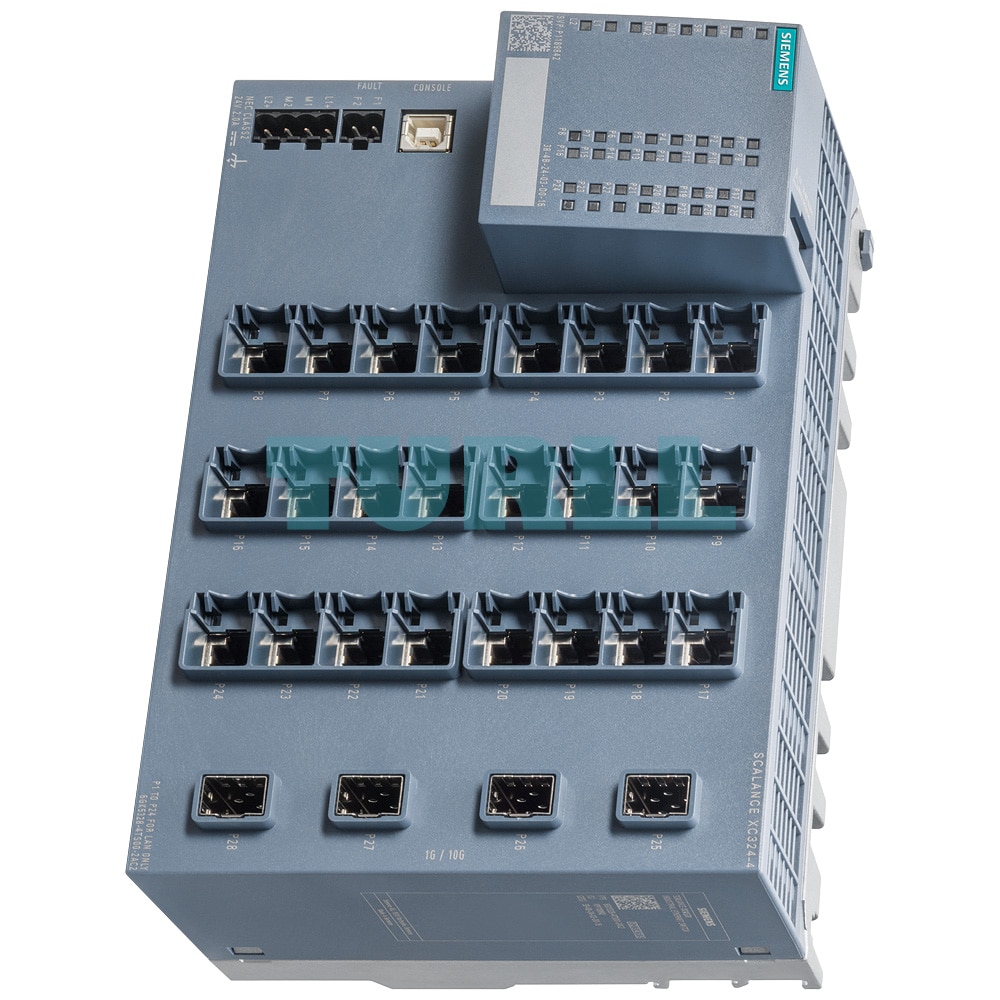

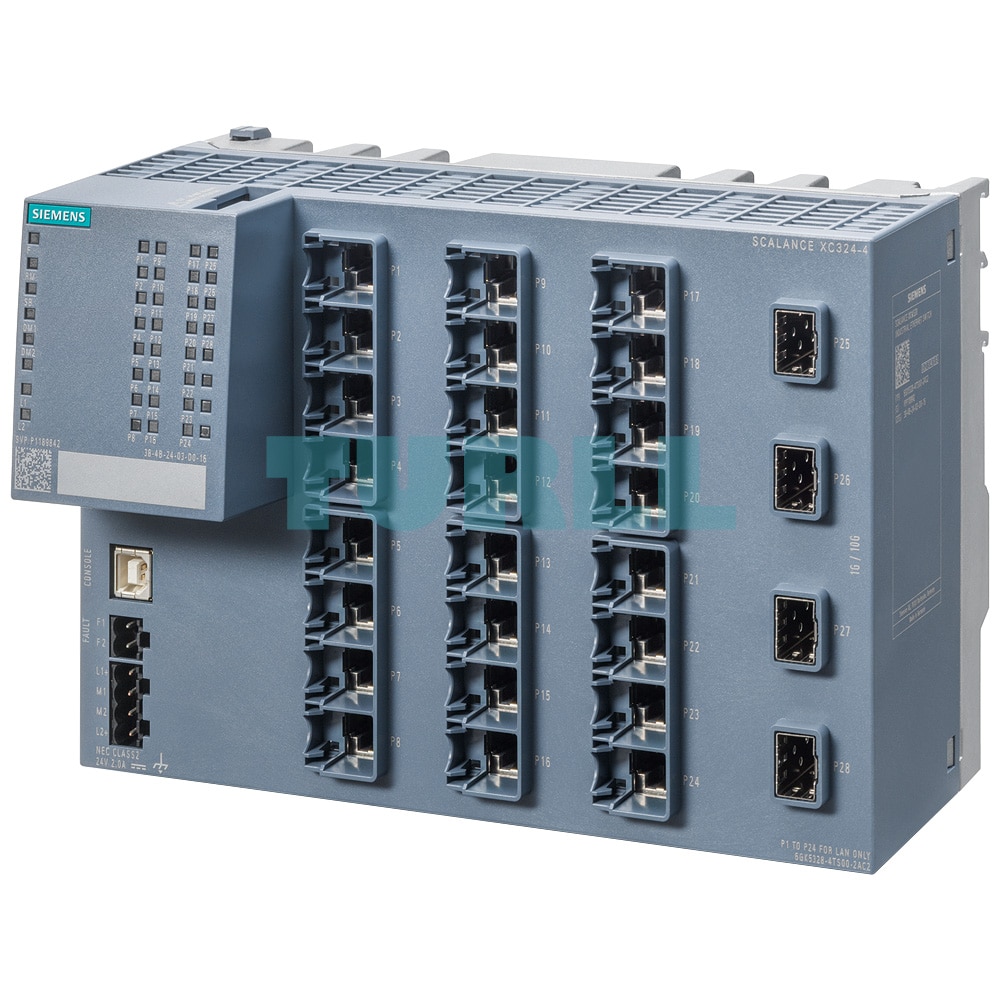

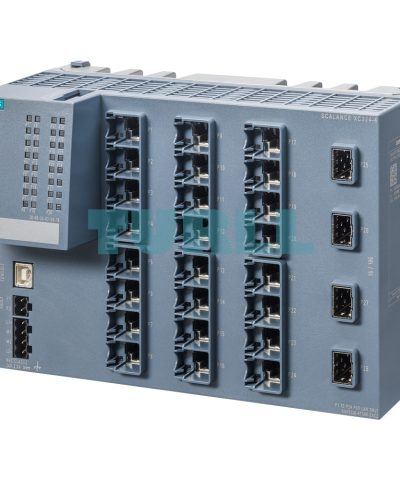

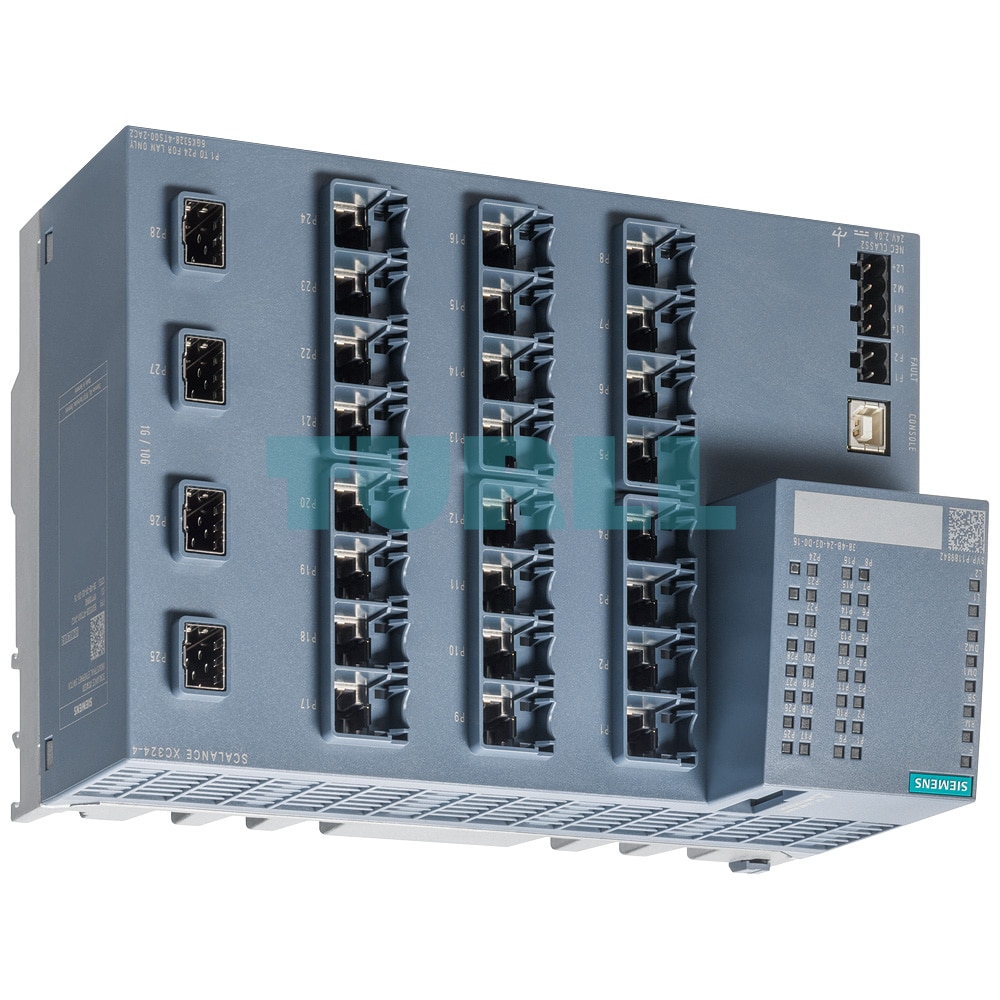

6GK5328-4TS01-2AC2 SIEMENS SCALANCE XCM328 Exclusive Managed IE Switch Brand New Original
$10,311.83
6GK5328-4TS01-2AC2 Siemens SCALANCE XCM328 exclusive managed switch with 24 RJ45, 4 SFP+ ports, IEC 62443-4-2 certified, PROFINET IO, and DIN rail mounting.
6GK5328-4TS01-2AC2 SIEMENS SCALANCE XCM328 Exclusive Managed IE Switch Brand New Original
SCALANCE XCM328 managed Layer 2 IE switch; 24x 10/100/1000 Mbps RJ45 ports; 4x 1/10 Gbps SFP+ ports; LED diagnostics; error signaling contact with select/set pushbutton; PROFINET IO device; network management; redundancy functions; office features (RSTP, VLAN, IGMP); CLP included; DIN rail/S7 mounting rail assembly
Overview
The Siemens SCALANCE XCM328 (6GK5328-4TS01-2AC2) is an exclusive full-gigabit managed Layer 2 Industrial Ethernet switch from the XCM-300 series, designed for high-speed automation networks with data rates up to 10 Gbps. It features 24 RJ45 ports (10/100/1000 Mbps) and 4 SFP+ ports (1/10 Gbps), enabling flexible electrical and optical topologies.
Optimized for DIN rail and SIMATIC S7 mounting, this compact switch supports PROFINET IO diagnostics, redundancy protocols, and advanced VLAN segmentation. With LED diagnostics, CLP configuration memory, and rugged IP20 housing, the XCM328 is an exclusive solution for scalable, secure, and high-bandwidth industrial Ethernet infrastructure.
Key Features
- 24 x 10/100/1000 Mbps RJ45 electrical ports
- 4 x 1/10 Gbps SFP+ ports for optical uplinks
- IEC 62443-4-2 certified; PROFINET IO device
- Redundant 24 V DC power supply via dual 2-pin terminal blocks
- LED diagnostics and select/set pushbutton
- VLAN, RSTP, IGMP snooping, ACL, IEEE 802.1X
- DIN rail, SIMATIC S7-300/S7-1500, or wall mounting
- CLP removable memory included
- Operating temperature: –40 °C to +60 °C
- IP20 protection; fanless operation
Product Code: 6GK5328-4TS01-2AC2 More Siemens products at
| Weight | 0.52 kg |
|---|---|
| Dimensions | 205 × 205 × 245 mm |
