7MH4980-2AA01 SIEMENS Exclusive SIWAREX WP522 Weighing Module Original Brand New
$2,146.35
SIWAREX WP522 ST two-channel weighing module for SIMATIC S7-1500 with load cell interface, Ethernet, and advanced industrial weighing functions.
7MH4980-2AA01 SIEMENS Exclusive SIWAREX WP522 Weighing Module Original Brand New

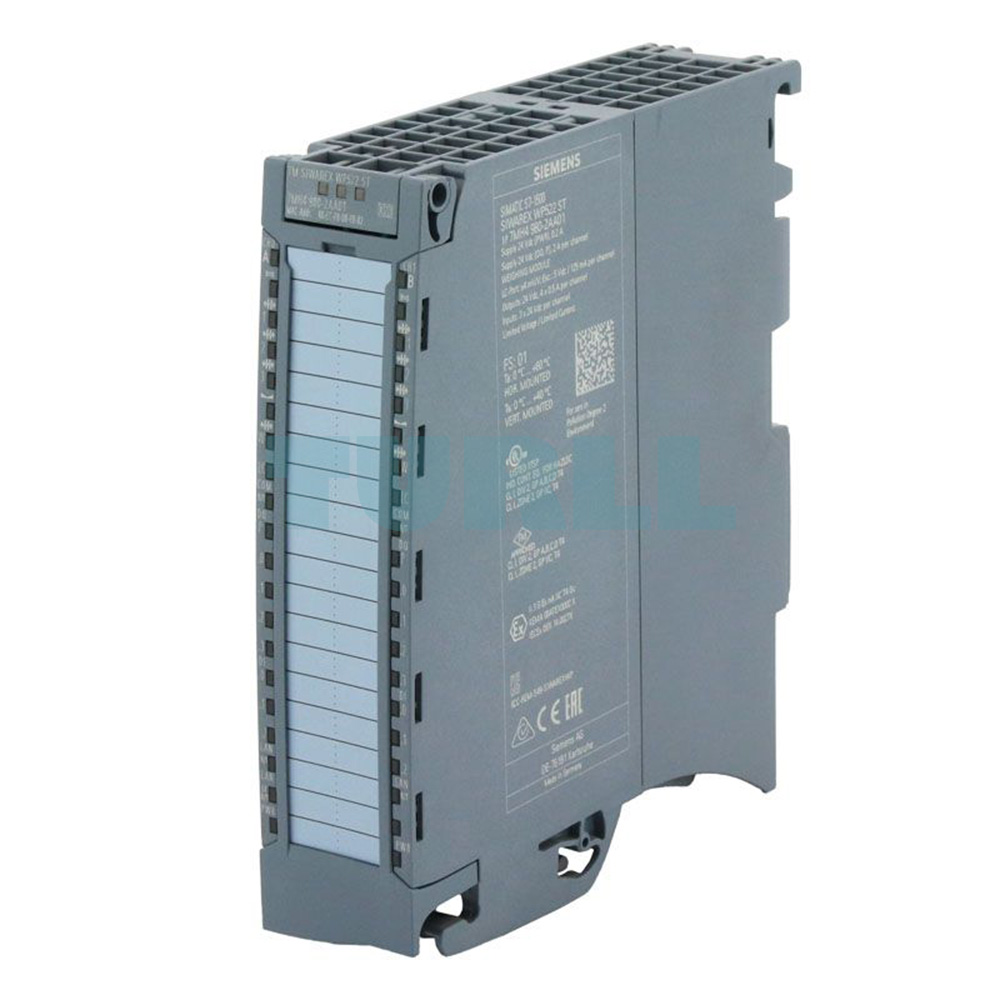

The 7MH4980-2AA01 SIWAREX WP522 ST is a high-performance two-channel weighing module designed for seamless integration into the SIMATIC S7-1500 automation environment. Engineered for platform and hopper scales, this module supports analog load cells and strain gauges (full bridges), delivering precise and reliable measurement results for industrial applications.
Equipped with dual load cell interfaces (1–4 mV/V), digital inputs and outputs, RS485 communication, and Ethernet connectivity, the module ensures flexible integration and efficient data exchange. Its robust design enables consistent performance in demanding industrial environments, making it an ideal choice for automation systems requiring accurate weighing and monitoring.
Overview
The SIWAREX WP522 ST is part of the SIMATIC S7-1500 Advanced Controller family, offering seamless integration of weighing applications into automation systems. It is specifically designed for non-automatic weighing instruments such as platform and hopper scales, providing essential weighing functions including zeroing, taring, and tare specification.
The module allows users to define up to three limit values, which can be assigned to digital outputs for automated control processes. Additional system status information can also be linked to outputs, enhancing process automation. Digital inputs enable direct connection of pushbuttons, allowing flexible assignment of functions such as zeroing and tare operations.
Design
The 7MH4980-2AA01 module communicates directly with the SIMATIC S7-1500 controller via the system bus, eliminating the need for additional communication modules. Its compact 35 mm design allows easy mounting on standard DIN rails, ensuring quick installation and seamless integration with other automation components.

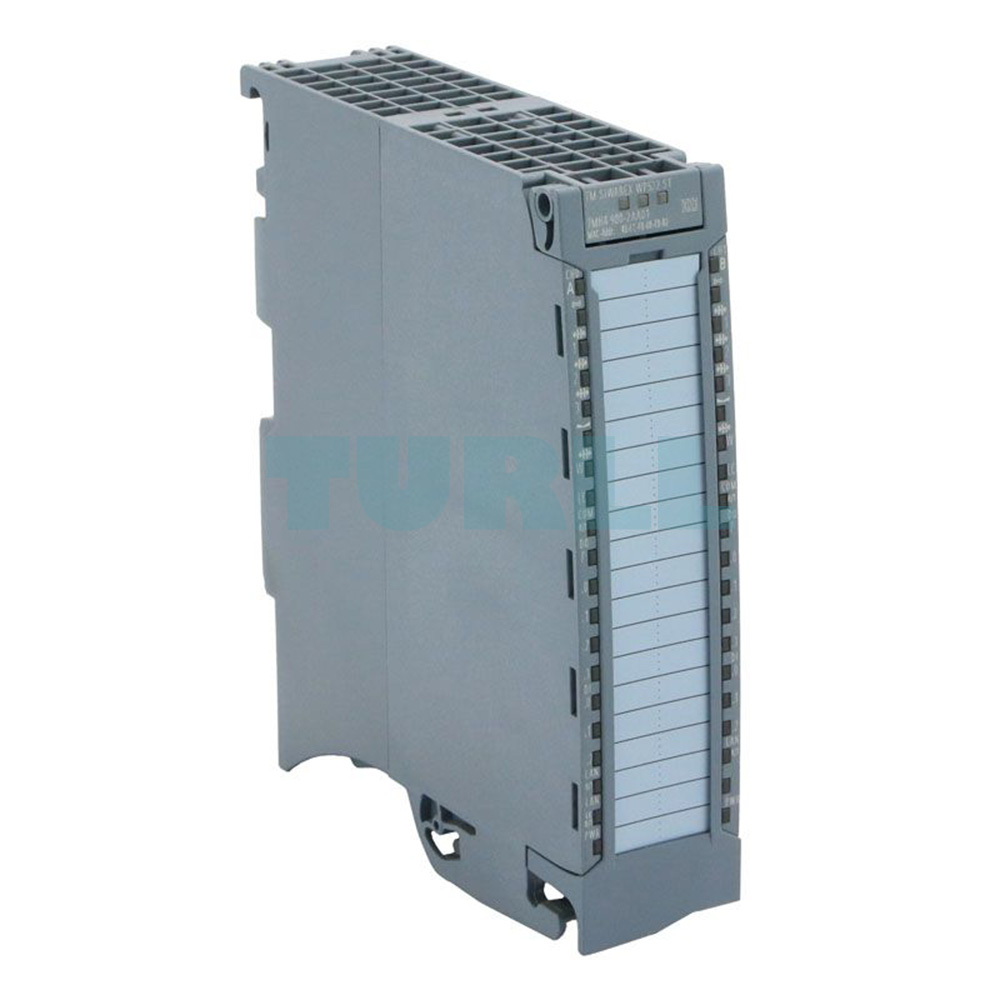

The module is supplied with a shielding set, including a shield clamp, shielding bracket, and a 24 V DC supply element, ensuring optimal electromagnetic compatibility. Connections for power supply, load cells, RS485 interface, and digital I/O are handled via a removable front connector, simplifying installation and maintenance.
An integrated RJ45 Ethernet port provides connectivity for SIWATOOL configuration and Modbus TCP/IP communication, enabling advanced control and monitoring capabilities within industrial networks.
Download
Product Code: 7MH4980-2AA01
More Siemens products at Turll.com
| Weight | 0.200 kg |
|---|---|

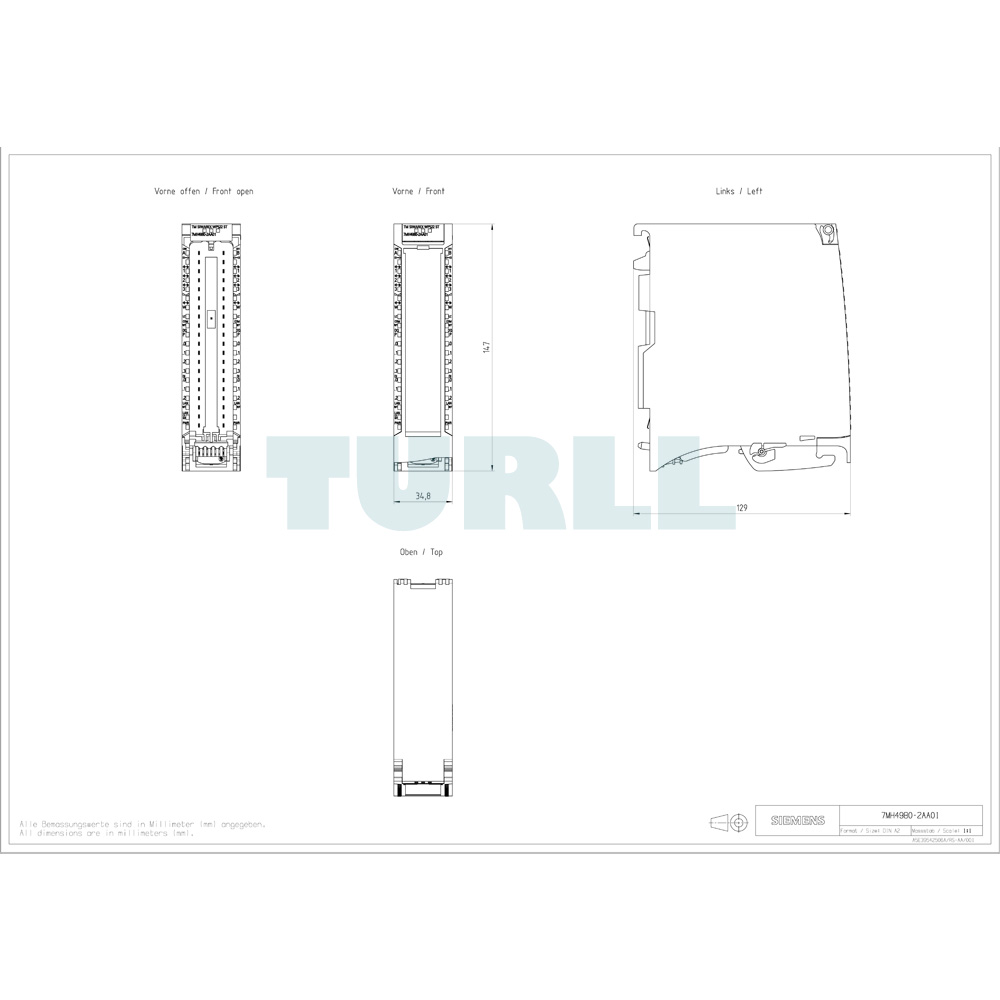

| Dimensions | 164.00 × 191.00 × 41.00 mm |
