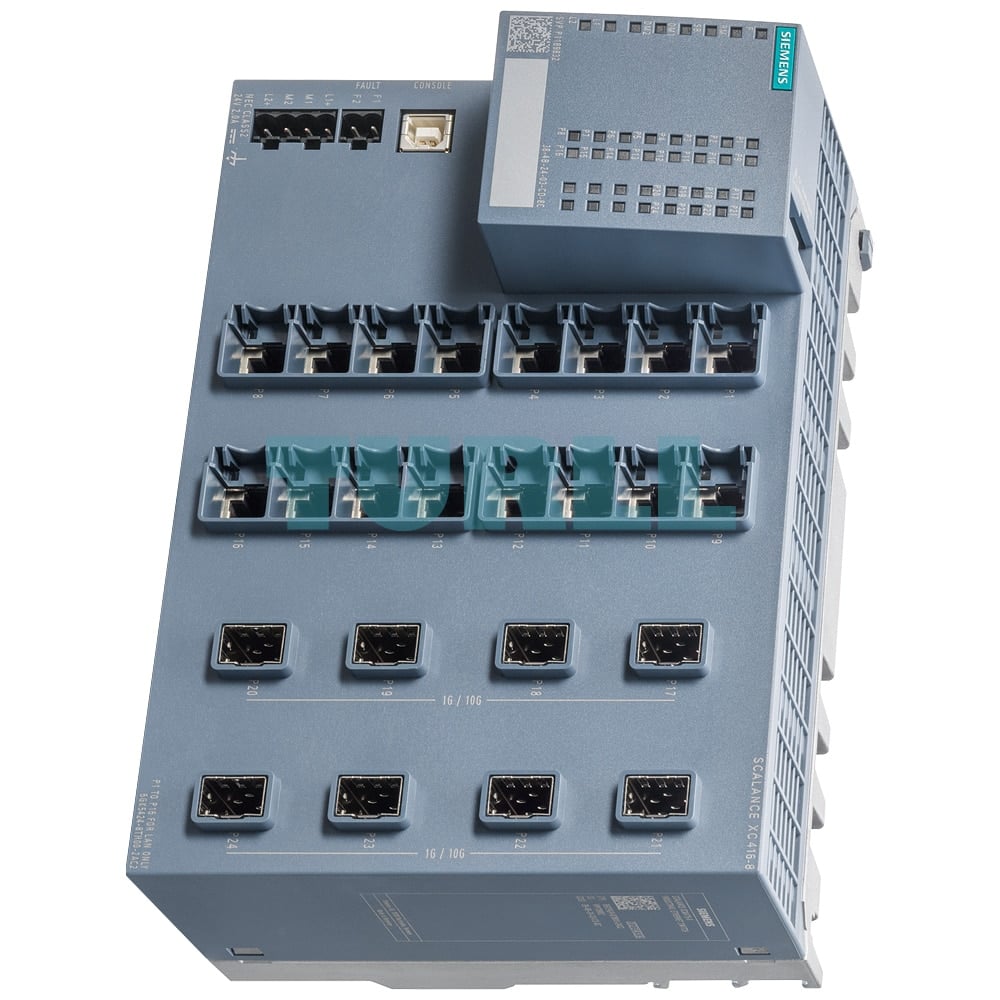

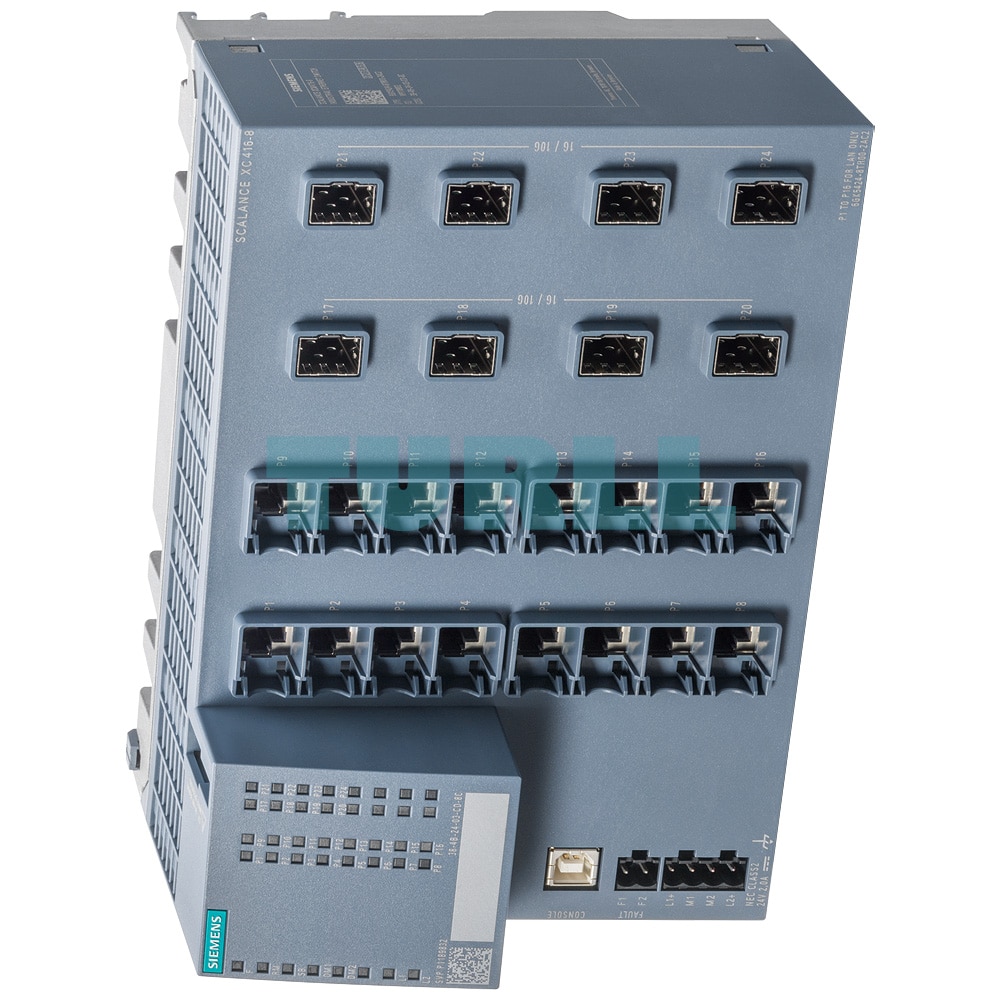

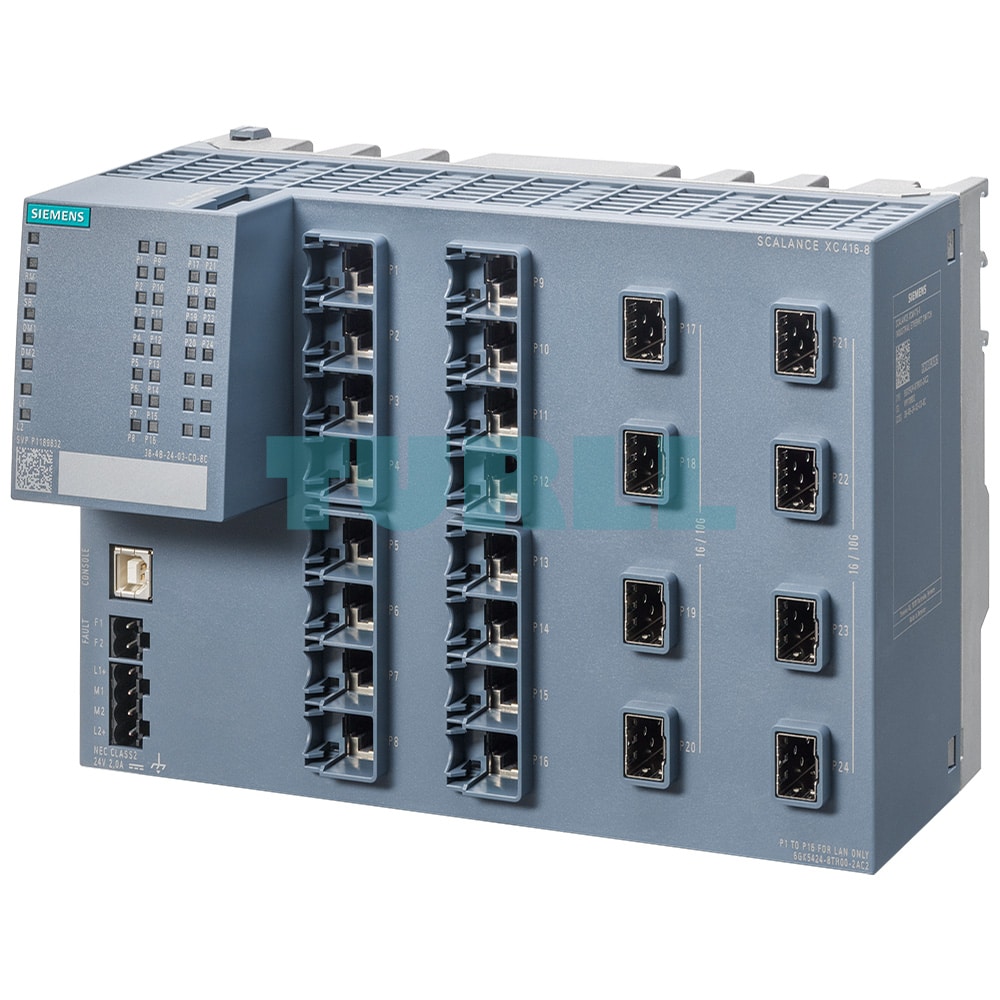

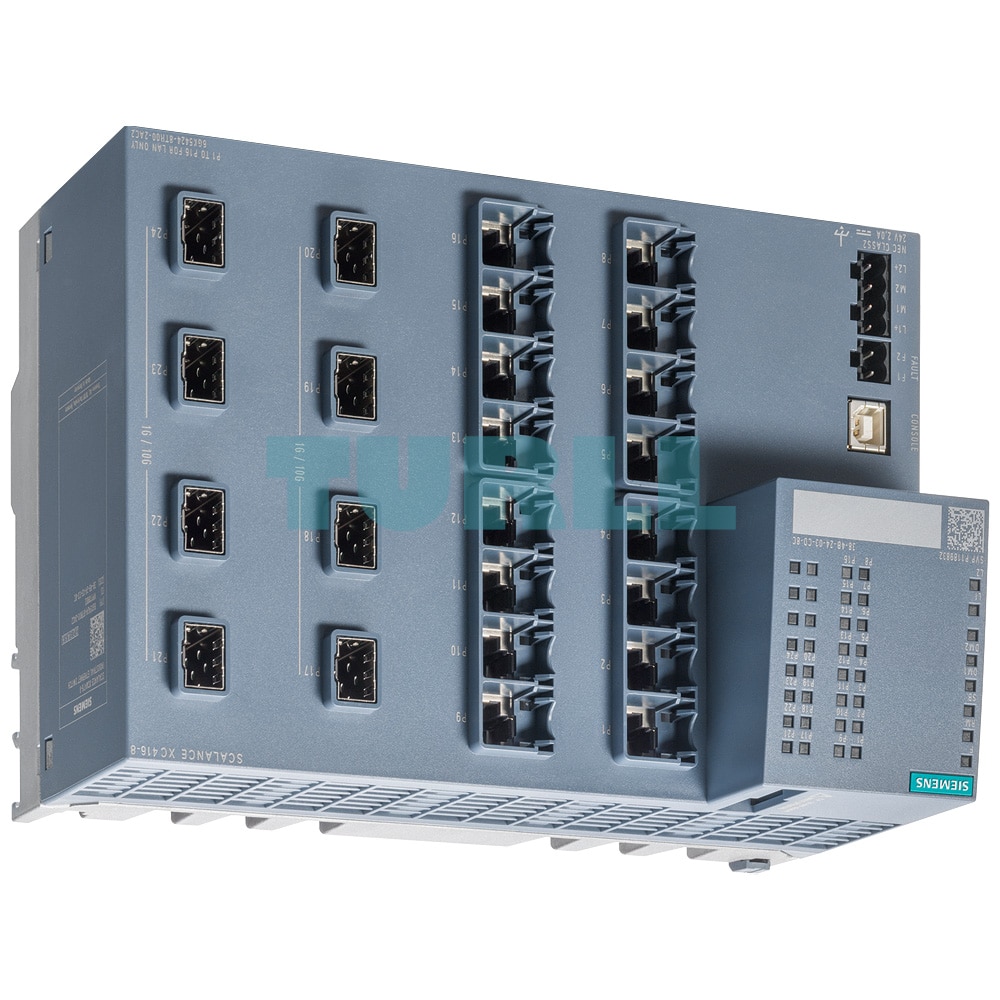

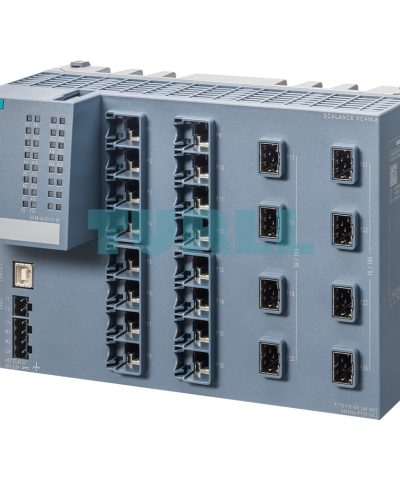

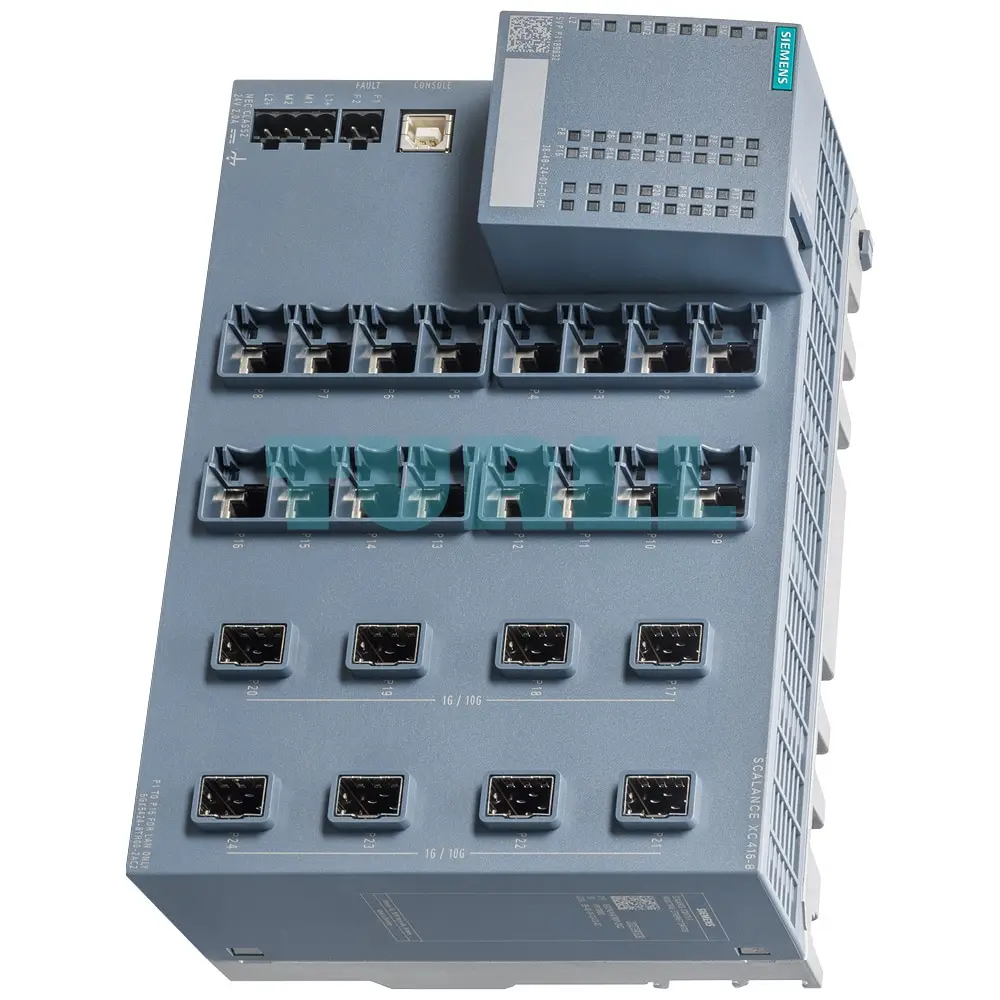

6GK5424-8TR00-2AC2 SIEMENS SCALANCE XC416-8 Exclusive Managed Layer 3 IE Switch Brand New Original

6GK5424-8TR00-2AC2 SIEMENS SCALANCE XC416-8 Exclusive Managed Layer 3 IE Switch Brand New Original

SCALANCE XC416-8 managed Layer 3 IE switch; 16x 10/100/1000 Mbps RJ45 ports; 8x 1G/10G SFP+ ports; LED diagnostics; error signaling contact with select/set button; PROFINET IO device; network management; redundancy functions; office features (RSTP, VLAN, IGMP); CLP included; DIN rail/S7 mounting rail

Overview

The Siemens SCALANCE XC416-8 (6GK5424-8TR00-2AC2) is an exclusive Layer 3 managed Industrial Ethernet switch designed for high-performance automation networks. It features 16 RJ45 ports for electrical connections and 8 SFP+ ports for high-speed optical uplinks up to 10 Gbps. With integrated routing capabilities, this switch supports dynamic and static IP routing, making it ideal for complex industrial topologies.

The XC416-8 supports PROFINET IO diagnostics, advanced redundancy protocols, and office-grade features such as VLAN segmentation and IGMP snooping. Its rugged IP20 housing, fanless design, and DIN/S7 rail mounting make it suitable for harsh industrial environments. The included CLP memory module ensures fast device replacement and configuration backup.

Key Features

• 16 x 10/100/1000 Mbps RJ45 ports
• 8 x 1G/10G SFP+ ports for optical uplinks
• Layer 3 routing: static, dynamic (OSPF, RIP), VRRP
• PROFINET IO diagnostics; conformity class B
• Redundancy protocols: MRP, HRP, HSR, PRP, RSTP, MSTP
• VLAN, IGMP snooping, ACL, SNMP, IEEE 802.1X
• LED diagnostics and select/set pushbutton
• USB console port; signaling contact
• DIN rail and S7 mounting compatible
• IP20 protection; fanless operation
• Operating temperature: –40 °C to +60 °C
• Power supply: 2 x 24 V DC terminal blocks
• Dimensions: 210 x 147 x 125 mm
• Net weight: approx. 1.8 kg
• CLP memory module included
