6GK5524-8GS00-2AR2 SIEMENS SCALANCE XR524-8C Exclusive Managed Layer 3 IE Switch Brand New Original

6GK5524-8GS00-2AR2 SIEMENS SCALANCE XR524-8C Exclusive Managed Layer 3 IE Switch Brand New Original

SCALANCE XR524-8C managed IE switch; 24x 10/100/1000 Mbps RJ45 ports; 8x 100/1000 Mbps SFP ports; 8 combo ports (RJ45/SFP); total 24 usable ports; 24 V DC power supply; Layer 3 routing available via Key-Plug; error signaling contact; select/set pushbutton; PROFINET IO device; redundancy functions; office features (RSTP, VLAN, IGMP); C-PLUG included

Overview

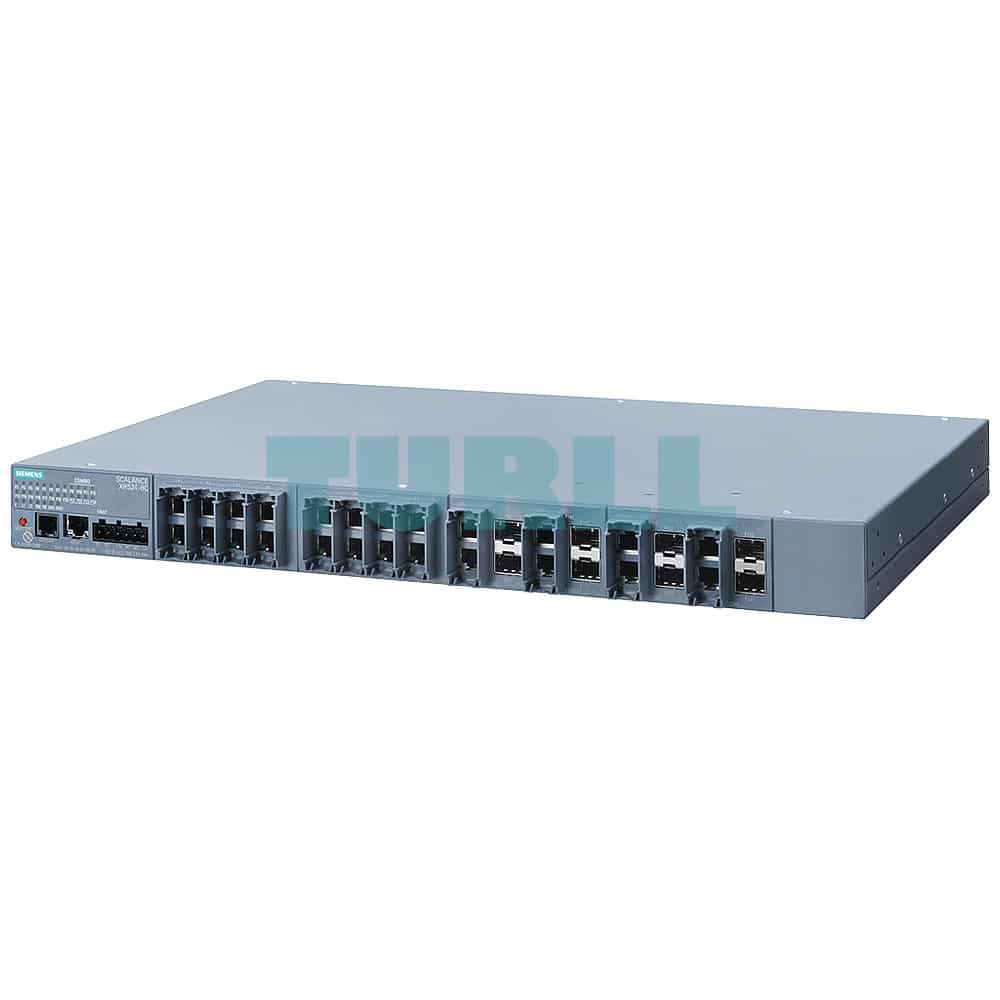

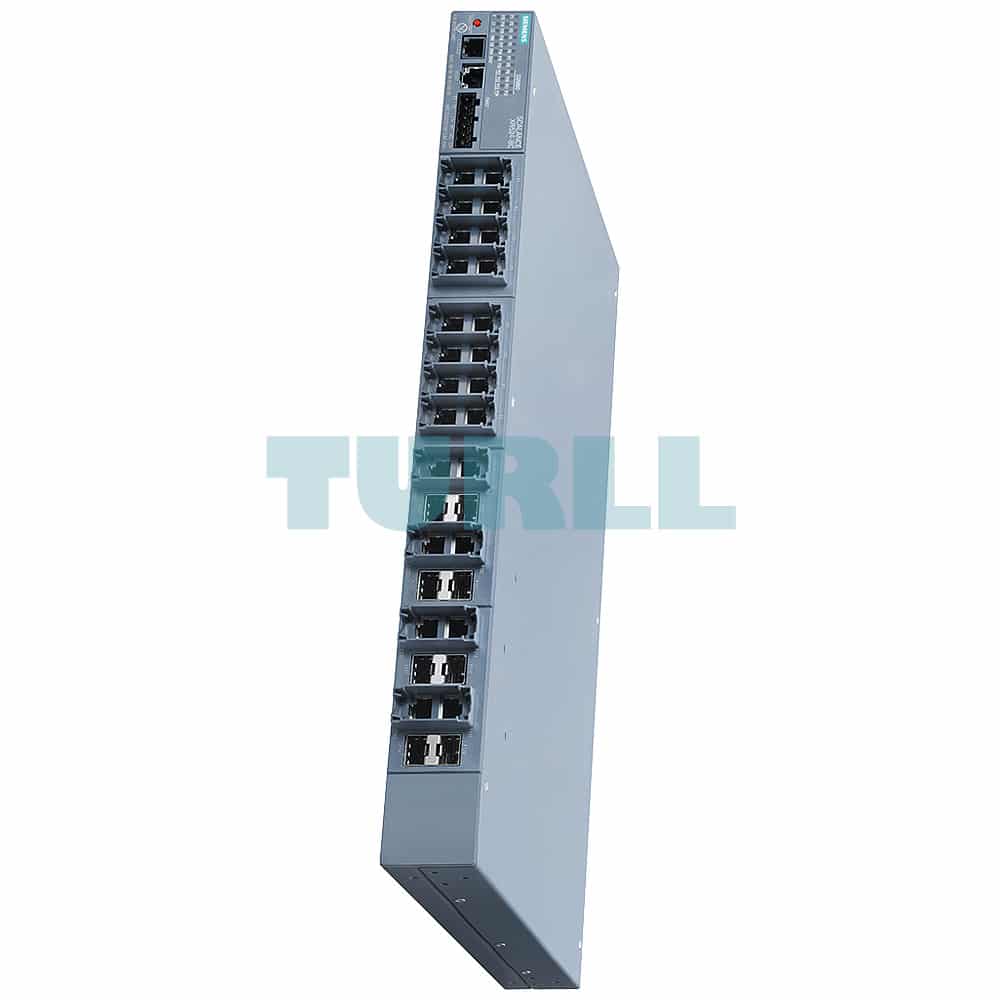

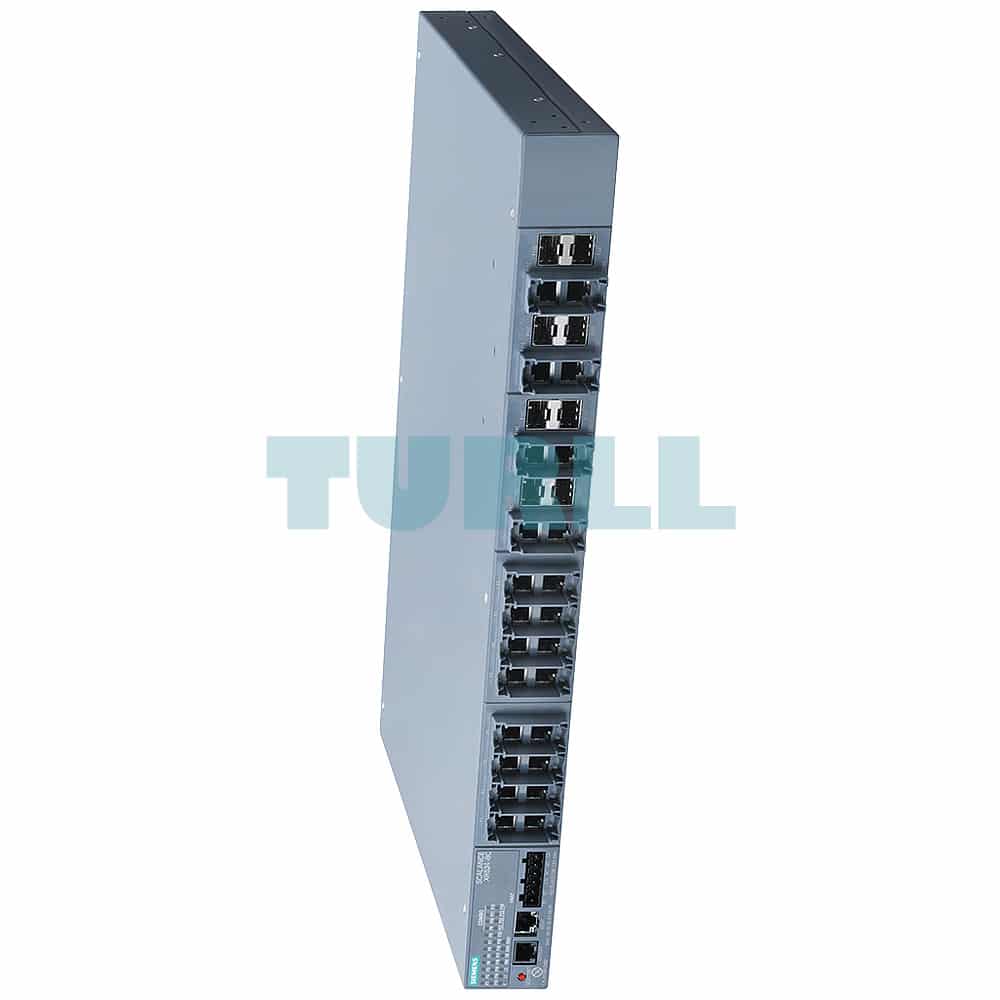

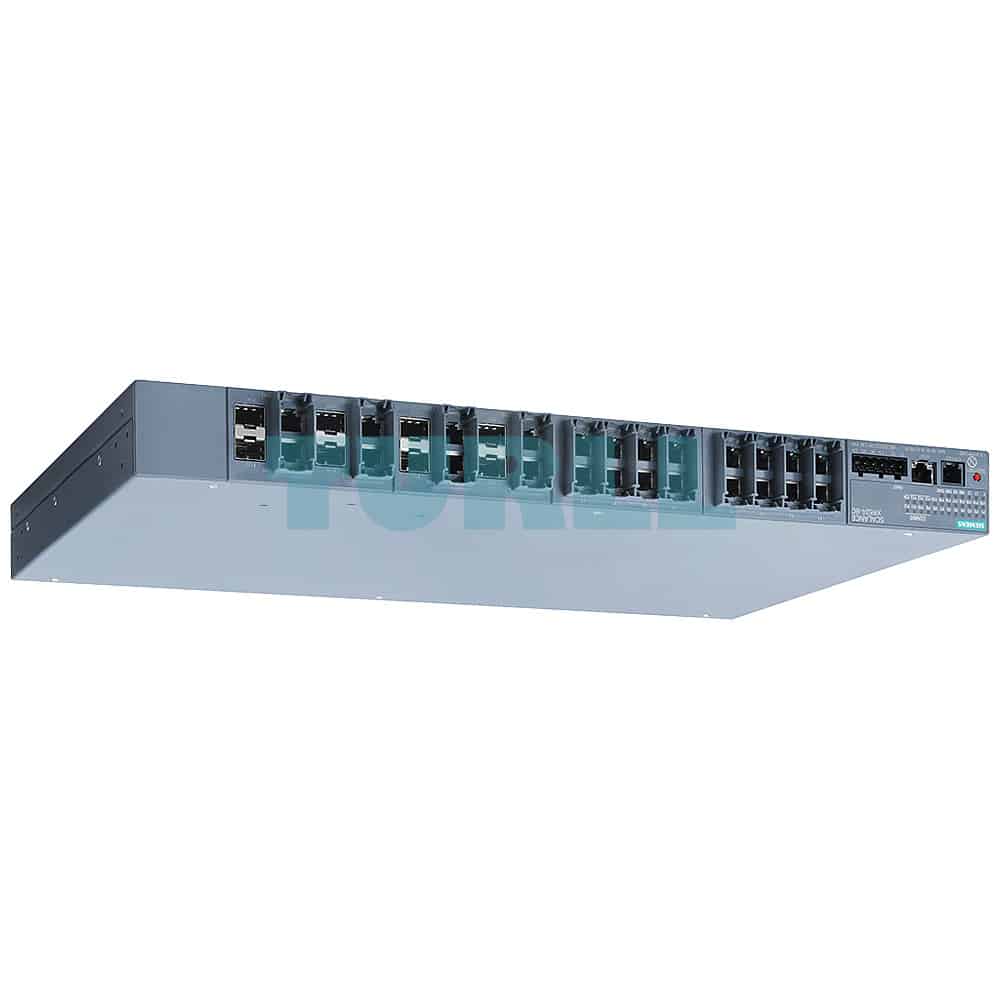

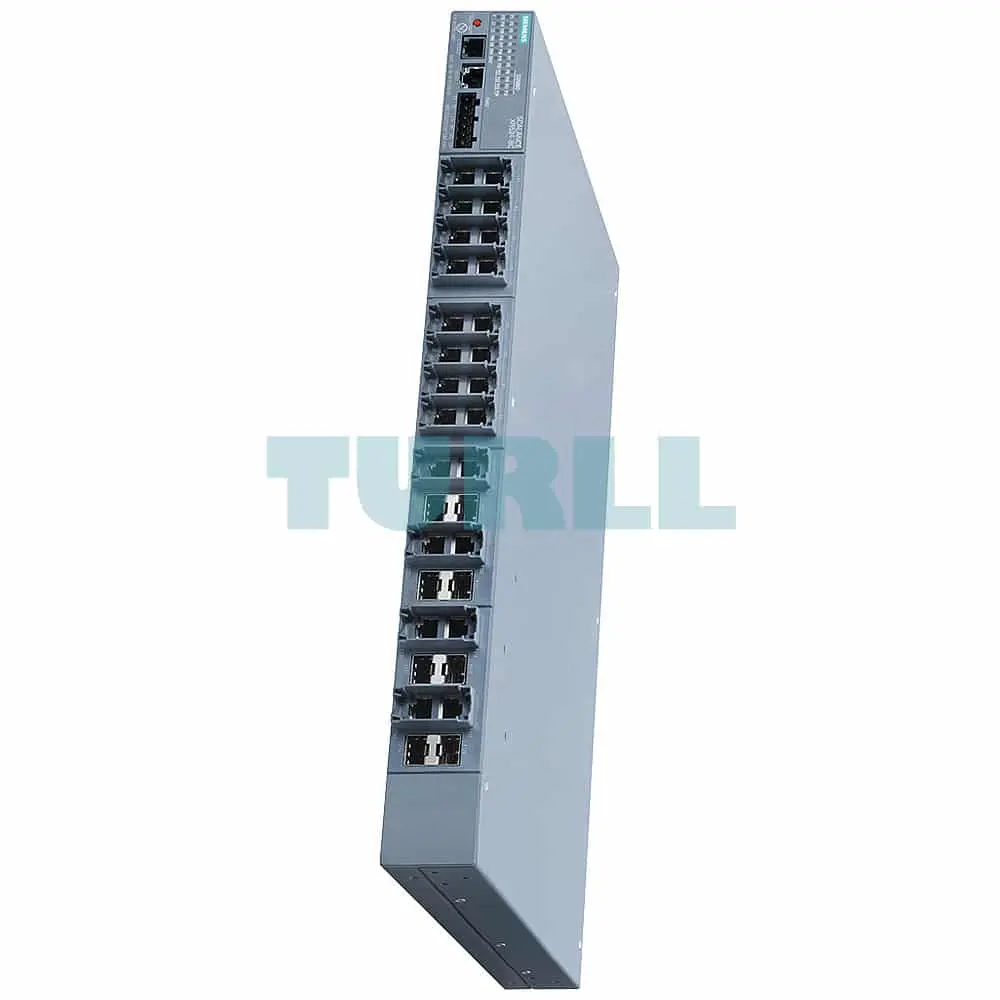

The Siemens SCALANCE XR524-8C (6GK5524-8GS00-2AR2) is an exclusive 19-inch rack-mounted managed Industrial Ethernet switch from the XR-500 series, designed for high-performance plant-level networks. It features 24 Gigabit RJ45 ports, including 8 combo ports that can alternatively be used as SFP optical ports. A total of 24 ports can be used simultaneously.

This variant operates on 24 V DC and supports PROFINET IO diagnostics, integrated redundancy protocols, and optional Layer 3 routing via Key-Plug XR-500. With LED diagnostics, C-PLUG configuration memory, and rugged IP20 housing, the XR524-8C is an exclusive solution for scalable, secure, and resilient industrial automation infrastructure.

Key Features

• 24 x 10/100/1000 Mbps RJ45 electrical ports
• 8 x 100/1000 Mbps SFP ports (combo configuration)
• Layer 3 routing available via Key-Plug XR-500
• PROFINET IO diagnostics; conformity class B
• Redundancy protocols: MRP, HRP, HSR, PRP, RSTP, MSTP
• VLAN, IGMP snooping, ACL, SNMP, IEEE 802.1X
• LED diagnostics and select/set pushbutton
• Console port and signaling contact
• DIN rail and 19″ rack mounting compatible
• IP20 metal enclosure; fanless design
• Operating temperature: –25 °C to +60 °C
• Power supply: 24 V DC via terminal block
• Dimensions: 449 x 305 x 44 mm
• Net weight: approx. 4.86 kg
• C-PLUG memory module included

Product Code: 6GK5524-8GS00-2AR2 More Siemens products at Turll.com
