6GK5526-8GR00-2AR2 – Ultimate Siemens SCALANCE XR526-8C Industrial Ethernet Switch

6GK5526-8GR00-2AR2 – Ultimate Siemens SCALANCE XR526-8C Industrial Ethernet Switch

SCALANCE XR526-8C; managed IE switch; Layer 3 integrated; Power supply 24 V DC; 24× 10/100/1000 Mbit/s RJ45; 8× 100/1000 Mbit/s SFP combo; 2× 10 Gbit/s SFP+; total 26 ports usable; error signaling contact; select/set pushbutton; PROFINET IO device; redundancy functions; office features (RSTP, VLAN, IGMP, …); C-PLUG included.

Overview

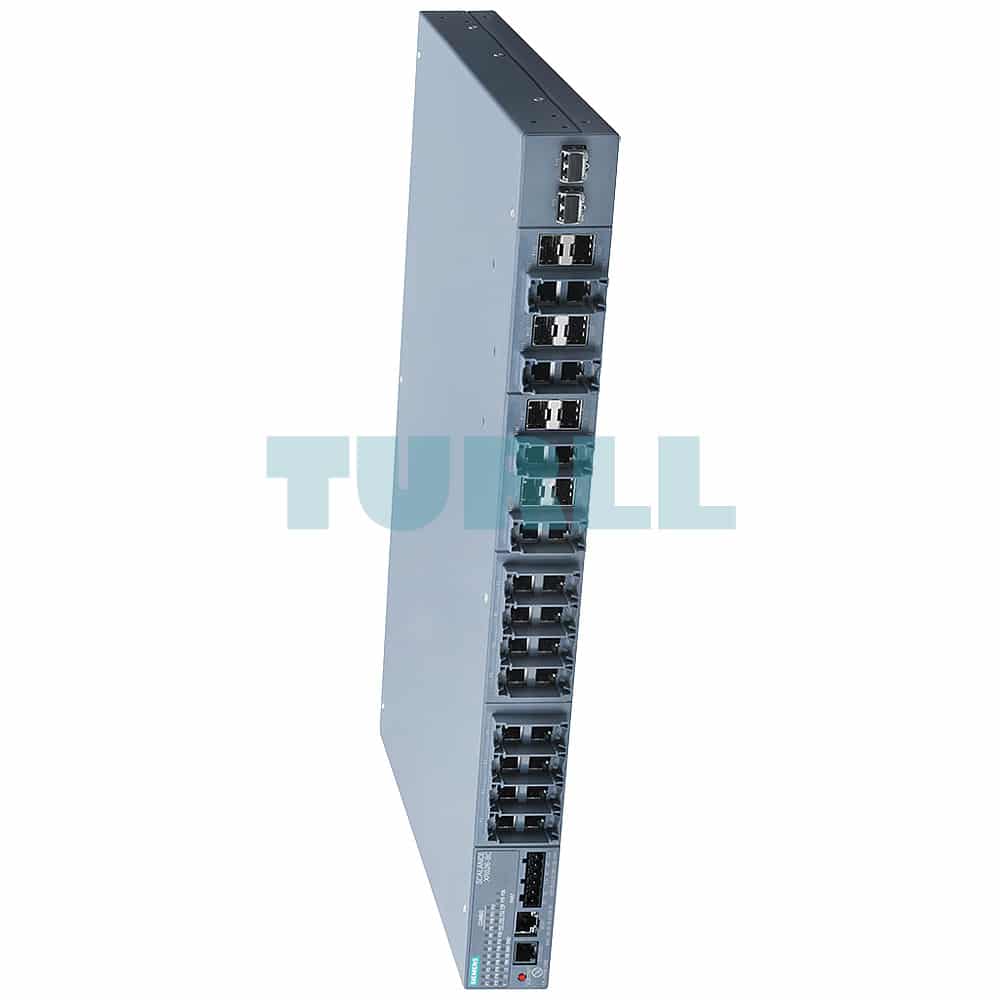

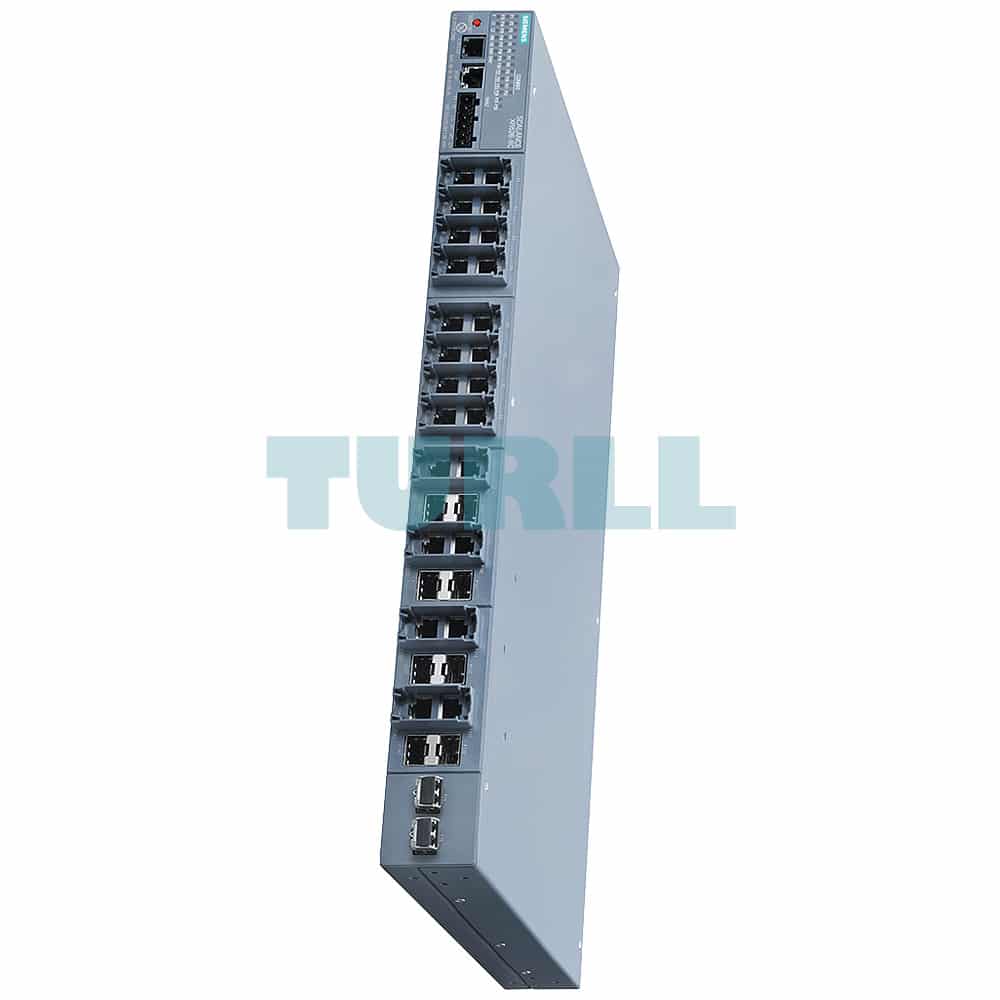

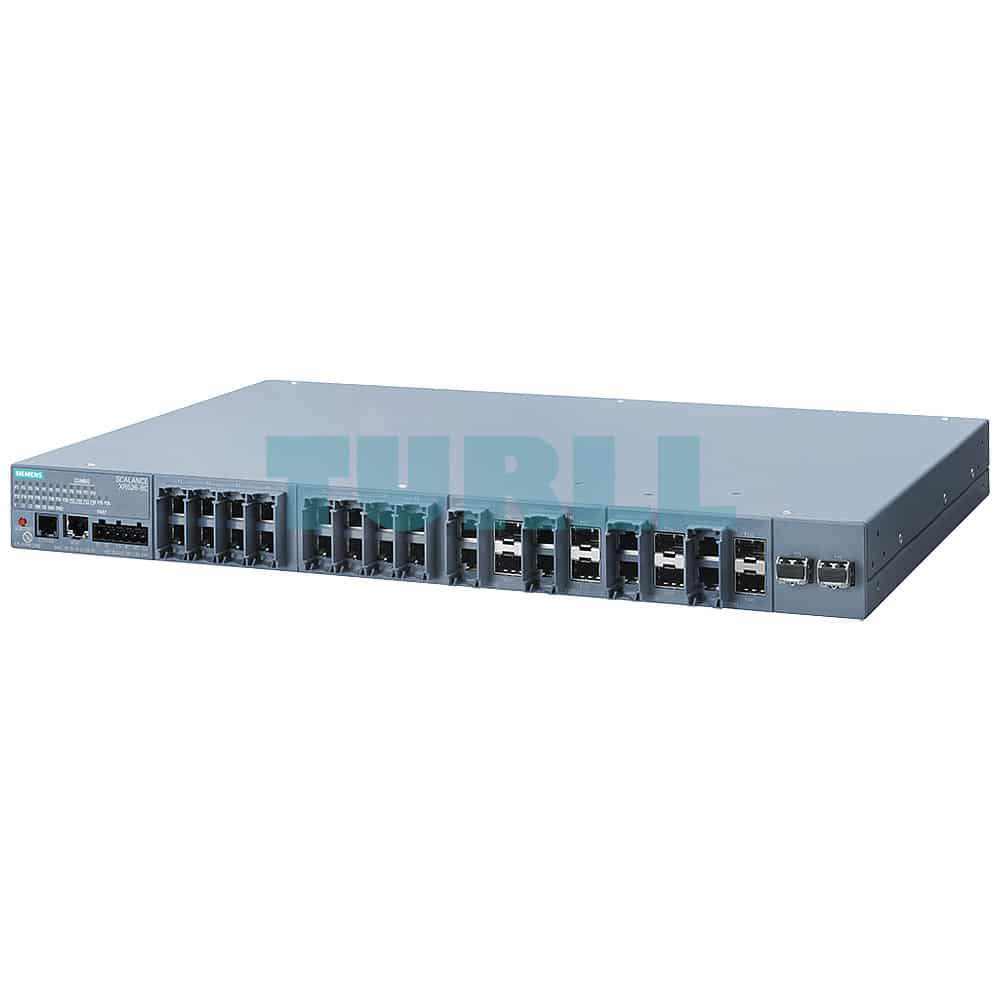

The Siemens SCALANCE XR526-8C combines high port density and integrated routing in a rugged 19″ rack-mount design. It delivers 24 Gigabit copper interfaces, 8 hybrid SFP slots, and 2 SFP+ uplinks at 10 Gbps. A 24 V DC input powers the unit, while PROFINET IO diagnostics and built-in Layer 3 ensure seamless network segmentation and monitoring.

Key Features

• 24× 10/100/1000 Mbps RJ45 ports
• 8× 100/1000 Mbps combo SFP slots
• 2× 10 Gbps SFP+ uplink ports
• Integrated Layer 3 routing (no Key-Plug required)
• PROFINET IO diagnostics (Conformance Class B)
• Redundancy: MRP, HRP, HSR, PRP, RSTP, MSTP
• VLAN, IGMP snooping, ACL, SNMP, IEEE 802.1X
• Front LEDs, SELECT/SET pushbutton, floating alarm contact
• Console port for local setup
• IP20 metal housing; fanless
• Operating range: –25 °C to +60 °C
• Dimensions: 449 × 305 × 44 mm; Weight: ~5.5 kg
• C-PLUG for fast config backup and replacement

Product Code: 6GK5526-8GR00-2AR2
