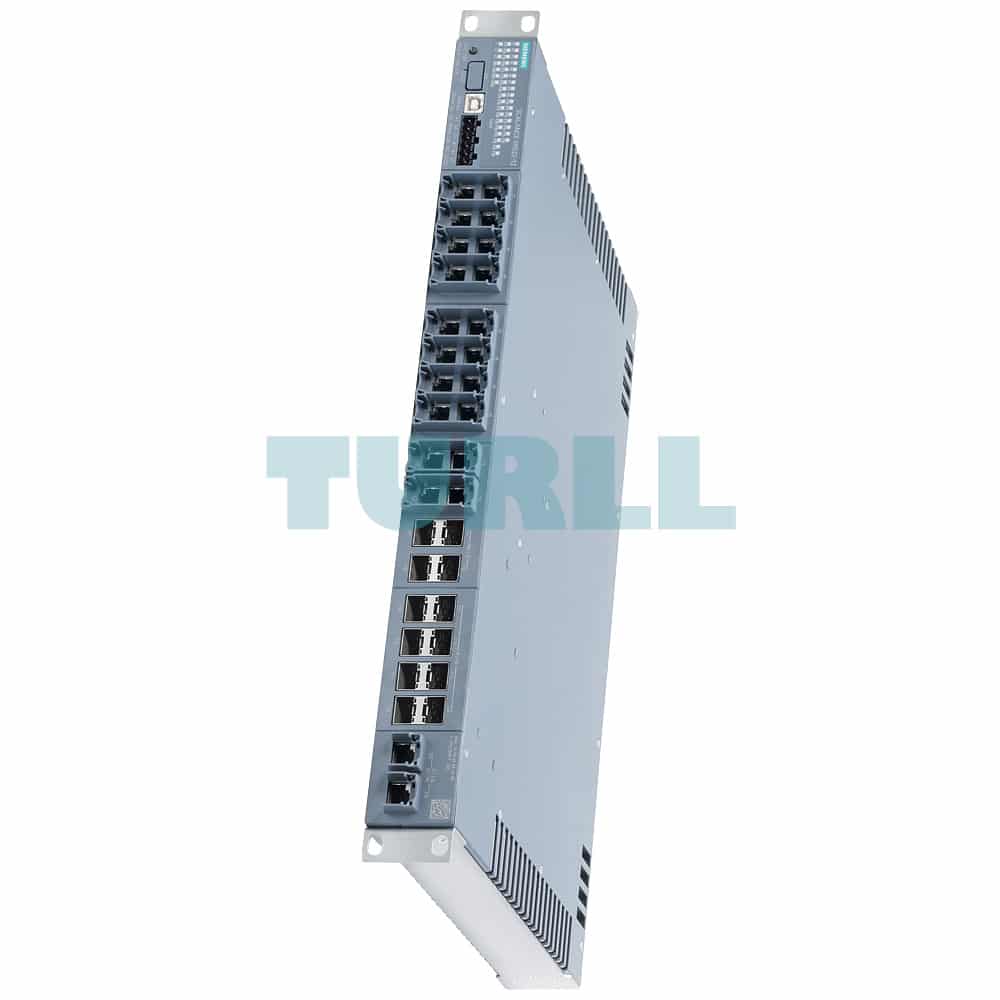

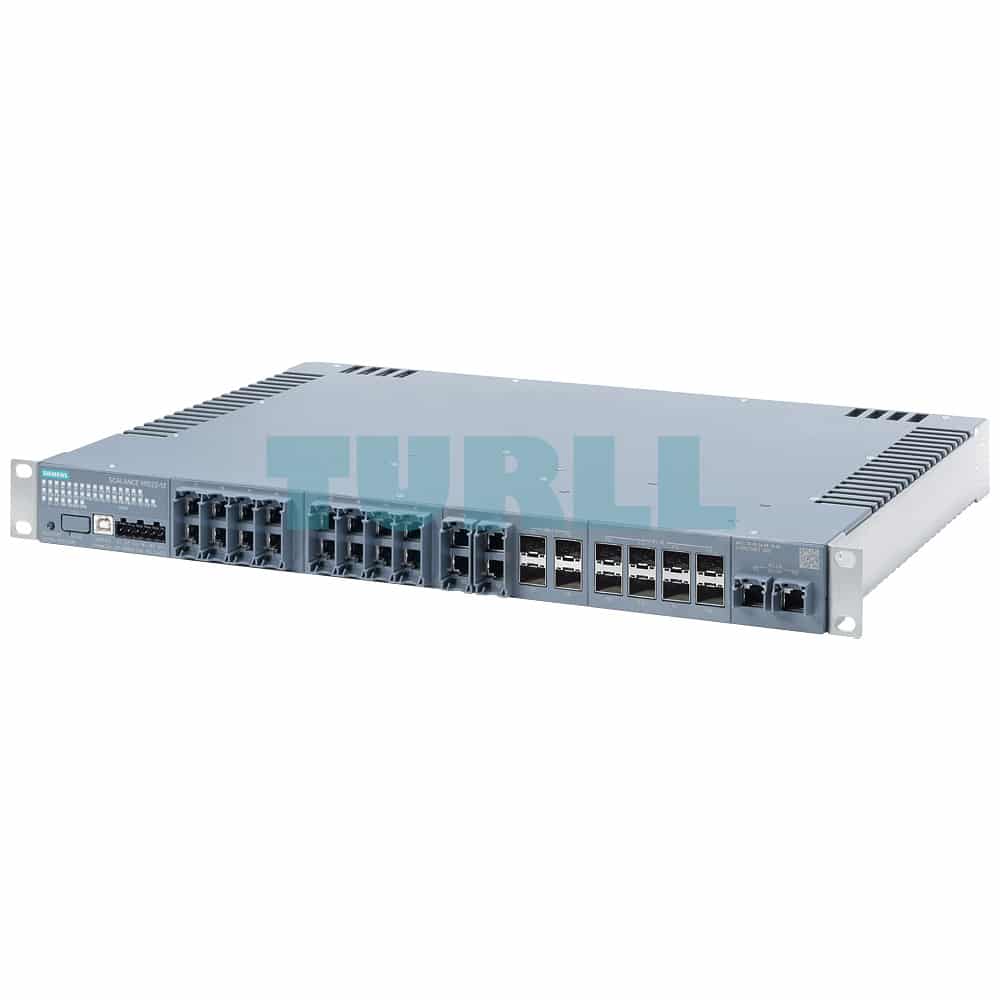

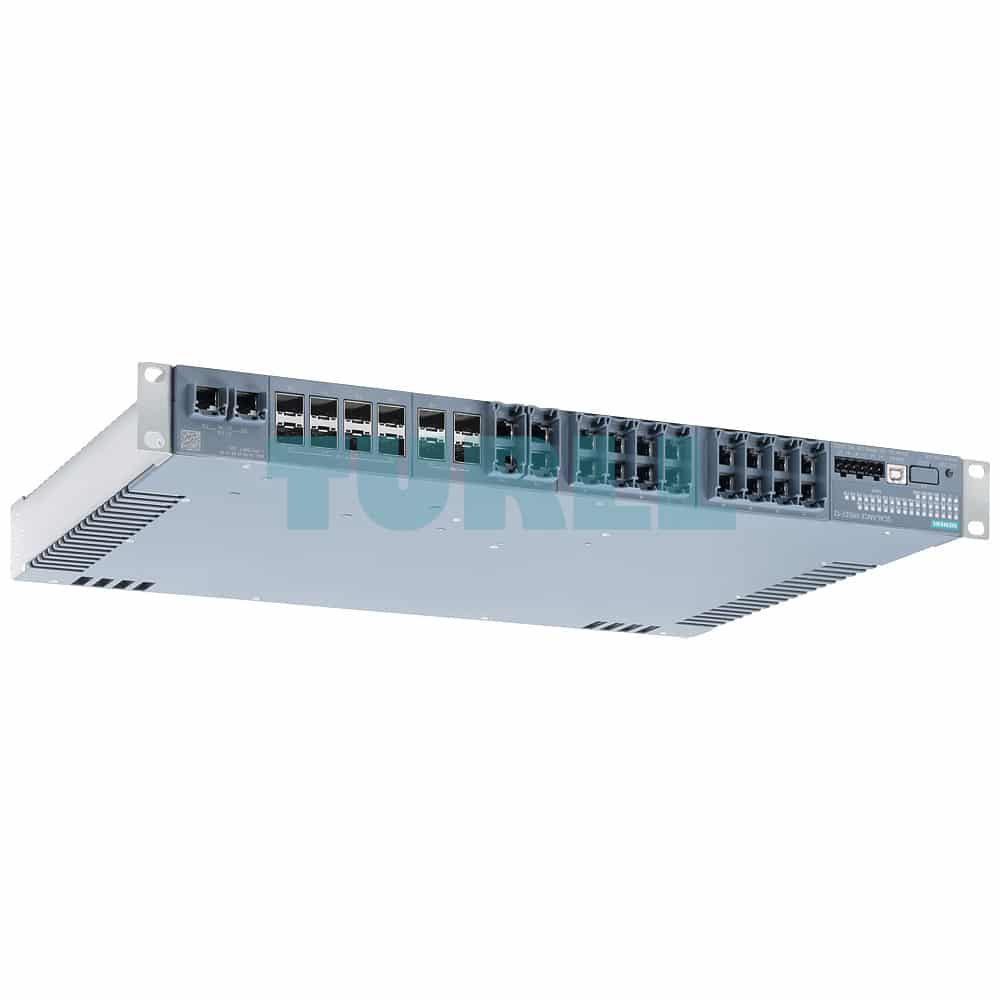

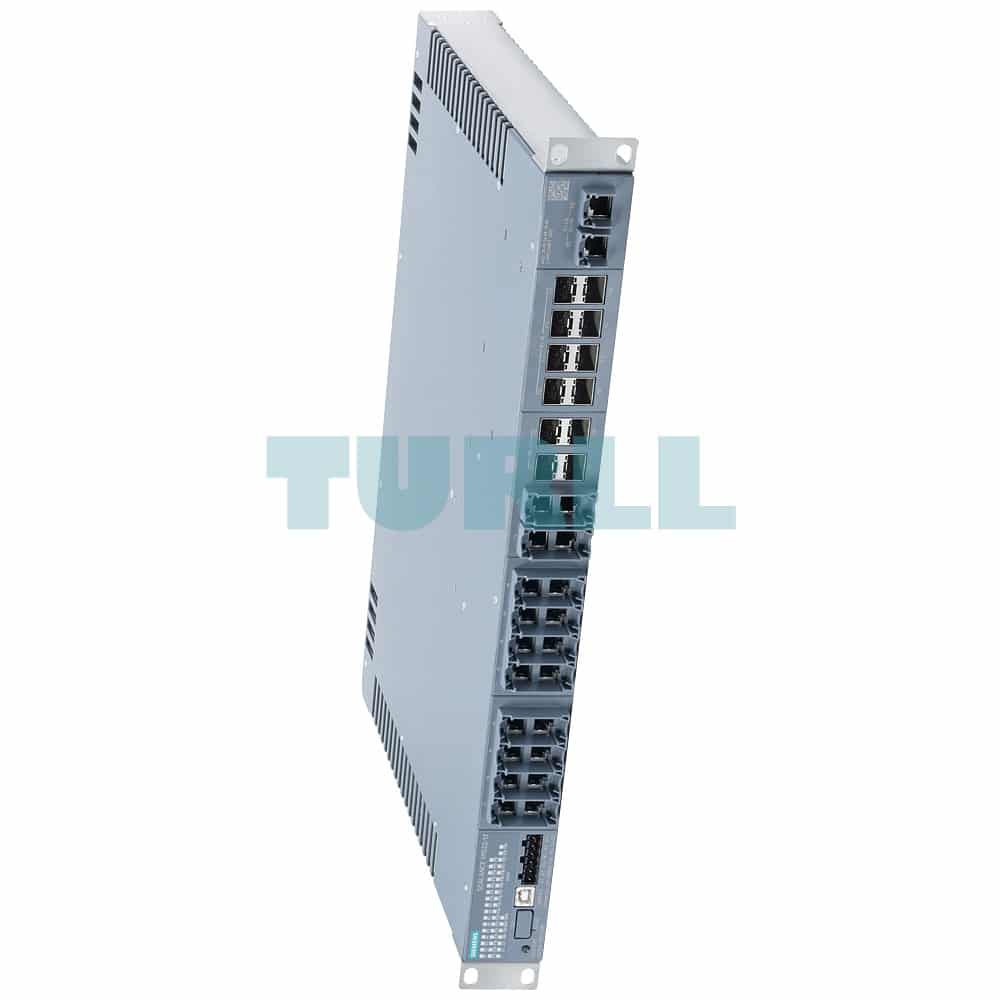

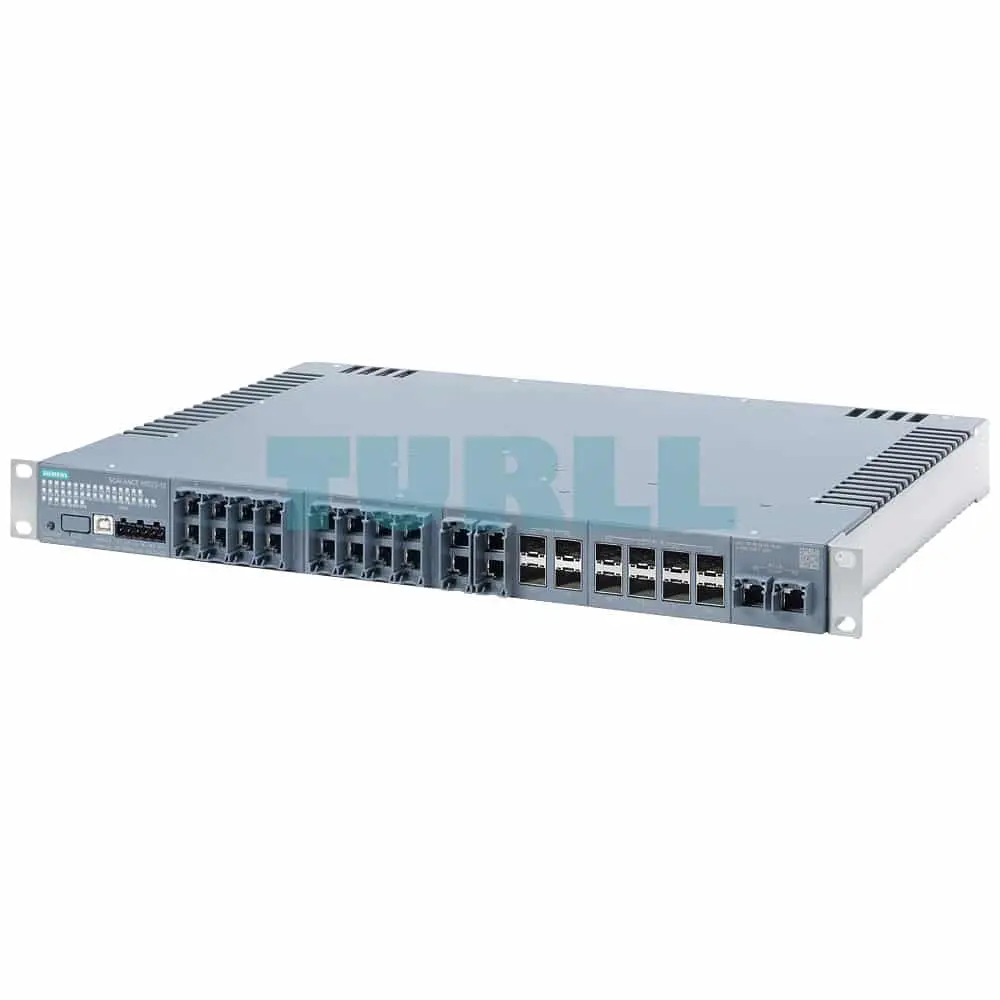

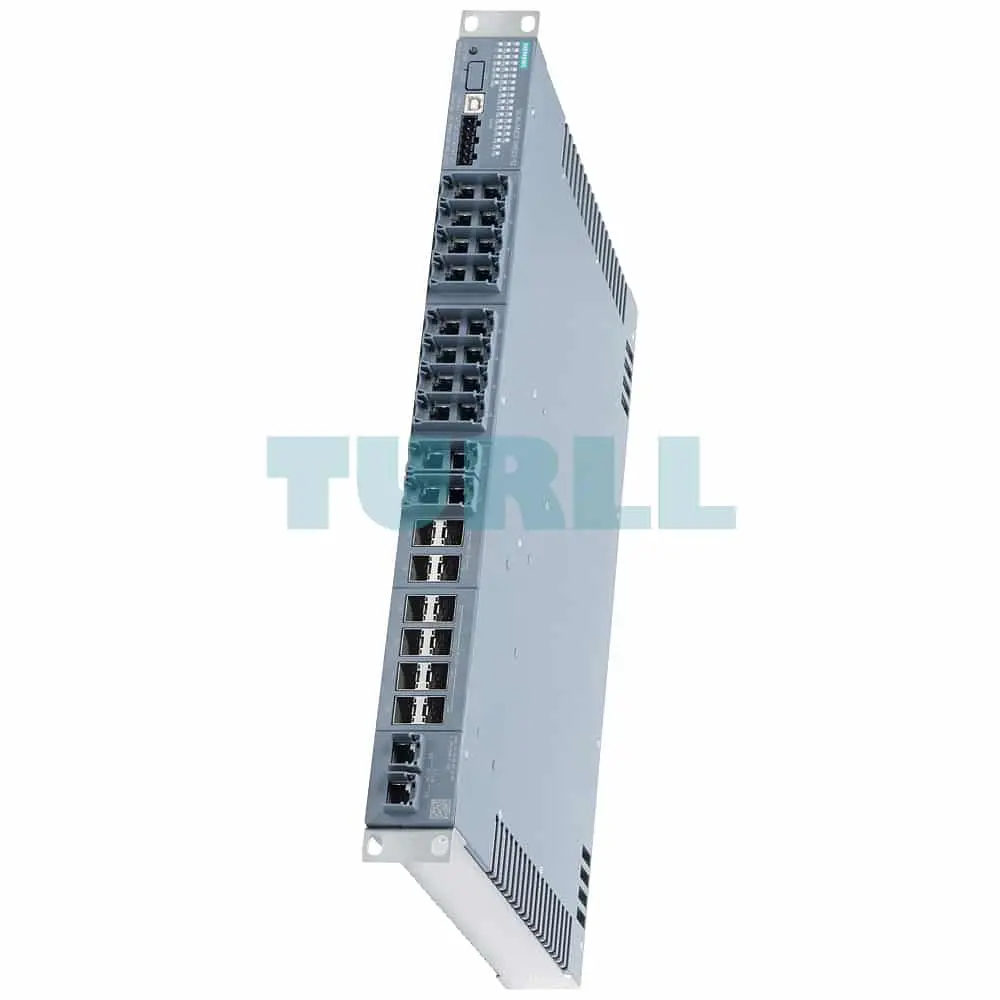

6GK5534-3TR00-3AR3 SIEMENS Exclusive SCALANCE XR522-12 Managed Switch Original Brand New

6GK5534-3TR00-3AR3 SIEMENS Exclusive SCALANCE XR522-12 Managed Switch Original Brand New

SCALANCE XR522-12; managed Layer 3 IE switch, 19" rack; 20x 100/1000 Mbps RJ45 ports; 2x 1G/2.5G/5G/10G RJ45 ports; 4x 100M/1G SFP ports; 8x 1G/10G SFP+ ports; LED diagnostics; error signaling contact; select/set button; PROFINET IO device; integrated redundancy manager; advanced network features including VLAN, IGMP, RSTP, and more. Includes CLP removable memory. Power supply: 1x 230 V AC.

Overview

This powerful XR522-12 model from Siemens SCALANCE XR-500 family is ideal for high-performance industrial network backbones, providing up to 10 Gbps connectivity in a modular 19" rack format. It is equipped with a variety of port types and high redundancy features, making it perfect for critical control rooms and automation environments.

• 20x electrical RJ45 ports (100/1000 Mbps)
• 2x multigigabit RJ45 ports (up to 10 Gbps)
• 4x SFP ports (100M/1G)
• 8x SFP+ slots (1G/10G)
• PROFINET integration, SNMP, SINEC NMS, and web diagnostics
• Support for VLANs, IGMP Snooping, STP/RSTP/MSTP, QoS, and IEEE 802.1X
• CLP included for simple configuration replacement

Design

• Compact 19" rackmount with robust metal enclosure (IP20)
• 230 V AC power input via IEC plug
• LEDs for power, link, traffic, and fault indication
• Fault signaling contact and console port for diagnostics
• Slot for CLP/KEY-PLUG memory expansion

Product Link: 6GK5534-3TR00-3AR3
