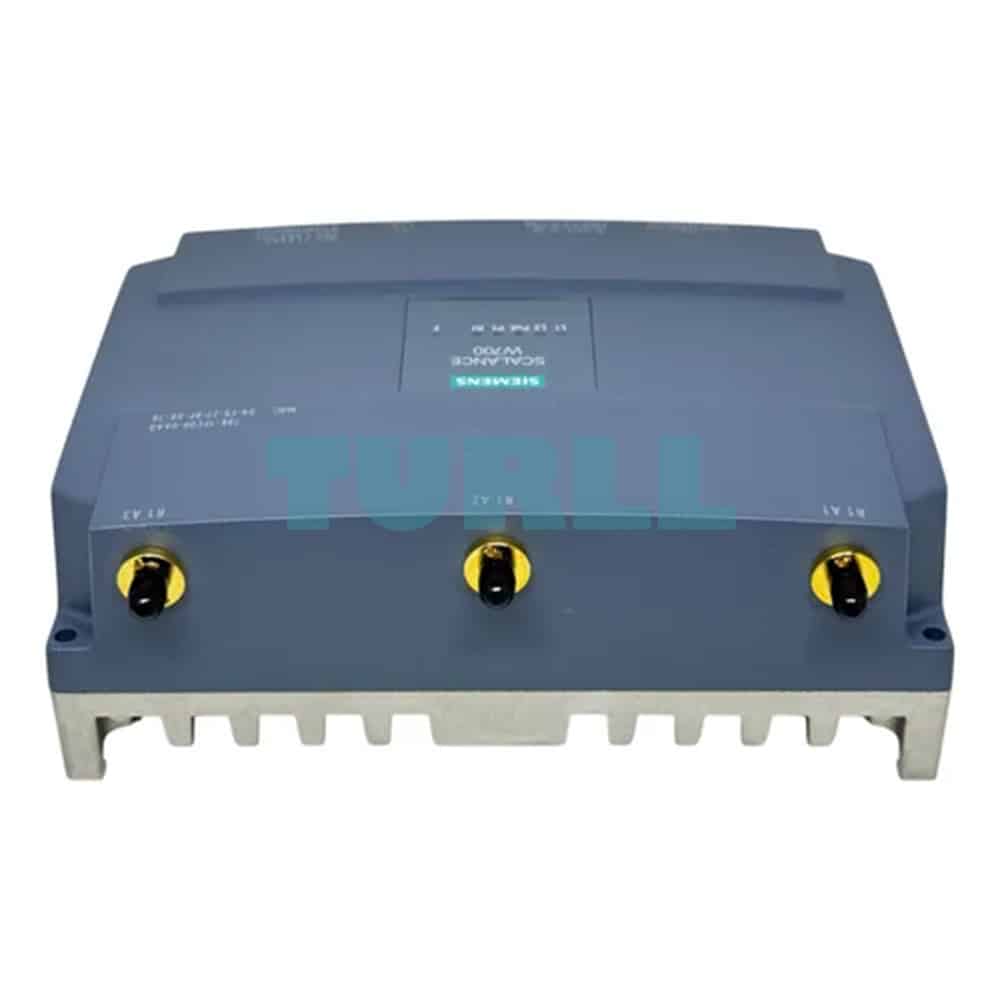

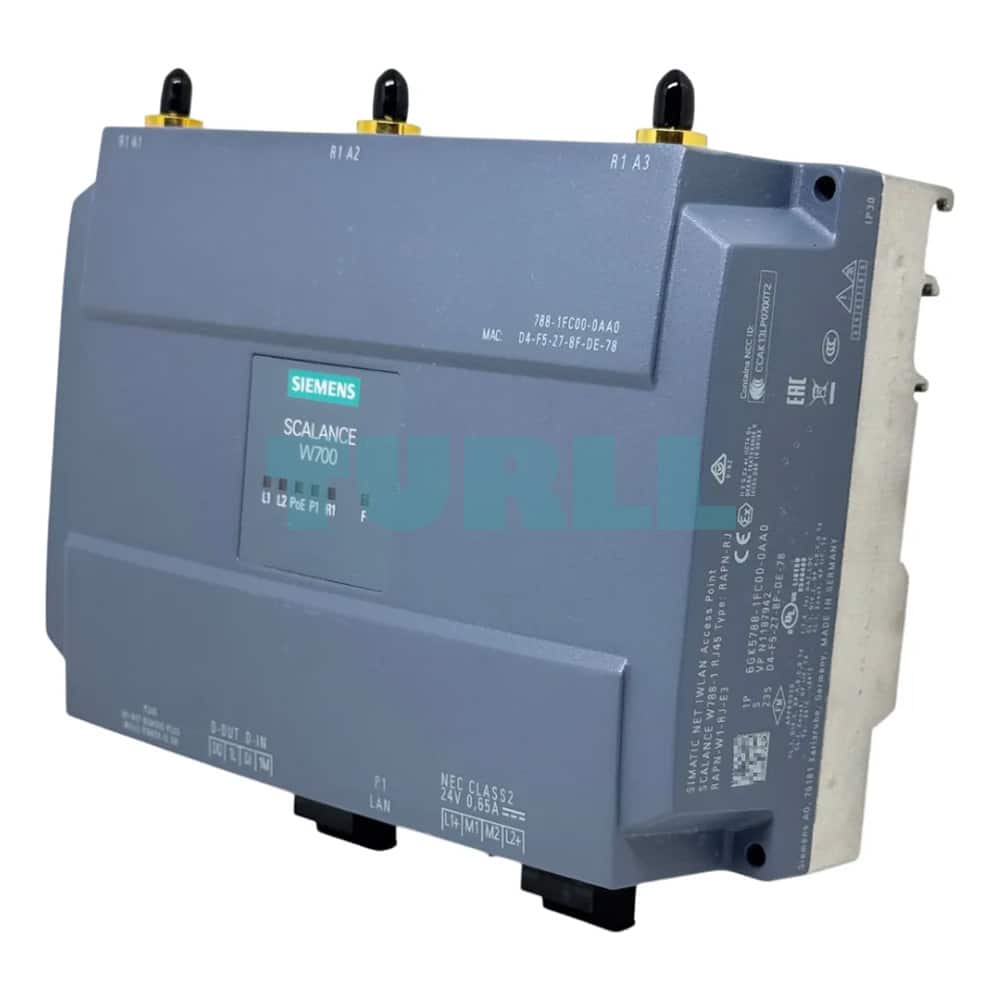

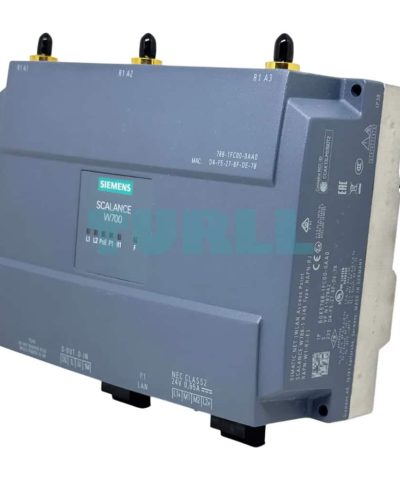

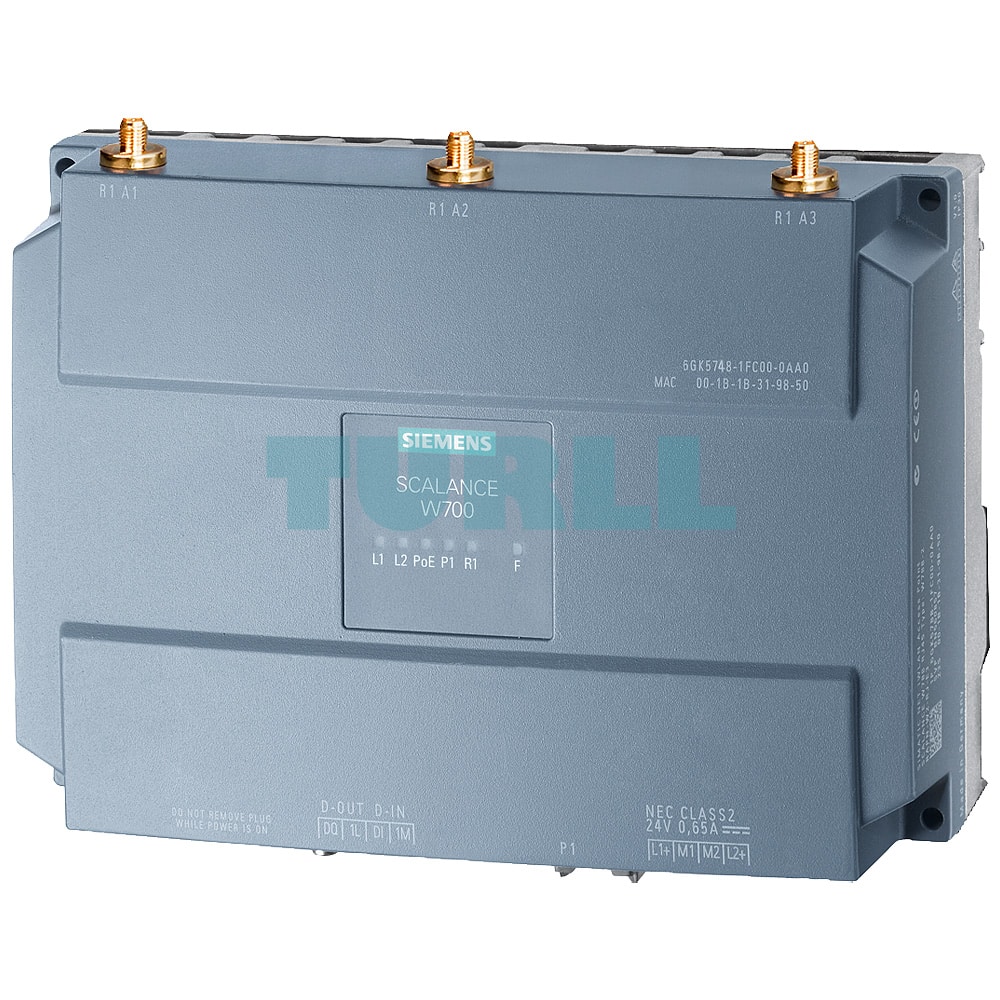

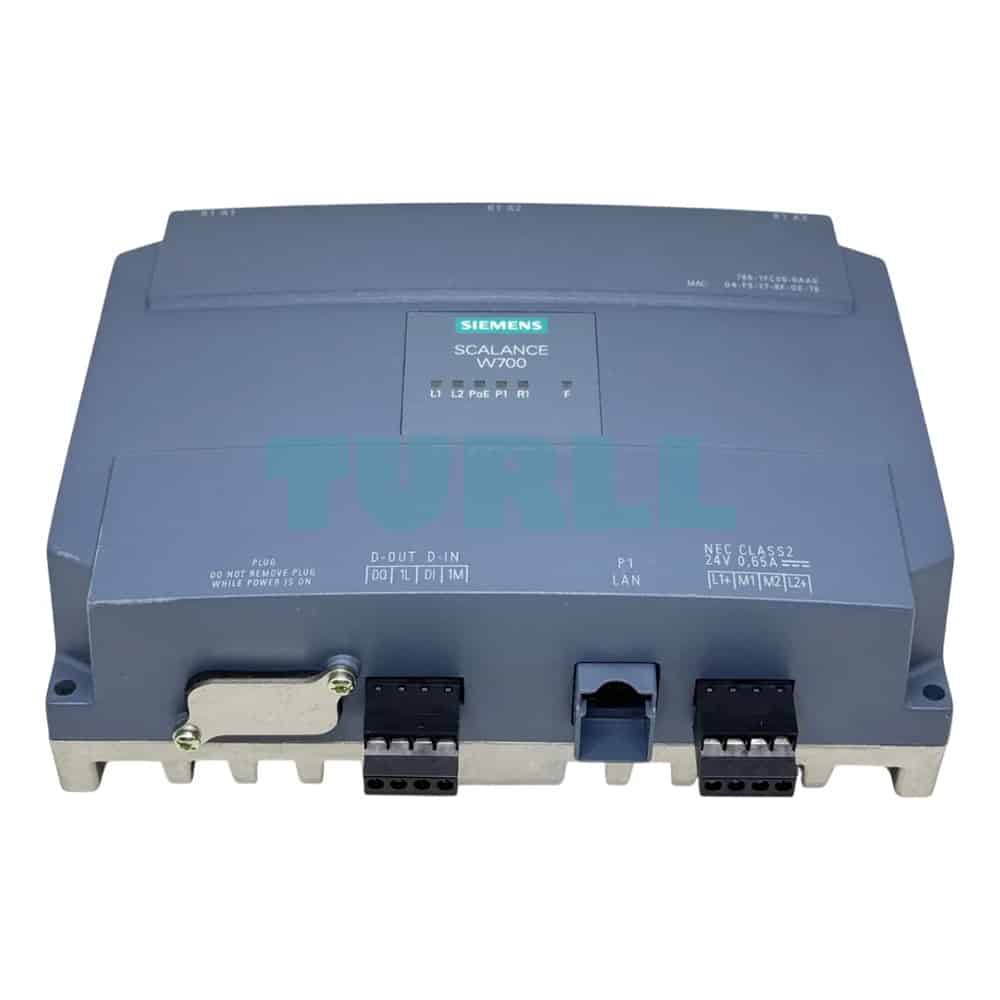

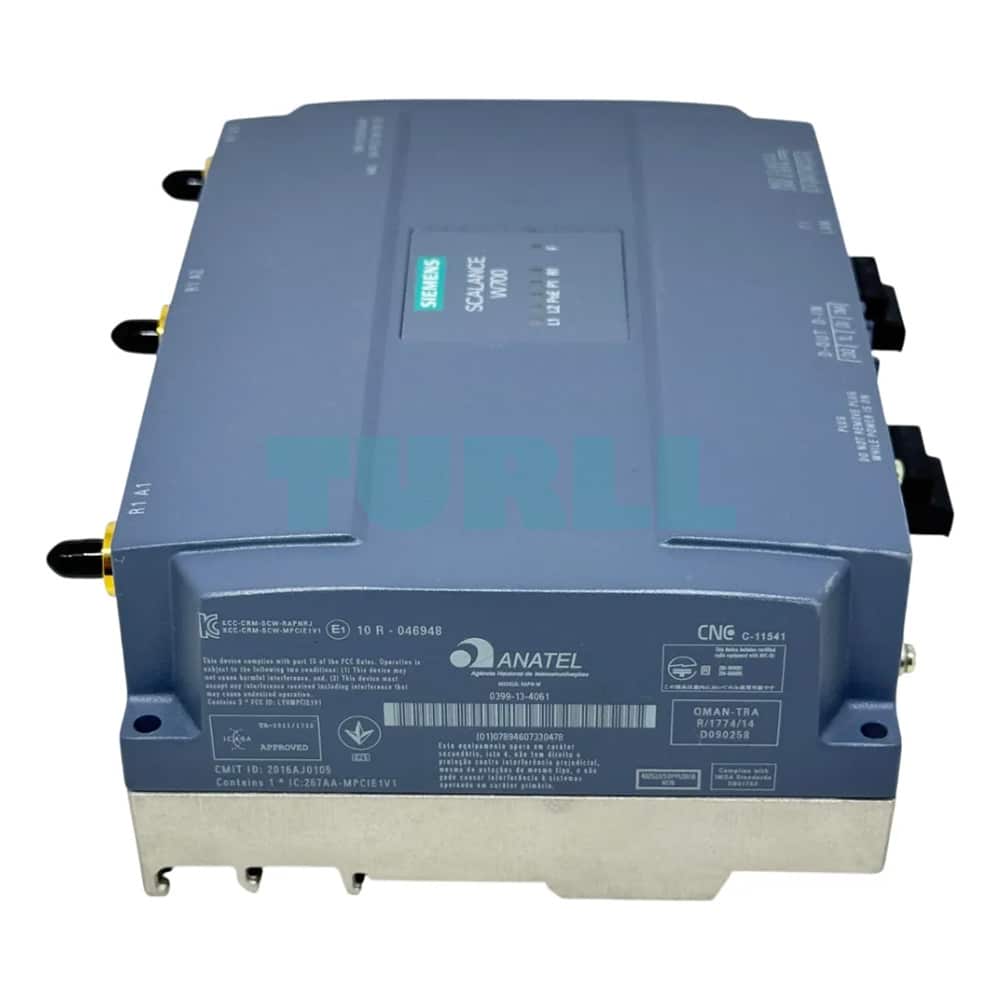

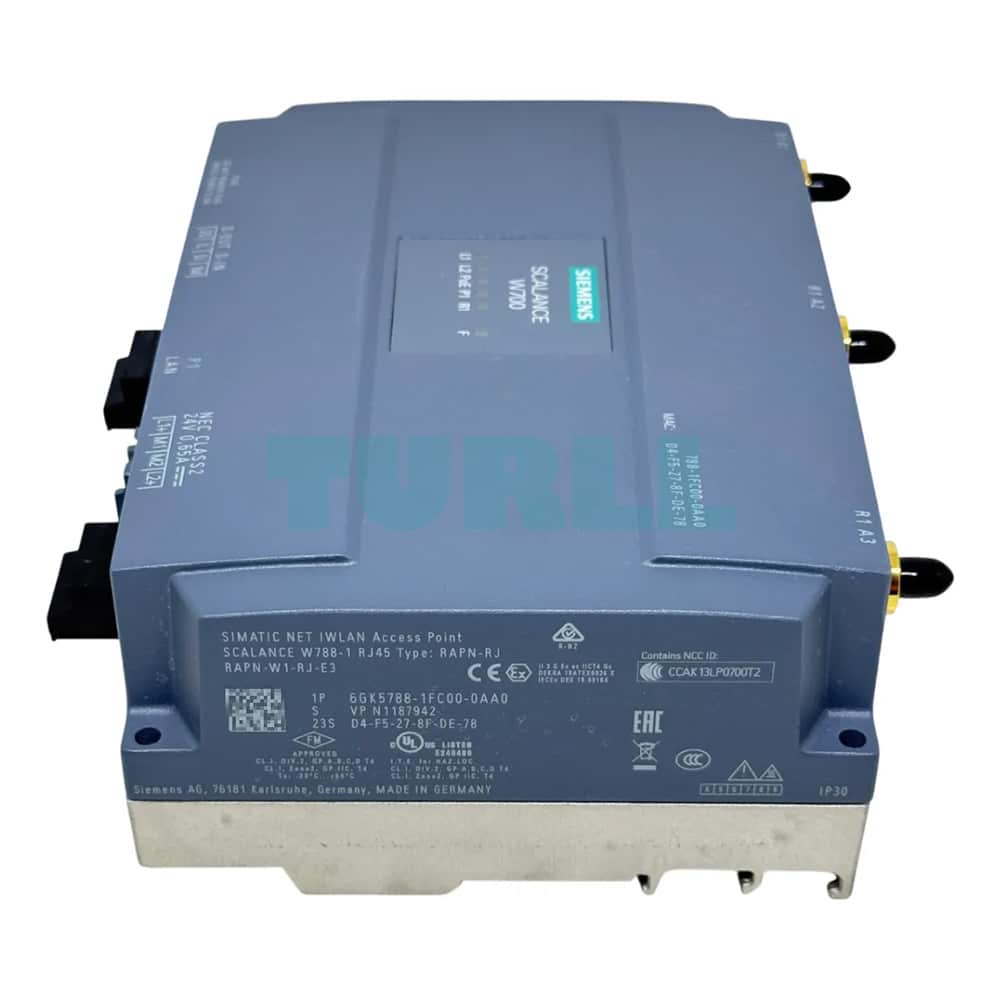

6GK5788-1FC00-0AA0 SIEMENS Exclusive SCALANCE W788-1 IWLAN Access Point Original Brand New

6GK5788-1FC00-0AA0 SIEMENS Exclusive SCALANCE W788-1 IWLAN Access Point Original Brand New

The SCALANCE W788-1 from Siemens is an industrial-grade IWLAN Access Point designed for cabinet-mounted wireless applications with high mechanical demands. Equipped with a single radio module and three R-SMA antenna ports, it supports IEEE 802.11 a/b/g/h/n standards on 2.4 and 5 GHz frequencies, delivering up to 450 Mbps per radio. With redundant 24 V DC inputs, 1 Gbps PoE RJ45 port, and IP30 aluminum housing, this access point ensures reliable wireless communication in harsh industrial environments.

Overview

Ideal for installations inside control cabinets, the SCALANCE W788-1 supports Siemens iFeatures through KEY-PLUG and provides secure connectivity with WPA2/802.11i/e. The access point enables high-availability wireless networking in critical industrial systems while offering integration with SNMP-based network management tools.

• IEEE 802.11 a/b/g/h/n dual-band (2.4 GHz / 5 GHz)
• 1 radio module with gross data rate up to 450 Mbps
• 3x R-SMA antenna connectors for MIMO performance
• 1x RJ45 10/100/1000 Mbps port with PoE IEEE 802.3at
• Redundant 24 V DC power input
• IP30-rated aluminum enclosure, -20 to +60 °C temperature range
• Digital input/output for SNMP signaling and control
• WPA2 / 802.11i security standard supported

Design

• Shock and vibration-resistant aluminum housing
• DIN rail or wall mountable (S7-300/S7-1500 compatible)
• KEY-PLUG/C-PLUG slot for feature activation and configuration backup
• Signal LEDs for visual diagnostics and fault indication
• Optimized antenna layout for 3x3 MIMO without interference
• Includes MPCIE-R1-ABGN-U3, 2x joint blocks, and manuals (EN/DE)
• Certified for use outside USA/Israel (RAPN-W1-RJ-E3)

Product Link: 6GK5788-1FC00-0AA0
