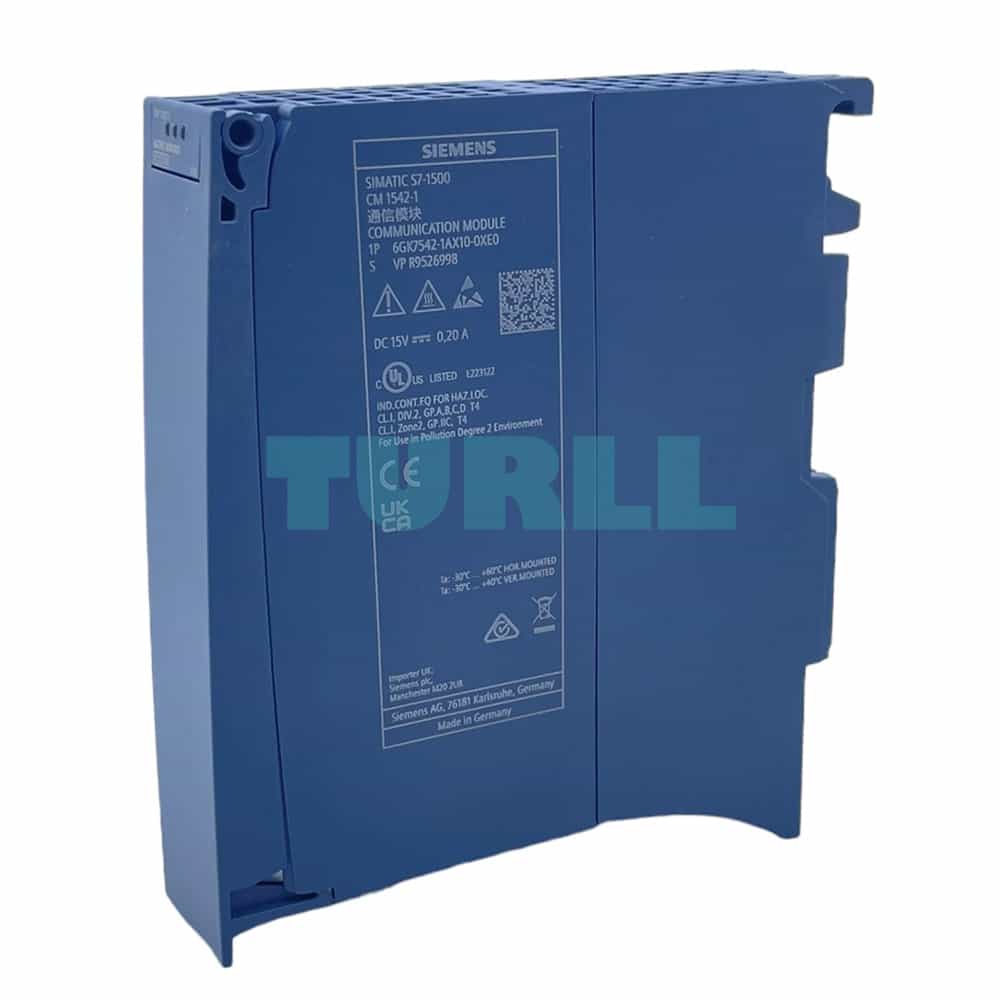

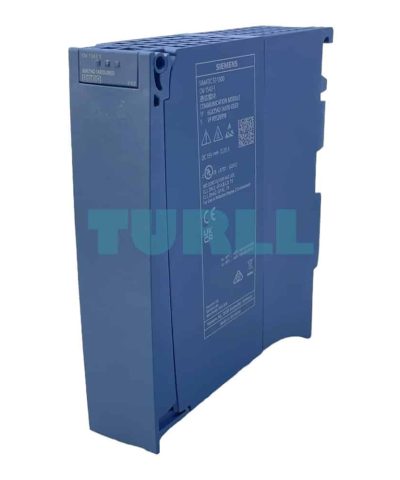

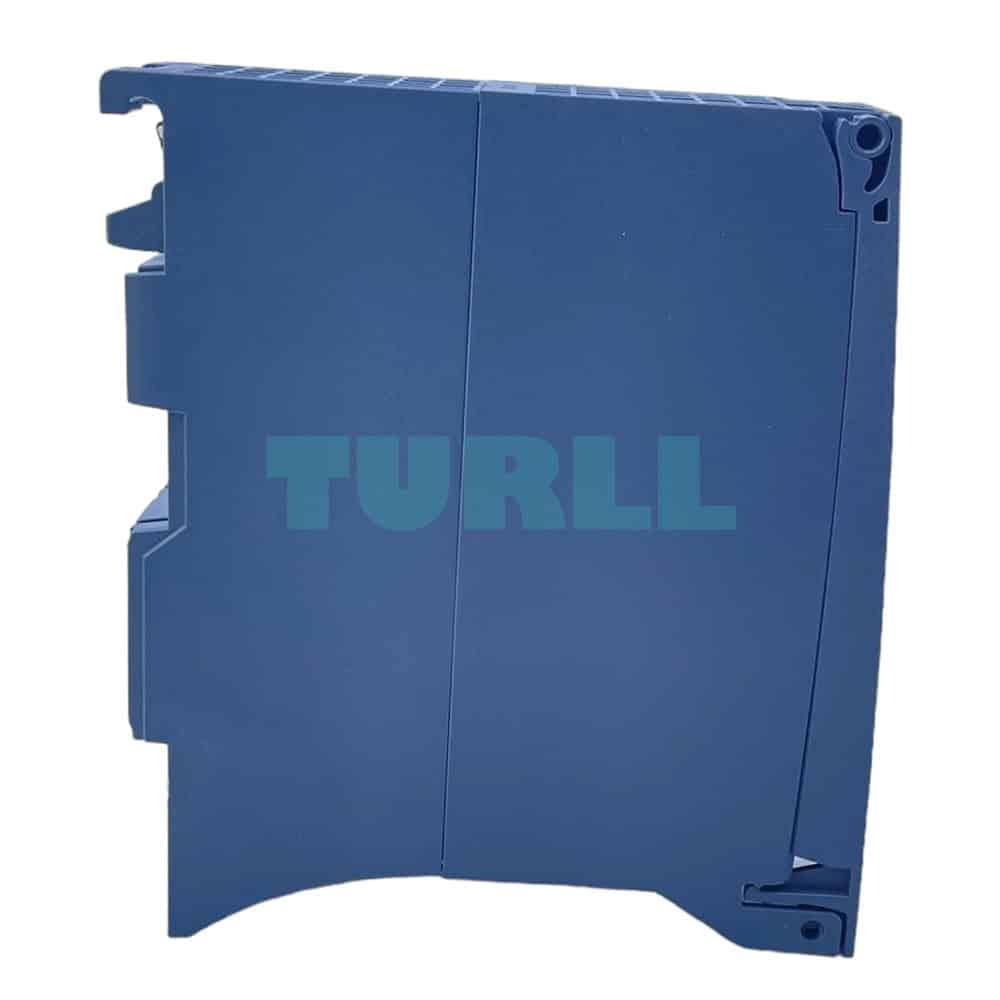

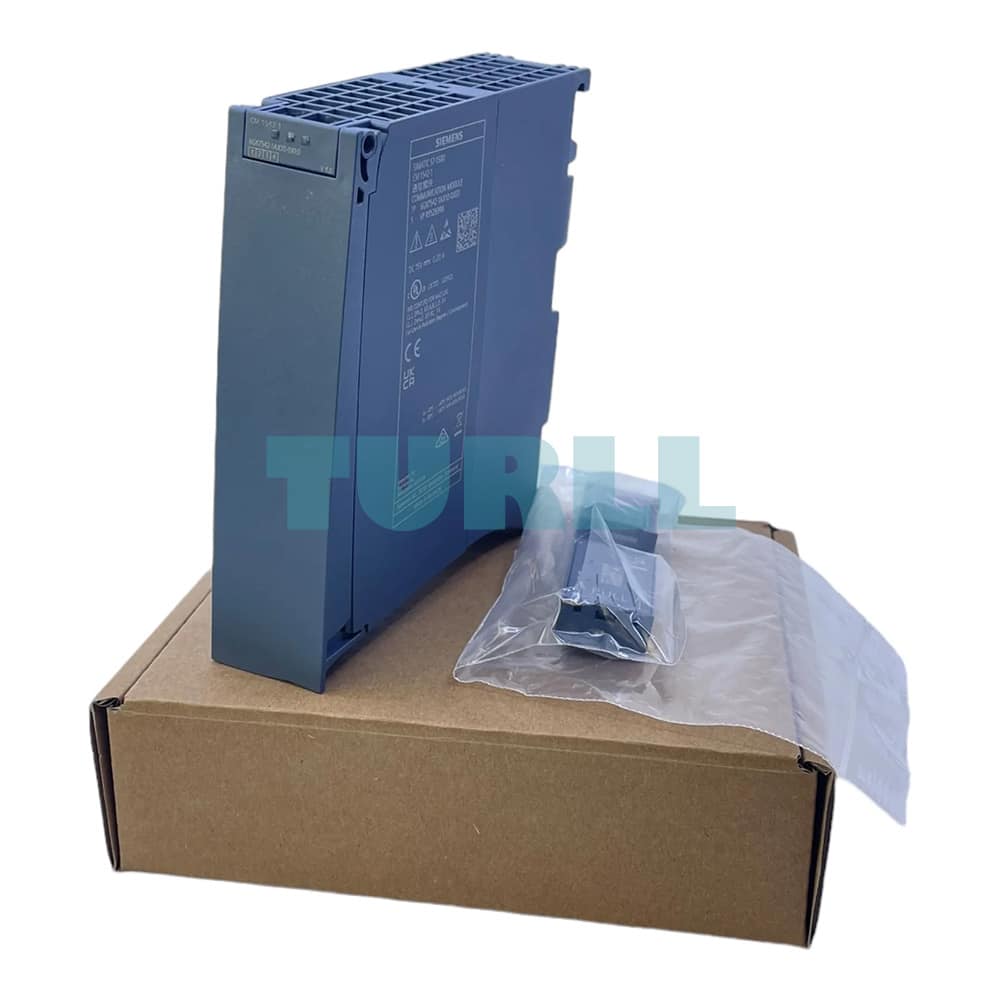

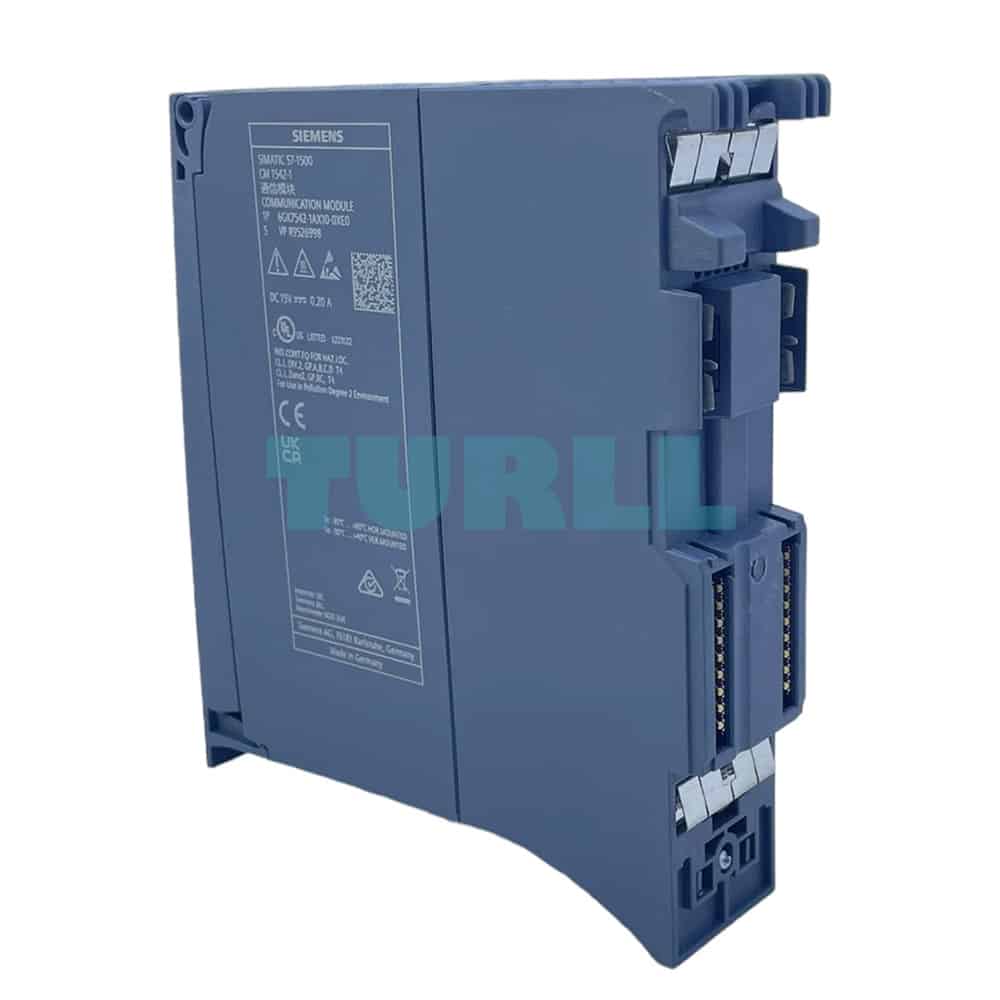

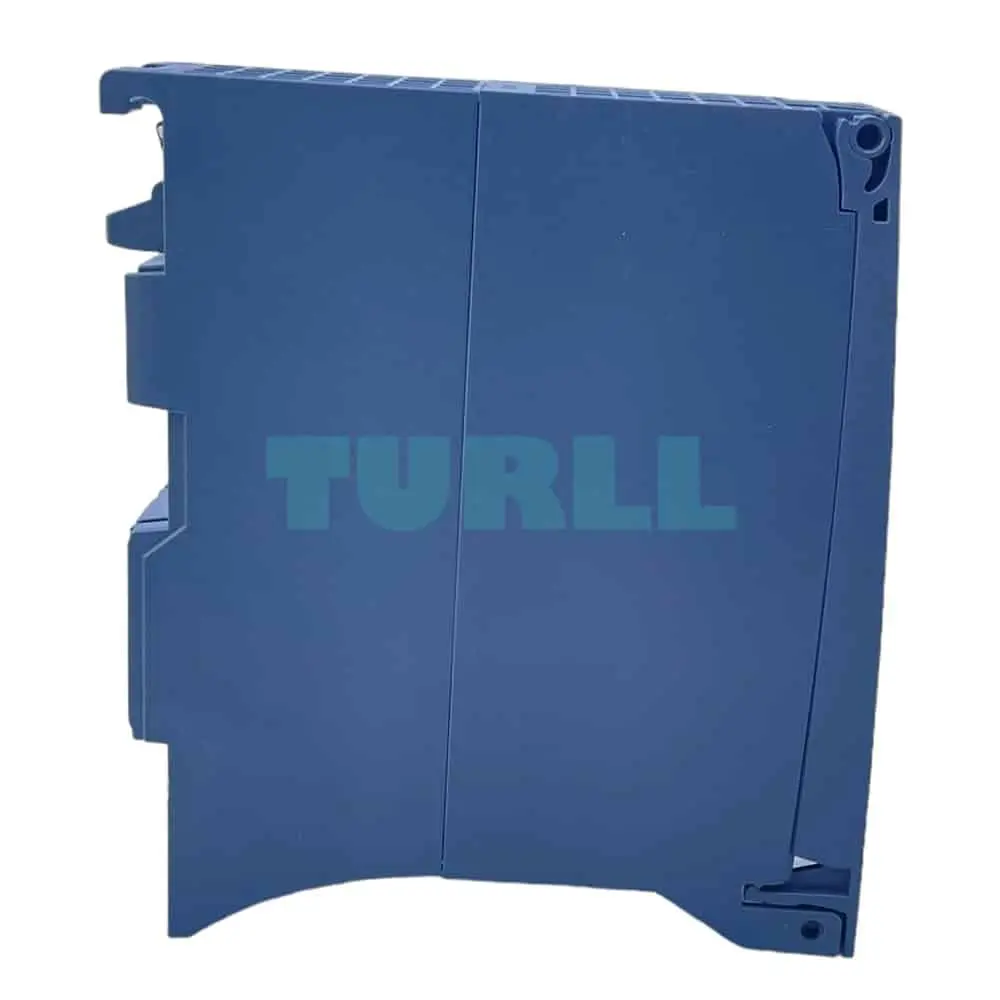

6GK7542-1AX10-0XE0 SIEMENS Exclusive CM 1542-1 PROFINET Module for S7-1500 Original Brand New
$1,339.08
CM 1542-1 PROFINET module for S7-1500, 2x RJ45, supports IO controller/device roles, extended temp and altitude.
6GK7542-1AX10-0XE0 SIEMENS Exclusive CM 1542-1 PROFINET Module for S7-1500 Original Brand New
The SIEMENS 6GK7542-1AX10-0XE0 is a powerful communication module (CM 1542-1) engineered for seamless integration of SIMATIC S7-1500 systems into PROFINET industrial Ethernet networks. With dual RJ45 ports supporting 100 Mbps full-duplex operation, this module functions as both a PROFINET IO controller and IO device. It offers extensive support for essential communication protocols such as TCP/IP, ISO-on-TCP, UDP, and S7 communication, making it ideal for demanding automation environments.
Overview
This enhanced version of the CM 1542-1 supports static IP routing via IPv4 up to 1 Mbps and features advanced services including multicast, broadcast, SNMPv1, and NTP-based time synchronization. Operating efficiently in extended temperature ranges from -30 °C to 60 °C (horizontal) or up to 40 °C (vertical), it is suitable for use at high altitudes of up to 5000 meters. It delivers robust and consistent communication, supporting PG/OP, open communication (SEND/RECEIVE), IT protocols, and full web diagnostics through S7-1500’s integrated web server.
- Connects S7-1500 to PROFINET as IO controller or device
- Supports TCP/IP, ISO-on-TCP, UDP, S7 comms
- 2x RJ45 ports (100 Mbps full-duplex)
- Web diagnostics and NTP-based time sync
- Extended temp range: -30 °C to 60 °C, altitude up to 5000 m
Design
- Compact SIMATIC S7-1500 style form factor
- Autonegotiation and autocross support

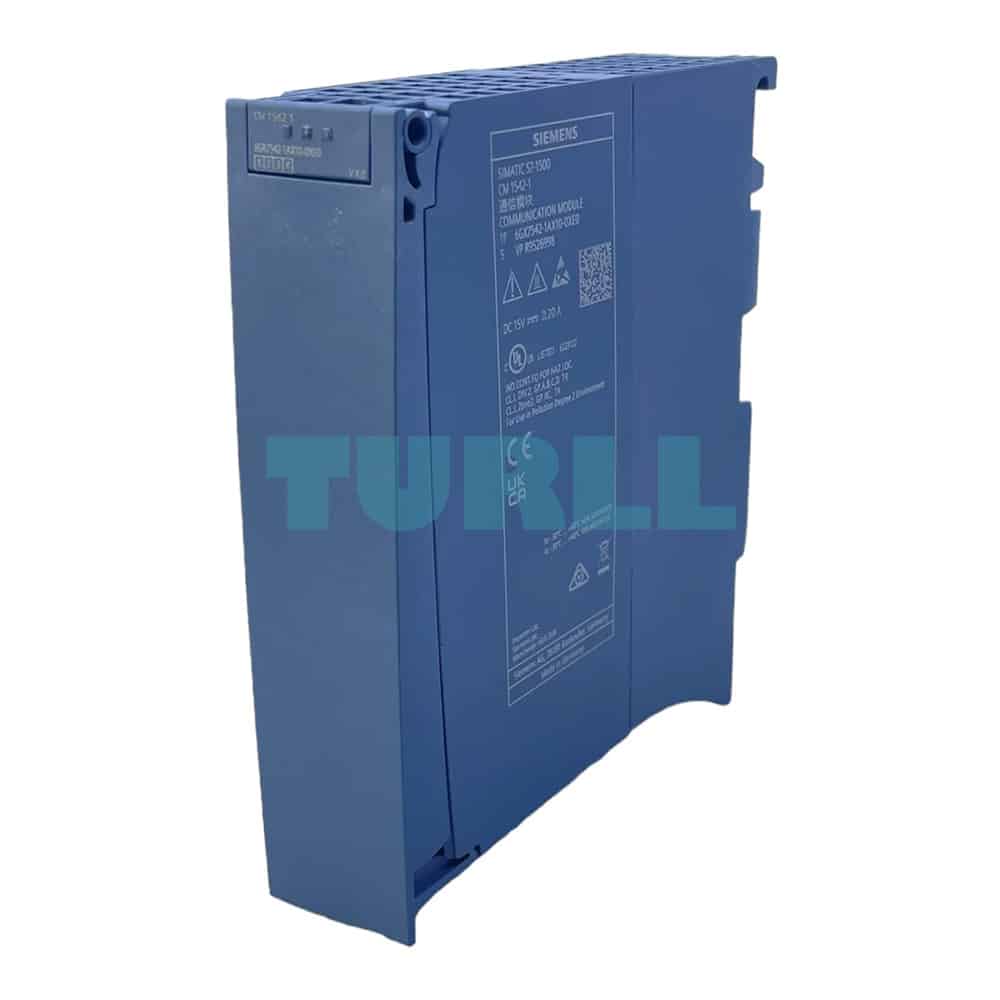

- Front-facing status LEDs for LINK/ACTIVITY
- Fanless operation and easy module replacement

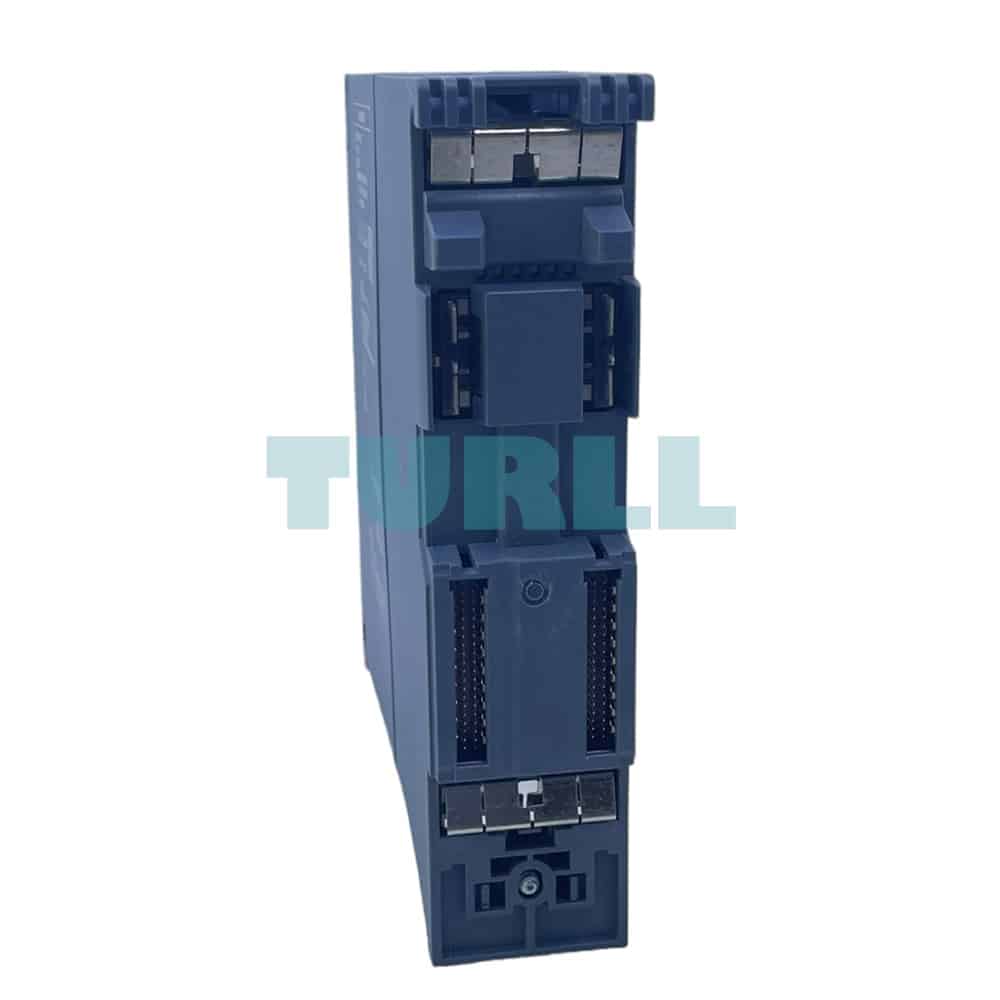

- Mounts on S7-1500 rail with integrated backplane bus
Product Link: 6GK7542-1AX10-0XE0
| Weight | 0.1 kg |
|---|---|
| Dimensions | 70 × 129 × 147 mm |
