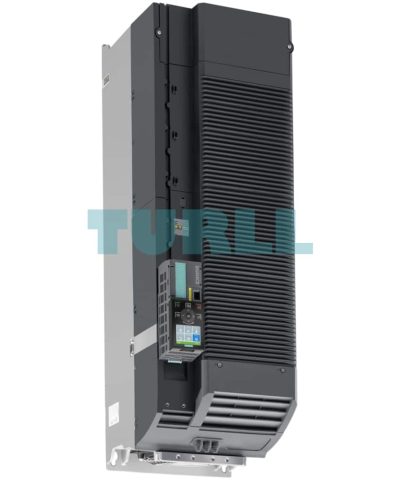

6SL3210-1PE34-8CL0 Siemens SINAMICS G120/S120 Power Module PM240-2 Original Brand New
$11,154.75
6SL3210-1PE34-8CL0
Siemens SINAMICS G120/S120 POWER MODULE PM240-2 FSG C3 WITH BUILT IN BRAKING CHOPPER 3AC380-480V+10/-10% 47-63Hz OUTPUT HIGH OVERLOAD: 200kW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 bis +50 DEG C (HO) OUTPUT LOW OVERLOAD: 250kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 bis +40 DEG C (LO) 1000x305x357 (HXWXD), FSG PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- Version V4.7 SP9 AND V5.1
Global Express Shipping
DHL / FedEx / UPS
100% Original & Brand New
Factory Sealed Box with 1-Year Warranty
Secure Payment
SSL ENCRYPTED
6SL3210-1PE34-8CL0
The Siemens SINAMICS G120/S120 Power Module with part number 6SL3210-1PE34-8CL0 has the following specifications:
- Model: 6SL3210-1PE34-8CL0
- Type: SINAMICS G120/S120 Power Module PM240-2 FSG
- Filter: Integrated EMC Class C3 filter
- Braking Chopper: Built-in
- Voltage Rating: 3AC 380-480V ±10% (47-63 Hz)
- Output High Overload Ratings:
- 200 kW for 200% of rated current, 3 seconds
- 150% of rated current, 57 seconds
- 100% of rated current, 240 seconds
- Ambient Temperature (High Overload): -20°C to +50°C
- Output Low Overload Ratings:
- 250 kW for 150% of rated current, 3 seconds
- 110% of rated current, 57 seconds
- 100% of rated current, 240 seconds
- Ambient Temperature (Low Overload): -20°C to +40°C
- Dimensions: 1000 mm (H) x 305 mm (W) x 357 mm (D)
- Protection: IP20
- Control Unit and Panel: Not included
- Firmware Versions Approved: V4.7 SP9 and V5.1
| Weight | 120.000 kg |
|---|---|
| Dimensions | 1190.00 × 395.00 × 591.00 mm |
