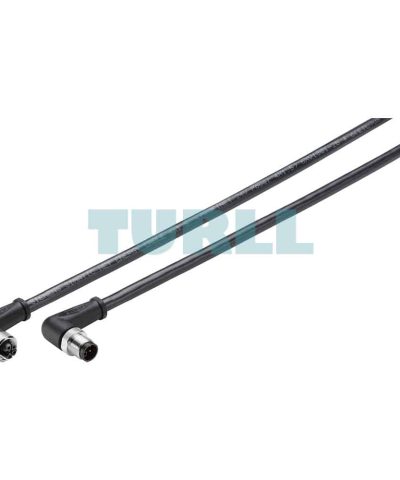

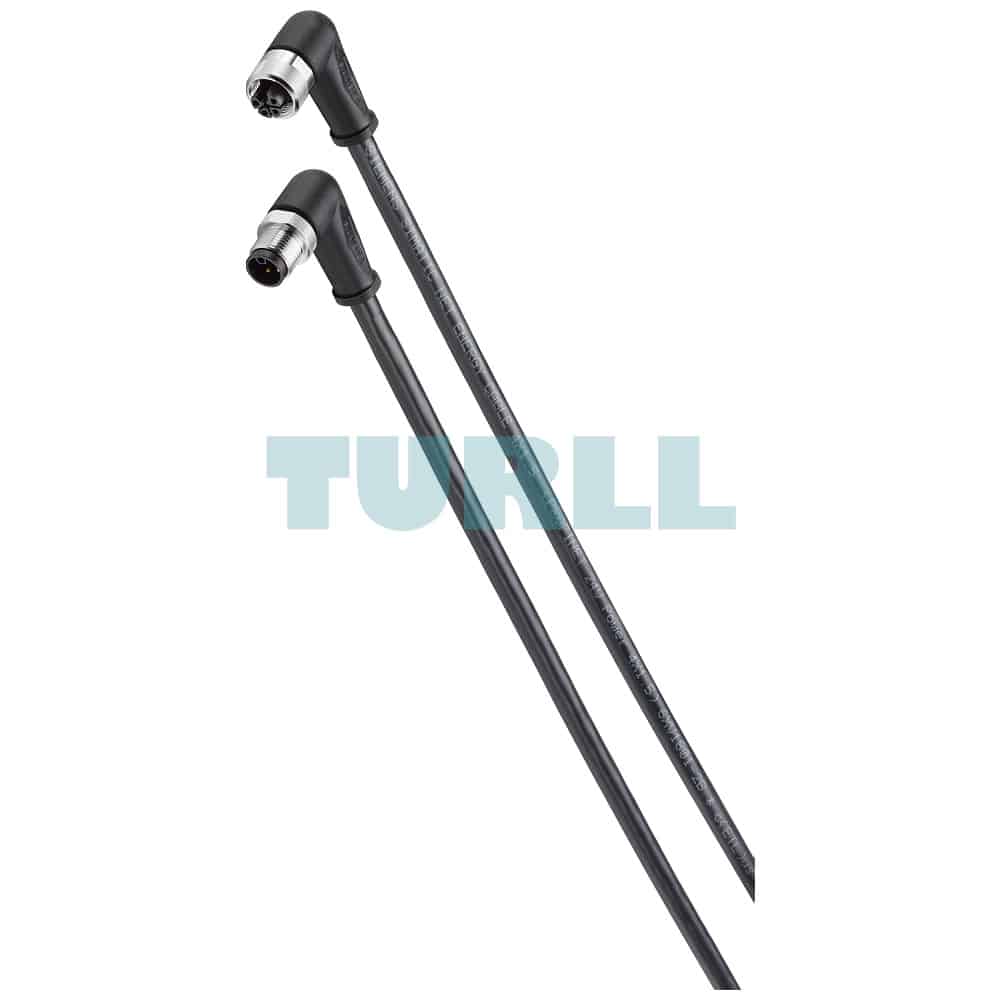

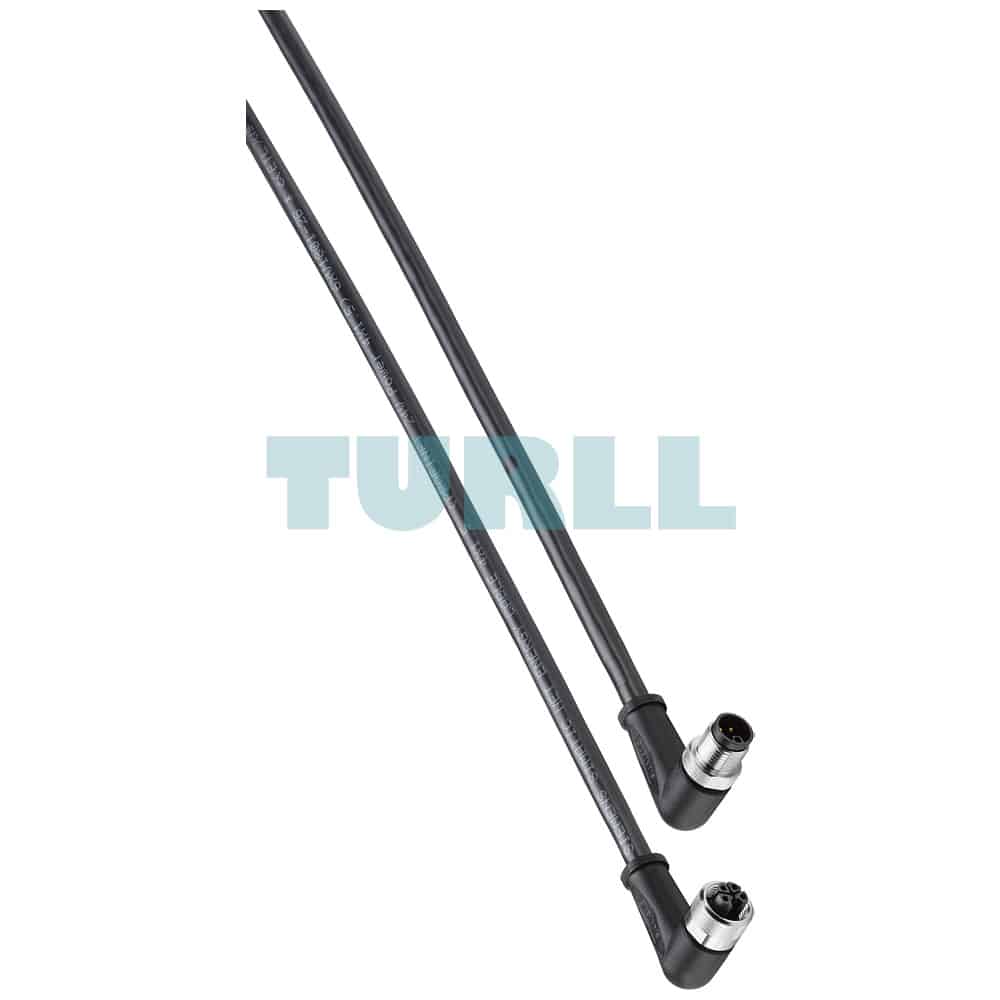

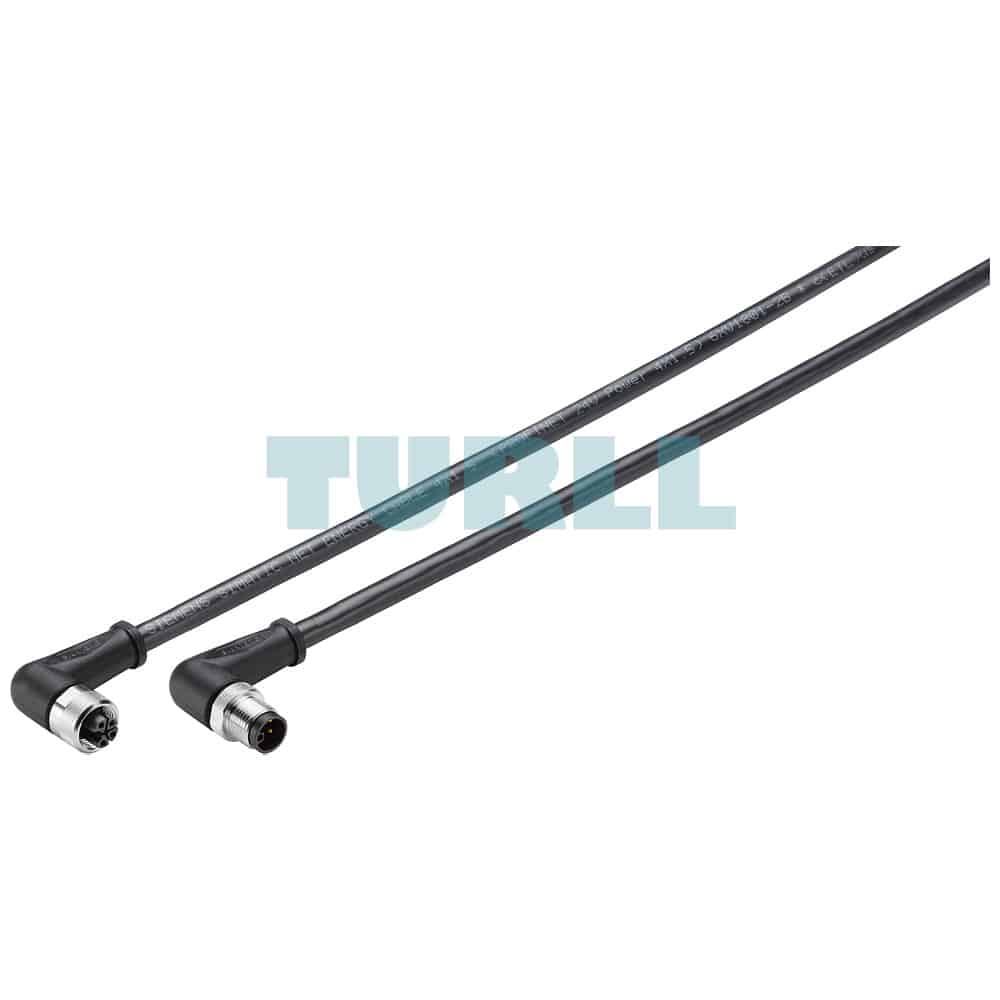

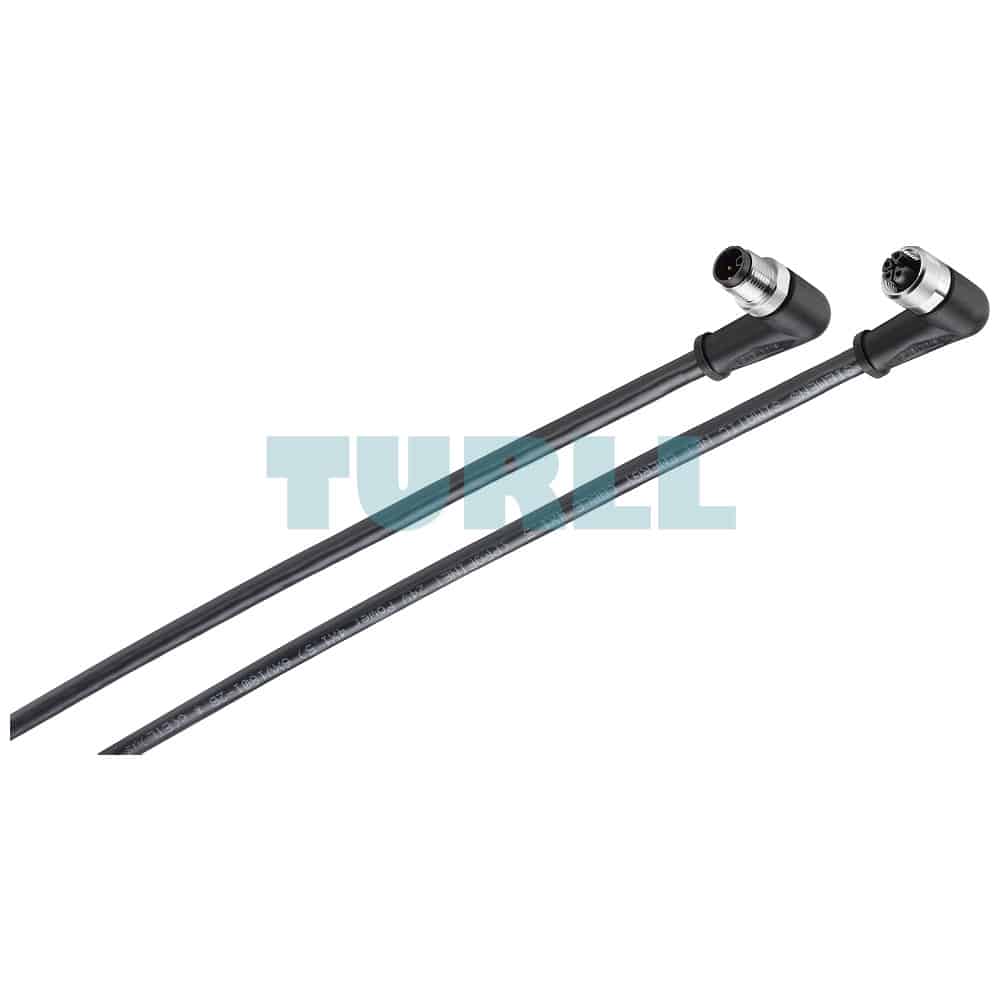

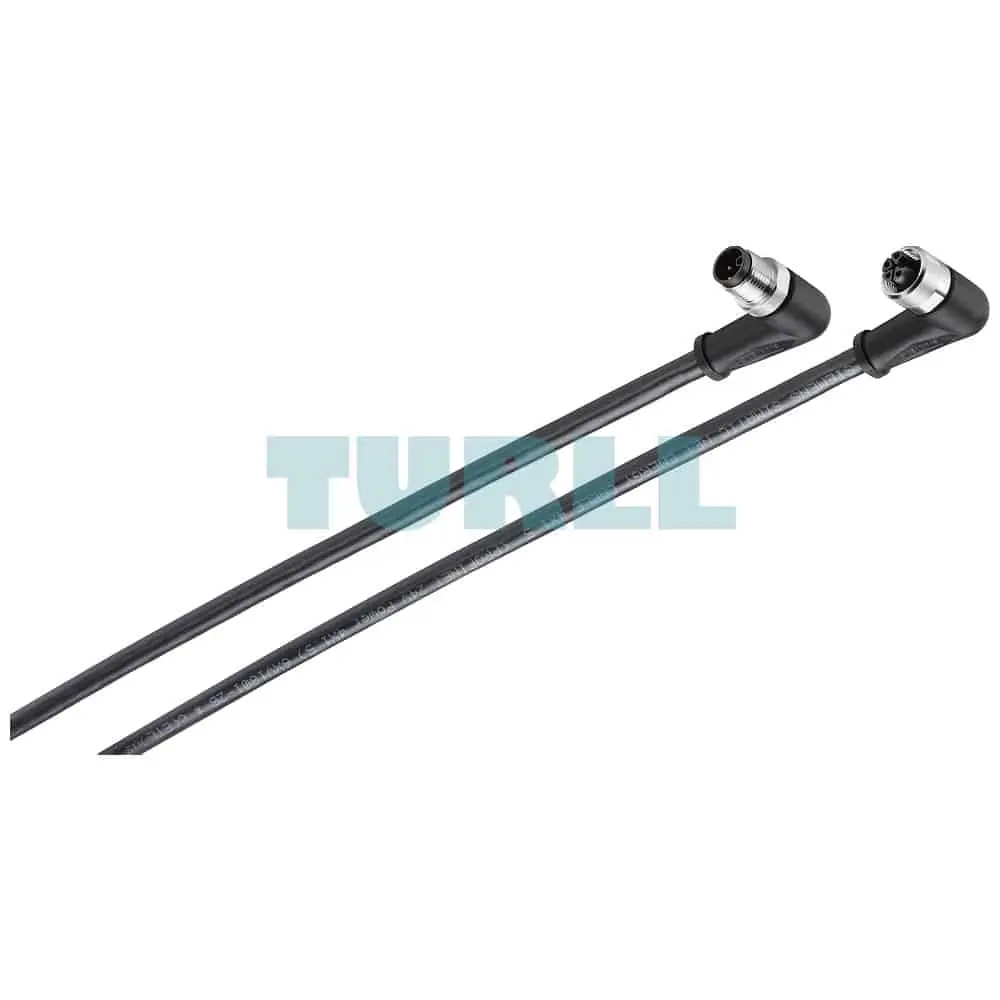

6XV1801-6GH10 SIEMENS Power connecting cable M12-90/M12-90 1m Original Brand New
$64.99
6XV1801-6GH10
Power connecting cable M12-90/M12-90 for the power supply of the terminal devices / network components: pre-assembled cable with M12 plug and M12 socket, L-coded, 4 pin, 1 m.
Global Express Shipping
DHL / FedEx / UPS
100% Original & Brand New
Factory Sealed Box with 1-Year Warranty
Secure Payment
SSL ENCRYPTED
6XV1801-6GH10
Power connecting cable M12-90/M12-90 for the power supply of the terminal devices / network components: pre-assembled cable with M12 plug and M12 socket, L-coded, 4 pin, 1 m.
Overview
- Different performance versions (5-wire, 4-wire and 2-wire) for various application areas
- Pre-assembled M12 connecting cables for energy transfer
- Rugged cable design for installation in industrial applications
- UL approvals
- Easy length measurement thanks to printed meter markings
Design
Rugged 2-core, 4-core or 5-core cable with circular cross-section for connection of signaling contact, power supply and IO-Link devices to IP65/67 components in industrial areas.
Cable types
The following power cables with industrial capability are available for connection of the power supply and signaling contact:
- Energy cable 2 x 0.75
Energy cable for connection of signaling contact and 24 V DC power supply for SCALANCE X and SCALANCE W components - Robust energy cable 4 x 0.75 and 4 x 1.5;
Power cable for connection of 24 V DC power supply to IP69 components (EHEDG) - Energy cable 4 x 1.5
Power cable for connection of 24 V DC power supply to IP65/67 components - FRNC energy cable 4 x 1.5;
Halogen-free power cable for connection of 24 V DC power supply to IP65/67 components - Energy cable 5 x 1.5
Energy cable for connection of 24 V DC power supply of SIMATIC ET 200 using 7/8″ plug-in connectors - Control connecting cable 5 x 0.25;
IO-Link cable for connecting IO-Link sensors/actuators to ET 200 - M12 power connecting cable M12-180/M12-180
4-core M12 power connecting cables (A-coded, L-coded) with straight cable outlet for 24 V DC power supply of the SIMATIC ET 200 and RF18xC (pre-assembled) - M12 power connecting cable M12-90/M12-90
4-core M12 power connecting cables (A-coded, L-coded) with angled cable outlet for 24 V DC power supply of the SIMATIC ET 200 and RF18xC (pre-assembled) - M12 robust power connecting cable M12-180/M12-180;
4-core M12 power connecting cables (A-coded/L-coded) with straight cable outlet, IP69 fixed for 24 V DC power supply of IP69 components (pre-assembled, EHEDG) - M12 control connecting cable M12-180/M12-180;
5-core M12 connecting cable (A-coded) with straight cable outlet, IP65/67 for connecting IO-Link sensors/actuators (IO-Link port class B)
Visit 6XV1801-6GH10
For more products visit Turll.com
| Weight | 0.097 kg |
|---|---|
| Dimensions | 1 × 1 × 1 mm |
