6XV1847-2C SIEMENS FC FO Trailing Cable (62.5/200/230) Trailing cable splitable sold by the meter Original Brand New

Overview

• FastConnect standard fiber-optic cable for use in optical Industrial Ethernet, PROFINET and PROFIBUS networks
• For all users who want to install and assemble the glass fiber-optic cables themselves over longer distances on site for office or industrial applications
• Simple FastConnect LC and ST/BFOC connector assembly on site
• Rugged design for industrial applications both indoors and outdoors
• High interference immunity as not sensitive to electromagnetic interference
• Extensive range of UL approvals

Design

FC FO standard cable GP (General Purpose);

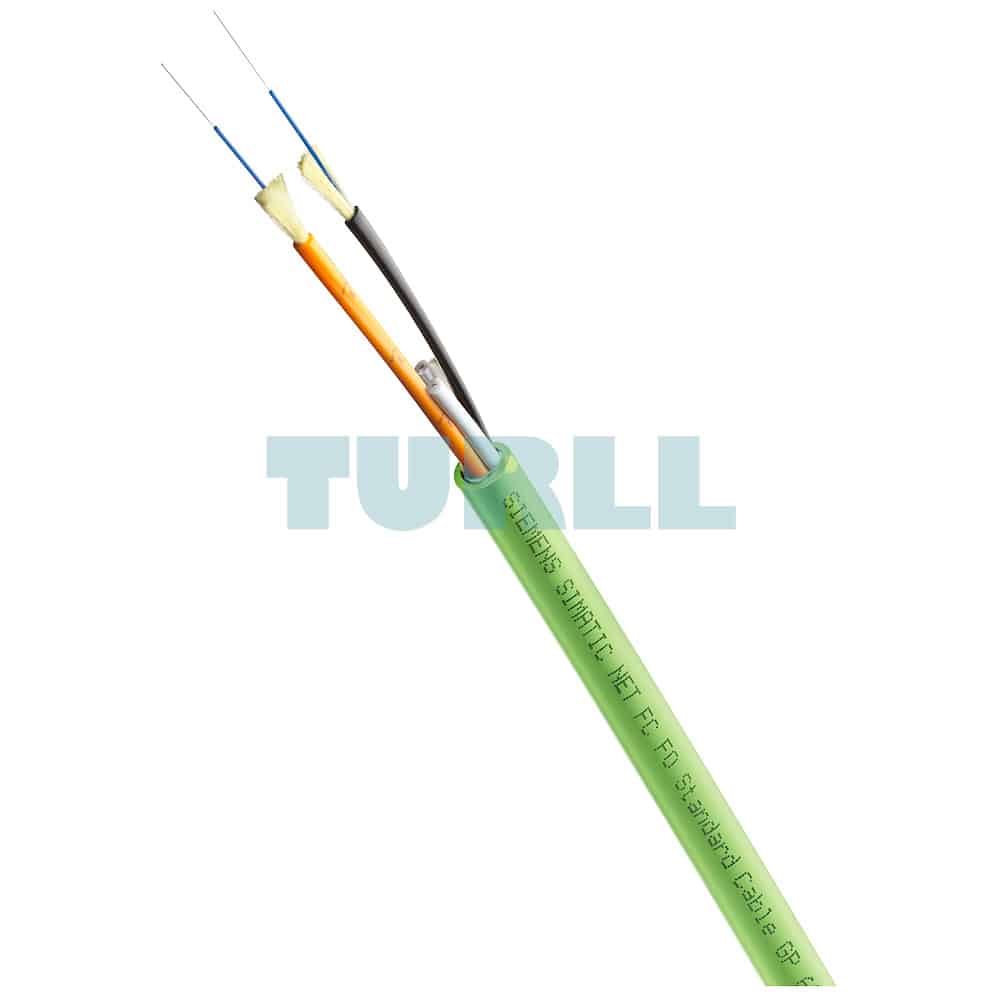

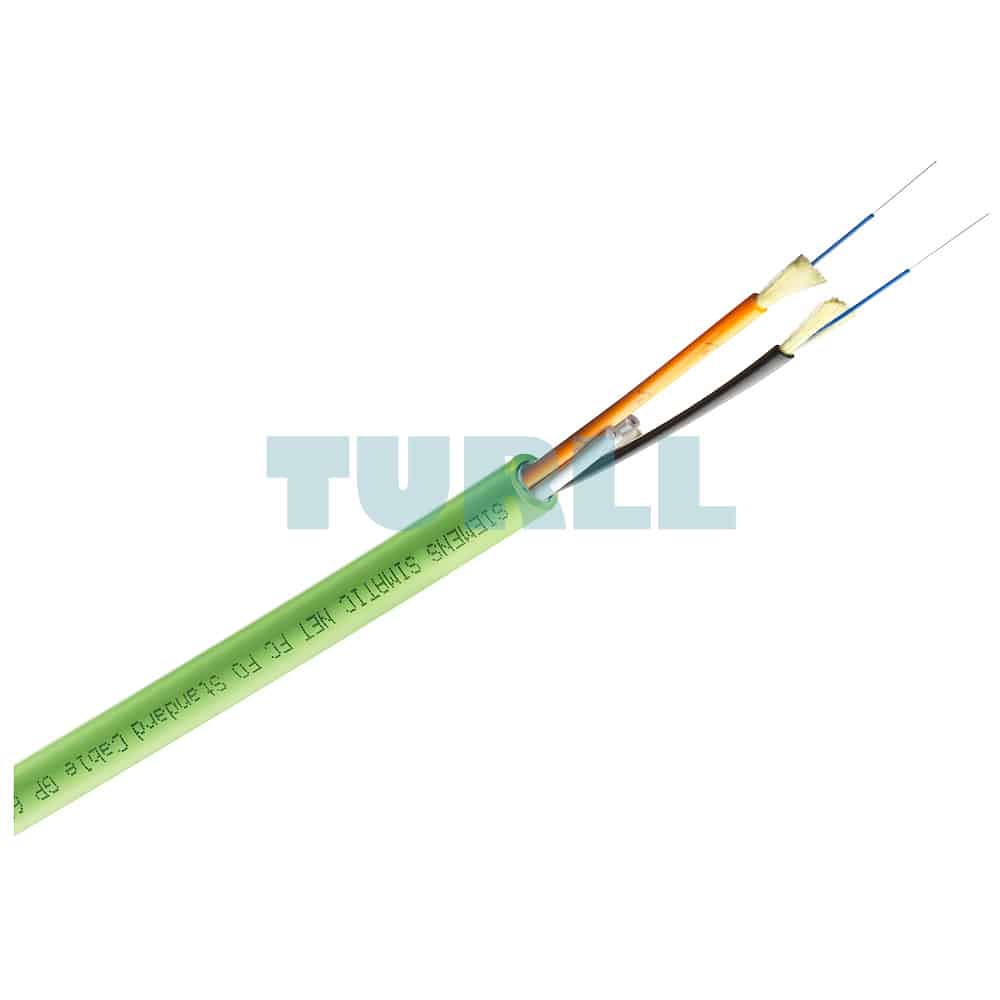

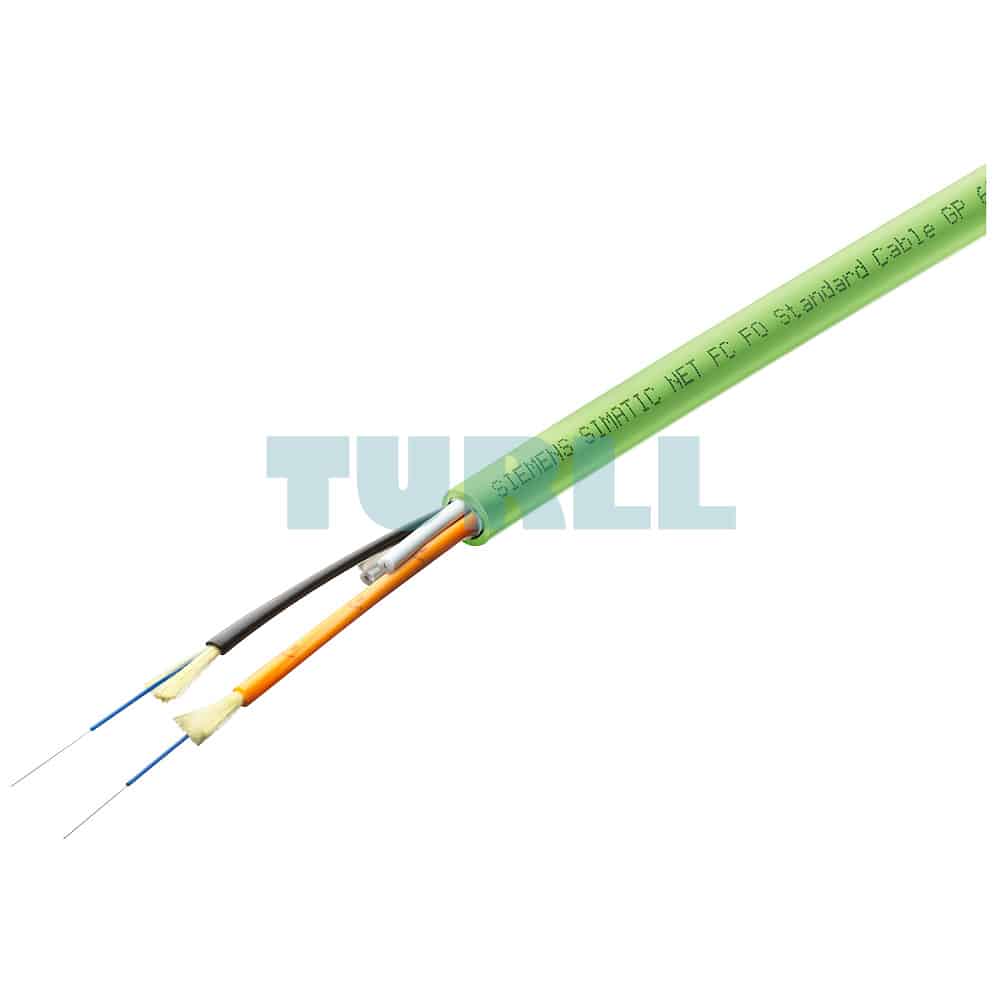

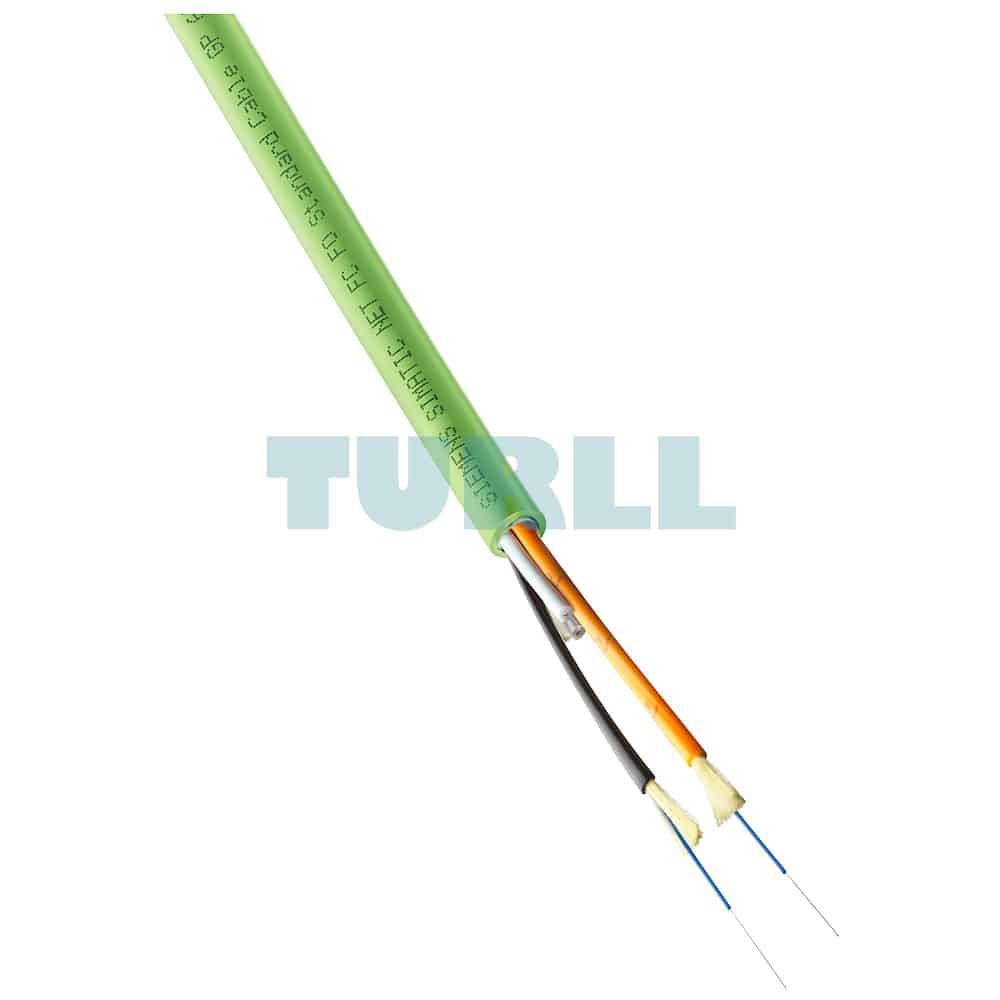

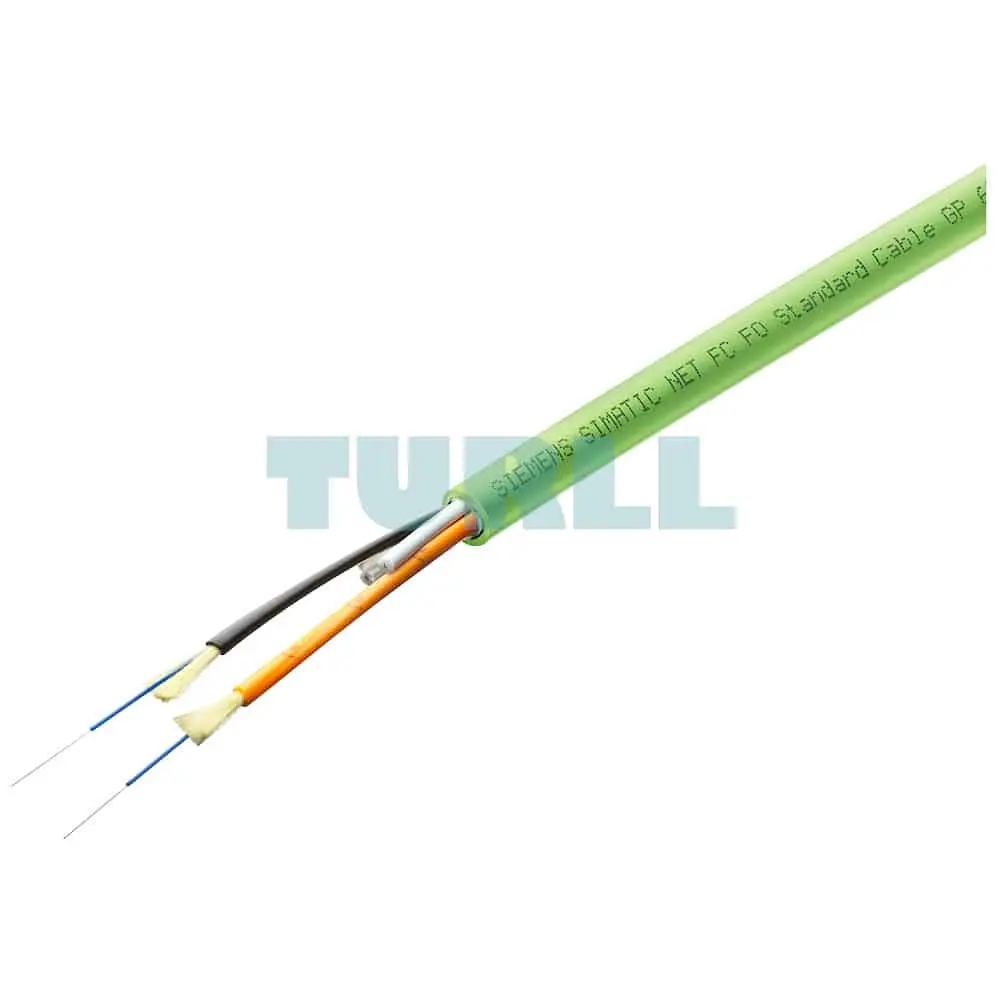

Rugged round cable with green protective jacket, Kevlar strain relief elements, and 62.5/200/230 FC FO fibers for indoor/outdoor applications

FC FO trailing cable;

Rugged round cable with green protective jacket, Kevlar strain relief elements and 62.5/200/230 FC FO fibers for use in cable carriers and moving applications

Maximum cable length between two devices:

• 3000 m for 100 Mbps Ethernet or for PROFIBUS
• 350 m for 1000 Mbps Ethernet (1000Base-SX)
• 550 m for 1000 Mbps Ethernet (1000Base-LX)

The maximum cable lengths can be assembled from partial lengths using FastConnect ST/BFOC couplings (maximum two coupling points, approx. 2.5 dB attenuation per coupling). It is also possible to combine existing installed, conventional 62.5/125 µm multimode glass fiber-optic cable sections with FastConnect fiber-optic cables.
