7ME3410-3UC31-6EC2 SIEMENS Exclusive SITRANS FUE380 Ultrasonic In-Line Flowmeter Original Brand New

7ME3410-3UC31-6EC2 SIEMENS Exclusive SITRANS FUE380 Ultrasonic In-Line Flowmeter Original Brand New

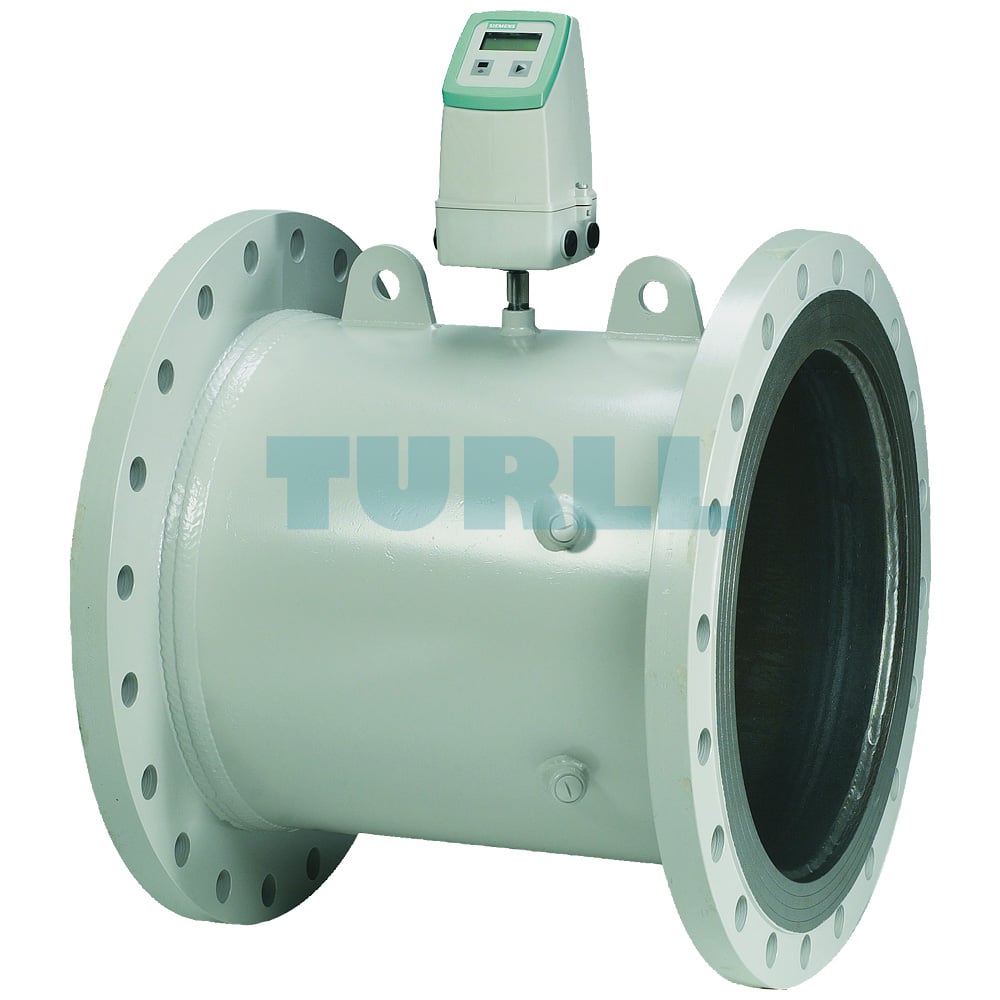

The SIEMENS SITRANS FUE380, model 7ME3410-3UC31-6EC2, is a high-precision ultrasonic in-line flowmeter engineered for demanding thermal energy and volume flow measurement applications. Designed for use in district heating plants, local distribution networks, boiler stations, and chiller plants, this advanced instrument ensures reliable and accurate measurement of liquid flow, including water and glycol mixtures in non-type-approved configurations. Its robust construction and adherence to international metrological standards make it suitable for custody transfer in various jurisdictions where national approvals are applicable.

This flowmeter is offered in both mains-powered and battery-operated versions, providing flexibility for installations with diverse power supply conditions. The remote version, equipped with a 10-meter Sensor Link Cable (SSL) and gland, allows for sensor placement in challenging environments. Temperature handling capabilities extend up to 150°C for smaller diameters (DN50 to DN80) and up to 200°C for larger sizes (DN100 to DN800), making it adaptable to high-temperature processes.

Overview

Approved according to EN 1434, OIML R 75, and MID Class 2 standards, the SITRANS FUE380 incorporates protected metrological parameters to prevent tampering. Its 2-path ultrasonic design ensures high accuracy even in installations with limited straight pipe runs. This configuration consists of a flow sensor pipe, four transducers, and the SITRANS FUE080 transmitter, all optimized for stability and repeatability. Remote mounting options allow transmitter placement up to 30 meters from the sensor for improved thermal protection.

Design

The unit’s durable enclosure is rated IP67/NEMA 4X/6, ensuring resistance to harsh industrial environments. The modular approach allows either compact or remote installation. Compact mounting is suitable up to 120°C, while remote versions handle higher process temperatures. The MID certification process includes both Module B (type approval) and Module D (production quality assurance), ensuring compliance with EU Directive 2014/32/EU for thermal energy meters.

Product Code: 7ME3410-3UC31-6EC2
