Clamp-on SITRANS FS220 ultrasonic flow meter for liquid volume measurement, featuring FST020 transmitter, universal FSS200 sensors, and durable submersible cabling.
The SIEMENS SITRANS FS220, model 7ME3570-1JB40-0BQ1-ZS30, is a precision-engineered clamp-on ultrasonic flow meter designed for reliable and non-intrusive volume measurement of liquids. Built for versatility and ease of installation, this device is ideal for applications in water distribution, wastewater treatment, HVAC systems, and general process monitoring. Its compact, field-mounted design and advanced digital signal processing ensure accurate results, even in challenging environments where downtime is costly.

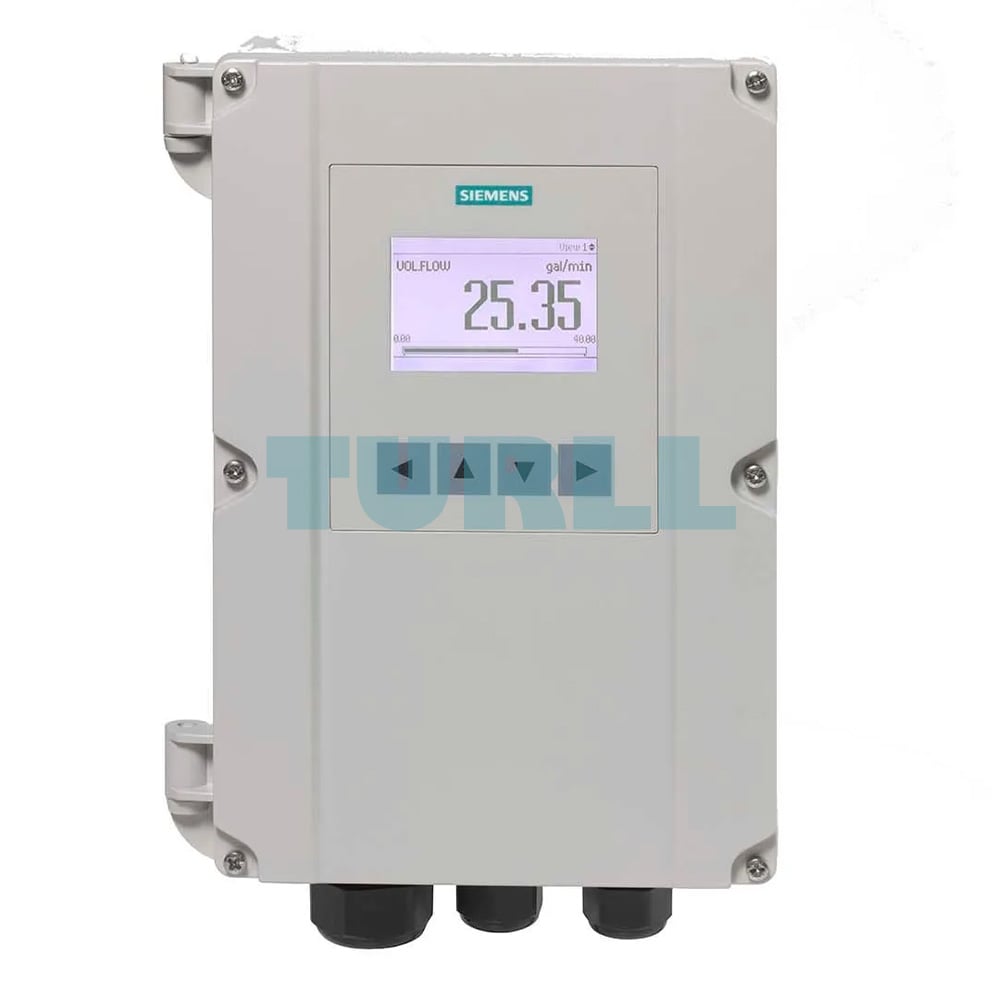

This configuration includes the FST020 transmitter with a graphical display, intuitive push-button controls, and multiple output options, including Modbus RTU, passive current output, relay, and pulse. It operates efficiently within a DC power range of 11.5 – 28.5 V, ensuring flexibility in diverse setups. Paired with the universal FSS200 sensor set (size A2), it accommodates pipe materials of various types with outer diameters ranging from 12.7 mm to 50 mm, and it can operate in extreme temperatures from -40°C to +121°C. The package also features durable coaxial PVC sensor cables, rated for submersion and equipped with F-connectors for secure installation.
The FST020 transmitter is a cost-effective choice for single-path measurement where ultra-high precision is not critical. It excels in measuring volume flow, flow speed, and sound velocity, providing essential process data through both analog and Modbus interfaces. This modern iteration builds on the legacy of the analog FUS1010 series, now enhanced with advanced DSP technology for improved measurement stability, faster response to flow changes, and high immunity to process noise.

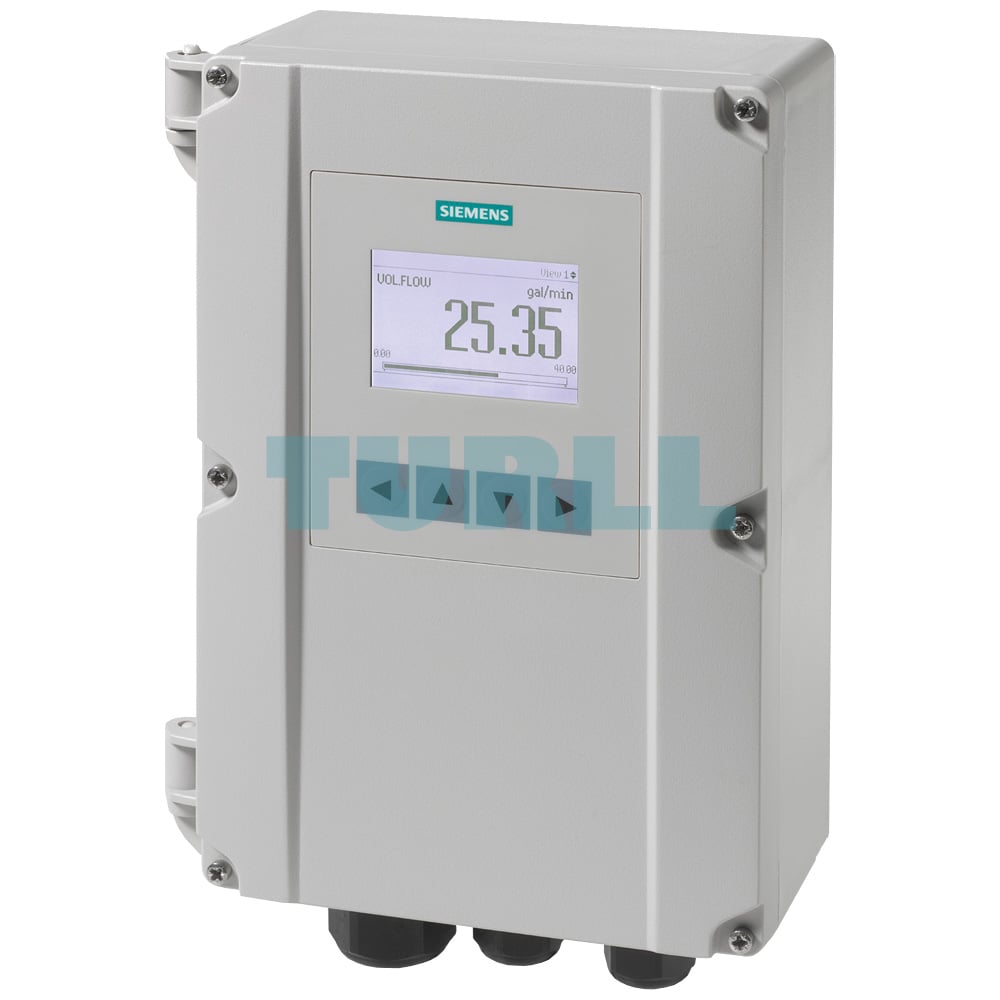

The SITRANS FS220 is housed in a rugged IP65 (NEMA 4X) polycarbonate enclosure suitable for wall mounting. Its non-intrusive clamp-on design eliminates the need for pipe cutting or process interruption. With single-path capability, a wide range of compatible sensors, and straightforward commissioning, it is an efficient solution for retrofits, leak monitoring, and system optimization in industrial and municipal applications.
Product Code: 7ME3570-1JB40-0BQ1-ZS30
More Siemens products at Turll.com
| SKU / Model | 7ME3570-1JB40-0BQ1-ZS30 |
|---|---|
| Weight | 2.76 kg |
