High-quality SIEMENS SITRANS FS220 clamp-on ultrasonic flow meter for precise liquid volume measurement, featuring digital DSP technology, robust housing, and universal sensor compatibility.
The SIEMENS 7ME3570-1JB40-0CQ1-ZS30 SITRANS FS220 is a high-quality clamp-on ultrasonic flow meter designed to deliver accurate and reliable volume measurement of liquids in a wide range of applications. Featuring a single-path configuration, it is the ideal choice for straightforward installations where temperature and viscosity compensation are not required. With its ease of installation, minimal maintenance needs, and robust design, the SITRANS FS220 ensures efficient monitoring of liquid flows in industries such as water supply, sewage management, and HVAC systems.

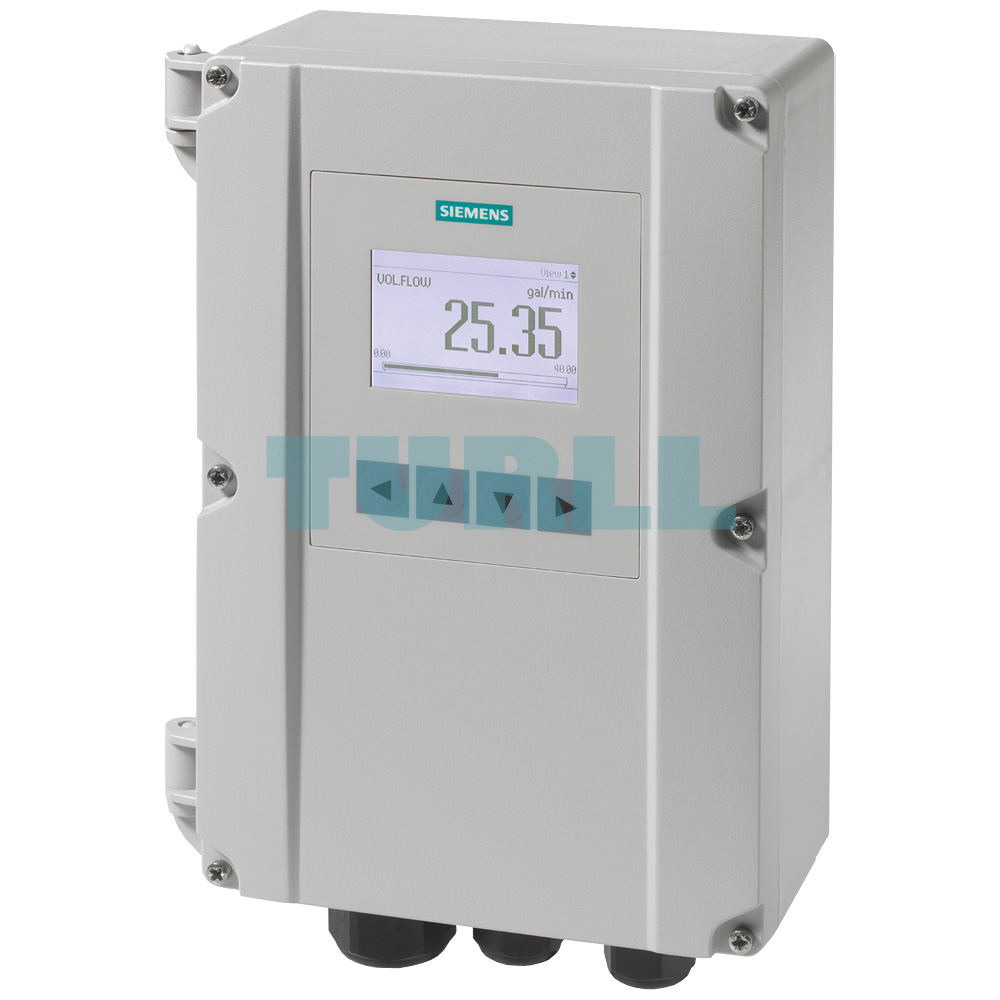

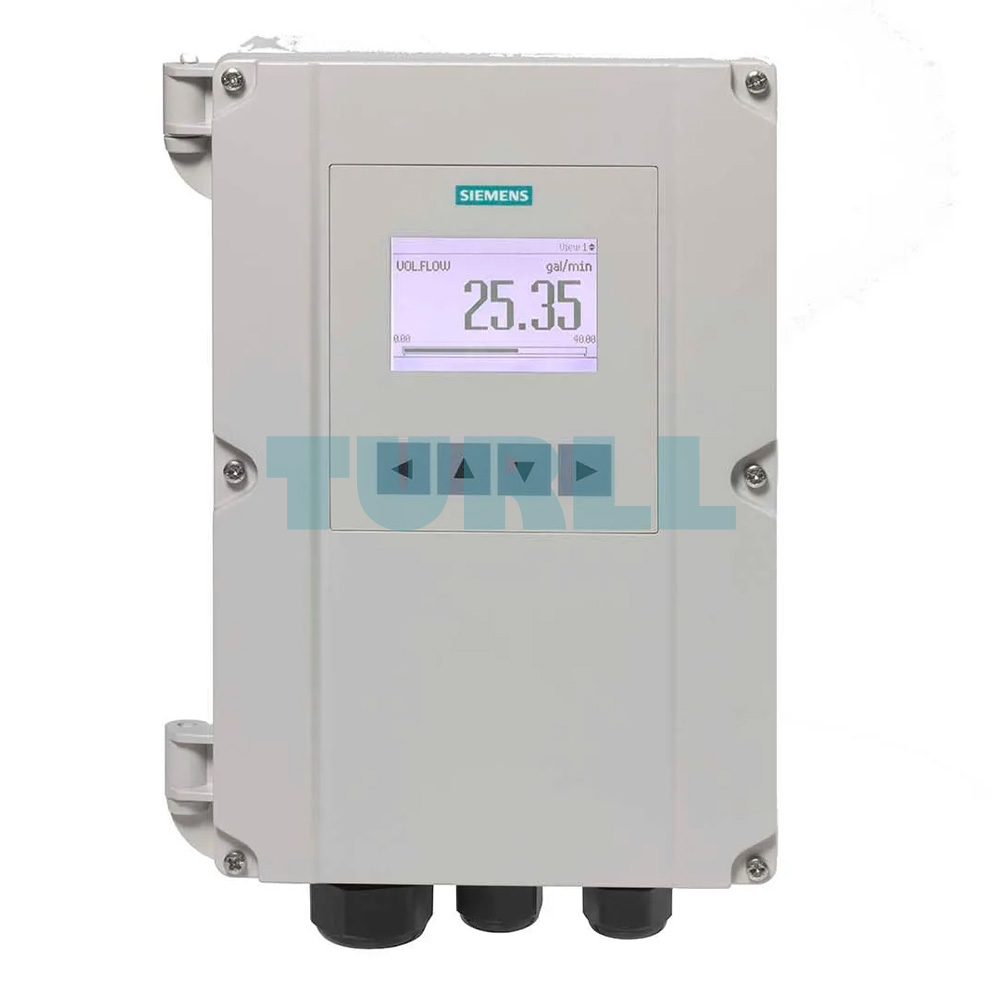

This complete package includes the FST020 transmitter with a graphical display highlighted by an intuitive push-button interface, Modbus (RTU) communication, and multiple output options including current, relay, and pulse signals. It operates on an 11.5 to 28.5 V DC power supply and comes equipped with cable glands for quick setup. The included FSS200 sensor pair, universal size B3, is suitable for a wide range of pipe materials with outer diameters from 19 to 127 mm, making it adaptable to various site requirements. The sensors can withstand temperatures from -40°C to +121°C and are provided with a mounting track kit for pipes up to 130 mm in diameter.
The FST020 transmitter is part of a modernized digital platform, developed from the proven analog FUS1010 transmitters. Incorporating advanced Digital Signal Processing (DSP) technology, it delivers enhanced measuring performance, fast reaction to flow changes, and strong immunity to process noise. The system outputs key process values such as volume flow, flow velocity, sound velocity, and totalizer readings, ensuring comprehensive flow analysis capabilities.
The rugged IP65 (NEMA 4X) wall-mounted housing, constructed from durable polycarbonate, ensures reliable operation in demanding environments. The non-intrusive clamp-on design simplifies installation and eliminates the need for pipe modifications. With options for both AC and DC power, this system offers flexible deployment across different installation sites, making it an excellent choice for long-term, cost-effective flow measurement solutions.
Product Code: 7ME3570-1JB40-0CQ1-ZS30
More Siemens products at Turll.com
| SKU / Model | 7ME3570-1JB40-0CQ1-ZS30 |
|---|---|
| Weight | 2.76 kg |
