7MF0300-1FE01-5AF2-ZA00E00H01Y01 SIEMENS Exclusive SITRANS P320 Pressure Transmitter Original Brand New

7MF0300-1FE01-5AF2-ZA00E00H01Y01 SIEMENS Exclusive SITRANS P320 Pressure Transmitter Original Brand New

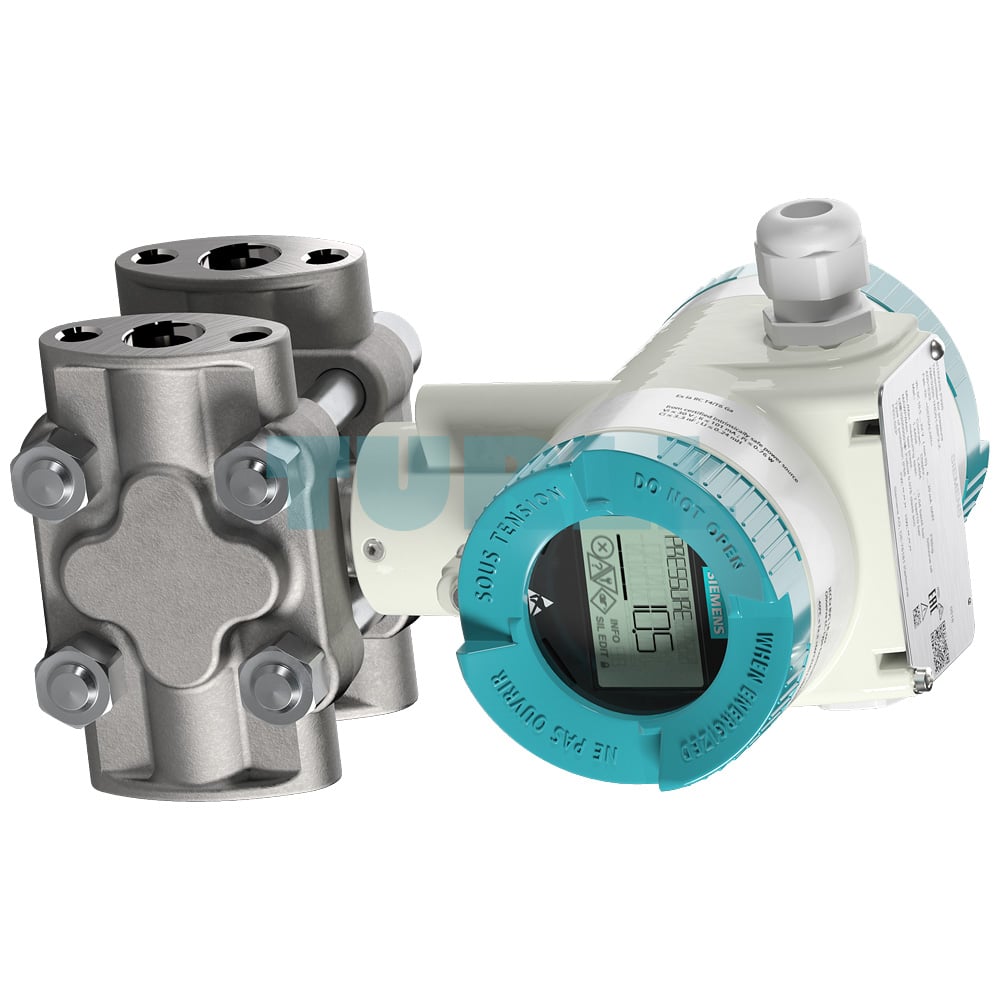

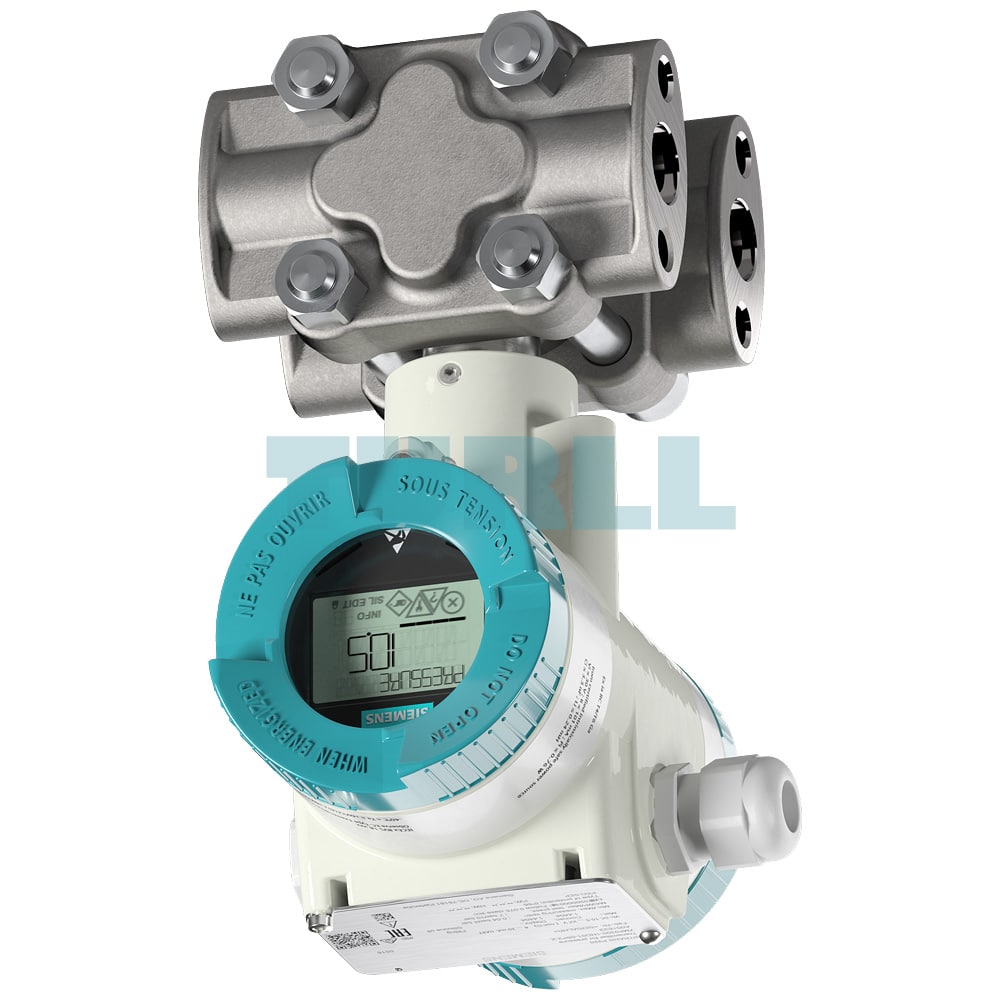

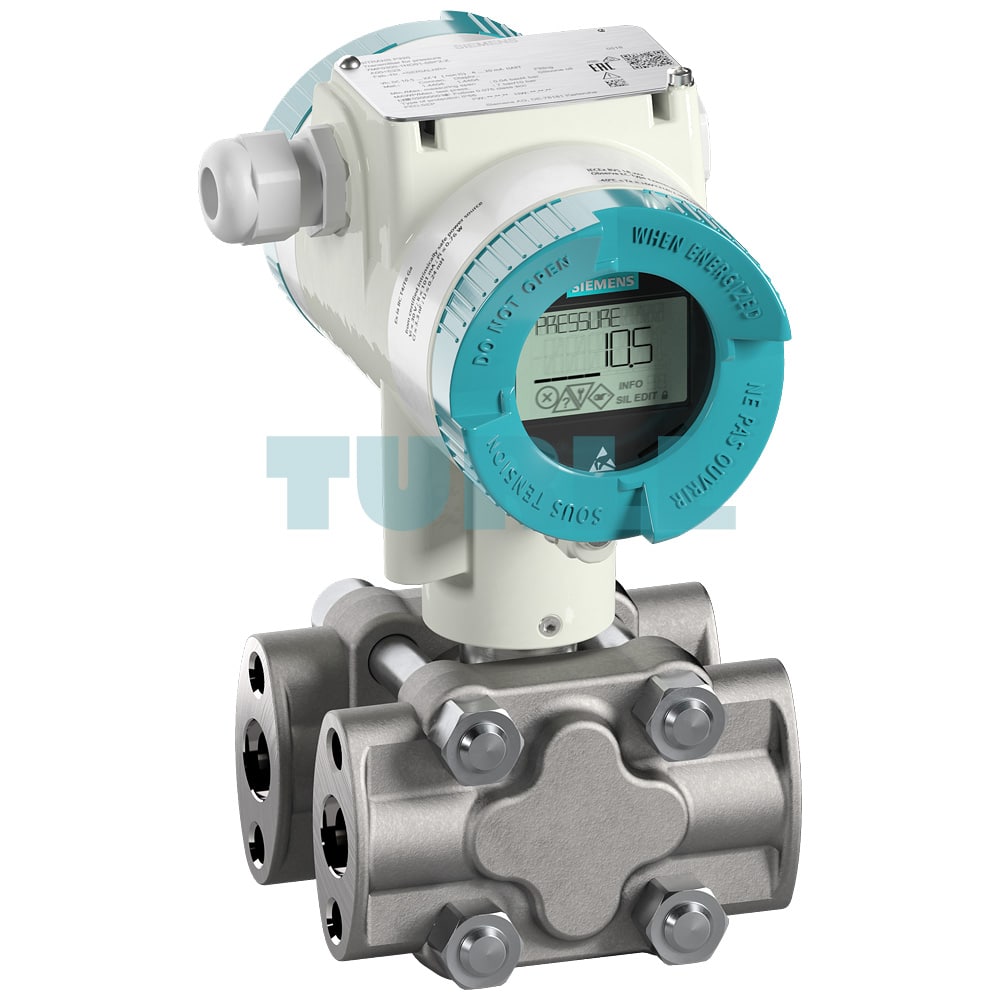

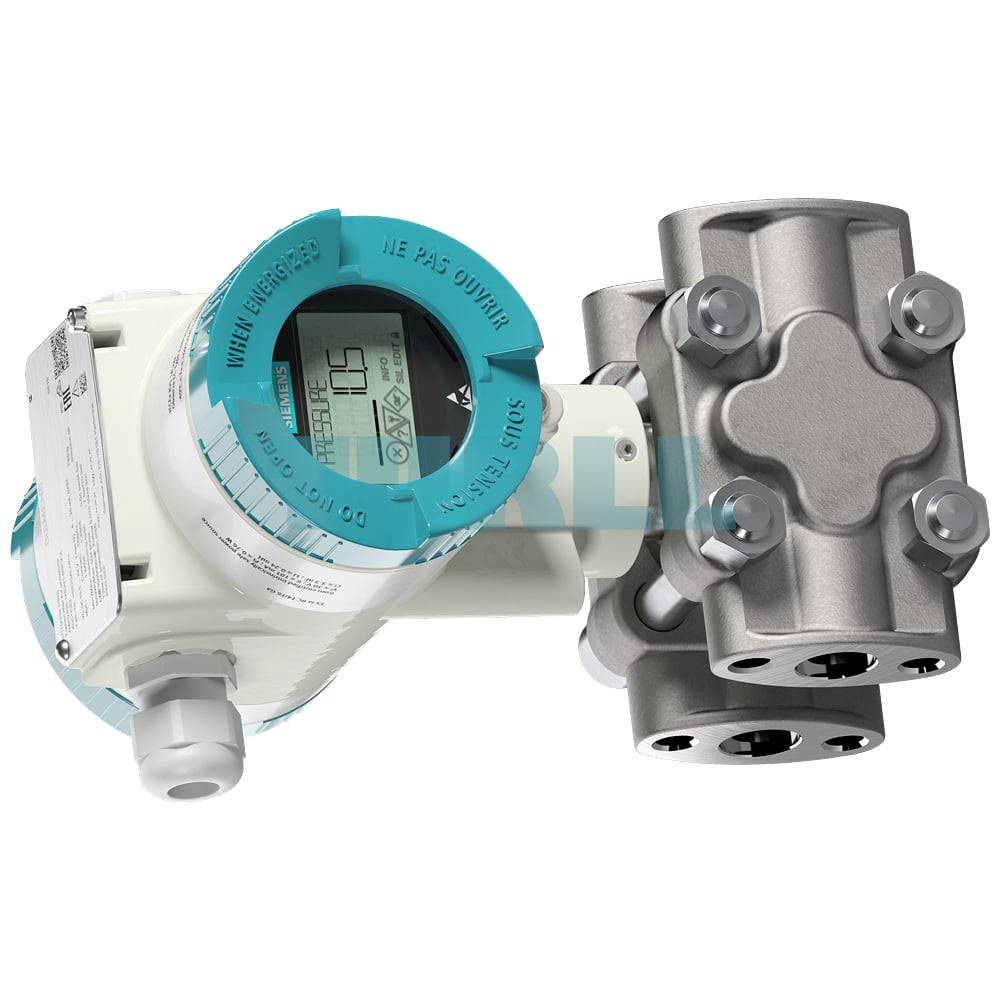

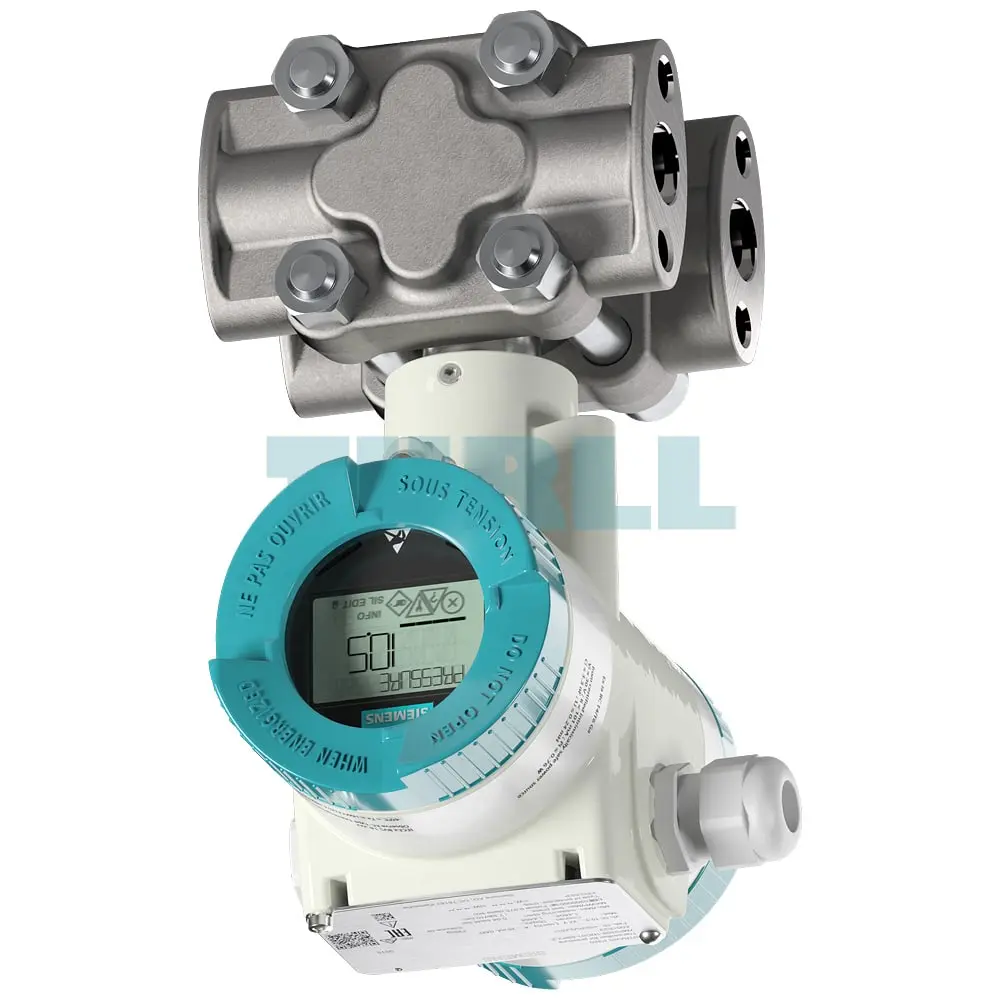

The SIEMENS 7MF0300-1FE01-5AF2-ZA00E00H01Y01 is a highly reliable SITRANS P320 pressure transmitter designed for precise measurement in industrial environments. It is equipped with HART communication protocol and operates within a 4...20 mA signal range, ensuring compatibility with a wide variety of control and monitoring systems. The device offers accurate gauge pressure measurement with a maximum measuring span of 250 mbar (3.6 psi), making it suitable for both low-pressure and medium-pressure applications across industries such as oil & gas, chemicals, water treatment, and power generation.

The measuring cell of the SITRANS P320 uses silicone oil as filling medium, ensuring stable performance and accuracy even under demanding operating conditions. With a robust stainless steel 316L/1.4404 process connection and diaphragm seals, the transmitter is built for long-term durability and resistance to corrosion. The sensor differential pressure unit is further supported by a process flange made of stainless steel 316/1.4408, enhancing resilience and reliability. Its die-cast aluminum housing with a dual-chamber design adds extra protection against environmental stresses while maintaining a lightweight construction.

Overview

Designed for global applications, this transmitter features world approvals including CE, UKCA, and RCM, providing compliance for diverse installations. It comes with a clear display integrated under a glass lid for easy reading of process values. Additionally, it is supplied with a mounting bracket made of electrogalvanized steel, cable gland, and sealing plug for straightforward installation. The flexible measuring range configuration allows adjustment of the lower and upper limits, offering precise adaptation to specific process requirements. For example, ranges can be configured from -0.5 to 10.5 psi or other units like bar, kPa, or MPa.

Design

The SITRANS P320 pressure transmitter combines advanced engineering with practical design. Its housing accommodates 2 x M20 x 1.5 cable entries for secure wiring, while the dual-chamber construction provides segregation of electronics and connections for greater safety and easier maintenance. User-friendly configuration ensures efficient integration into both new systems and existing networks, making it an ideal solution for modern process automation.

Product Code: 7MF0300-1FE01-5AF2-ZA00E00H01Y01
