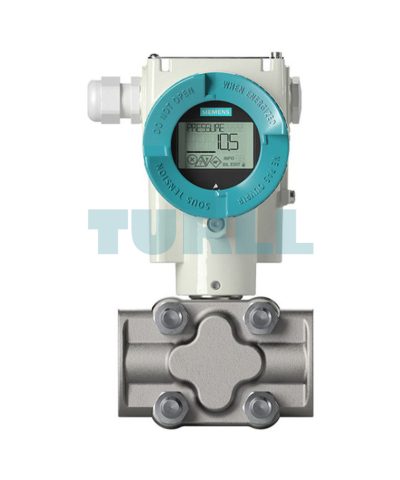

7MF0350-1PM01-5AF2-ZA00B35E12H01Y01Y15 SIEMENS Exclusive SITRANS P320 Pressure Transmitter Original Brand New
$2,415.78
SIEMENS SITRANS P320 differential pressure transmitter with stainless steel design, 5000 mbar span, HART communication, and durable dual-chamber housing.
7MF0350-1PM01-5AF2-ZA00B35E12H01Y01Y15 SIEMENS Exclusive SITRANS P320 Pressure Transmitter Original Brand New
The SIEMENS 7MF0350-1PM01-5AF2-ZA00B35E12H01Y01Y15 SITRANS P320 is a differential pressure and flow transmitter designed to deliver reliable and highly accurate measurements across a wide range of industrial applications. Built with robust materials, including stainless steel 316L process connections and diaphragms, this device ensures durability in demanding environments while maintaining precise performance. The pressure transmitter operates with HART communication (4…20 mA), enabling seamless integration into existing control systems for effective monitoring and process optimization.
Engineered to handle a maximum measuring span of 5000 mbar (2009 inH²O), the SITRANS P320 supports flexible range configuration. The unit features a dual-chamber die-cast aluminum housing with a protective glass window display, providing easy readability and durability. Its oval flange with fastening threads (M10 PN160, M12 PN420) ensures secure installation. This model also comes with cable glands and sealing plugs pre-installed, enhancing convenience during setup and operation. The transmitter’s design emphasizes long-term stability, safety, and efficiency, making it a trusted choice for industries that require accurate measurement of differential pressure and flow.
Overview
The SITRANS P320 series is known for its advanced diagnostic features, streamlined parameterization, and reduced maintenance needs. Designed for harsh conditions, it delivers robust performance with minimal drift, ensuring long service life. The transmitter is fully configurable, allowing the user to define lower and upper range values, unit selections (mbar, bar, kPa, MPa, psi), and custom tags up to 32 characters. A stainless steel tag plate provides clear identification and professional labeling, ideal for industrial facilities requiring traceability and compliance.
Design
Constructed with stainless steel 316/1.4408 process flanges and electrogalvanized steel mounting brackets, the SITRANS P320 is designed for rugged installation. The dual-chamber housing design separates electronics and connections, enhancing safety and reliability. LEDs and display functionality simplify commissioning and fault detection. This configuration is supplied without Ex protection, making it suitable for non-hazardous environments where high measurement precision is required. With its modular concept, long-term reliability, and SIEMENS engineering excellence, the SITRANS P320 provides a future-proof solution for differential pressure measurement.
Product Code: 7MF0350-1PM01-5AF2-ZA00B35E12H01Y01Y15
More Siemens products at Turll.com
| Weight | 2.775 kg |
|---|
