7MH5001-0AC00 SIEMENS Exclusive SIWAREX JB Junction Box Original Brand New

7MH5001-0AC00 SIEMENS Exclusive SIWAREX JB Junction Box Original Brand New

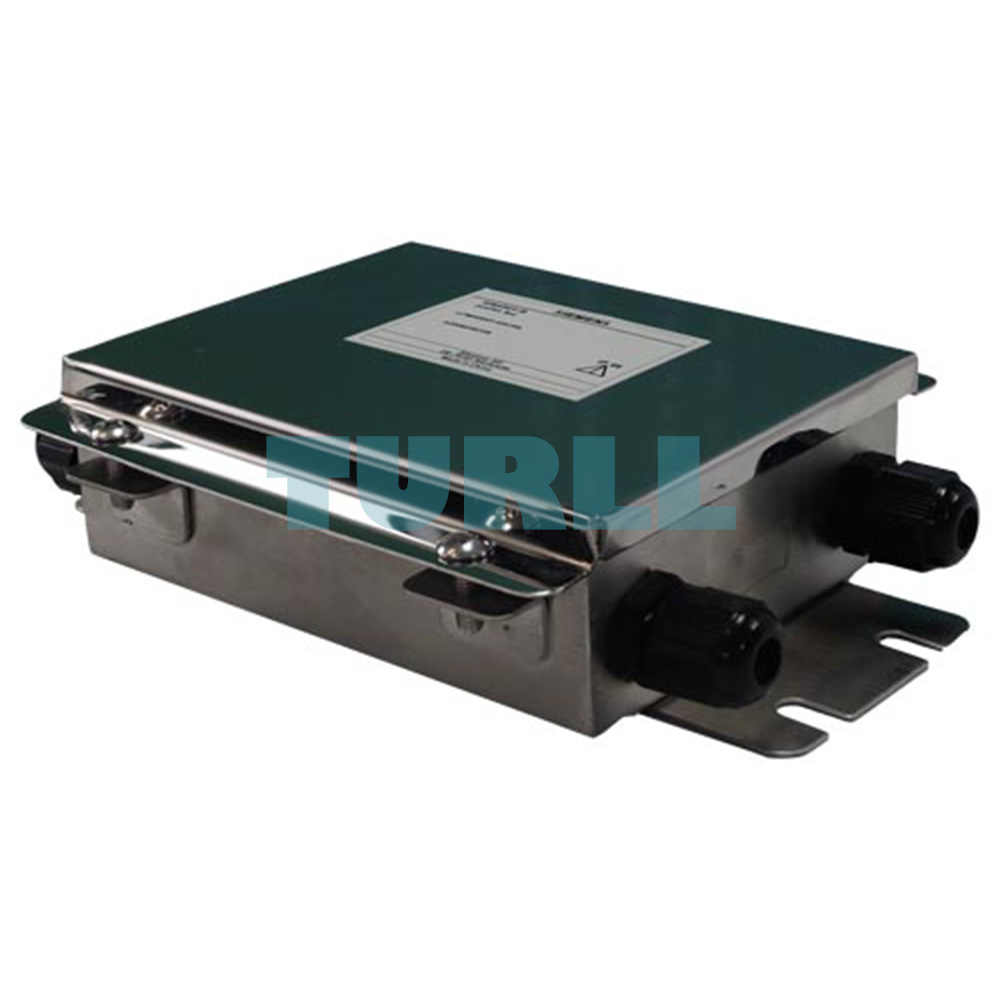

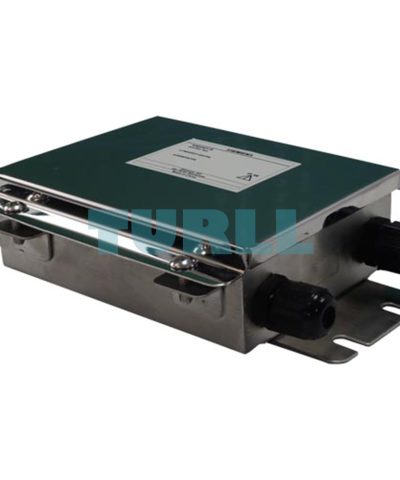

The 7MH5001-0AC00 SIEMENS SIWAREX JB analog junction box is an industrial-grade solution designed for precise and reliable load cell connectivity. Constructed with a stainless steel housing and equipped with plastic cable glands, this junction box enables the parallel connection of up to four load cells within a 4-wire system. It delivers uncompromising performance in demanding industrial environments.

With a compact form factor of 192 x 137 x 45 mm, and IP66-rated protection, this device ensures dustproof and splashproof operation. The robust construction and sealed enclosure make it ideal for use in harsh operating conditions, including those exposed to moisture and contaminants. Load cell cables are securely routed through metric cable glands, ensuring stable and interference-free connections.

Overview

The SIWAREX JB junction box allows for the accurate and efficient parallel connection of load cells. Designed with scalability and flexibility in mind, the unit can accommodate up to four load cells in one enclosure. Available in standard and NEPSI-certified versions, it provides versatile installation options for global industrial applications.

Design

The enclosure comprises a stainless steel base and removable cover, internally equipped with screw terminals mounted on a connection board. This layout simplifies installation and maintenance. The junction box supports 4-wire load cell systems and is pre-configured with potentiometers for corner load adjustment, allowing enhanced balance and accuracy in measurements.

All load cells connected must share identical specifications for internal resistance, characteristic value, and rated load. The junction box itself does not limit these values, offering full compatibility within your load cell system setup.

Product Code: 7MH5001-0AC00
