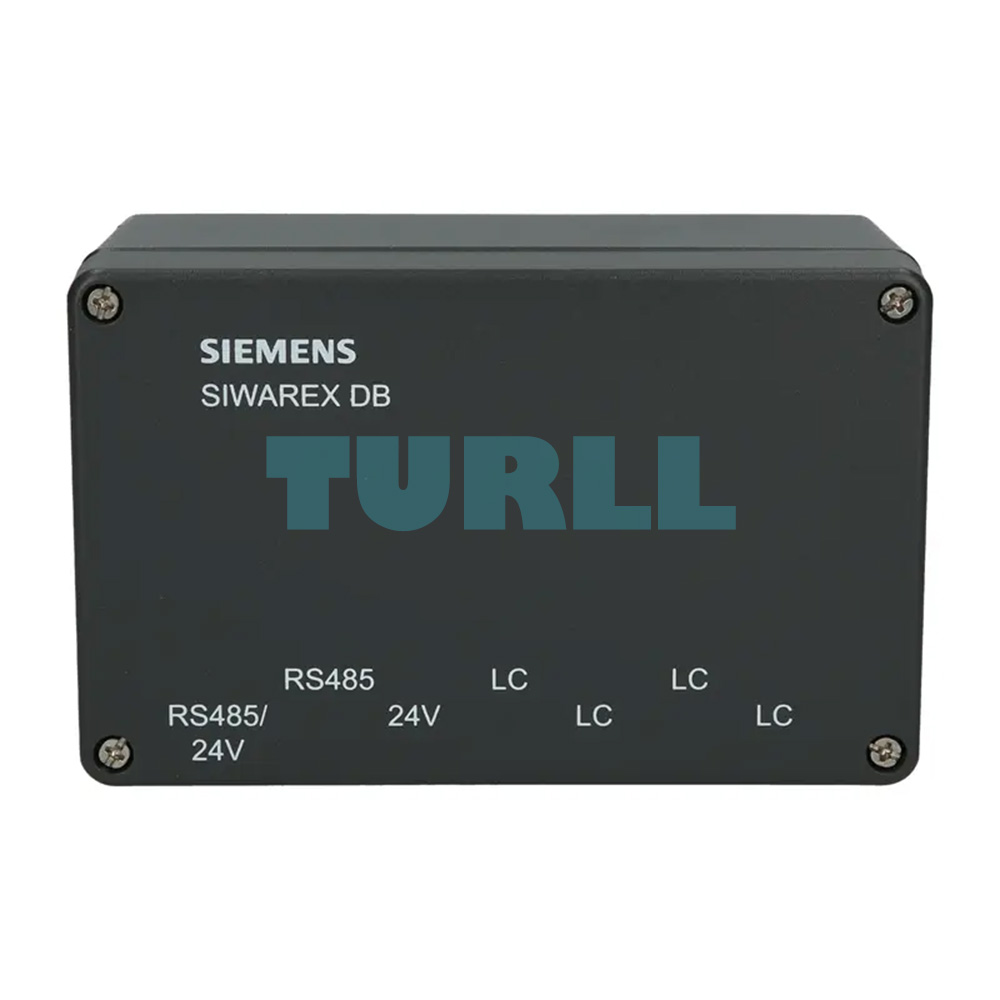

7MH5001-0AD20 SIEMENS Exclusive SIWAREX DB Digital Junction Box Original Brand New

7MH5001-0AD20 SIEMENS Exclusive SIWAREX DB Digital Junction Box Original Brand New

The SIEMENS  is an advanced four-channel digital junction box designed for precision diagnostics and monitoring in load cell applications. This original brand new unit enhances traditional analog strain gauge systems by introducing real-time digital insights through its integrated RS485 interface, enabling seamless communication with SIWAREX WP weighing modules.

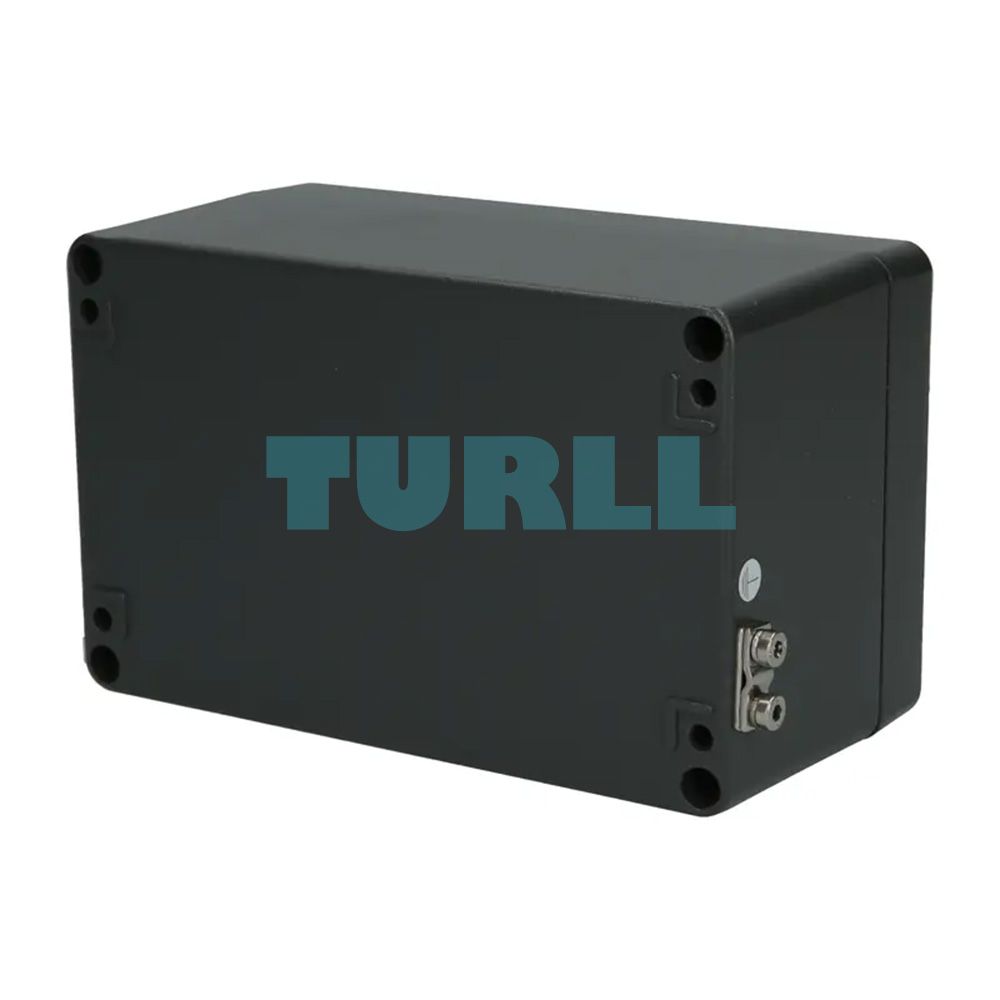

Constructed with a durable aluminum die-cast housing and rated with IP66 protection, this junction box is engineered for industrial environments where dust, moisture, and mechanical impact resistance are essential. Its robust build and compact form make it ideal for both new installations and retrofitting existing weighing systems.

The SIWAREX DB supports up to four load cells (full bridge, 1–4 mV/V) and provides targeted fault identification such as wire break detection and overload alerts. These advanced diagnostics empower operators with proactive maintenance capabilities, reducing system downtime and ensuring consistent weighing accuracy.

Overview

SIWAREX DB represents the next generation of diagnostic junction boxes for analog load cells in automated weighing systems. When connected to a SIWAREX WP weighing module, it enables individual monitoring of each load cell channel and immediate identification of faults or deviations. This facilitates smooth integration into the SIMATIC automation architecture.

Design

The enclosure is built from high-grade aluminum die-cast material, providing enhanced protection in accordance with IP66 standards. Key design features include:

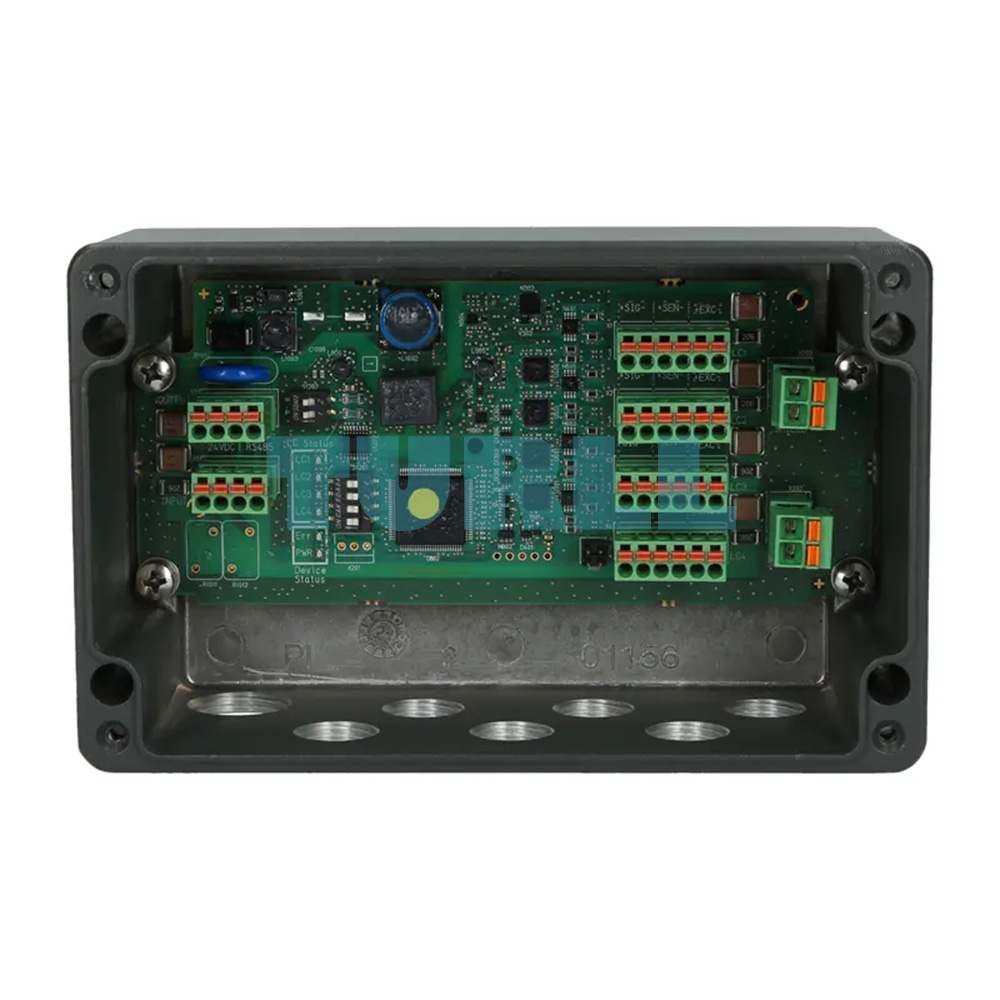

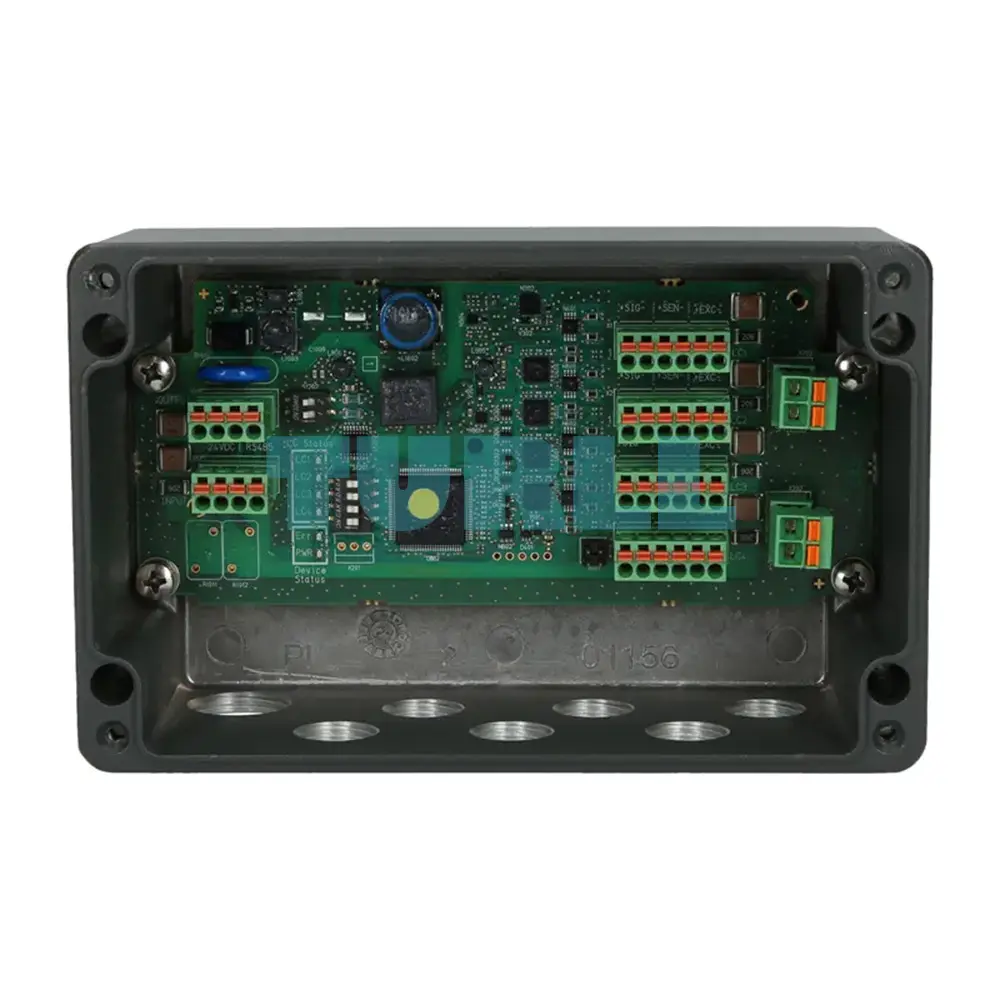

• Plug-in terminals for quick and easy installation

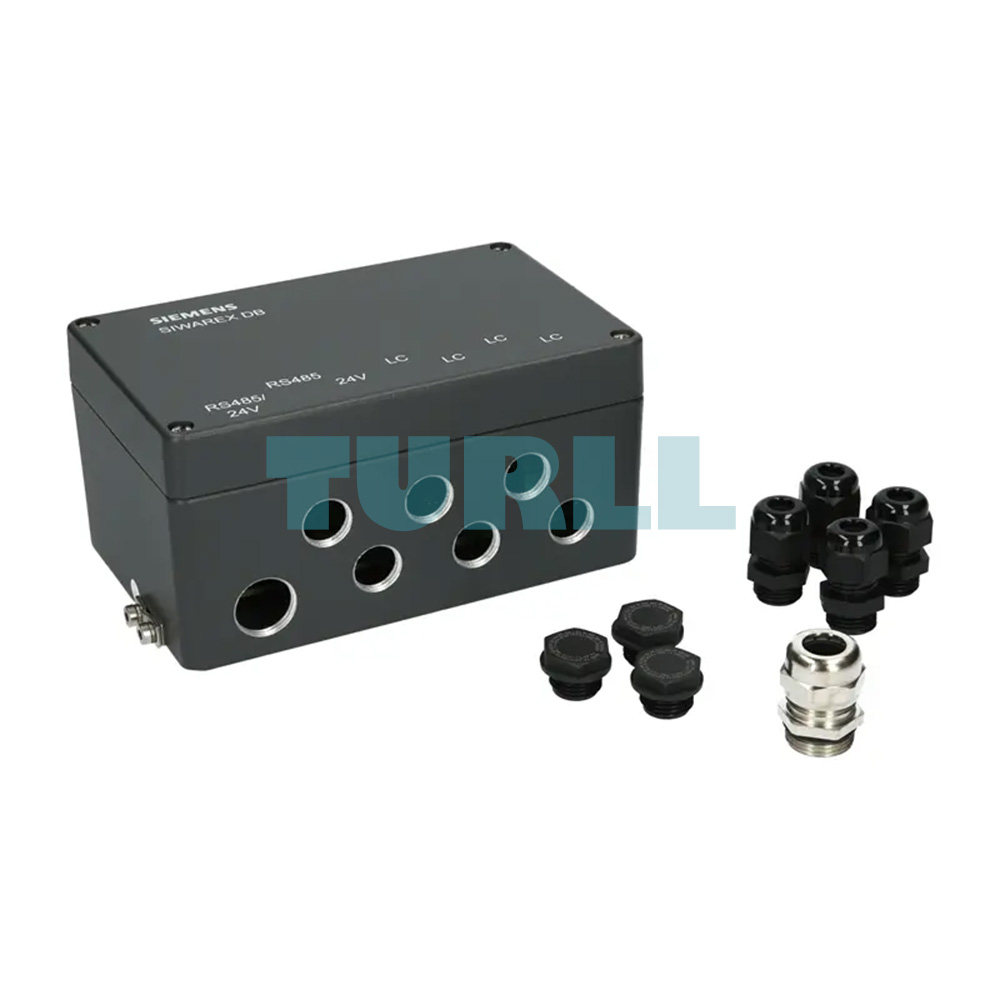

• Metric cable glands for secure cable entry
• RS485 interface for direct communication with SIWAREX WP modules

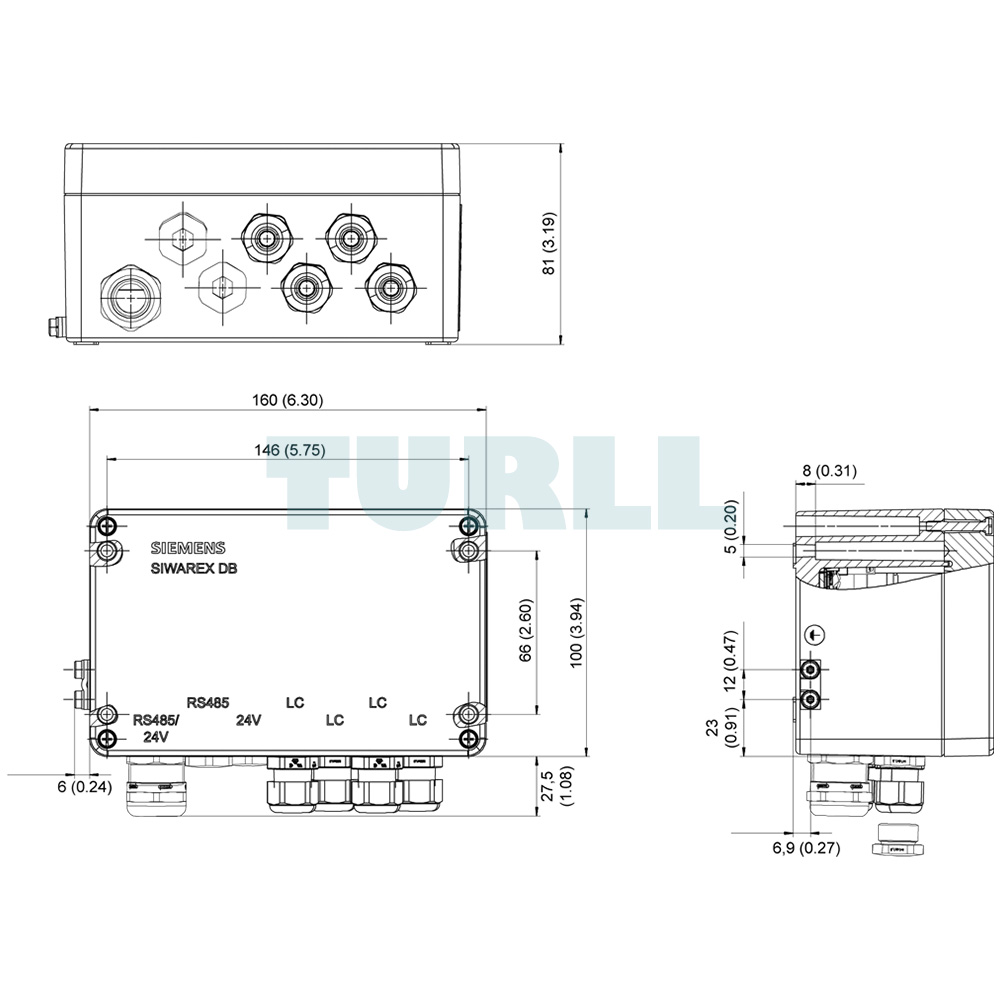

• Compact dimensions suited for industrial control panels

Download

Data Sheet (PDF)

Product Code: 7MH5001-0AD20
