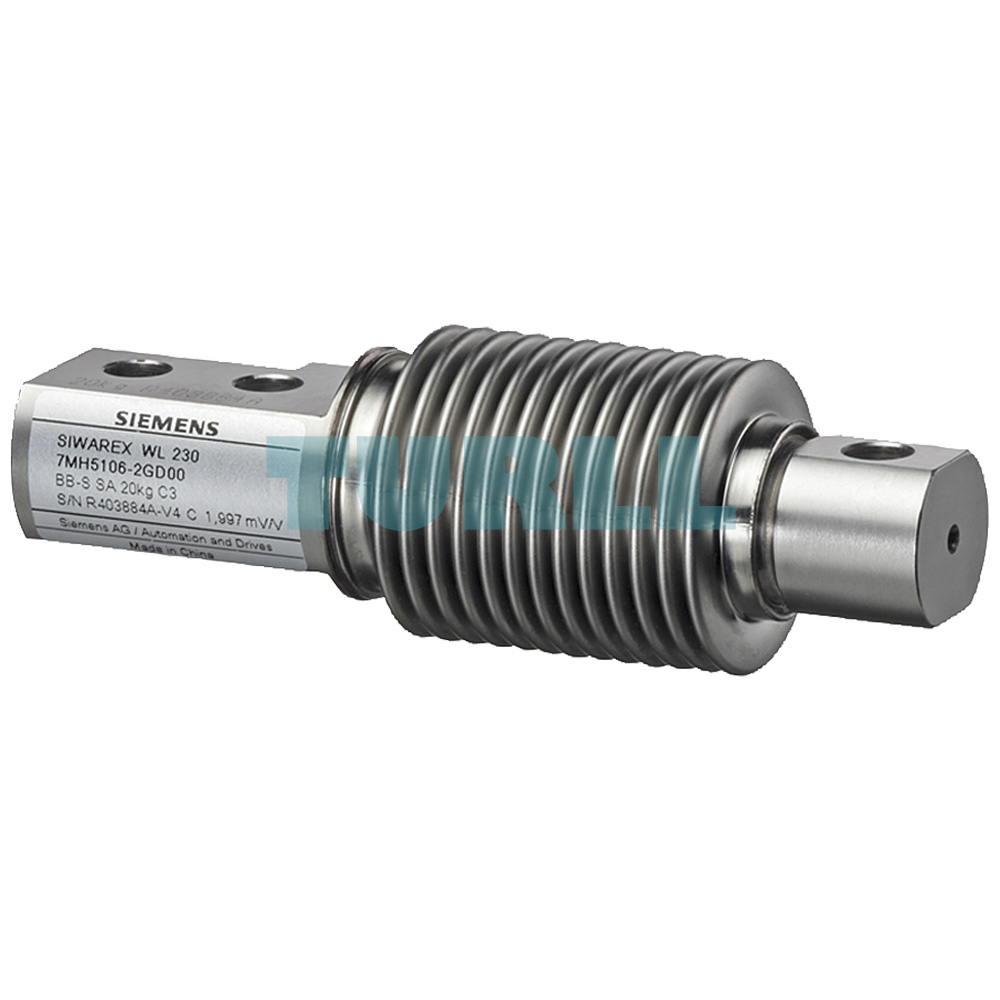

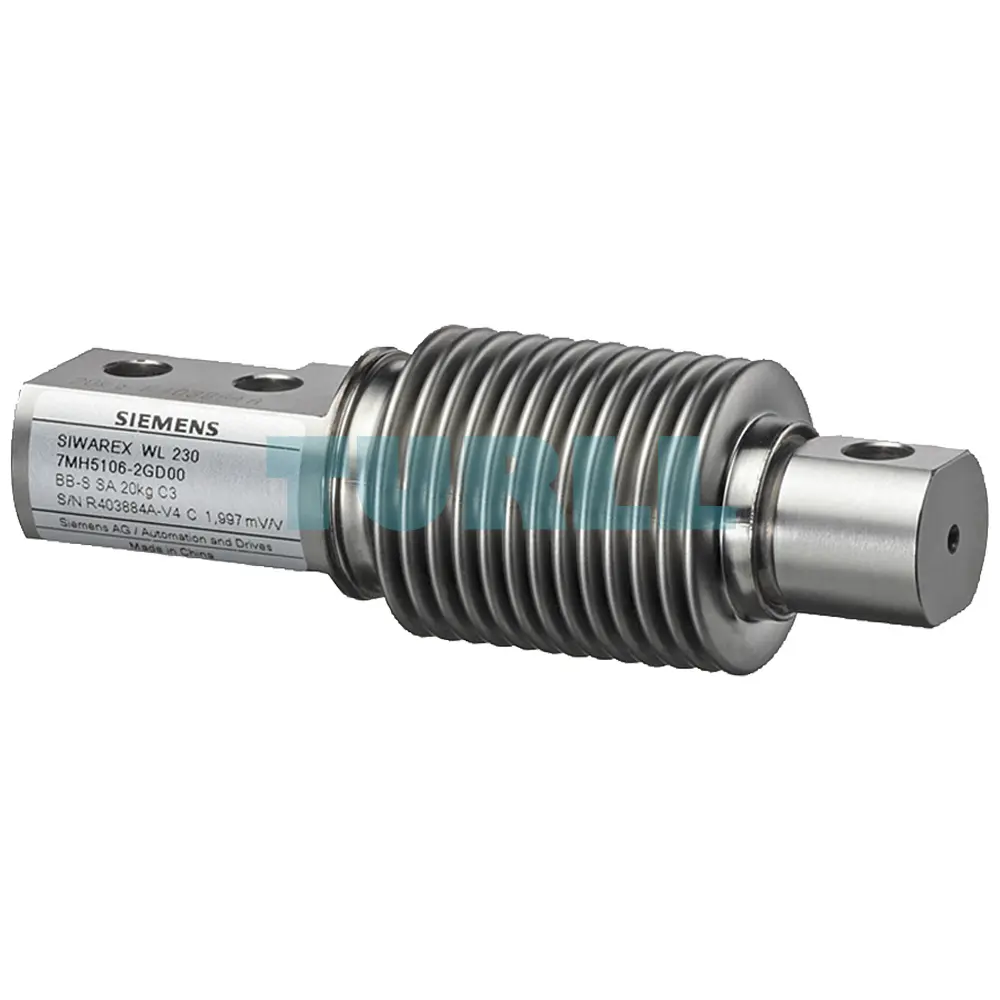

7MH5106-2GD00 SIEMENS Exclusive SIWAREX WL230 BB-S SA Load Cell 20kg Original Brand New

7MH5106-2GD00 SIEMENS Exclusive BB-S SA Load Cell 20kg Original Brand New

The SIEMENS SIWAREX WL230 BB-S SA load cell is a precision-engineered solution for accurate weight measurement in small hopper and platform scale applications. With a rated load of 20 kg and a high-performance accuracy class C3, this load cell offers dependable, consistent results in various industrial weighing environments.

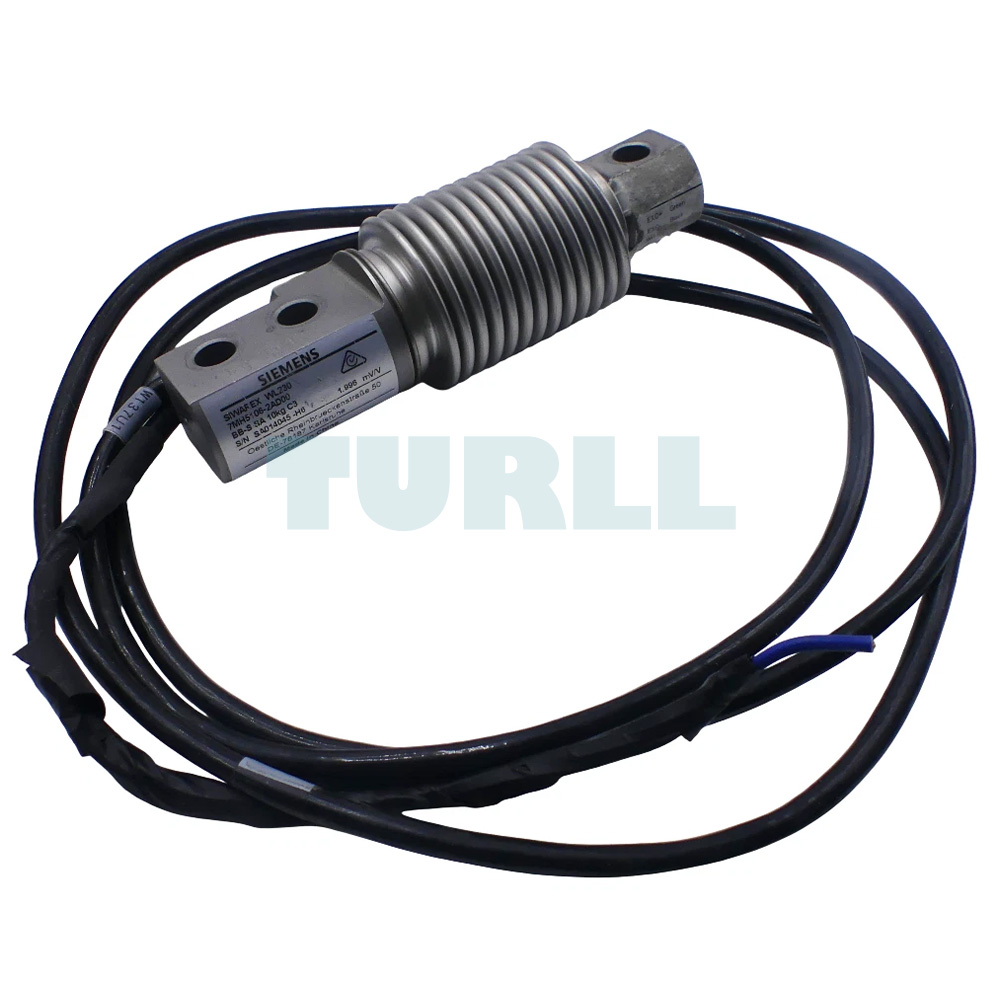

Constructed from corrosion-resistant stainless steel EN 1.4542 and protected to IP68 standards, this load cell is designed for operation in harsh or wet conditions. The integrated strain gauge technology, applied in a bending beam/multi-point configuration, ensures high sensitivity and precise linearity under load. The 4-wire cable connection and 3-meter cable length support flexible installation in confined or distributed systems.

Overview

Ideal for small-scale weighing systems, this bending beam load cell supports applications such as hopper scales and platform scales. Its compact structure and high level of accuracy make it suitable for both static and dynamic weighing requirements. Its robustness and IP68 protection rating ensure operational stability in challenging industrial conditions.

Design

The core measuring element consists of a double bending beam structure made from high-grade stainless steel. Four strain gauges are carefully arranged on the beam—two placed to be stretched and two to be compressed. When a load is applied, the bending of the beam causes elastic deformation. This mechanical stress generates a measurable signal voltage, directly proportional to the applied weight, ensuring precise measurement with minimal error.

Product Code: 7MH5106-2GD00
