7MH5106-3AD00 SIEMENS Exclusive SIWAREX WL230 BB-S SA Load Cell Original Brand New

7MH5106-3AD00 SIEMENS Exclusive SIWAREX WL230 BB-S SA Load Cell Original Brand New

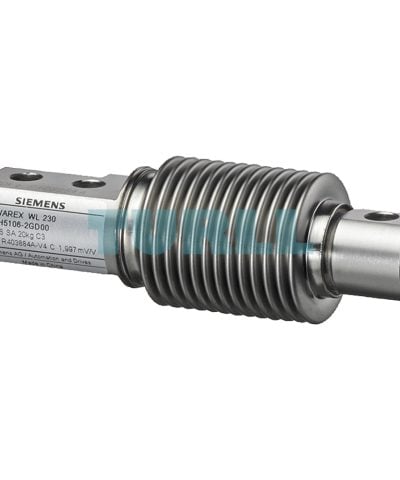

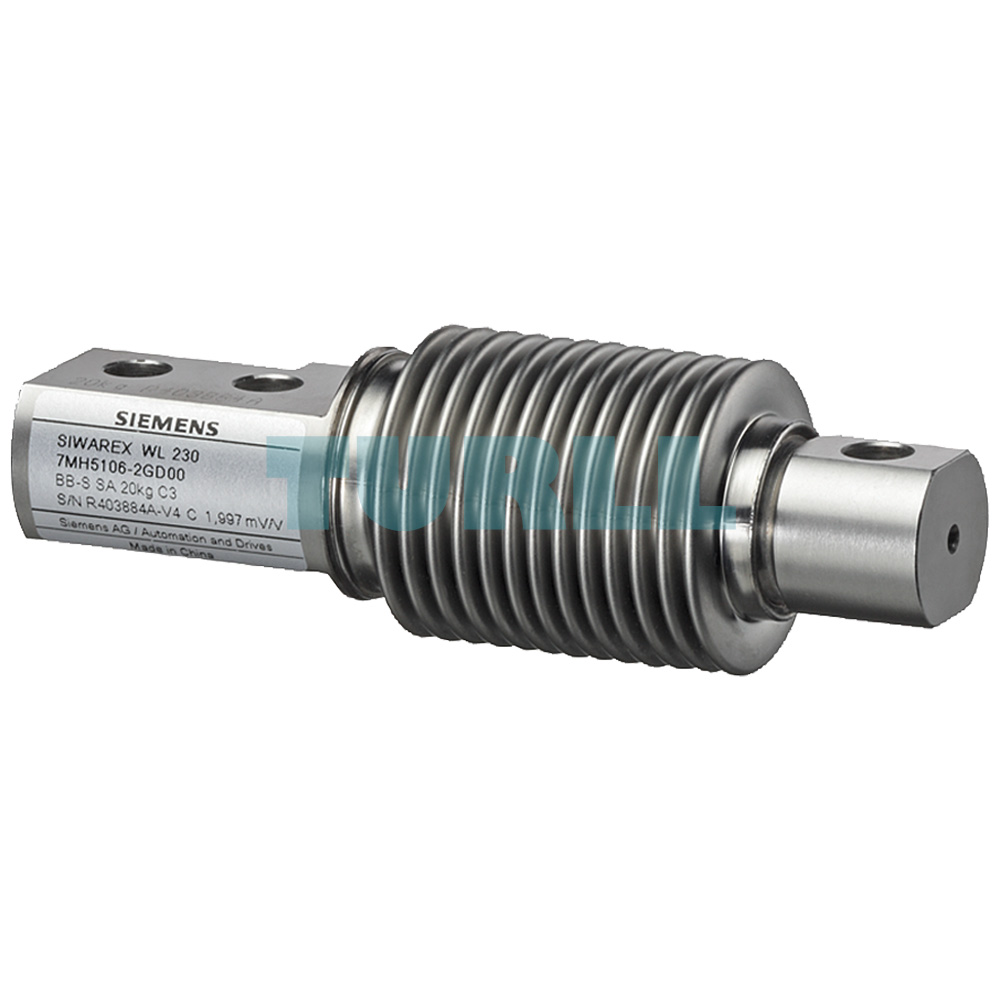

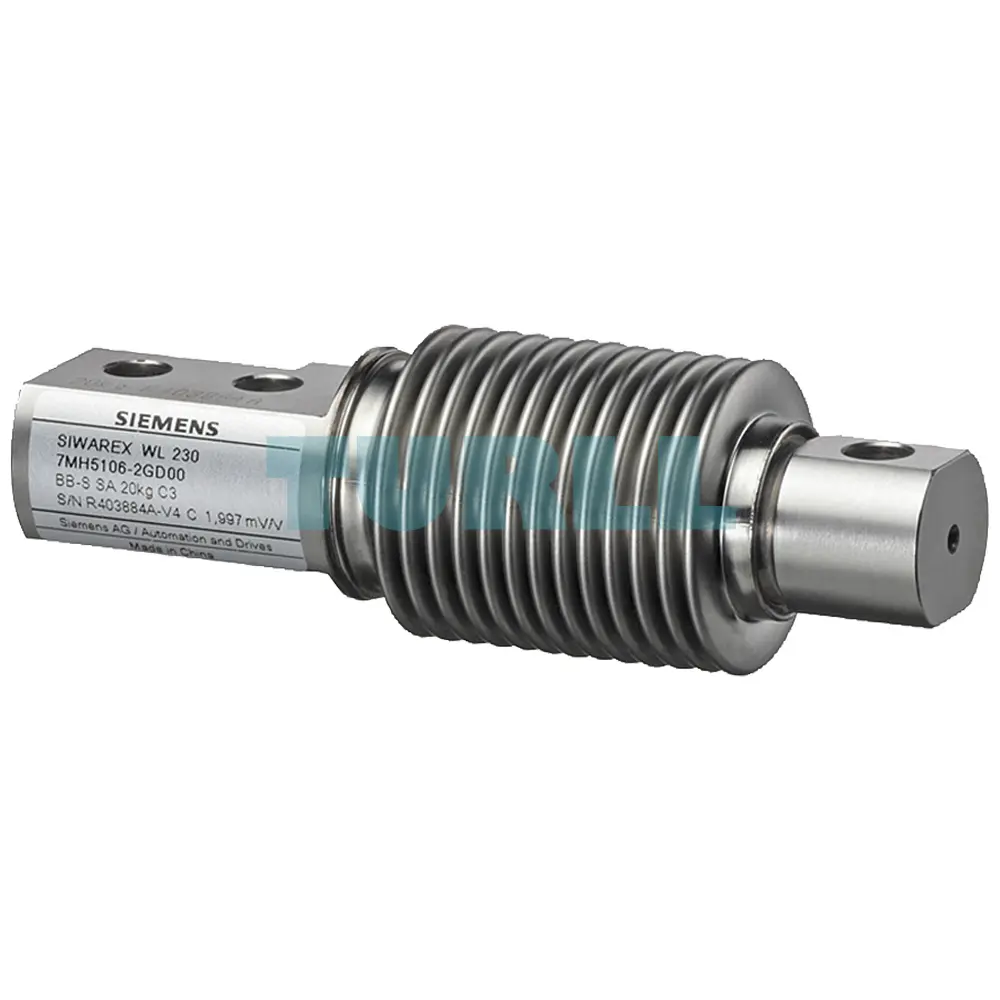

The SIEMENS SIWAREX WL230 BB-S SA Load Cell is an industrial-grade precision component built to deliver highly accurate weight measurements. Designed using advanced strain gauge technology in a bending beam configuration, this load cell offers a rated load capacity of 100 kg and belongs to the high-accuracy C3 class. Its compact structure and stainless-steel construction make it ideal for challenging environments that demand consistent performance and long-term reliability.

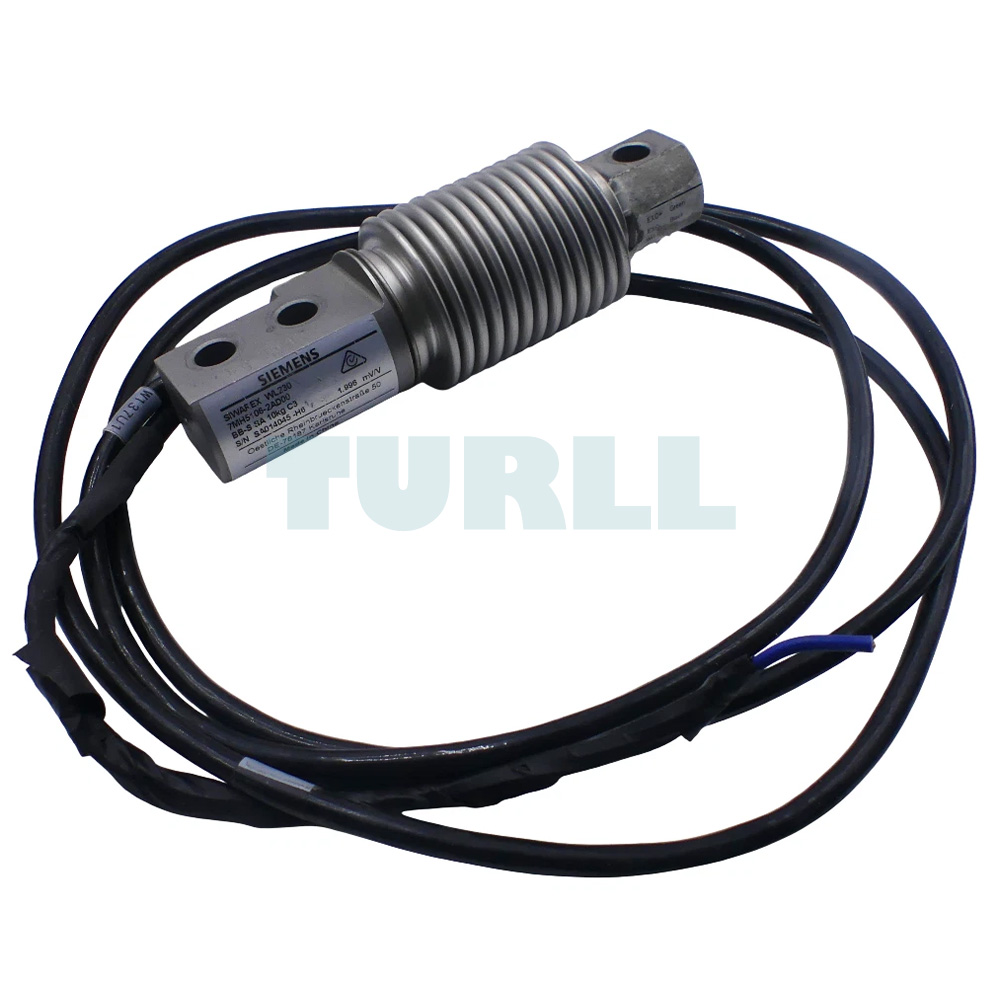

This SIWAREX WL230 BB-S SA model features a 3-meter, 4-wire connection cable and ensures IP68-level protection, making it suitable for harsh or wet conditions. The stainless steel (EN 1.4542) measuring element is engineered to provide optimal mechanical stability and corrosion resistance. Whether used in small hopper systems or platform scales, this load cell excels in delivering dependable performance in multipoint weighing applications.

Overview

The SIWAREX WL230 BB-S SA load cell is especially suited for compact hopper or platform scales where space is limited but measurement accuracy is critical. Its bending beam design allows for precise load transmission and minimized structural deflection. The sensor element reacts accurately to applied force, ensuring signal reliability.

Design

The core of this load cell is a double bending beam element constructed from high-grade stainless steel. Four strain gauges are applied to the beam—two that experience stretching and two that are compressed. When load is applied, these strain gauges undergo elastic deformation, generating a proportional voltage signal corresponding to the measured weight. This friction-locked and finely balanced sensor arrangement results in excellent linearity and repeatability.

Product Code: 7MH5106-3AD00
