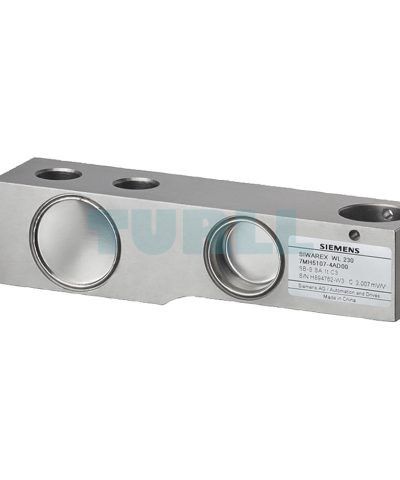

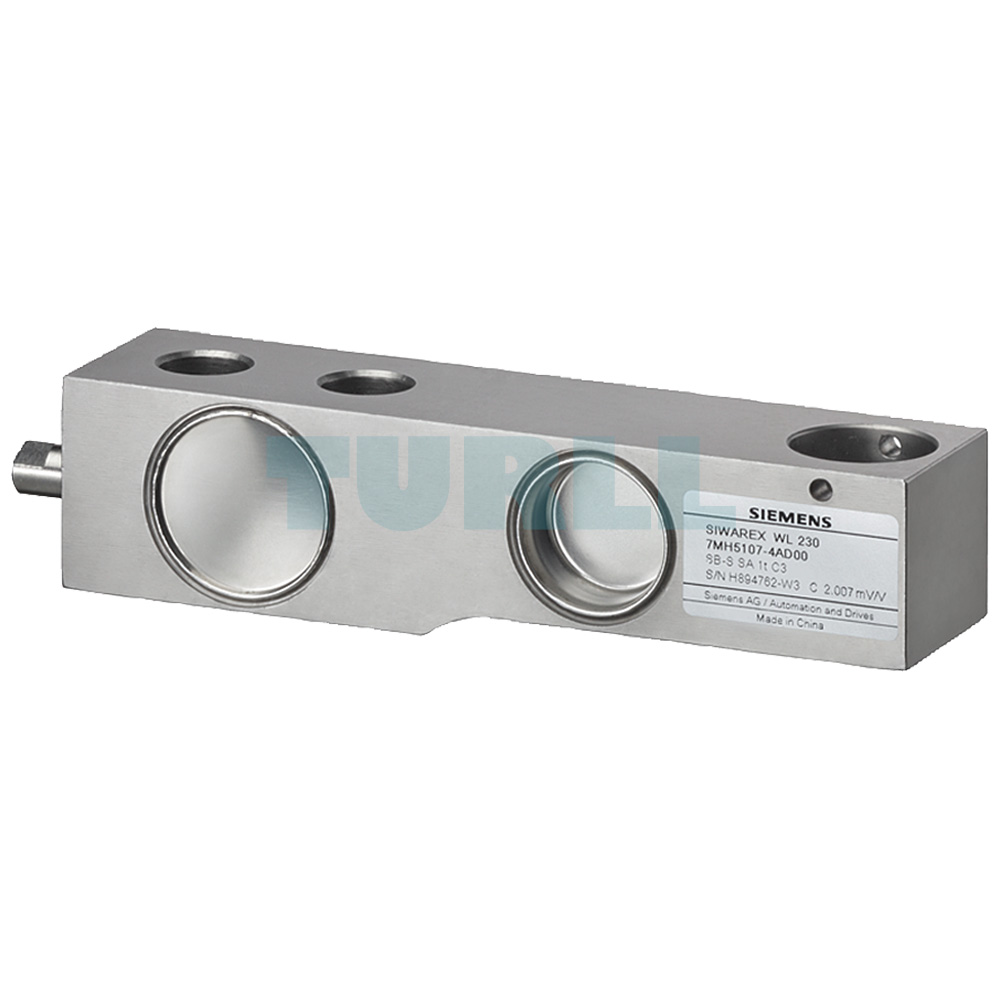

7MH5107-4AD00 SIEMENS Exclusive SIWAREX WL230 SB-S SA 1t Load Cell Original Brand New
$613.28
SIEMENS 7MH5107-4AD00 shear beam load cell for industrial weighing, 1-ton capacity, stainless steel, IP68-rated, ideal for hopper and platform scales.
7MH5107-4AD00 SIEMENS Exclusive SIWAREX 1t Load Cell Original Brand New
The SIEMENS load cell is a premium-quality sensor engineered to deliver exceptional performance in industrial weighing systems. This shear beam load cell, part of the SIWAREX WL230 SB-S SA series, is designed for precise weight measurement applications in hopper, platform, and overhead rail scales. It features a 1-ton rated load and conforms to the high-accuracy C3 classification.
Constructed from stainless steel EN 1.4542 and offering full IP68 protection, this load cell is built to endure harsh environments while maintaining accurate and stable output over extended periods. With a 3-meter 4-wire cable and a strain gauge system based on shear force detection, it ensures high reliability in continuous industrial use.
Overview
The load cell is optimized for use in various weighing setups, especially where consistent and precise load detection is critical. Its robust shear beam design ensures excellent repeatability and linearity, making it a trusted component in automated process environments.
Design
At the core of this load cell is a shear tension spring body made from corrosion-resistant stainless steel. Strain gauges are strategically placed at a 45° angle to the longitudinal axis of the spring element, ensuring maximum sensitivity to shear force deformation. When a load is applied, the spring body flexes, causing a measurable change in the voltage across the strain gauges — this output voltage is directly proportional to the applied force, offering precise weight readings.
Product Code: 7MH5107-4AD00
More Siemens products at Turll.com
| Weight | 0.9 kg |
|---|---|
| Dimensions | 110 × 225 × 40 mm |
