7MH5122-5GD00 SIEMENS Exclusive SIWAREX WL290 DB-S CA Load Cell 23t C3 Original Brand New
$1,102.17
High-accuracy SIEMENS WL290 DB-S CA load cell, 23t capacity, double shear beam design, nickel-plated steel, IP67 protection, ideal for industrial and mobile weighing.
7MH5122-5GD00 SIEMENS Exclusive SIWAREX WL290 DB-S CA Load Cell 23t C3 Original Brand New

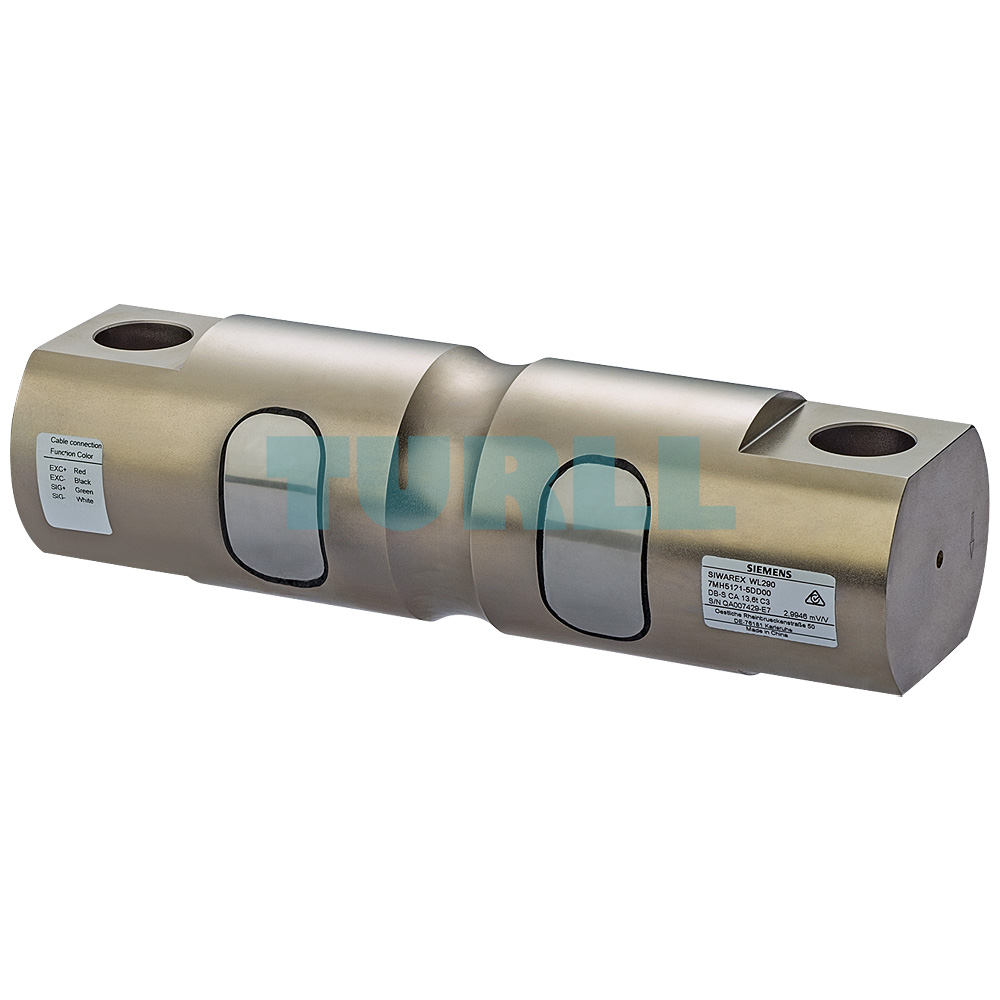

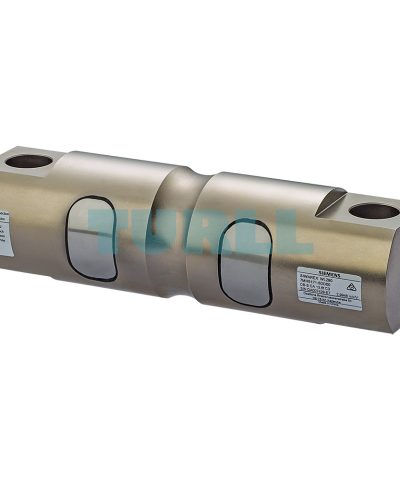

The 7MH5122-5GD00 SIEMENS SIWAREX WL290 DB-S CA is a premium-grade load cell designed for high-capacity and legal-for-trade weighing applications. With a rated load of 23 tons and an accuracy class of C3, this double shear beam load cell provides reliable, consistent performance across demanding industrial environments. Manufactured using nickel-plated specialty steel and built with a protection class of IP67, it is highly resistant to harsh conditions including dust and moisture.
This load cell features a multi-point design and uses strain gauge technology to ensure precision under heavy and dynamic loads. The cable length is 9 meters with a 4-wire configuration, allowing for flexible installation even at extended distances. The design does not require oscillation or elastomer-based mechanisms, as it handles transverse forces efficiently without deflection. This makes it especially suitable for applications in platform scales, hopper scales, or vehicle-mounted weighing systems where stability and durability are essential.
Overview
The WL290 DB-S CA load cell by SIEMENS is engineered for demanding tasks in industrial weighing. Designed in a double shear beam configuration, it ensures superior performance where conventional load cells may not endure. Its special mounting setup enhances functionality in mobile weighing systems.
Certified according to OIML R60 standards, the product ensures high reliability for legal-for-trade use. Thanks to the robust structural build, the load cell performs exceptionally in both indoor and outdoor installations.

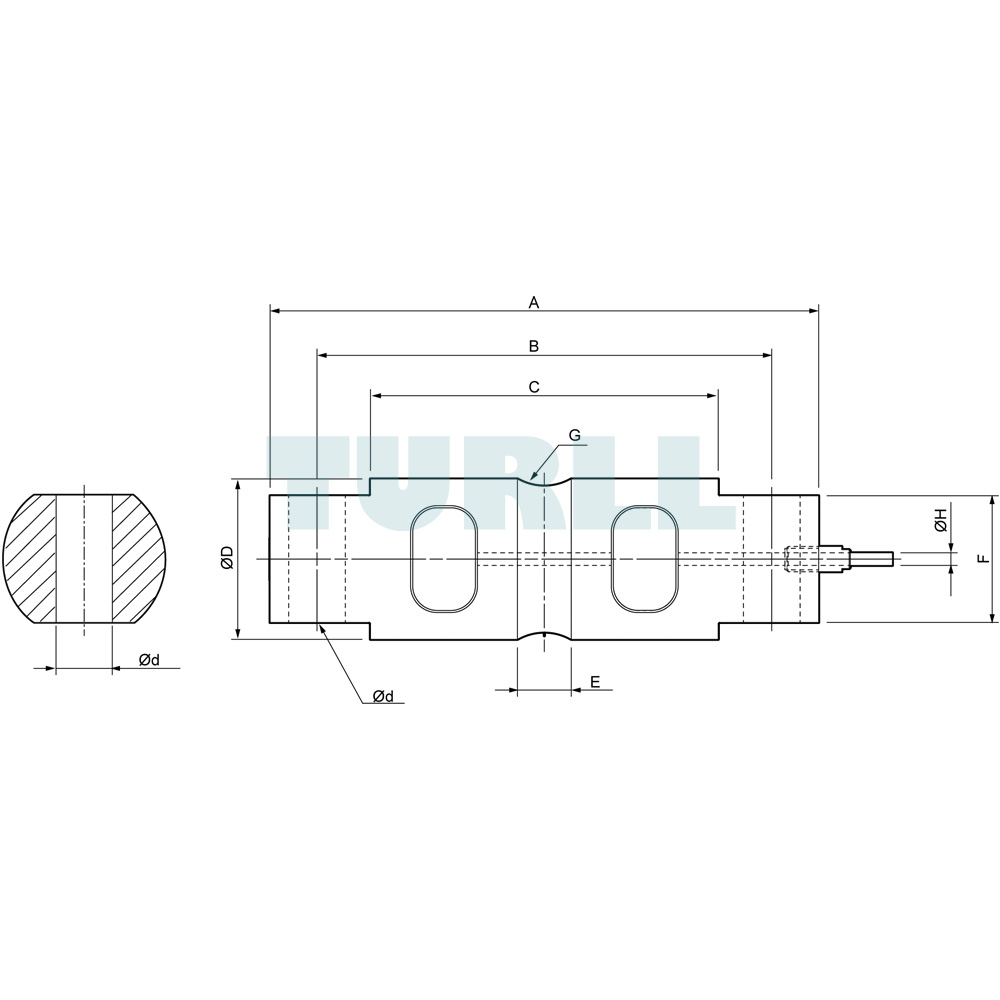

Design
Constructed from nickel-plated steel, the measuring element features a spring body design that maintains high structural integrity. With IP67 ingress protection, it resists moisture and dust penetration, making it suitable for rugged industrial settings. The long cable and simple 4-wire system enable efficient connectivity while maintaining signal integrity across long distances.
Product Code: 7MH5122-5GD00
More Siemens products at Turll.com
| Weight | 9.45 kg |
|---|
