7ML5117-1BD07-4AF3 SIEMENS Exclusive SITRANS Probe LU240 Ultrasonic Level Transmitter Original Brand New

7ML5117-1BD07-4AF3 SIEMENS Exclusive SITRANS Probe LU240 Ultrasonic Level Transmitter Original Brand New

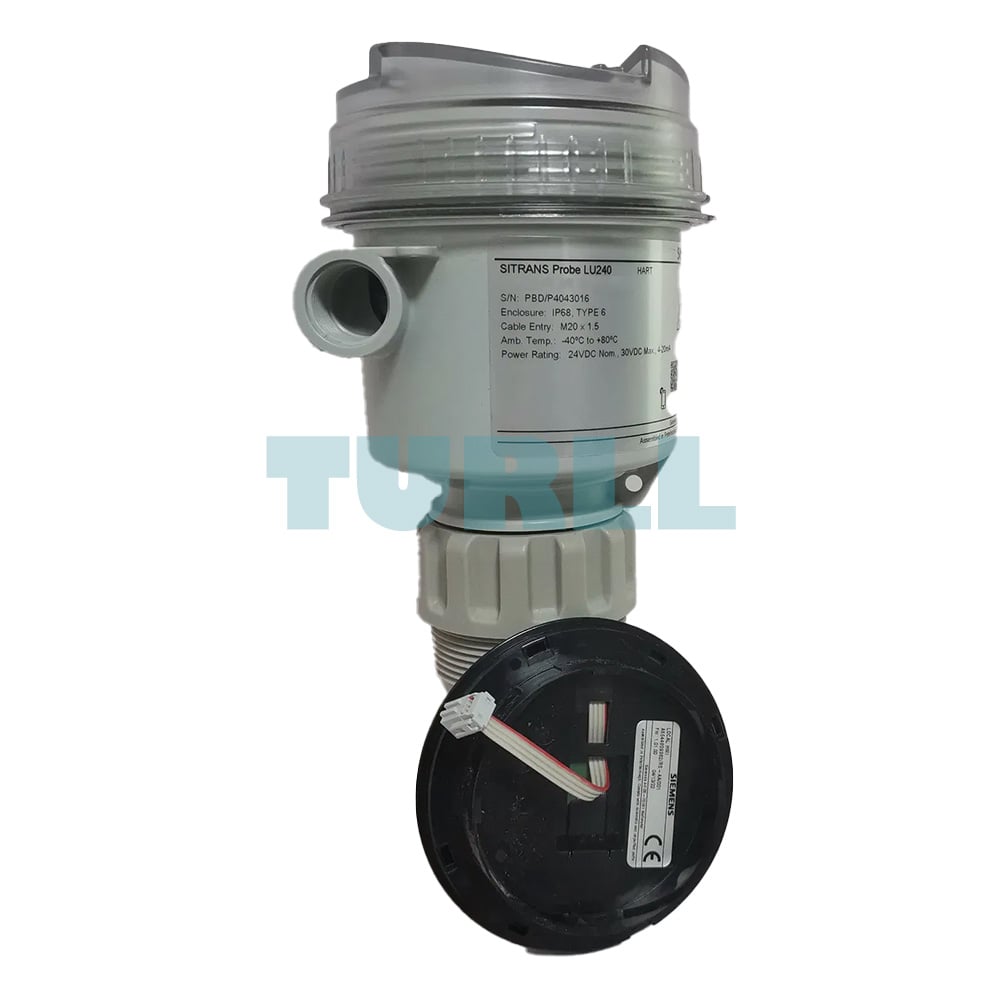

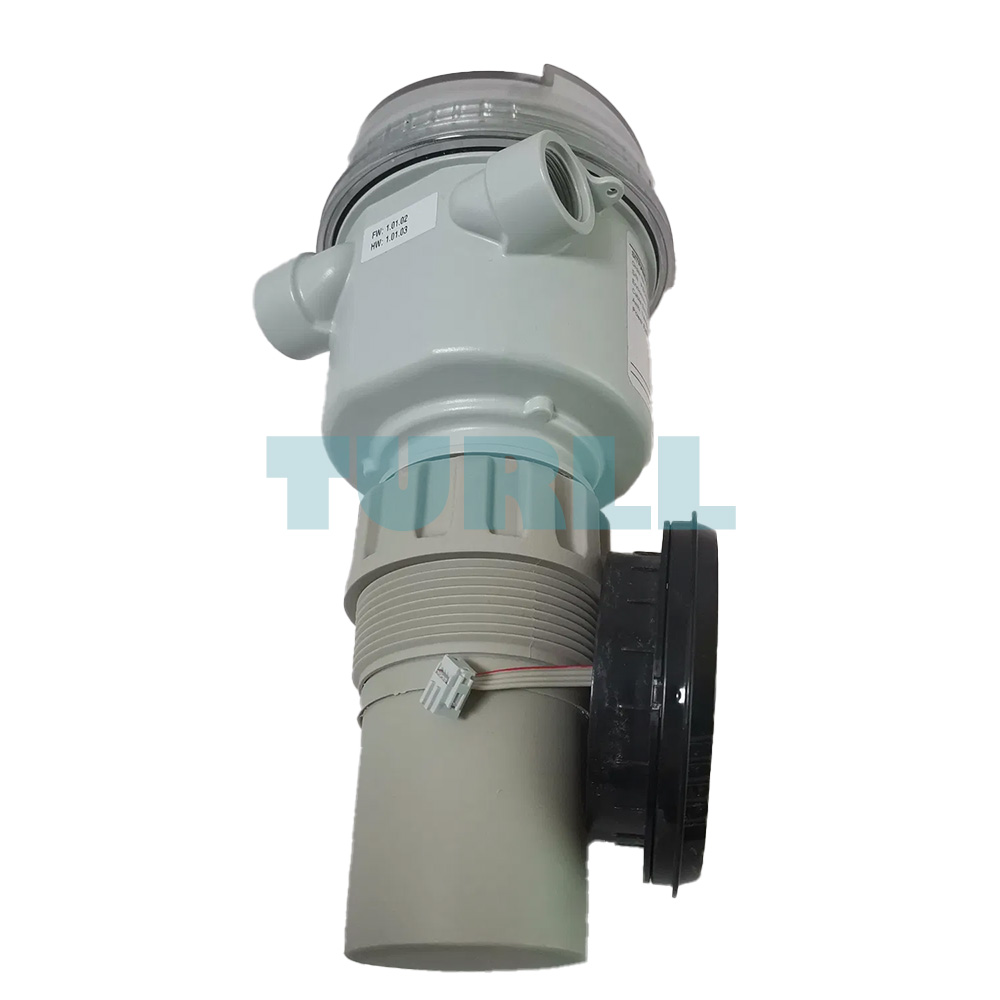

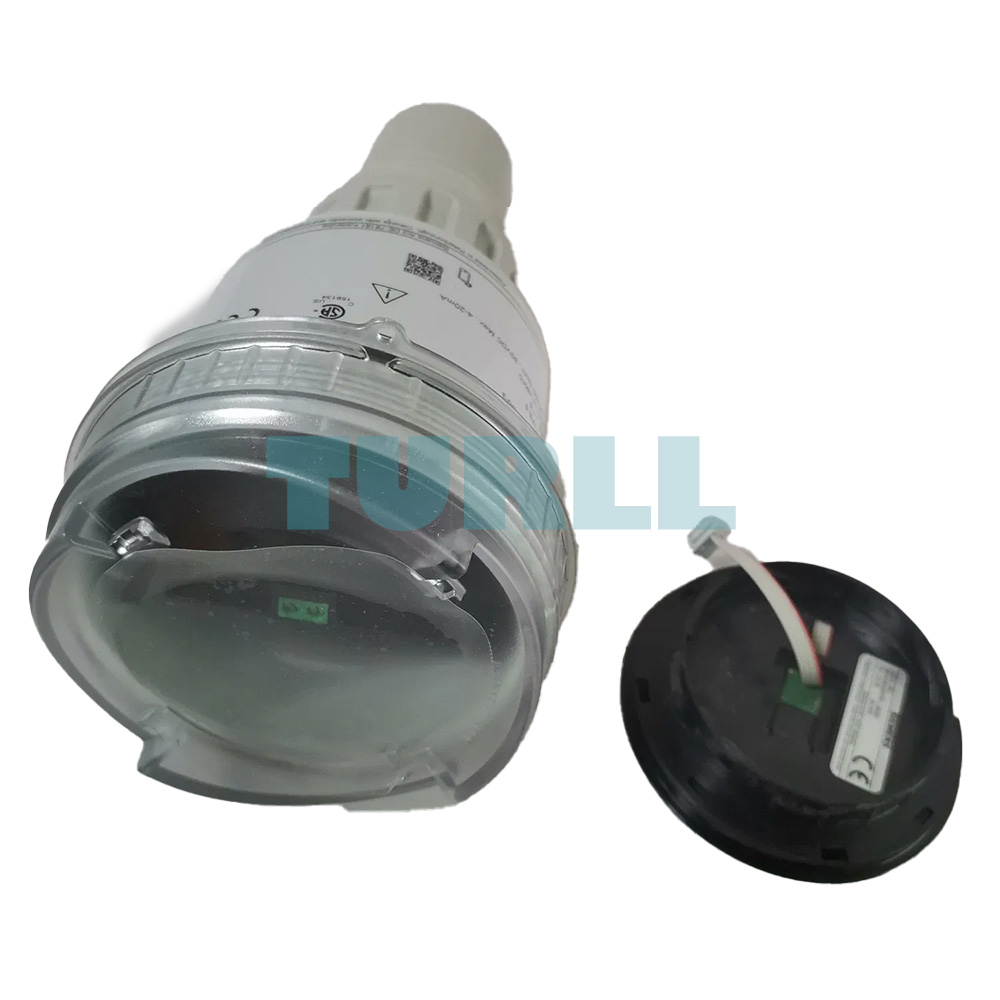

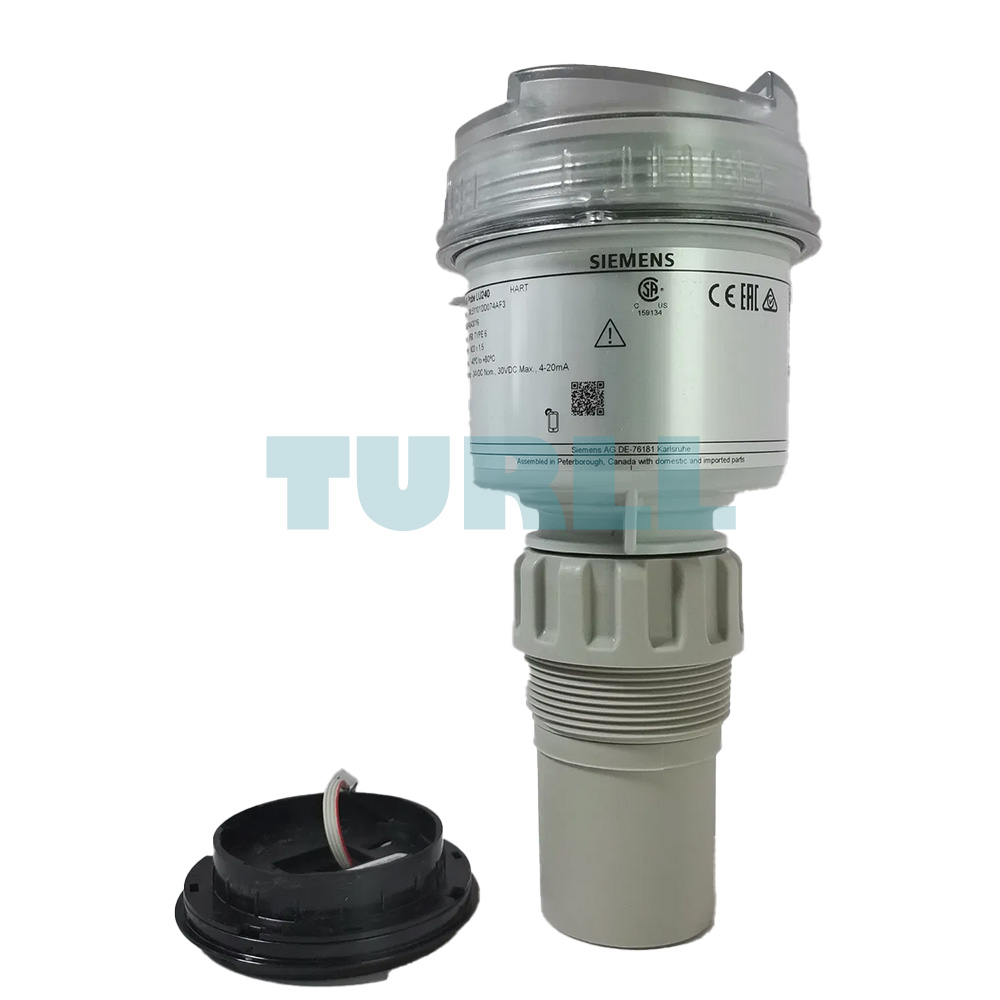

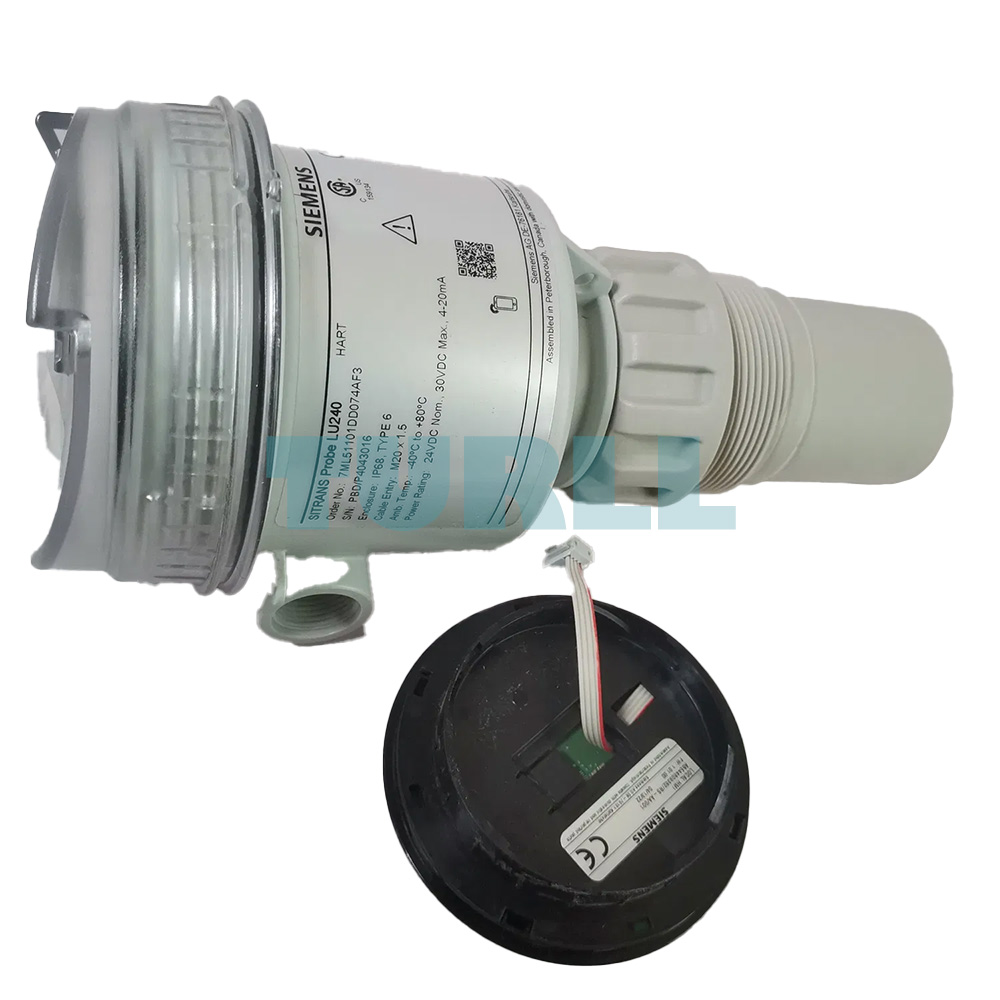

The SIEMENS SITRANS Probe LU240, model 7ML5117-1BD07-4AF3, is a state-of-the-art ultrasonic level transmitter engineered for accurate and reliable measurement in a wide range of industrial applications. Designed for level, volume, and flow monitoring, it delivers precision performance for liquids, slurries, and bulk materials, with an impressive measurement capability of up to 12 meters (40 feet). Built to handle challenging environments, the unit features robust ingress protection ratings of IP66, IP68, TYPE 4X, and TYPE 6, ensuring dependable operation even in harsh conditions.

The transmitter operates with a 4 to 20 mA output and offers a durable construction that includes PVDF copolymer wetted parts, a 2" NPT process connection, and a rugged enclosure made from high-quality PBT/PC material. With certifications including CCSAUS, CE, UKCA, KC, RCM, and EAC, it is ready for deployment in global industrial environments. The local HMI, protected by a clear polycarbonate lid, provides easy on-site configuration and monitoring.

Overview

Optimized for versatility, the SITRANS Probe LU240 is ideal for level control in water and wastewater treatment, chemical storage tanks, and bulk handling facilities. The unit incorporates advanced Process Intelligence and Auto False Echo Suppression to eliminate signal interference, enhancing accuracy and stability. For models with a range of 6 or 12 meters, measurement accuracy reaches 0.15% of range or 6 mm (0.25 inch), ensuring dependable readings in critical processes.

Application

This transmitter is suitable for monitoring liquid levels in tanks, managing material levels in small hoppers, and measuring volume in various industrial vessels. The integrated temperature sensor automatically compensates for thermal changes, maintaining consistent performance. Bluetooth-enabled configuration is supported via the SITRANS mobile IQ app, compatible with Android, iOS, and Windows devices, enabling fast setup and convenient monitoring.

Product Code: 7ML5117-1BD07-4AF3
