7ML5117-1BF07-4AF3 SIEMENS Exclusive SITRANS Probe LU240 Ultrasonic Level Transmitter Original Brand New

7ML5117-1BF07-4AF3 SIEMENS Exclusive SITRANS Probe LU240 Ultrasonic Level Transmitter Original Brand New

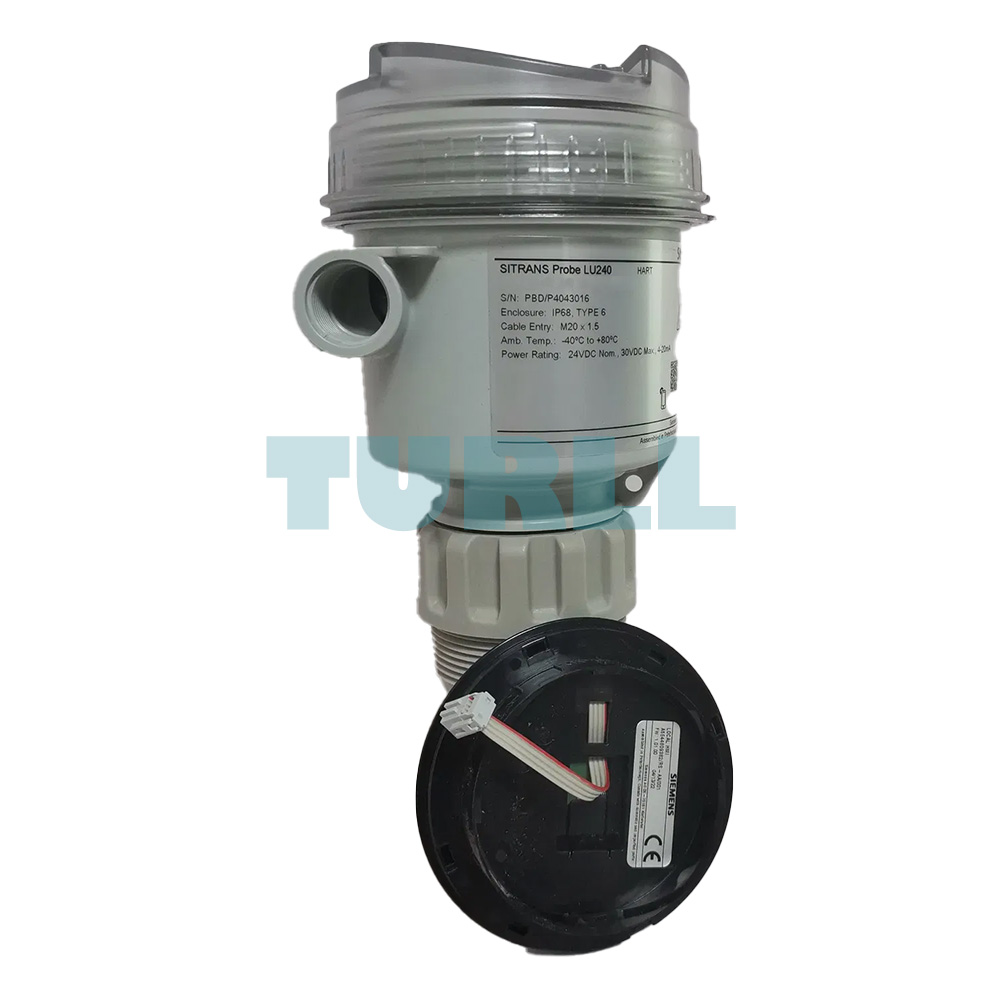

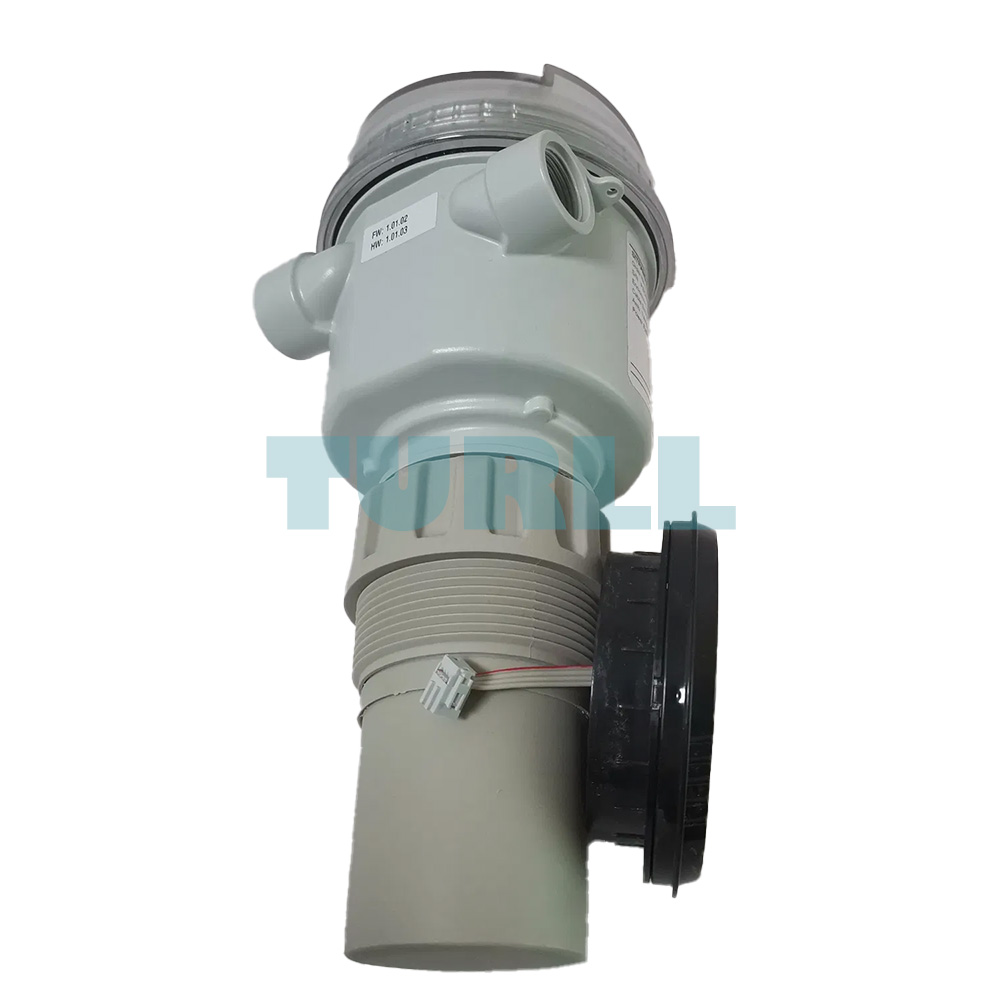

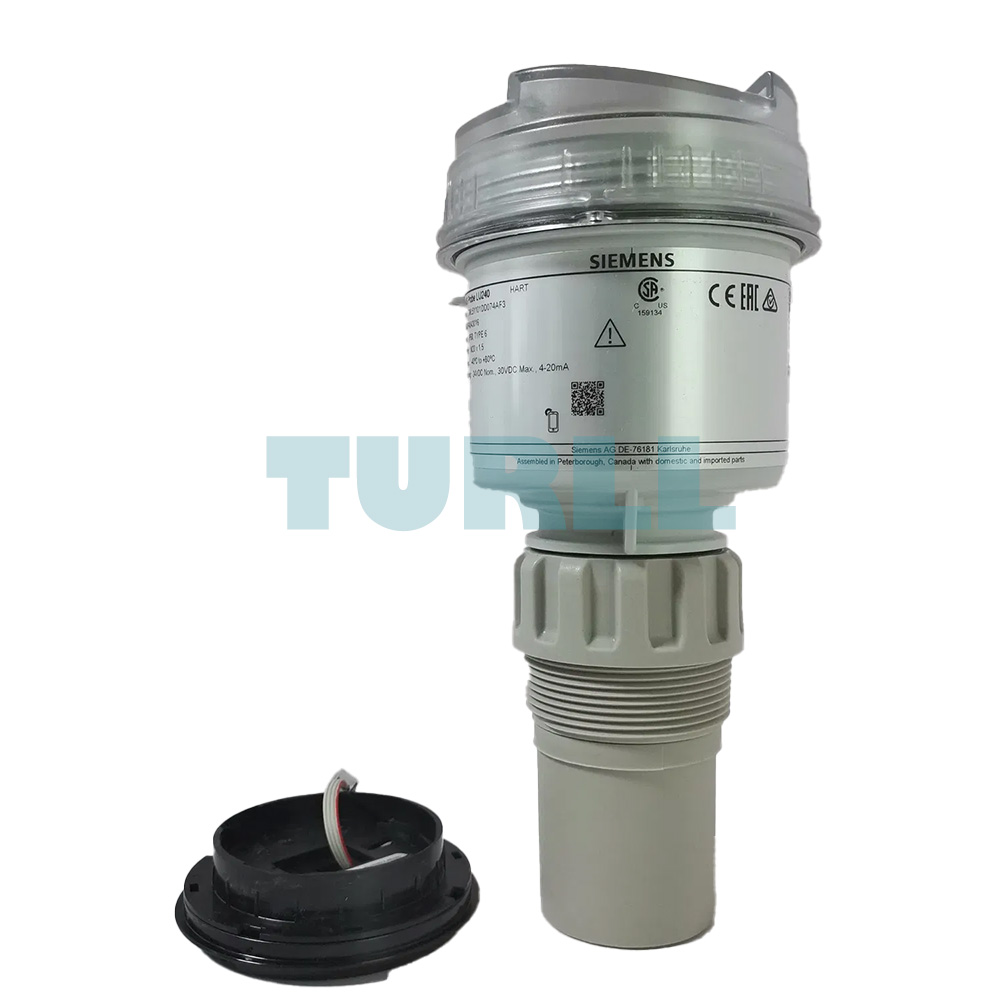

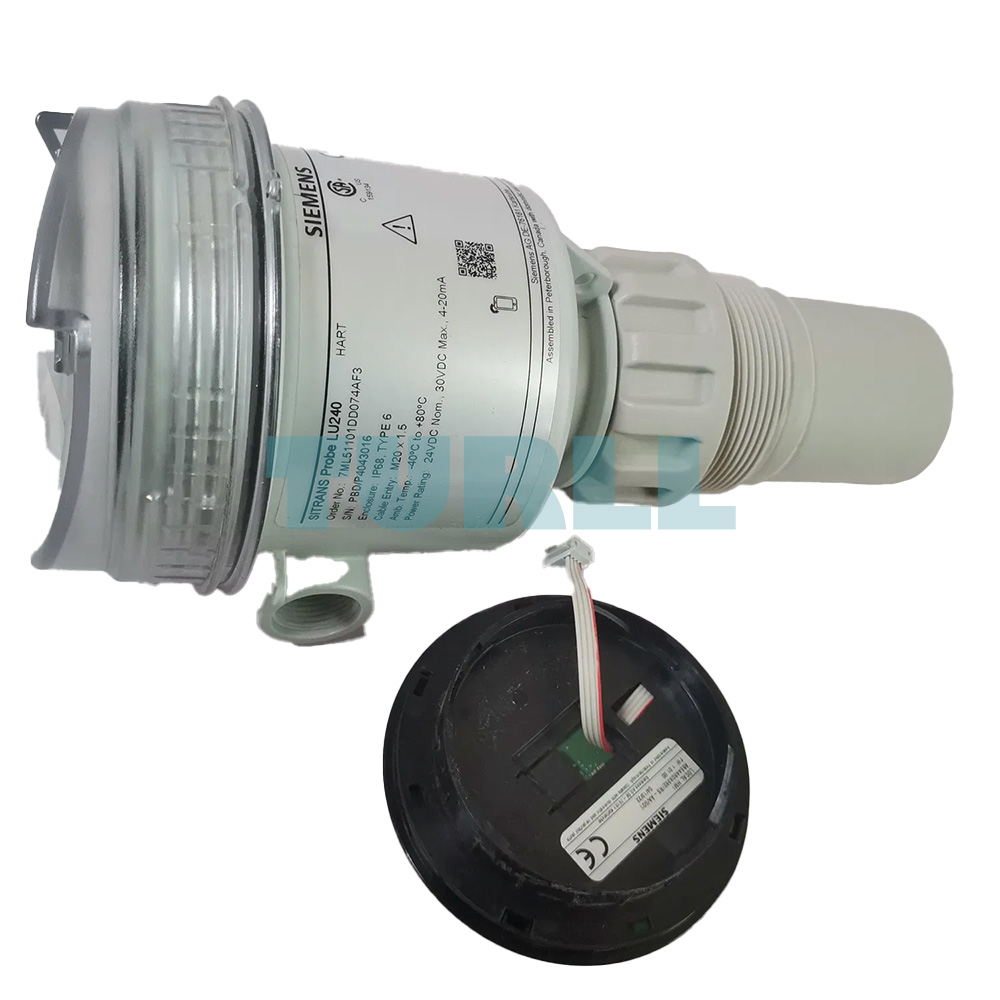

The SIEMENS 7ML5117-1BF07-4AF3 SITRANS Probe LU240 is a high-precision ultrasonic level transmitter designed for versatile applications in industrial measurement. It provides reliable performance for level, volume, and flow monitoring across liquids, slurries, and bulk solids, with a measuring range of up to 12 meters (40 feet). This model supports a 4 to 20 mA output and offers ingress protection ratings of IP66, IP68, TYPE 4X, and 6, ensuring durability in harsh environments.

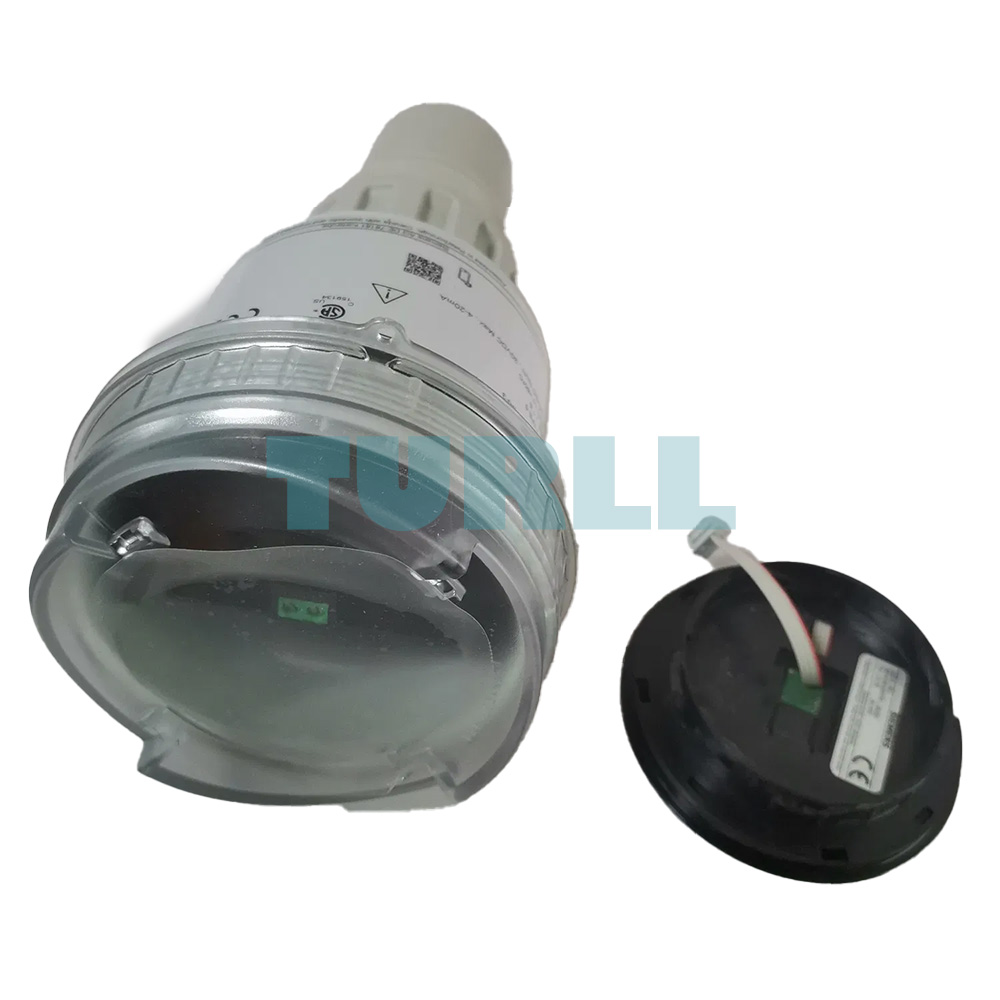

Its PVDF copolymer wetted parts and robust non-wetted PBT/PC enclosure make it suitable for demanding conditions. The transmitter features a clear polycarbonate lid for local display visibility, simplifying on-site configuration and status monitoring. Two M20 x 1.5 cable entry points are provided, including a general-purpose cable gland and blocking plug for flexible installation.

Overview

The SITRANS Probe LU240 is engineered for consistent performance in industries such as water treatment, wastewater management, chemical processing, and bulk material storage. It incorporates Process Intelligence technology, offering auto false echo suppression to eliminate interference from fixed obstructions. With accuracy up to 0.15% of range or 6 mm, it delivers precise readings even under challenging conditions.

Application

This transmitter is ideal for chemical storage tanks, liquid reservoirs, filter beds, and smaller hoppers. It supports multiple measuring ranges (3 m, 6 m, or 12 m) to match specific application needs. Certain models offer HART communication for advanced integration, while all models provide mA output compatibility. Additionally, the SITRANS mobile IQ app enables intuitive wireless setup, monitoring, and configuration through Bluetooth, supporting Android, iOS, and Windows devices. An integrated temperature sensor compensates for process temperature fluctuations, ensuring measurement stability over time.

Product Code: 7ML5117-1BF07-4AF3
