SIEMENS SITRANS TF320 temperature transmitter for wall or pipe mounting, with universal input, isolated 2-wire output, and optional HART communication.

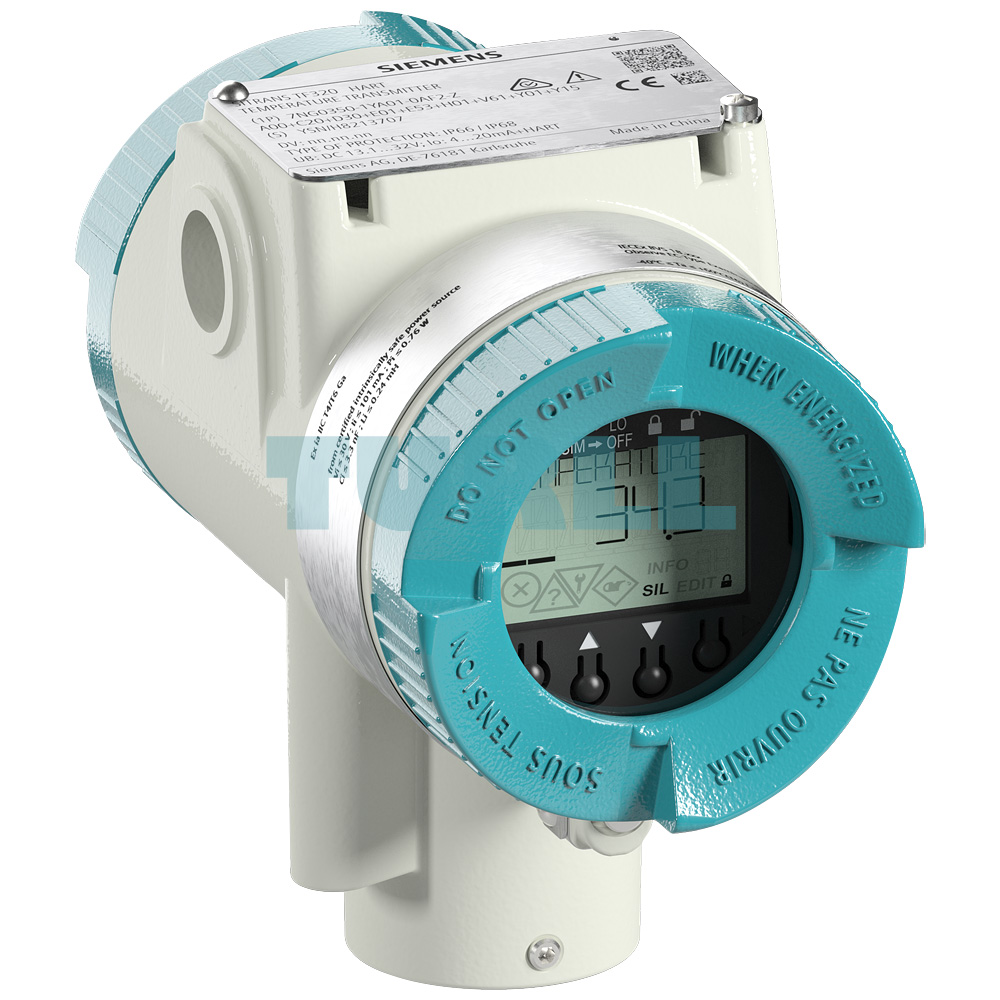

The SIEMENS SITRANS TF320, product code 7NG0357-0BA01-0AF0-ZE00, is a premium-grade temperature transmitter designed to deliver precise measurement and reliable performance in industrial environments. Built with a dual chamber die-cast aluminum enclosure, it is engineered for wall or pipe mounting applications. With its universal input compatibility, galvanically isolated 2-wire output, and flexible configuration options, this transmitter ensures accuracy and long-term stability for a wide range of processes.
This transmitter supports a 2-wire, 4–20 mA signal with an RTD Pt100 IEC 60751 3-wire input, making it suitable for various temperature monitoring tasks. Its robust construction and general-purpose approvals allow global deployment in industrial facilities, ensuring compliance with CE, UKCA, and RCM standards. The SITRANS TF320 is an ideal solution for demanding environments where consistent data, safety, and reliability are critical.
The SITRANS TF320 is a versatile two-wire temperature transmitter available with or without HART communication interface. It offers universal input compatibility, supporting RTDs, thermocouples, resistance, and millivolt signals. Configuration is seamless via PC software, HART communicator, or optional local operation, ensuring flexibility for different user requirements.
The device’s functionality is centered around accurate signal conversion. Input signals are amplified, linearized, and galvanically isolated from the output. Integrated cold junction compensation enhances thermocouple measurements. The transmitter delivers a temperature-linear current signal of 4 to 20 mA. In HART-enabled versions, additional benefits include digital communication, diagnostics, and remote parameterization. Safety is enhanced by built-in error detection, such as short-circuit recognition and sensor interruption monitoring.
The SITRANS TF320 detects and converts input signals from various temperature sensors into stable current output. With test terminals integrated, engineers can directly measure 4–20 mA signals using an ammeter without interrupting the output loop. This makes commissioning and maintenance fast and efficient, minimizing downtime.
Product Code: 7NG0357-0BA01-0AF0-ZE00
More Siemens products at Turll.com
| SKU / Model | 7NG0357-0BA01-0AF0-ZE00 |
|---|---|
| Weight | 4.3 kg |
