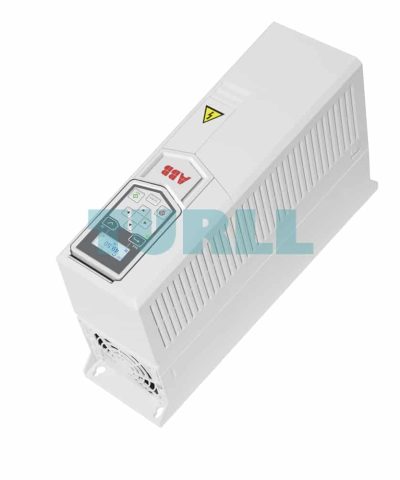

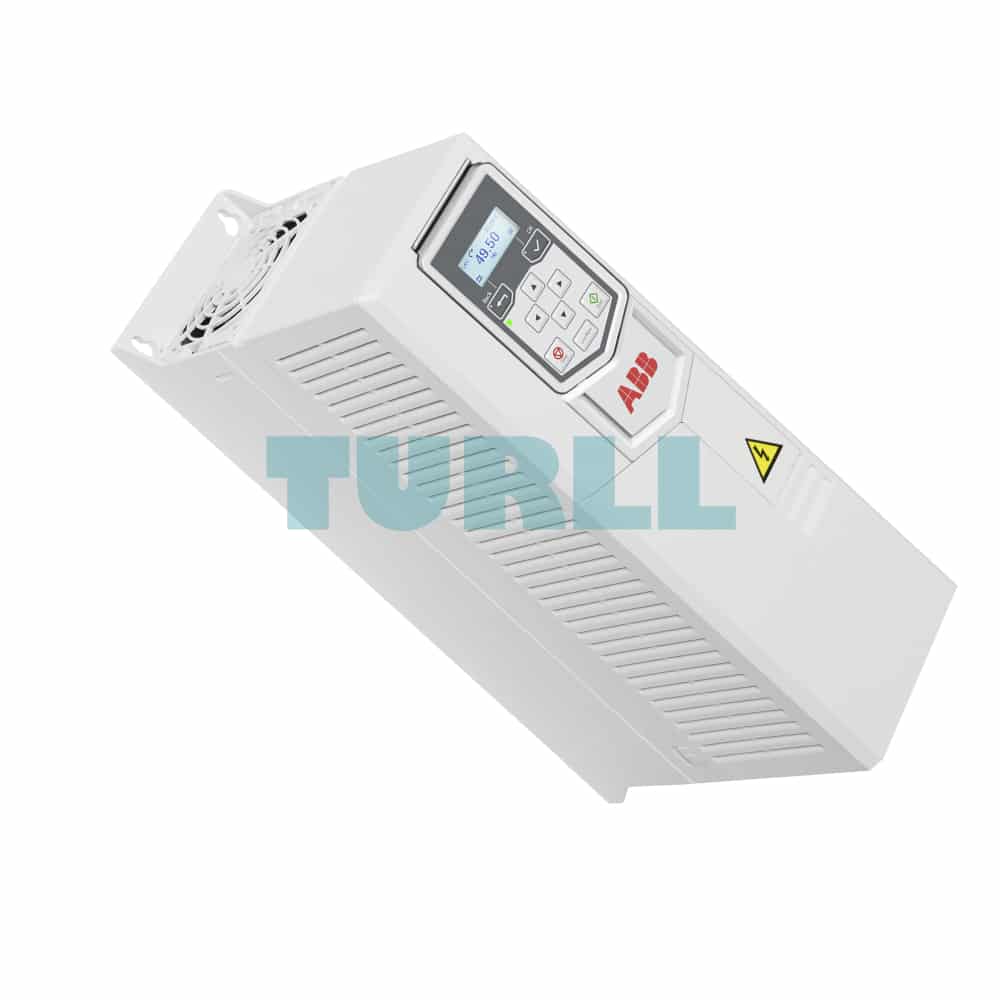

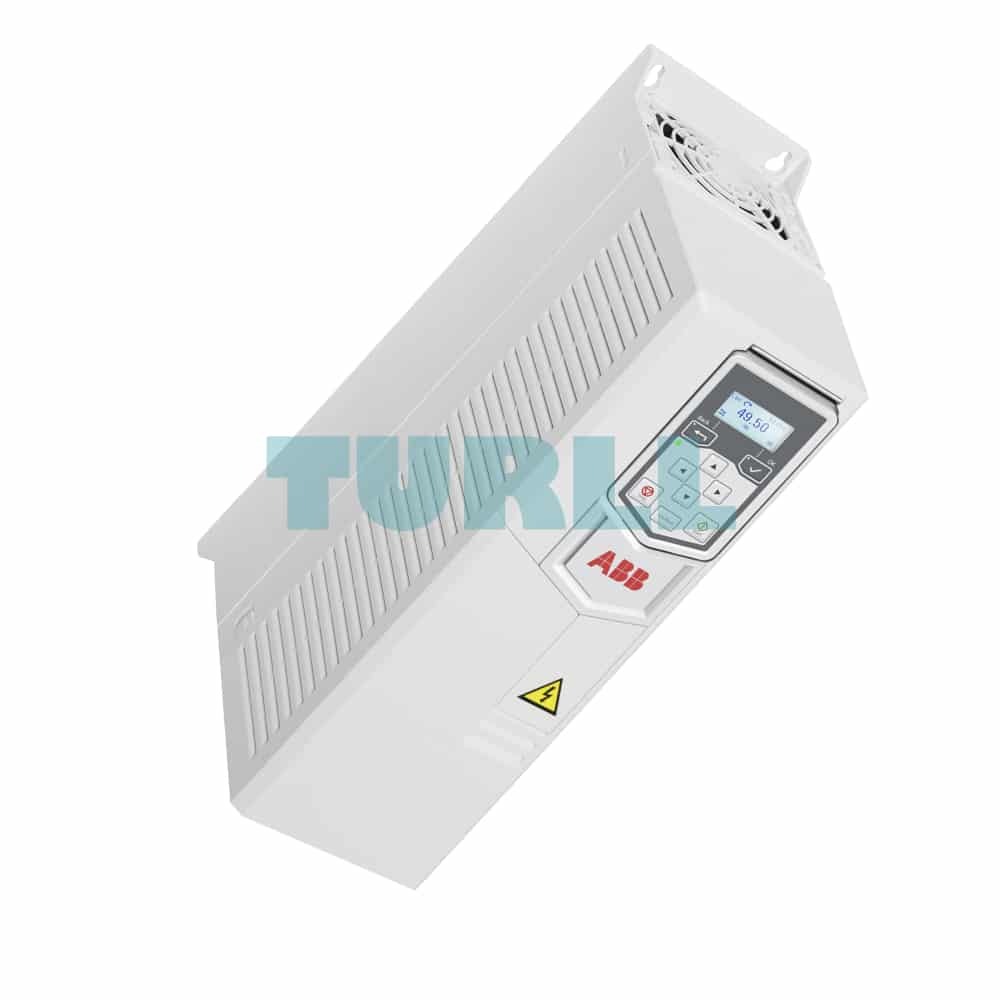

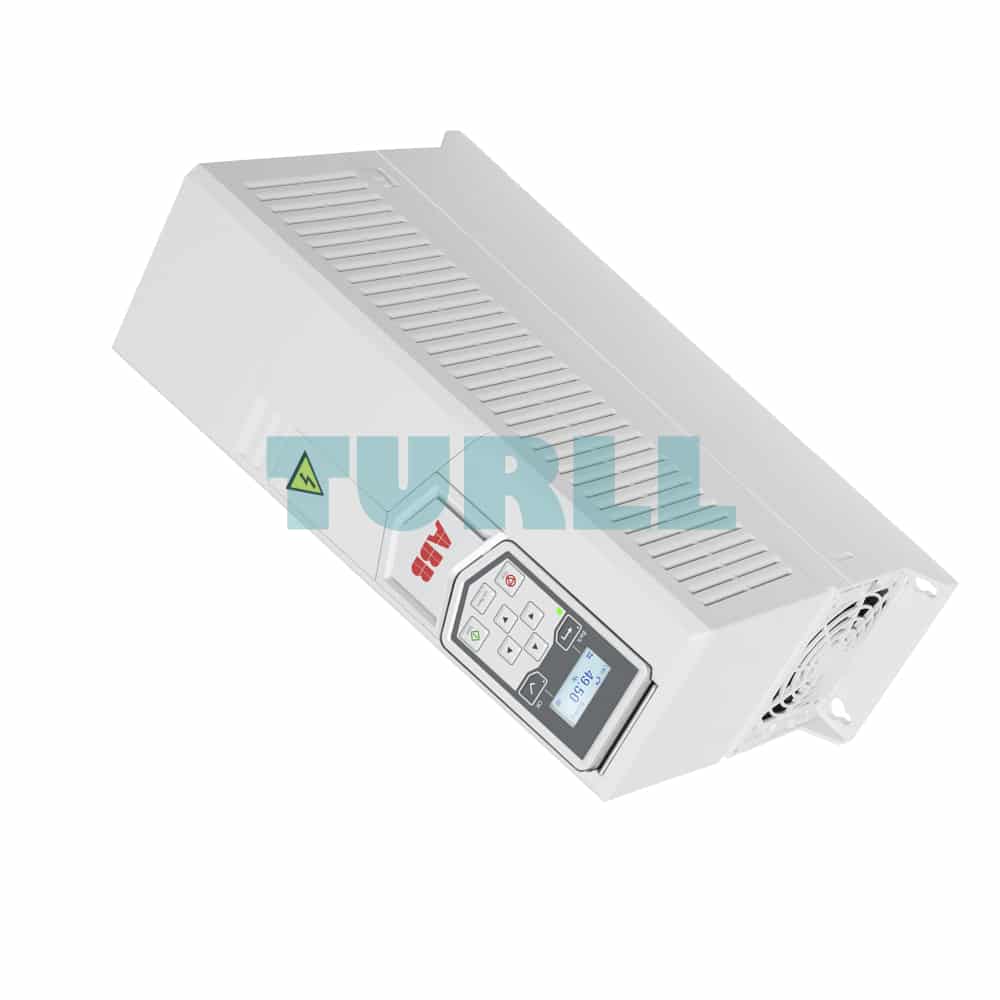

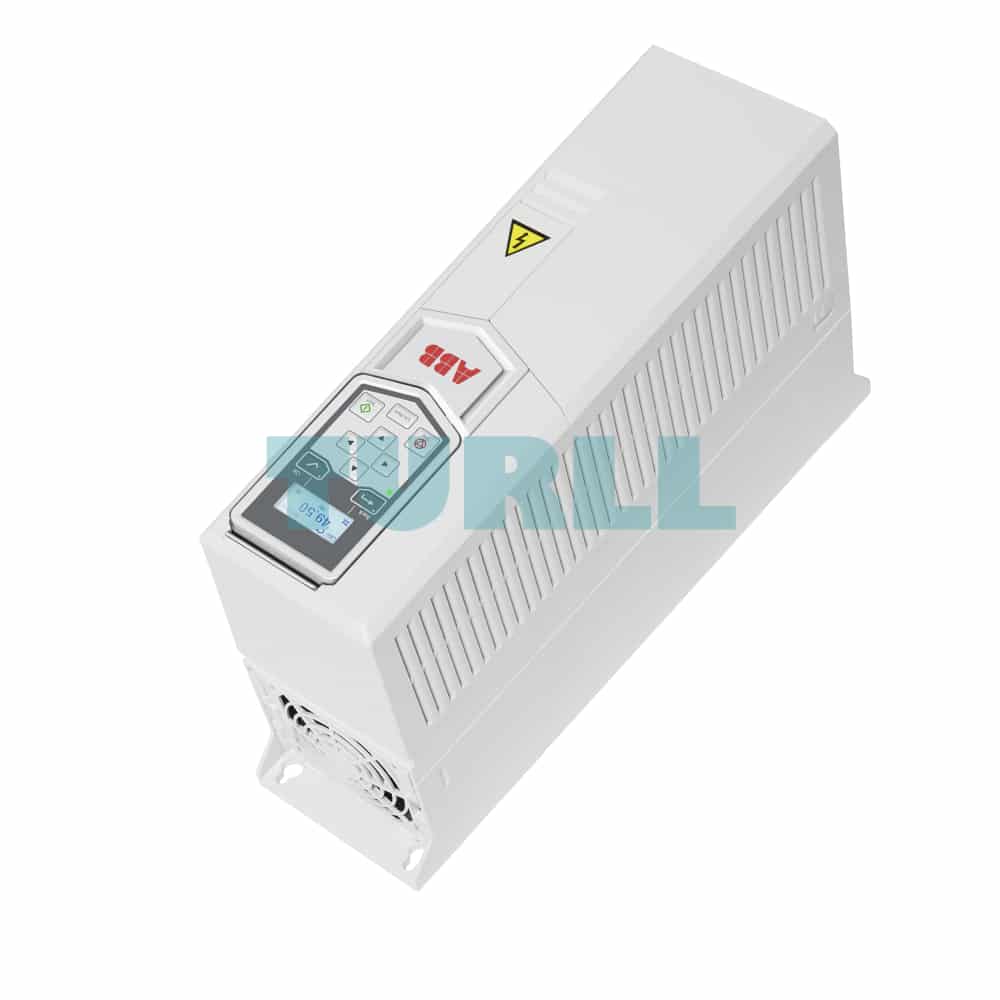

ACS530-01-026A-4 PN: 11 kW, IN: 25 A 3AXD50000747580 Original Brand New

Model / SKUACS530-01-026A-4

ACS530-01-026A-4

The ACS530-01 can control your compressors, conveyors, pumps, centrifuges, fans, and many other variable and simple constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. The basic control panel enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. The wall-mounted ACS530-01 comes in an IP20 enclosure as standard.

$476.67
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

[ez-toc]

General Information

Global Commercial Alias: ACS530-01-026A-4
Product ID: 3AXD50000747580
ABB Type Designation: ACS530-01-026A-4
Catalog Description: ACS530-01-026A-4 PN: 11kW, IN: 25A
Long Description: The ACS530-01 can control your compressors, conveyors, pumps, centrifuges, fans, and many other variable and simple constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. The basic control panel enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. The wall-mounted ACS530-01 comes in an IP20 enclosure as standard.

Ordering

Country of Origin: China (CN)
Customs Tariff Number: 85044086
Invoice Description: ACS530-01-026A-4 PN: 11kW, IN: 25A
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit of Measure: piece

Dimensions

Product Net Weight: 6 kg
Product Net Depth / Length: 229 mm
Product Net Height: 432 mm
Product Net Width: 125 mm
Package Level 1 Depth / Length: 425 mm
Package Level 1 Height: 620 mm
Package Level 1 Width: 225 mm
Package Level 1 Units: 1 carton

Technical

Number of Phases: 3
Degree of Protection: IP20
Enclosure Type NEMA: Open Type
Frequency (f): 47.5 ... 63 Hz
Frame Size: R2
Input Voltage (Uin): 380 … 480 V
Mounting Type: Module_NO UNIT$
Output Current, Light-Overload Use (ILD): 23.8 A
Output Current, Normal Use (In): 25 A
Output Power, Light-Overload Use (PLD): 11 kW
Output Power, Normal Use (Pn): 11 kW
Apparent Power Output: 17.0 kV·A
Efficiency Level: IE2
Standby Loss: 15 W
Complete Drive Module Efficiency (61800-9-2):

Operating Point
Frequency / Current		 Absolute
Loss		 Relative
Loss		 Efficiency
0 / 25 %
125 W
0.7 %
88 %
0 / 50 %
160 W
0.9 %
91.7 %
0 / 100 %
283 W
1.6 %
92.6 %
50 / 25 %
134 W
0.8 %
93.5 %
50 / 50 %
178 W
1 %
95.4 %
50 / 100 %
321 W
1.9 %
95.8 %
90 / 50 %
194 W
1.1 %
97.2 %
90 / 100 %
381 W
2.2 %
97.2 %
Temperature Rating: Maximum 40 °C

Classifications

UNSPSC: 39122001

Environmental

WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Additional Information

Product Name: Frequency Converter
For more our products visit turll.com

Specifications

SKU / ModelACS530-01-026A-4
Weight6 kg
Dimensions425 × 620 × 225 mm
