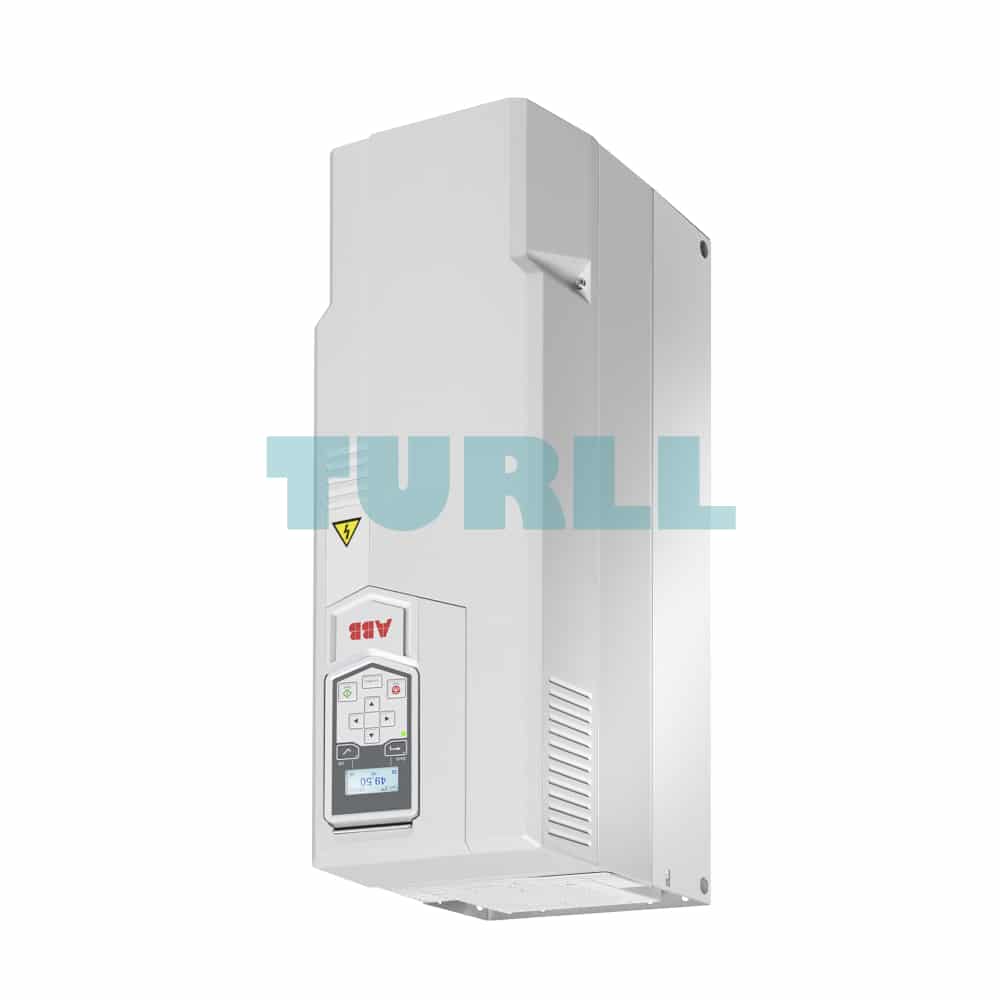

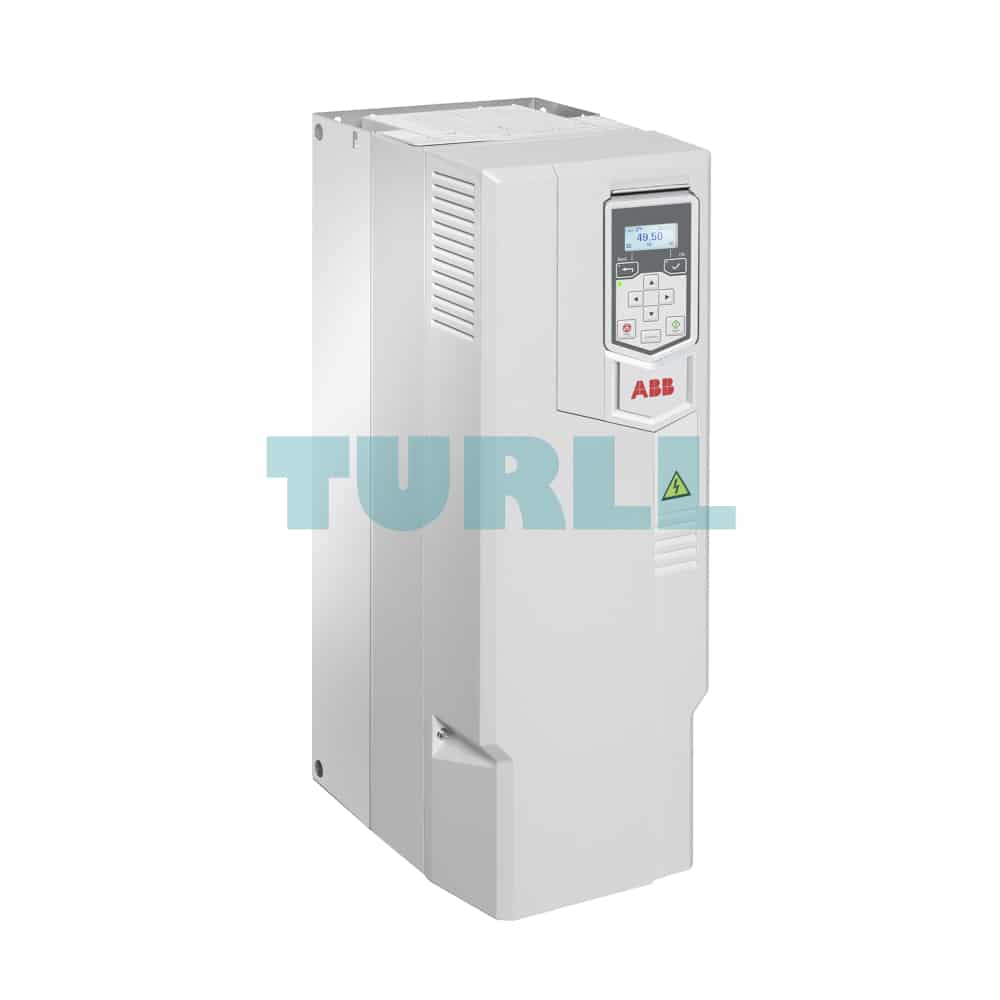

ACS530-01-106A-4 PN: 55 kW, IN: 106 A 3ABD00039814-D Original Brand New

Model / SKUACS530-01-106A-4

ACS530-01-106A-4

The ACS530-01 can control your compressors, conveyors, pumps, centrifuges, fans, and many other variable and simple constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. The basic control panel enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. The wall-mounted ACS530-01 comes in an IP20 enclosure as standard.

$1,806.01
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

[ez-toc]
General Information

Global Commercial Alias: ACS530-01-106A-4
Product ID: 3ABD00039814-D
ABB Type Designation: ACS530-01-106A-4
Catalog Description: ACS530-01-106A-4 PN: 55kW, IN: 106A
Long Description: The ACS530-01 can control your compressors, conveyors, pumps, centrifuges, fans, and many other variable and simple constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. The basic control panel enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. The wall-mounted ACS530-01 comes in an IP20 enclosure as standard.

Ordering

Country of Origin: China (CN)
Customs Tariff Number: 85044099
Invoice Description: ACS530-01-106A-4 PN: 55kW, IN: 106A
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit of Measure: piece

Dimensions

Product Net Weight: 26.5 kg
Product Net Depth / Length: 295 mm
Product Net Height: 596 mm
Product Net Width: 203 mm
Package Level 1 Depth / Length: 830 mm
Package Level 1 Height: 510 mm
Package Level 1 Width: 280 mm
Package Level 1 Units: 1 carton

Technical

Number of Phases: 3
Degree of Protection: IP20
Enclosure Type NEMA: Open Type
Frequency (f): 47.5 ... 63 Hz
Frame Size: R5
Input Voltage (Uin): 380 … 480 V
Mounting Type: Module_NO UNIT$
Output Current, Light-Overload Use (ILD): 100 A
Output Current, Normal Use (In): 106 A
Output Power, Light-Overload Use (PLD): 55 kW
Output Power, Normal Use (Pn): 55 kW
Apparent Power Output: 73.0 kV·A
Efficiency Level: IE2
Standby Loss: 24 W
Complete Drive Module Efficiency (61800-9-2):

Operating Point
Frequency / Current		 Absolute
Loss		 Relative
Loss		 Efficiency
0 / 25 %
325 W
0.4 %
92.5 %
0 / 50 %
449 W
0.6 %
94.5 %
0 / 100 %
864 W
1.2 %
94.6 %
50 / 25 %
359 W
0.5 %
95.9 %
50 / 50 %
521 W
0.7 %
96.8 %
50 / 100 %
1023 W
1.4 %
96.9 %
90 / 50 %
606 W
0.8 %
97.9 %
90 / 100 %
1290 W
1.8 %
97.8 %
Temperature Rating: Maximum 40 °C

Classifications

UNSPSC: 39122001

Environmental

WEEE Category: Product Not in WEEE Scope

Additional Information

Product Name: Frequency Converter

Visit: ACS530-01-106A-4

For more our products visit turll.com

Specifications

SKU / ModelACS530-01-106A-4
Weight26.5 kg
Dimensions830 × 510 × 280 mm
