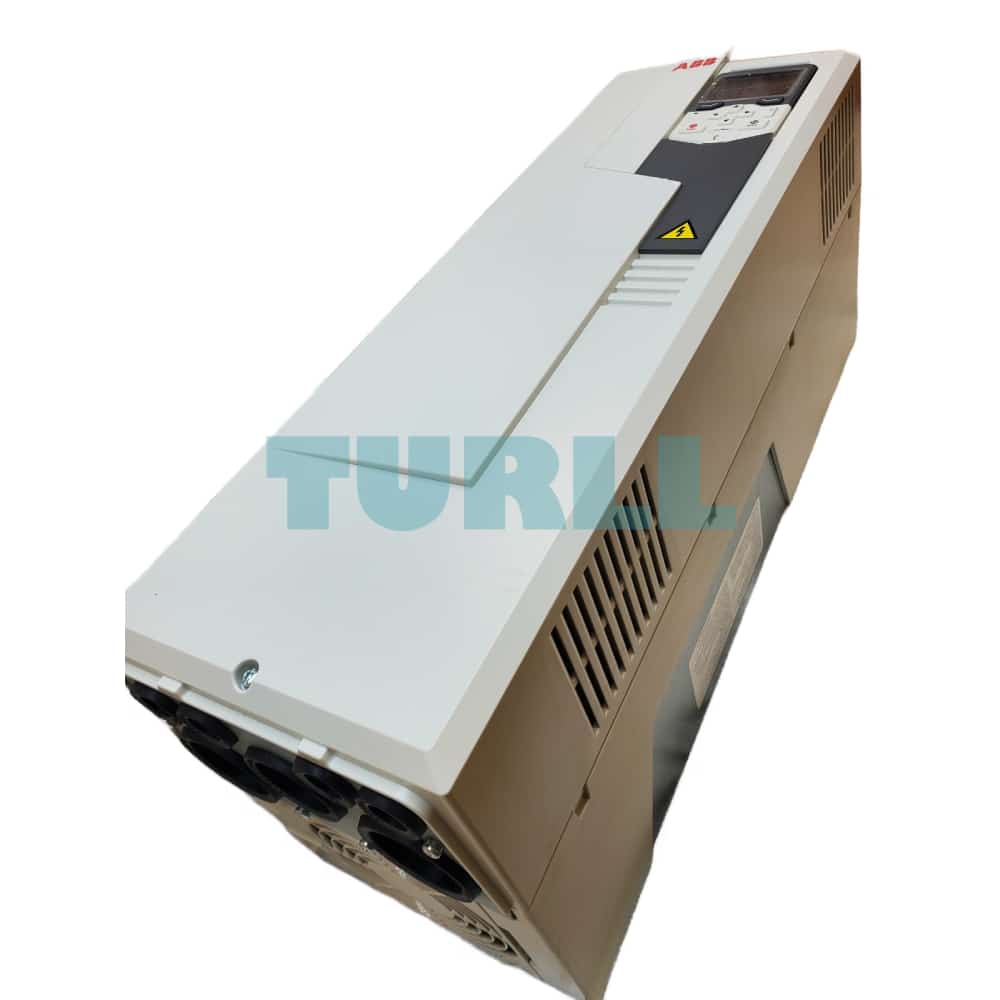

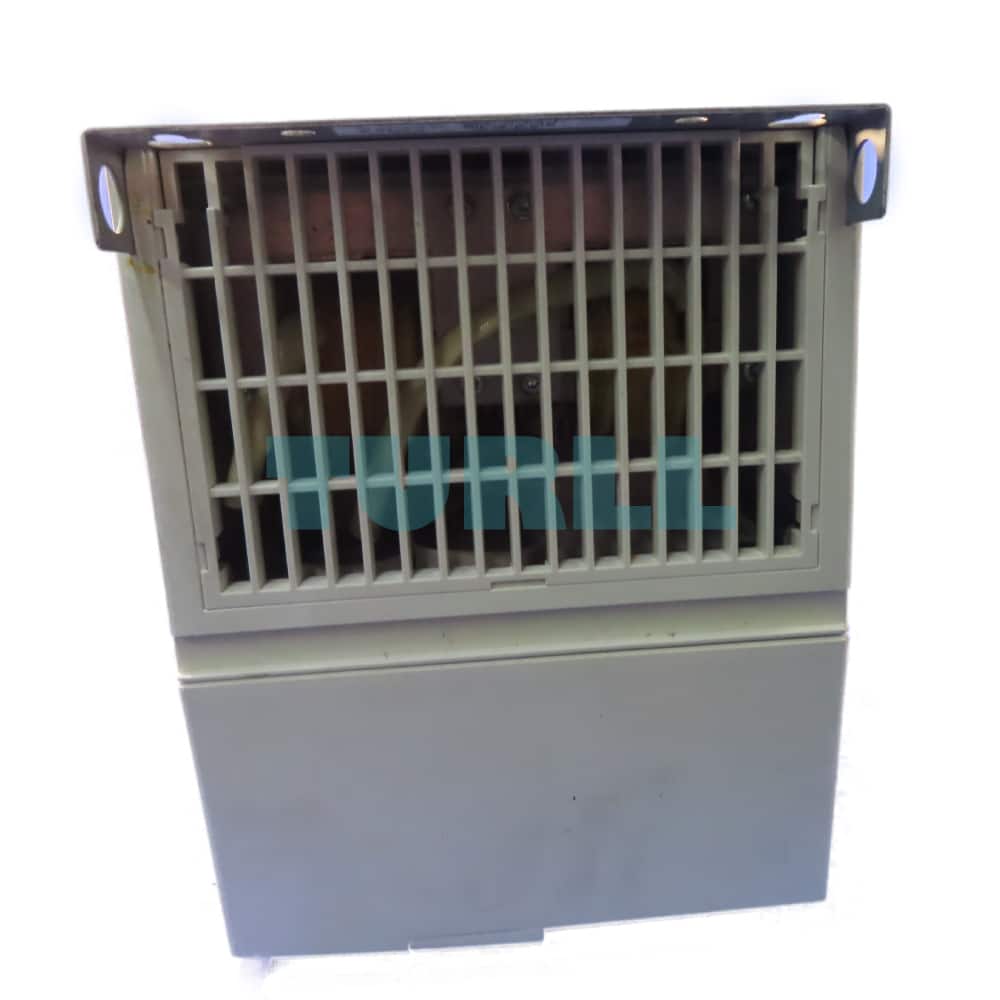

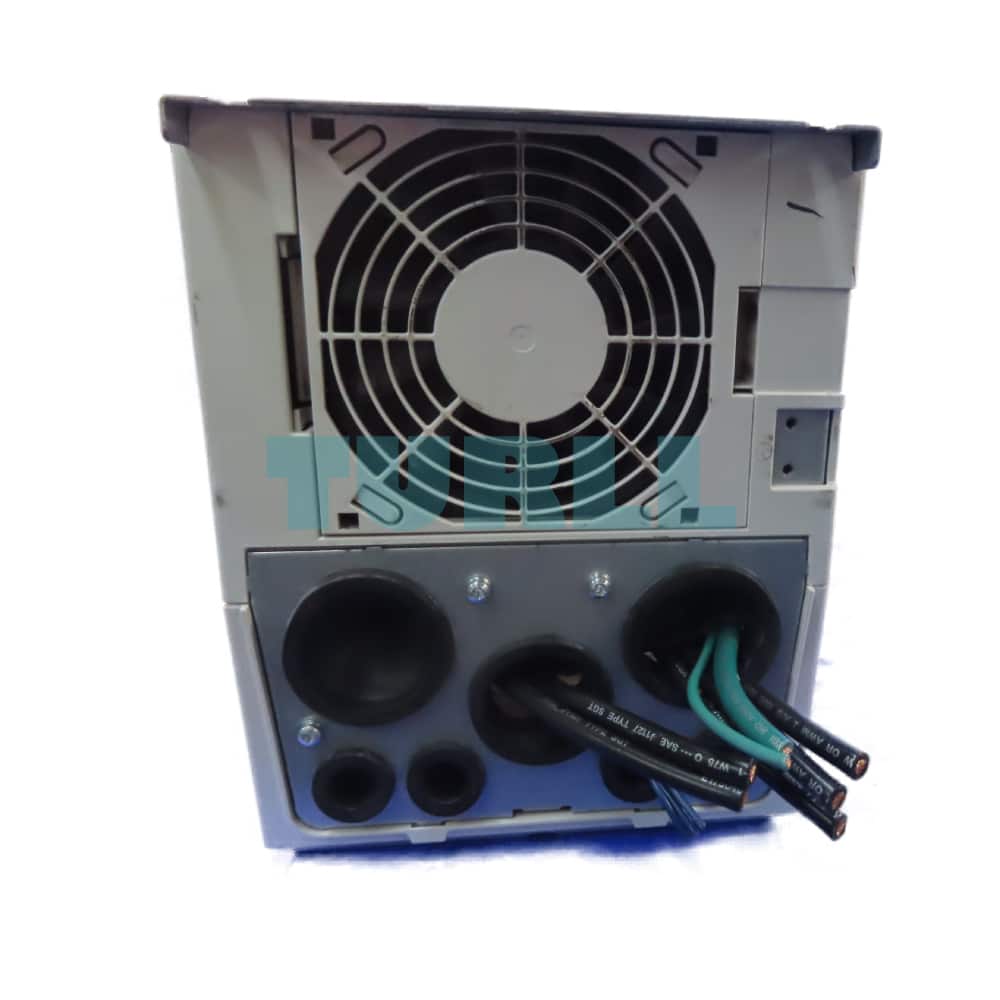

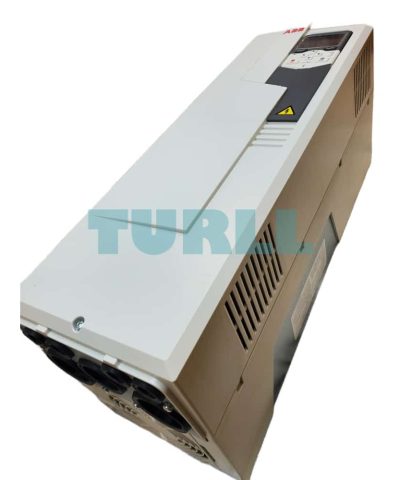

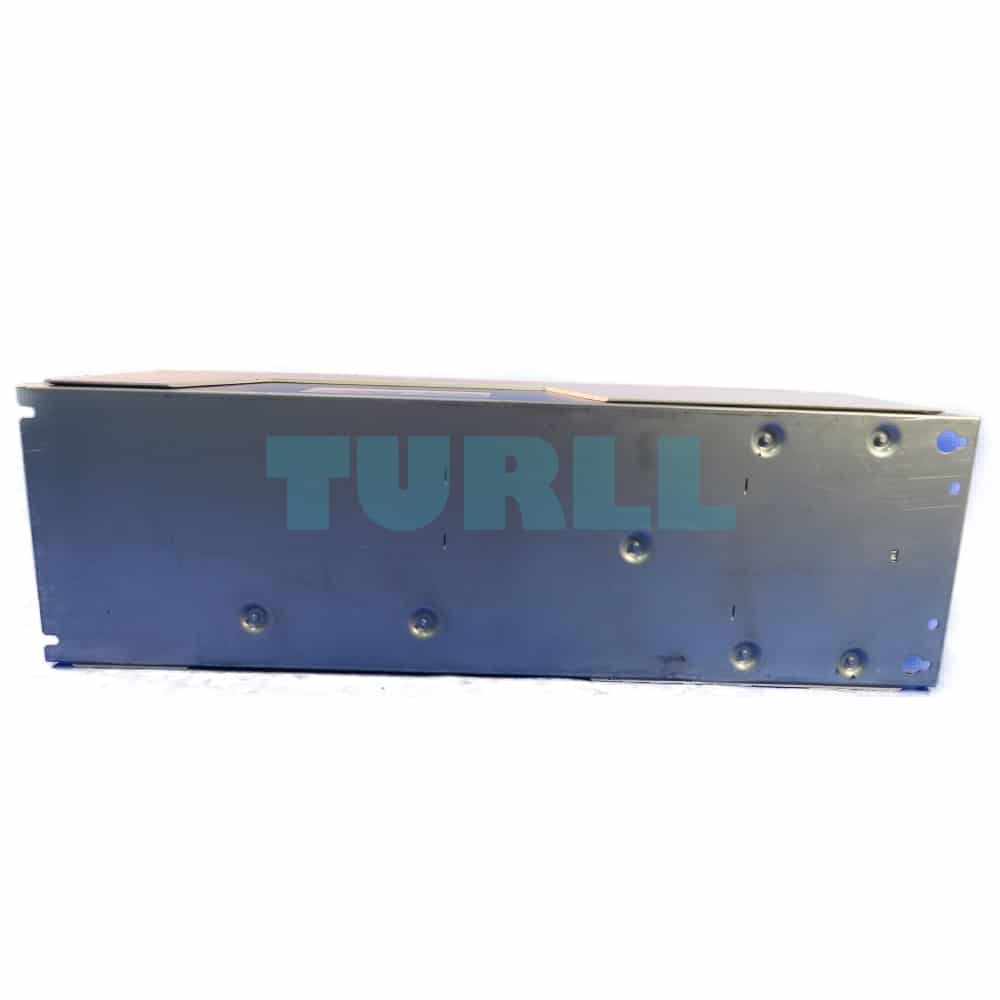

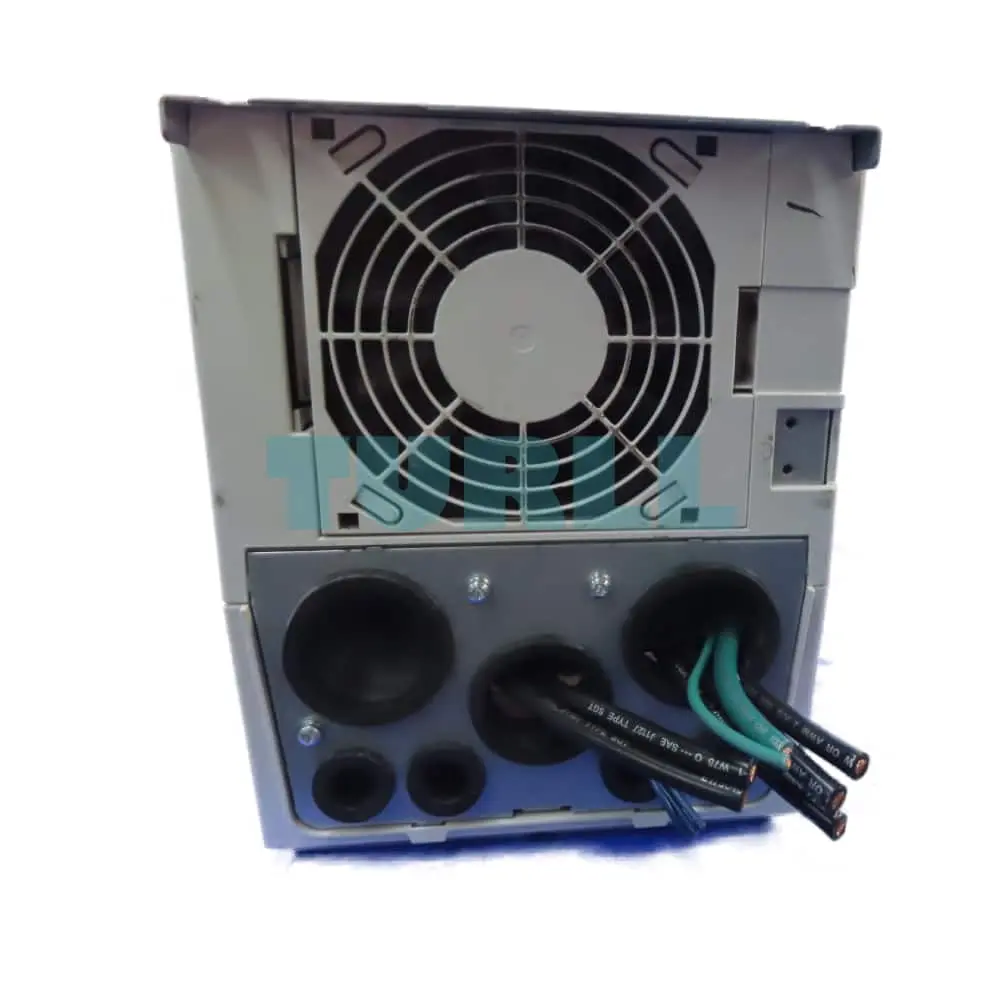

ACS580-01-062A-4 frequency converter
ACS580-01-062A-4 frequency converter
ACS580-01-062A-4 frequency converter
ACS580-01-062A-4 frequency converter

ACS580-01-062A-4 PN: 30 kW, IN: 62 A 3ABD00045433-D Original Brand New

Model / SKUACS580-01-062A-4

ACS580-01-062A-4

LV AC general purpose wall-mounted drive, IEC: Pn 30 kW, 62 A (ACS580-01-062A-4)

$1,161.68
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

[ez-toc]

General Information

Global Commercial Alias:
ACS580-01-062A-4
Product ID:
3ABD00045433-D
ABB Type Designation:
ACS580-01-062A-4
Catalog Description:
LV AC general purpose wall-mounted drive, IEC: Pn 30 kW, 62 A (ACS580-01-062A-4)
Long Description:
The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture.
All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.

Ordering

Country of Origin:
China (CN)
Customs Tariff Number:
85044099
Invoice Description:
ACS580-01-062A-4 PN: 30kW, IN: 62A
Made To Order:
No
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Quote Only:
No
Selling Unit of Measure:
piece

Dimensions

Product Net Weight:
20 kg
Product Net Depth / Length:
258 mm
Product Net Height:
600 mm
Product Net Width:
203 mm
Package Level 1 Depth / Length:
380 mm
Package Level 1 Height:
720 mm
Package Level 1 Width:
300 mm
Package Level 1 Units:
0 carton

Technical

Number of Phases:
3
Degree of Protection:
IP21
Enclosure Type NEMA:
Type1
Frequency (f):
47.5 ... 63 Hz
Frame Size:
R4
Input Voltage (Uin):
380 … 480 V
Mounting Type:
Wall-mounted_NO UNIT$
Output Current, Heavy-Duty Use (IHD):
44.6 A
Output Current, Light-Overload Use (ILD):
58 A
Output Current, Normal Use (In):
62 A
Output Power, Heavy-Duty Use (PHD):
22 kW
Output Power, Light-Overload Use (PLD):
30 kW
Output Power, Normal Use (Pn):
30 kW
Efficiency Level:
IE2
Complete Drive Module Efficiency (61800-9-2):

Operating Point
Frequency / Current		 Absolute
Loss		 Relative
Loss		 Efficiency
0 / 25 %
247 W
0.6 %
90.2 %
0 / 50 %
322 W
0.7 %
93.2 %
0 / 100 %
574 W
1.3 %
93.8 %
50 / 25 %
270 W
0.6 %
94.6 %
50 / 50 %
370 W
0.9 %
96.1 %
50 / 100 %
683 W
1.6 %
96.4 %
90 / 50 %
430 W
1.0 %
97.5 %
90 / 100 %
873 W
2.0 %
97.4 %

Classifications

UNSPSC:
39122001

Environmental

WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)

Additional Information

Product Name:
Frequency Converter

Visit: ACS580-01-062A-4

For more our products visit turll.com

Specifications

SKU / ModelACS580-01-062A-4
Weight20 kg
Dimensions380 × 720 × 300 mm
