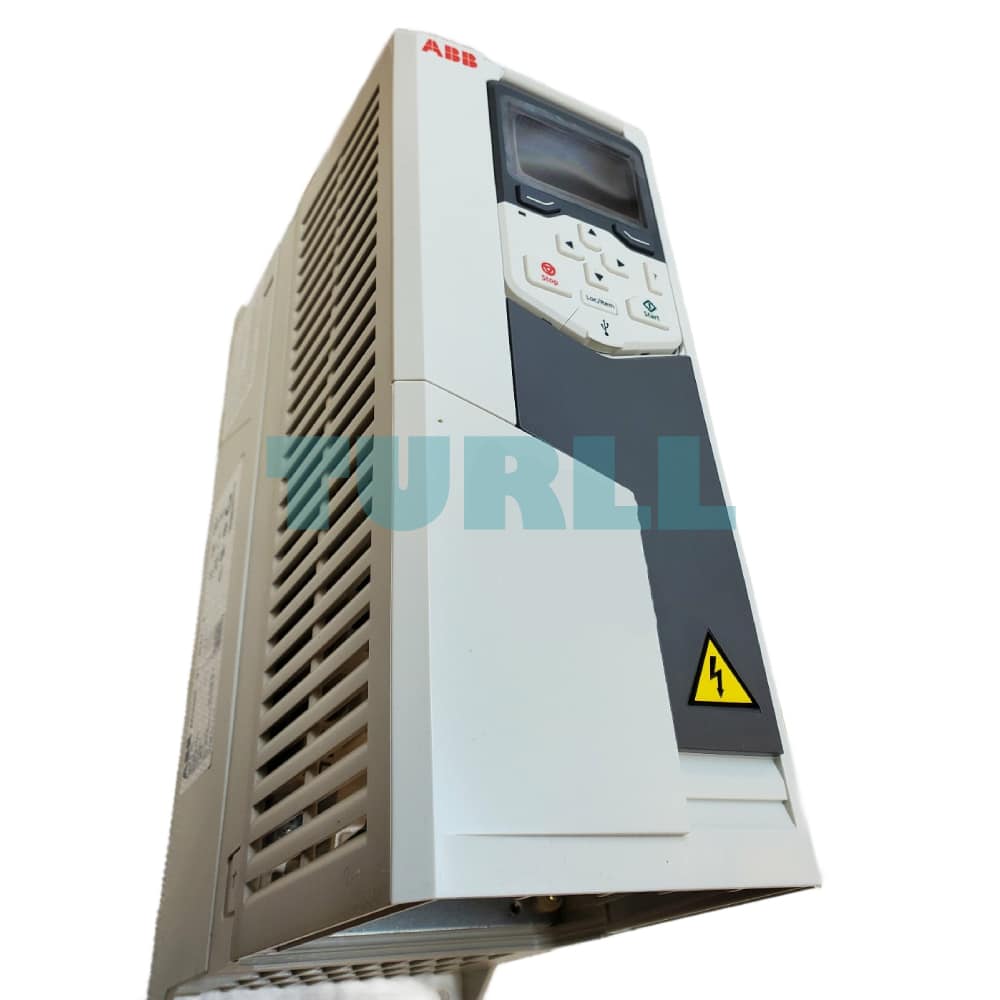

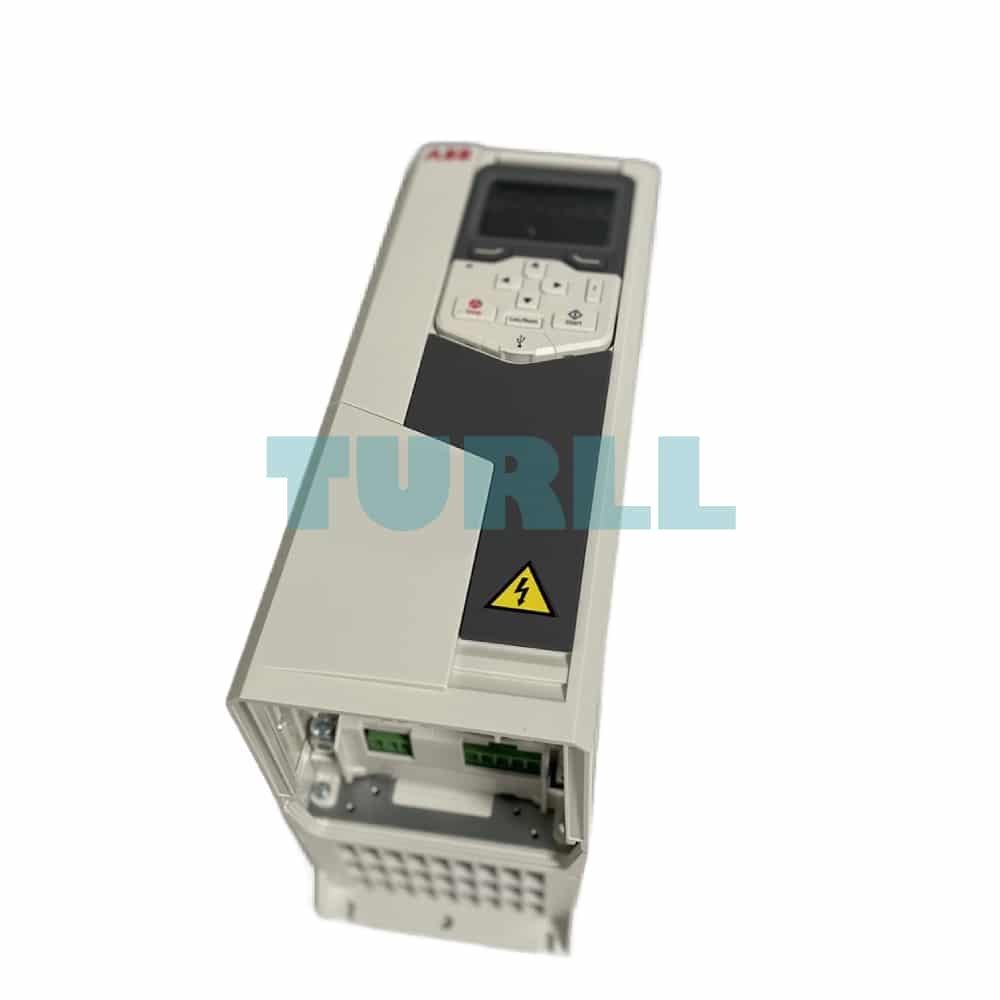

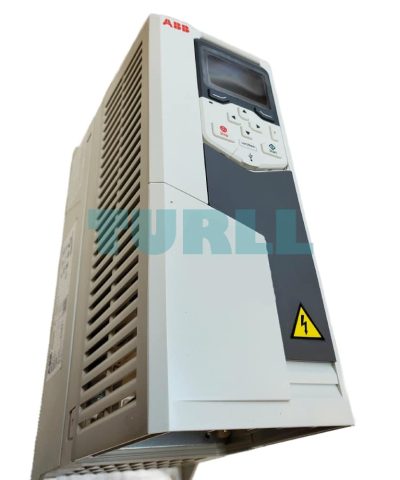

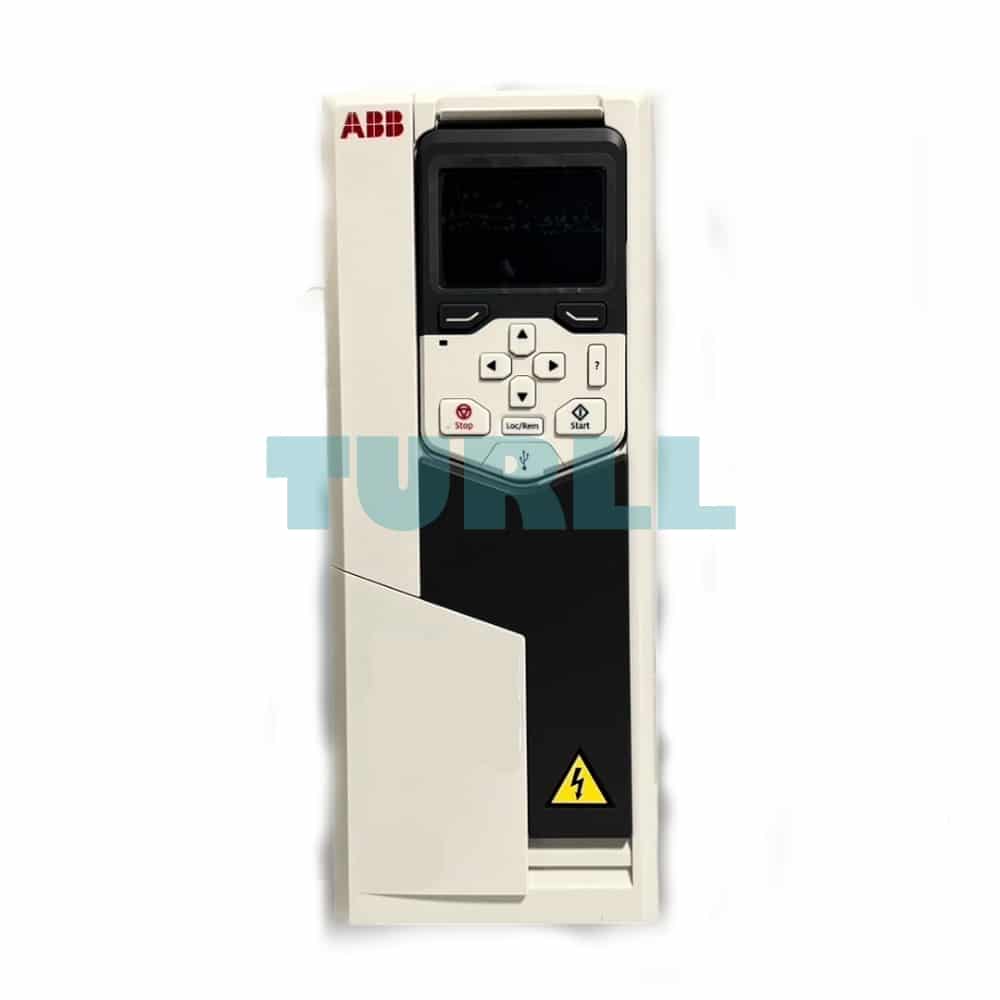

ACS580-01-07A3-4 PN: 3 kW, IN: 7.2 A 3AXD50000038951 Original Brand New
$285.38
ACS580-01-07A3-4
LV AC general purpose wall-mounted drive, IEC: Pn 3 kW, 7.2 A, 400 V (ACS580-01-07A3-4)
Global Express Shipping
DHL / FedEx / UPS
100% Original & Brand New
Factory Sealed Box with 1-Year Warranty
Secure Payment
SSL ENCRYPTED
[ez-toc]
General Information
Global Commercial Alias: ACS580-01-07A3-4
Product ID: 3AXD50000038951
ABB Type Designation: ACS580-01-07A3-4
EAN: 6438177459217
Catalog Description: LV AC general purpose wall-mounted drive, IEC: Pn 3 kW, 7.2 A, 400 V (ACS580-01-07A3-4)
Long Description: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture.
All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
Ordering
Country of Origin: Romania (RO)
Finland (FI)
China (CN)
Customs Tariff Number: 85044085
HS Code: 850440– Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description: ACS580-01-07A3-4 PN: 3.0 kW, IN: 7.2 A
Made To Order: Yes
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit of Measure: piece
Dimensions
Product Net Weight:
4.6 kg
10.141 lb
Product Net Depth / Length:
223.00 mm
8.78 in
Product Net Height:
373.00 mm
14.69 in
Product Net Width:
125.00 mm
4.92 in
Package Level 1 Depth / Length:
225.00 mm
8.858 in
Package Level 1 Height:
370.00 mm
14.567 in
Package Level 1 Width:
526.00 mm
20.709 in
Package Level 1 Units:
1 carton
Technical
Number of Phases:
3
Degree of Protection:
IP21
Enclosure Type NEMA:
Type1
Altitude:
1000 m
Operating Humidity (RHamb):
5 … 95
Sound dB (A):
59 dB(A)
Multiple Battery Information:
Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g
Frequency (f):
47.5 … 63 Hz
Frame Size:
R1
Input Voltage (Uin):
380 … 480 V
Mounting Type:
Wall-mounted
Communication Protocol:
CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIBUS
PROFINET IO
TCP/IP
Number of Hardware Interfaces:
Industrial Ethernet 0
Other 2
Parallel 2
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 1
Includes:
Control unit
PC connection
Analog Inputs:
2
Analog Outputs:
2
Number of Digital In/Outputs:
6 / 3
Output Current, Heavy-Duty Use (IHD):
5.6 A
Output Current, Light-Overload Use (ILD):
6.8 A
Output Current, Normal Use (In):
7.2 A
Output Power, Heavy-Duty Use (PHD):
2.2 kW
Output Power, Light-Overload Use (PLD):
3.0 kW
Output Power, Normal Use (Pn):
3 kW
Apparent Power Output:
5.0 kV·A
Efficiency Level:
IE2
Standby Loss:
14 W
Complete Drive Module Efficiency (61800-9-2):
| Operating Point Frequency / Current |
Absolute Loss |
Efficiency | Relative Loss |
|---|---|---|---|
|
0/25 %
|
49 W
|
84.3 %
|
1.0 %
|
|
0/50 %
|
57 W
|
89.9 %
|
1.1 %
|
|
0/100 %
|
77 W
|
92.4 %
|
1.6 %
|
|
50/25 %
|
52 W
|
91.4 %
|
1.0 %
|
|
50/50 %
|
62 W
|
94.5 %
|
1.2 %
|
|
50/100 %
|
87 W
|
95.8 %
|
1.7 %
|
|
90/50 %
|
67 W
|
96.6 %
|
1.4 %
|
|
90/100 %
|
98 W
|
97.3 %
|
2.0 %
|
Temperature Rating:
Maximum 40 °C
Minimum -15 °C
Classifications
ETIM 8: EC001857 – Frequency converter =< 1 kV
ETIM 9: EC001857 – Frequency converter =< 1 kV
UNSPSC: 39122001
Environmental
SCIP: a5c3dd71-8ecd-44d9-98e4-45c53b6836e1 Finland (FI)
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Additional Information
Product Name: Frequency converter
Visit: ACS580-01-07A3-4
For more our products visit turll.com
| Weight | 4.6 kg |
|---|---|
| Dimensions | 225 × 370 × 526 mm |
