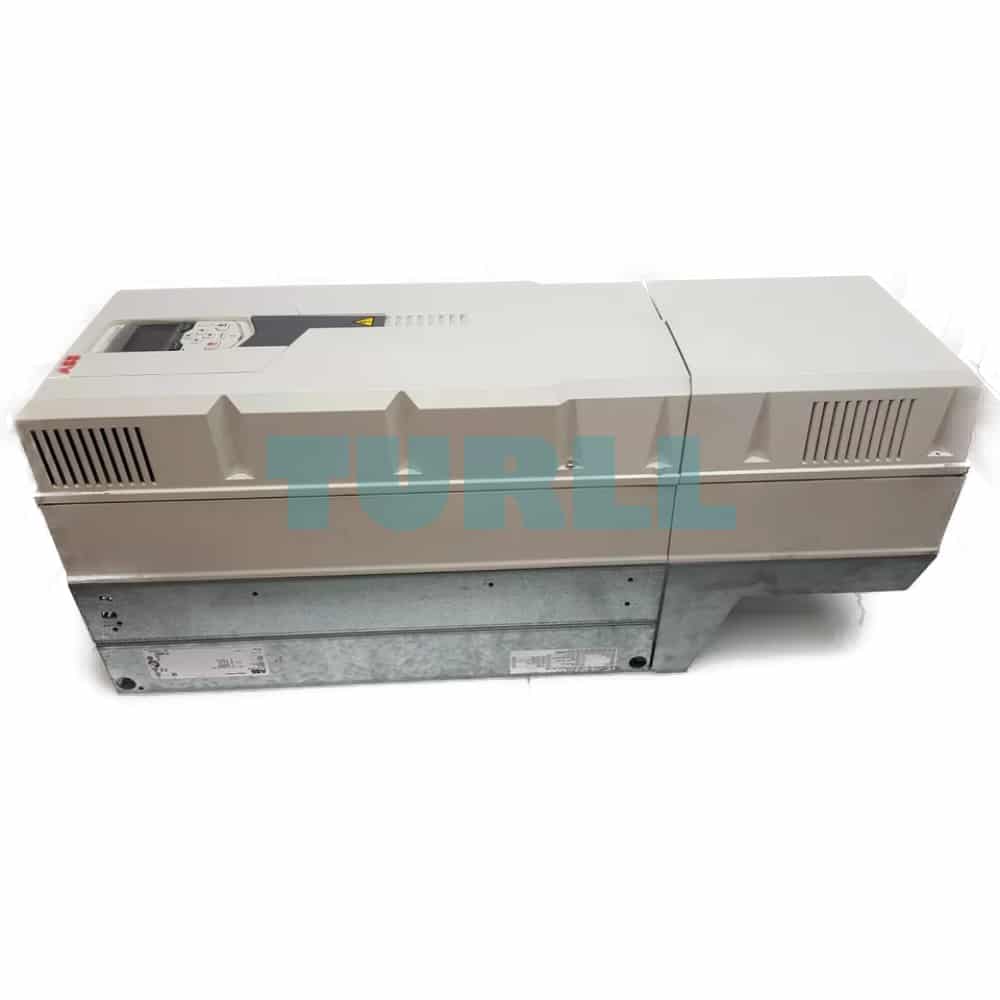

ACS580-01-206A-4 PN: 110 kW, IN: 206 A 3ABD00045439-D Original Brand New
$3,535.29
ACS580-01-206A-4
LV AC general purpose wall-mounted drive, IEC: Pn 110 kW, 206 A (ACS580-01-206A-4)
Global Express Shipping
DHL / FedEx / UPS
100% Original & Brand New
Factory Sealed Box with 1-Year Warranty
Secure Payment
SSL ENCRYPTED
[ez-toc]
General Information
Global Commercial Alias:
ACS580-01-206A-4
Product ID:
3ABD00045439-D
ABB Type Designation:
ACS580-01-206A-4
Catalog Description:
LV AC general purpose wall-mounted drive, IEC: Pn 110 kW, 206 A (ACS580-01-206A-4)
Long Description:
The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Ordering
Country of Origin: China (CN)
Customs Tariff Number:
85044099
Invoice Description:
ACS580-01-206A-4 PN: 110kW, IN: 206A
Made To Order:
No
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Quote Only:
No
Selling Unit of Measure:
piece
Dimensions
Product Net Weight:
54 kg
Product Net Depth / Length:
370 mm
Product Net Height:
880 mm
Product Net Width:
284 mm
Package Level 1 Units:
0 carton
Technical
Number of Phases:
3
Degree of Protection:
IP21
Enclosure Type NEMA:
Type1
Frequency (f):
47.5 … 63 Hz
Frame Size:
R7
Input Voltage (Uin):
380 … 480 V
Mounting Type:
Wall-mounted_NO UNIT$
Output Current, Heavy-Duty Use (IHD):
169 A
Output Current, Light-Overload Use (ILD):
196 A
Output Current, Normal Use (In):
206 A
Output Power, Heavy-Duty Use (PHD):
90 kW
Output Power, Light-Overload Use (PLD):
110 kW
Output Power, Normal Use (Pn):
110 kW
Efficiency Level:
IE2
Complete Drive Module Efficiency (61800-9-2):
| Operating Point Frequency / Current |
Absolute Loss |
Relative Loss |
Efficiency |
|---|---|---|---|
|
0 / 25 %
|
722 W
|
0.5 %
|
91.5 %
|
|
0 / 50 %
|
1001 W
|
0.7 %
|
93.7 %
|
|
0 / 100 %
|
1797 W
|
1.3 %
|
94.2 %
|
|
50 / 25 %
|
793 W
|
0.6 %
|
95.3 %
|
|
50 / 50 %
|
1138 W
|
0.8 %
|
96.5 %
|
|
50 / 100 %
|
2116 W
|
1.5 %
|
96.7 %
|
|
90 / 50 %
|
1345 W
|
0.9 %
|
97.6 %
|
|
90 / 100 %
|
2785 W
|
2.0 %
|
97.5 %
|
Classifications
UNSPSC:
39122001
Environmental
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
Additional Information
Product Name:
Frequency Converter
Visit: ACS580-01-206A-4
For more our products visit turll.com
| Weight | 54 kg |
|---|---|
| Dimensions | 370 × 880 × 284 mm |
