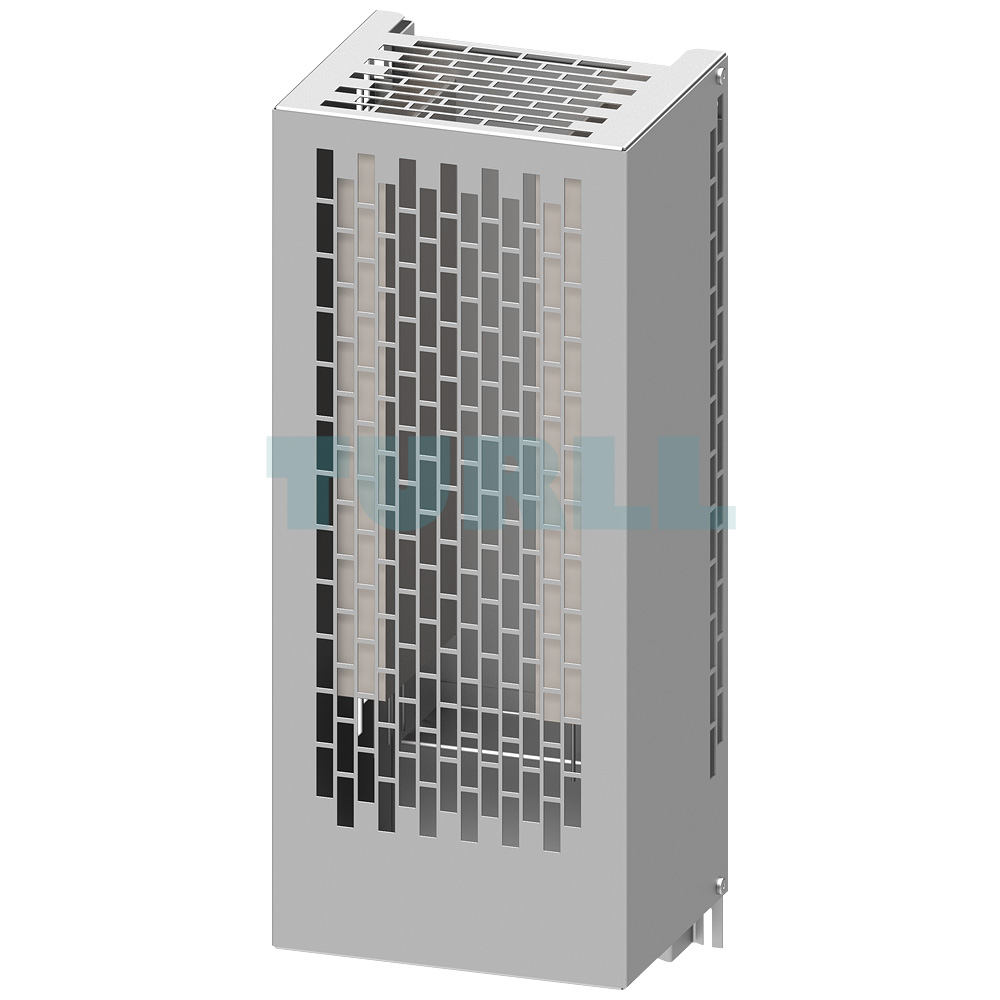

The SIEMENS JJY023424020001 braking resistor is a high-quality accessory designed for use with PM240-2 Power Modules, frame size FSG. This component is essential for safely dissipating excess energy generated in the DC link of power modules, particularly during braking operations in systems with high inertia. By converting the surplus electrical energy into heat, the braking resistor helps maintain stability, prevents potential overloads, and ensures that automation processes remain uninterrupted.

Engineered for durability and efficiency, the JJY023424020001 braking resistor provides reliable performance in demanding industrial environments. It is specifically intended for PM240-2 Power Modules equipped with an integrated braking chopper but lacking regenerative capabilities back to the supply system. This makes the unit a critical element for applications where rotational energy must be safely managed. The resistor’s design also includes a UL-listed temperature switch, allowing operators to monitor conditions and prevent damage caused by overheating, thereby extending system longevity.

Overview

Braking resistors are designed to be installed laterally next to PM240-2 Power Modules. For larger frame sizes such as FSD through FSG, they are recommended to be mounted outside the control cabinet or switchgear room. This external placement helps dissipate heat more effectively while reducing the cooling demand on the enclosure. The JJY023424020001 unit is constructed to handle substantial power levels, with a continuous output rating of 1850 W and a resistance of 15 ohms. It supports peak performance for up to 37 kW under specific duty cycles, ensuring adaptability for various applications.

For secure and electromagnetically compatible connections, SIEMENS recommends using the appropriate shield connection kit when integrating braking resistors with PM240-2 modules. This ensures compliance with EMC standards and protects the system against electrical interference. By combining advanced engineering with robust construction, the JJY023424020001 braking resistor provides industries with an efficient and reliable solution to energy dissipation challenges in motion control and drive technology.

Product Code: JJY023424020001
