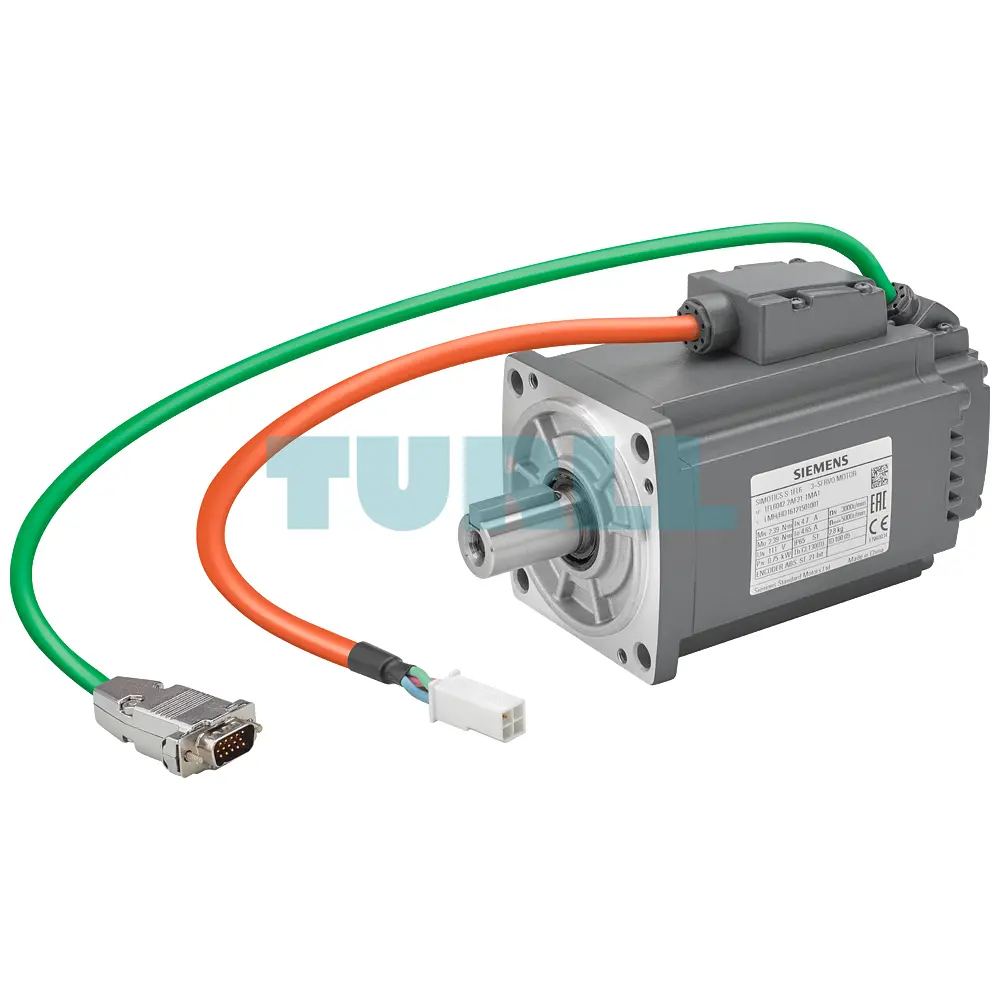

Siemens 1FL6044-2AF21-1MH1 SIMOTICS S-1FL6 Servo Motor 1kW, 3000 rpm, with Brake Original Brand New

Overview

The SIMOTICS S-1FL6 series represents the gold standard in high-performance motor technology for the basic motion control market. The 1FL6044-2AF21-1MH1 is engineered to operate seamlessly on a 230V 3AC supply, delivering consistent power even in harsh industrial environments. Its compact 40mm shaft height and smooth shaft design make it an ideal fit for precision machinery where space and accuracy are paramount.

Key Benefit & Function

• High Precision: Equipped with a 21-bit absolute single-turn encoder, ensuring exact positioning and repeatable accuracy without the need for a homing run after power-off.

• Integrated Safety: Features a built-in holding brake, critical for vertical axes or maintaining position during emergency stops.

• Robust Protection: Rated at IP65 with a fitting oil seal, protecting the internal components from dust and water jets.

• Plug-and-Play Compatibility: Optimized specifically for the SINAMICS V90 drive, allowing for rapid commissioning and reduced downtime.

• Smooth Operation: The "Tolerance N" smooth shaft ensures vibration-free performance at high speeds (up to 3000 rpm).

Technical Specification

• Product Number: 1FL6044-2AF21-1MH1

• Rated Power (Pn): 1 kW

• Rated Speed (Nn): 3000 rpm

• Static Torque (M0): 3.18 Nm

• Rated Torque (MN): 3.18 Nm

• Supply Voltage: 230 V 3AC

• Encoder Type: Absolute encoder 21-bit Single-turn

• Shaft Design: Smooth shaft (Tolerance N)

• Brake: Yes (Holding Brake)

• Degree of Protection: IP65 (with oil seal)
