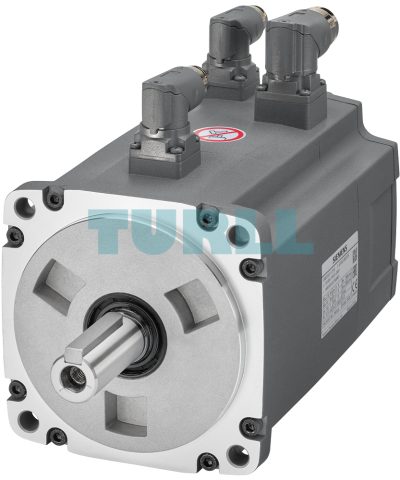

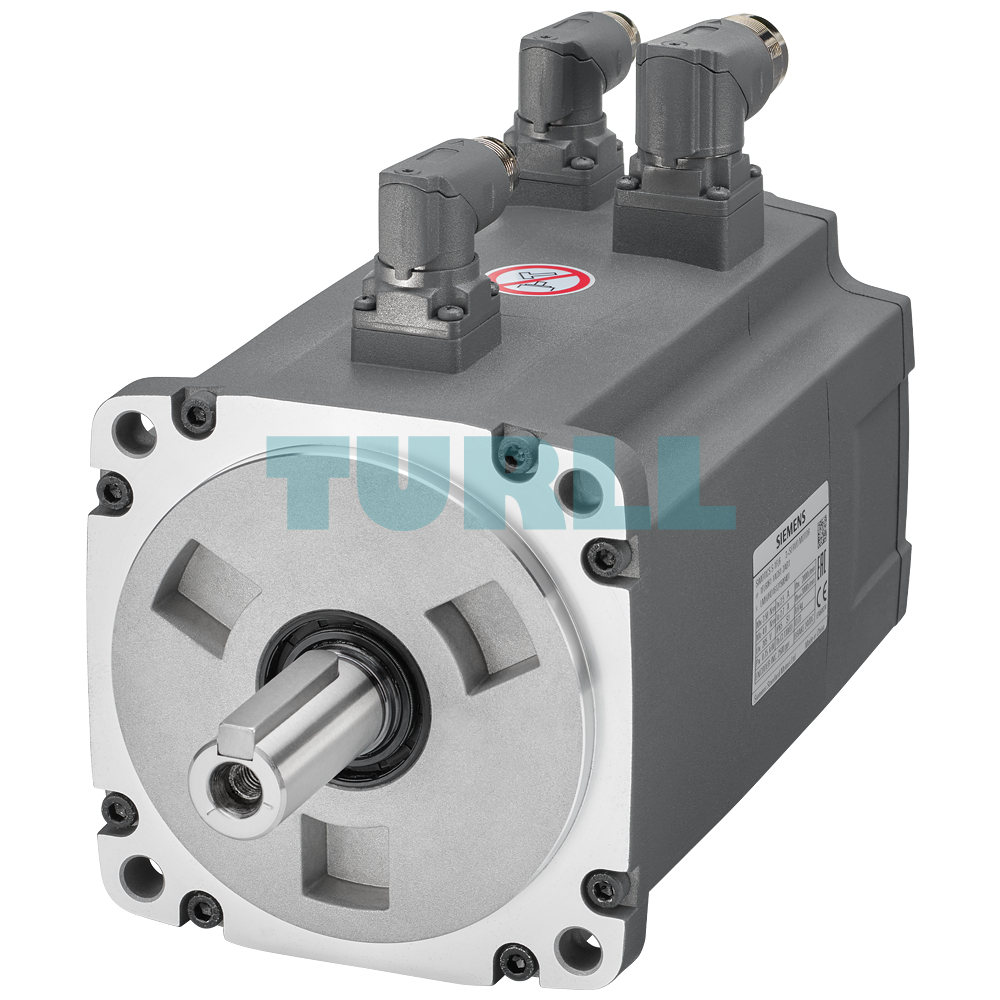

Siemens 1FL6090-1AC61-2LH1 SIMOTICS S-1FL6 Servo Motor 2.5 kW, 2000 rpm Original Brand New

Overview

Siemens SIMOTICS S-1FL6090-1AC61-2LH1 is a high-performance AC motor designed for precision industrial applications. With a rated power of 2.5 kW and a nominal speed of 2000 rpm, this motor ensures efficient operation in demanding environments. Equipped with a 20-bit absolute encoder (12-bit multi-turn), it offers precise positioning control, while the holding brake ensures safe and stable operation. Its IP65 protection rating and sealing ring make it resistant to dust and water, ideal for harsh conditions. The motor is fully compatible with SINAMICS V70 and V90 converters, offering seamless integration for automated systems.

Benefit

• High Precision: Equipped with a 20-bit absolute encoder (12-bit multi-turn) for exact positioning without needing a homing run every power-up.

• Robust Reliability: Rated IP65 with a sealing ring, making it resistant to dust and water jets in harsh factory conditions.

• Seamless Integration: Plug-and-play compatibility with SINAMICS V90 and V70 drive systems.

• Safety & Stability: Features a built-in holding brake to maintain position during power loss or emergency stops.

Functionality / Features

• Operating voltage: 3AC 400 V

• Nominal speed: 2000 rpm

• Torque: Starting torque 15 Nm; Nominal torque 11.9 Nm

• Shaft: Plain shaft with tolerance N

• Absolute encoder: 20-bit, 12-bit multi-turn

• Integrated holding brake

• Degree of protection: IP65

• Compatible with SINAMICS V70 & V90

Application

• Packaging Machinery: High-speed bagging and wrapping.

• Material Handling: Precise conveyor and sorting systems.

• CNC Woodworking: Reliable axis control for cutting and drilling.

• Textile Industry: Consistent tension and feed control.
