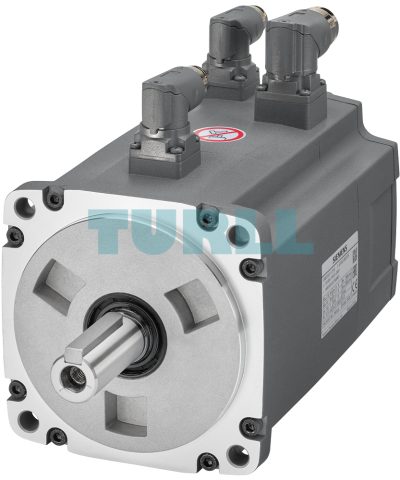

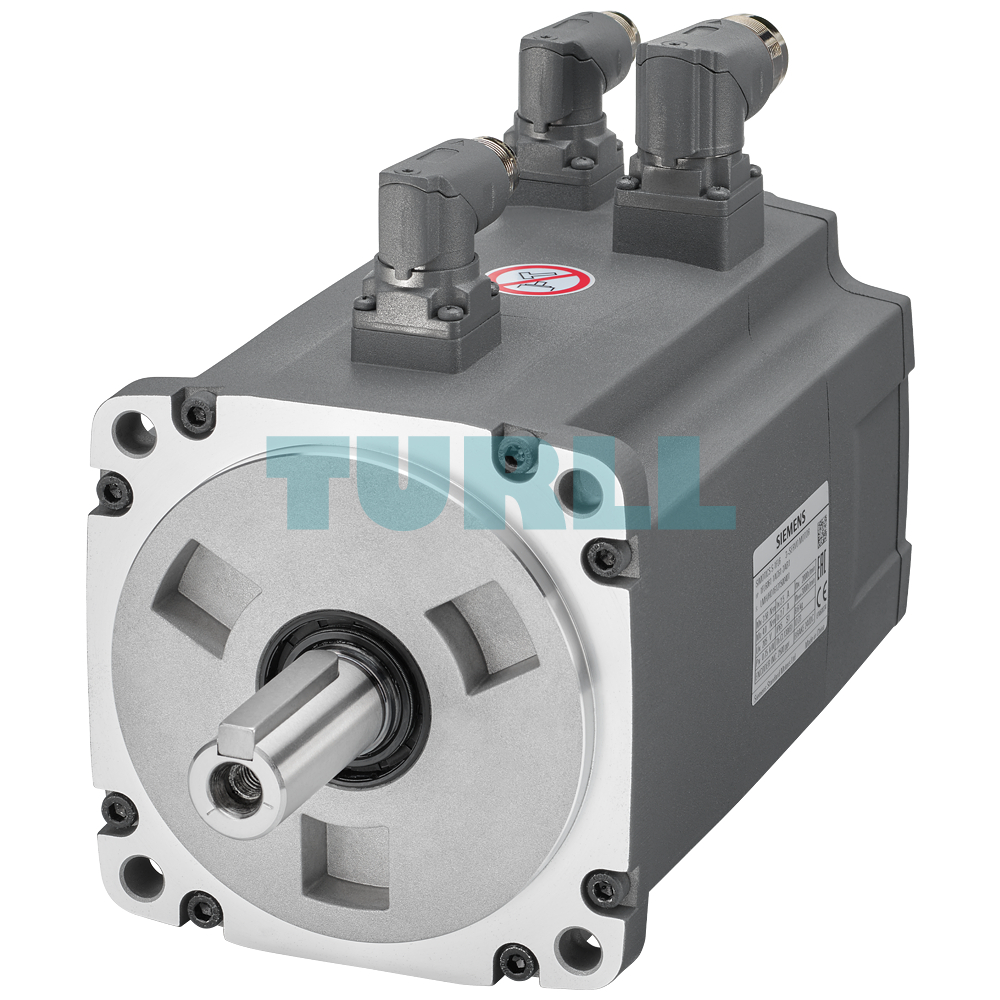

Siemens 1FL6096-1AC61-2AB1 SIMOTICS S-1FL6 High Inertia Servo Motor 7kW, 400V, 2000 rpm Original Brand New

Overview

Siemens SIMOTICS 1FL6096-1AC61-2AB1 is a premium-grade industrial motor engineered for precision and reliability. With a rated power of 7 kW and operating voltage of 3AC 400V, this motor delivers consistent performance at 2000 rpm. Designed for demanding industrial applications, it features a robust shaft height of 90 mm, an angle plug, and an incremental encoder offering 2500 increments per revolution.

Its holding brake and feather key with tight tolerance ensure secure and accurate operation. Built with IP65 protection and a sealing ring, it provides reliable resistance against dust and water ingress. Fully compatible with SINAMICS V70 and V90 drives, this motor is ideal for applications requiring high precision and durability.

Key Benefit

• Superior Durability: Rated at IP65, this motor is dust-tight and protected against water jets, making it suitable for harsh factory floors.

• Integrated Safety: Comes equipped with a mechanical holding brake, ensuring the load stays secure even during power loss.

• Seamless Integration: Specifically optimized for use with SINAMICS V70 and V90 frequency converters for “plug-and-play” setup.

• High Torque Density: Delivers a rated torque of 33.4 Nm and a stall torque of 40 Nm in a compact 90mm frame.

Function / Features

• Operating voltage: 3AC 400 V

• Rated power: 7 kW

• Nominal speed: 2000 rpm

• Torque: M0=40 Nm; MN=33.4 Nm

• Shaft height: 90 mm

• Angle plug included

• Incremental encoder: 2500 increments per revolution

• Feather key with tolerance

• Holding brake included

• Degree of protection: IP65

• Compatible with SINAMICS V70 & V90

Visit 1FL6096-1AC61-2AB1 for more detail info

For more our products visit turll

Download

Datasheet in PDF
