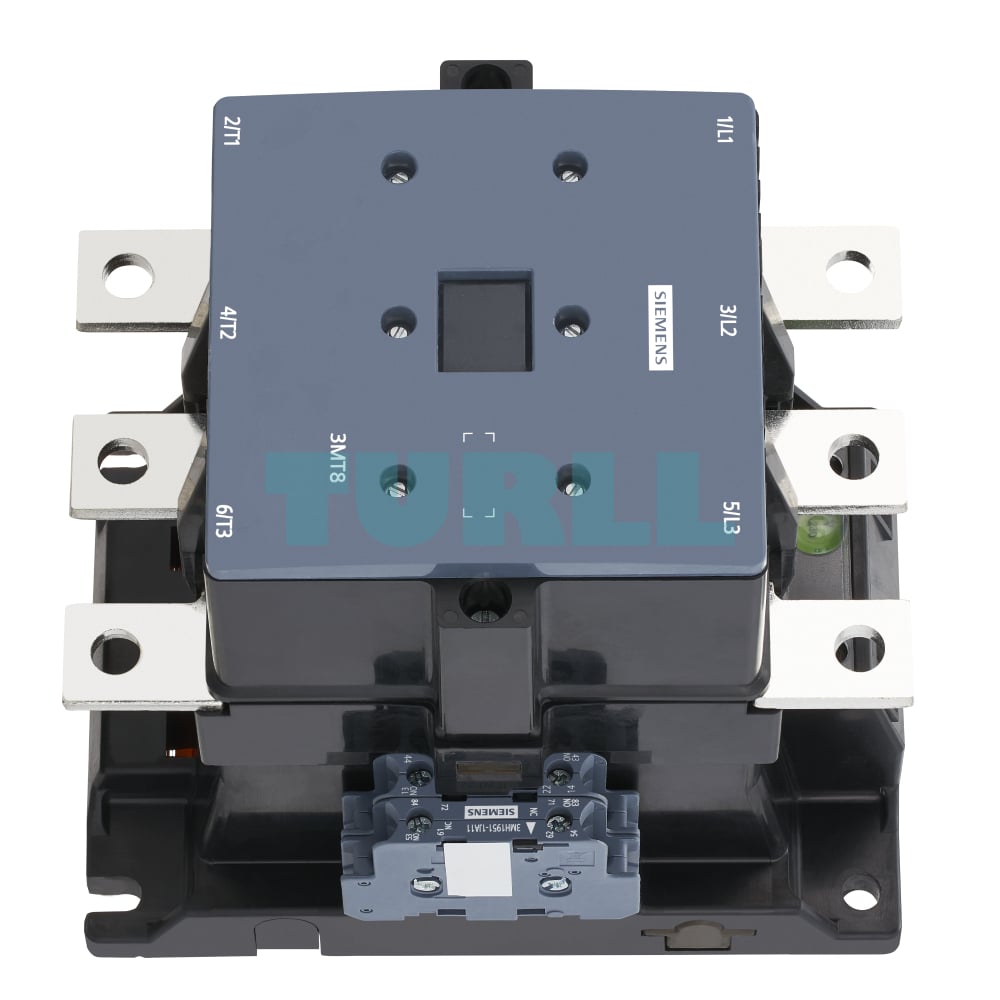

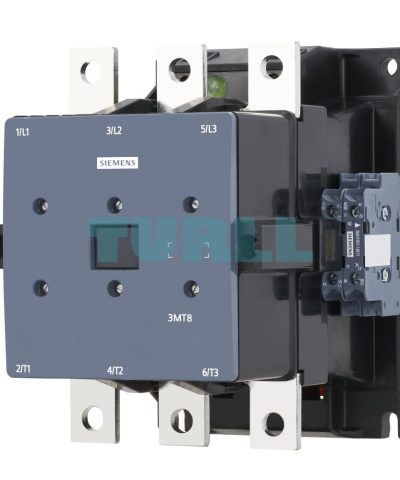

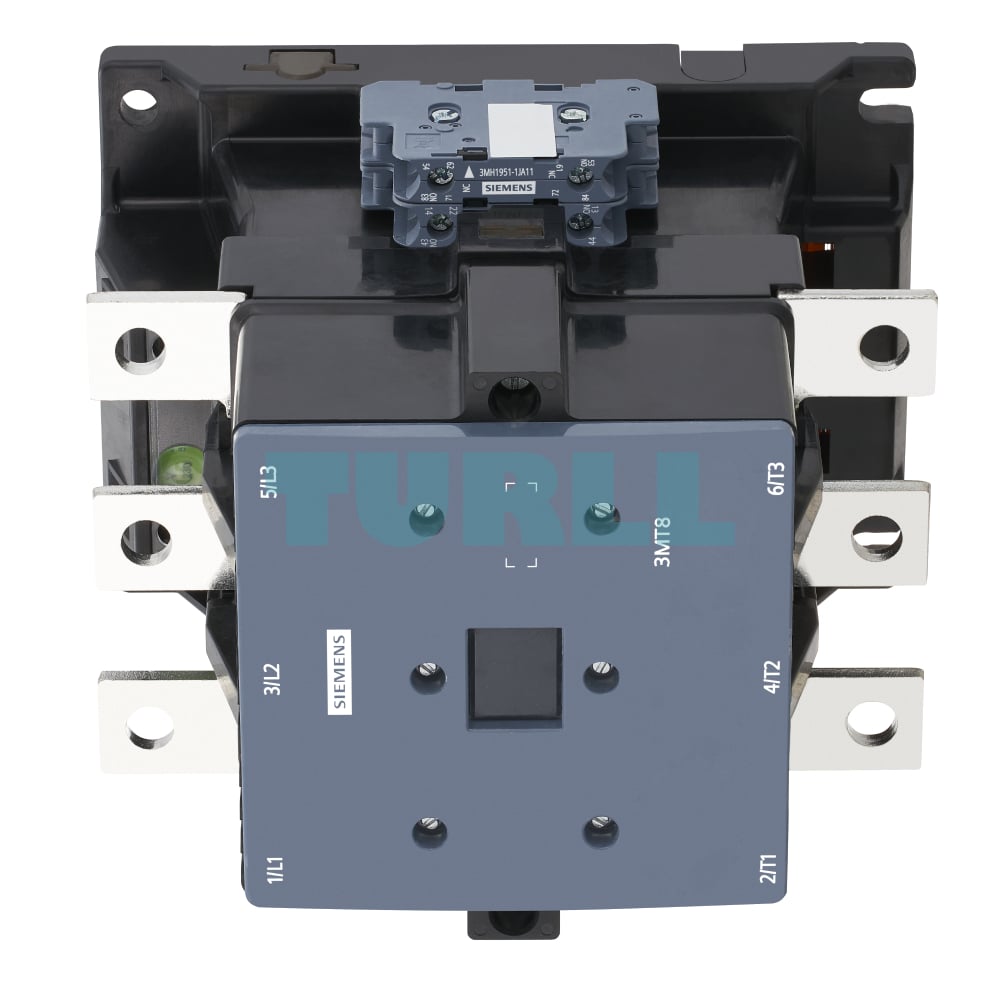

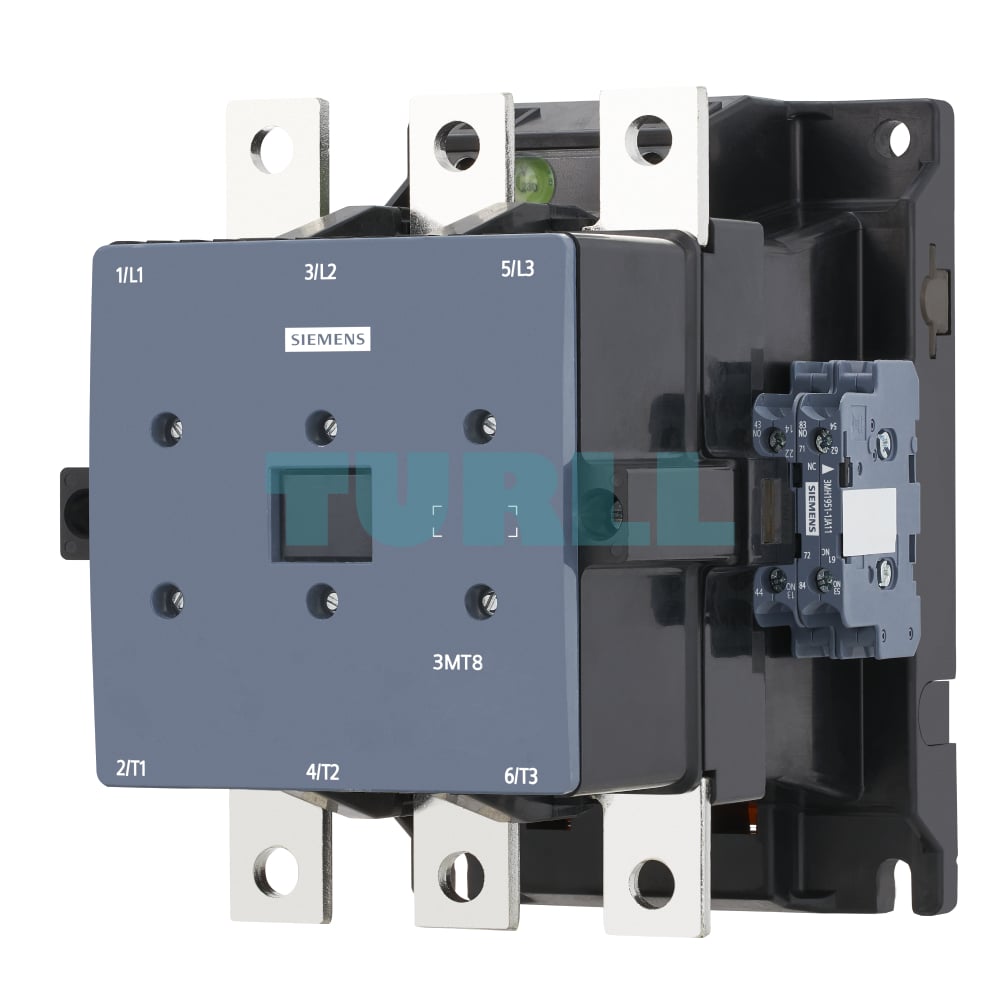

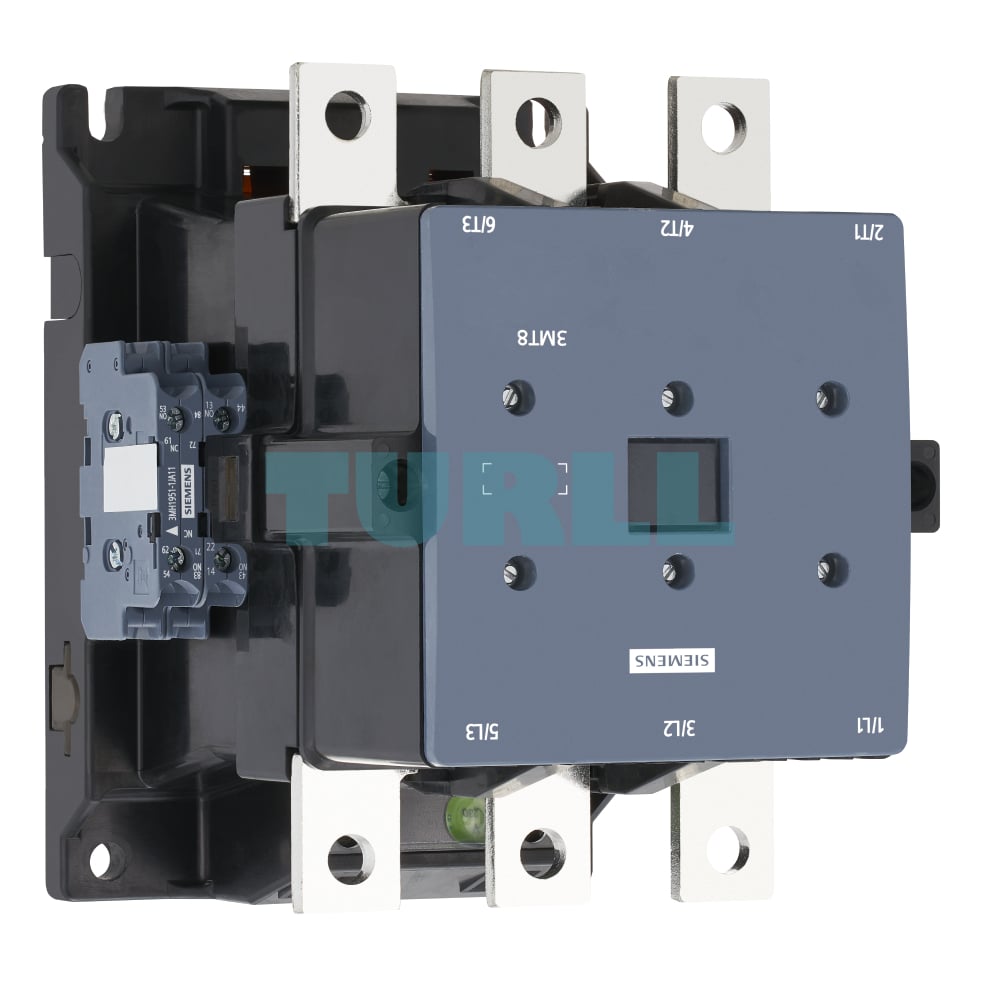

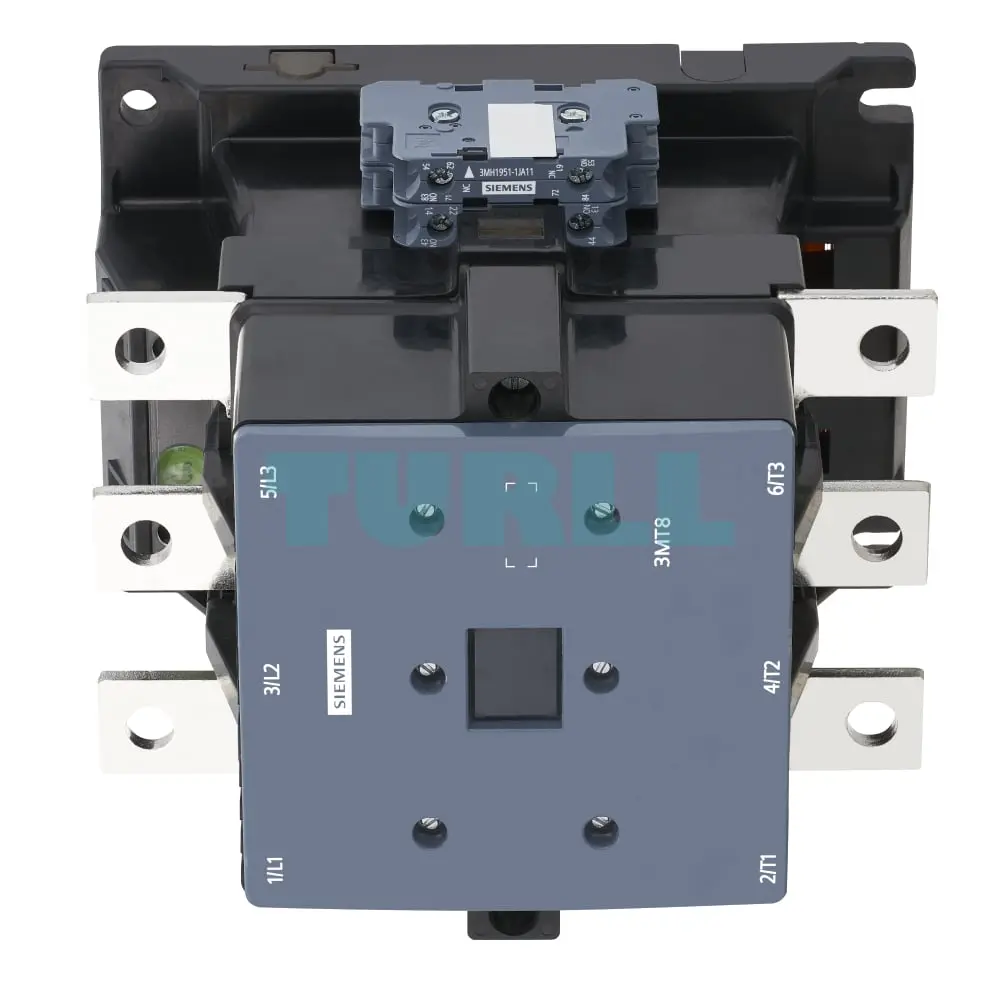

Siemens 3MT8300-1AH07 Contactor AC-3 300A/160kW 400V 4NO4NC, 48 VAC, 50 Hz 3-pole, Size S10 Original Brand New

Siemens 3MT8300-1AH07 AC-3 Contactor – High Performance Motor Control

Overview

The Siemens 3MT8300-1AH07 is a robust and highly efficient AC-3 Contactor engineered for demanding industrial motor control applications. This 3-pole contactor, part of Siemens’ renowned industrial control gear, delivers exceptional performance with a 300A current rating and a power capacity of 160kW at 400V. Designed for reliability and longevity, it features a 48 VAC, 50 Hz control coil and convenient screw terminals for secure wiring. Its Size S10 compact design ensures efficient use of panel space while providing the power needed for heavy-duty operations.

Key Features & Benefit

• High Power Rating: Handles substantial loads with a 300A (AC-3) current rating and 160kW power capacity at 400V, making it suitable for large motors and industrial machinery.
• Versatile Auxiliary Contacts: Equipped with 4 Normally Open (NO) and 4 Normally Closed (NC) auxiliary contacts, providing extensive flexibility for control circuit integration, signaling, and interlocking functions.
• Reliable Coil Voltage: Operates with a 48 VAC, 50 Hz control coil, ensuring stable and consistent switching performance in various industrial environments.
• 3-Pole Configuration: Ideal for controlling three-phase motors and other AC loads.
• Robust Size S10 Design: Engineered for durability and high performance in challenging industrial settings, while maintaining a manageable footprint.
• Secure Screw Terminals: Facilitates easy, reliable, and secure wiring connections, reducing installation time and ensuring electrical integrity.
• Siemens Quality: Manufactured by Siemens, a global leader in industrial automation, guaranteeing superior quality, safety, and long-term reliability.
• Wide Application Scope: Perfect for motor starting, stopping, and reversing applications in manufacturing, heavy industry, pumping stations, HVAC systems, and more.

Function

The Siemens 3MT8300-1AH07 contactor primarily functions as an electrically controlled switch used for switching a power circuit. Its core functions include:

1. Motor Starting and Stopping: Safely connects and disconnects three-phase power to electric motors.
2. Load Switching: Controls the flow of high current to various resistive, inductive, or capacitive loads.
3. Circuit Isolation: Provides a means to electrically isolate machinery for maintenance and safety.
4. Integration with Control Systems: Its auxiliary contacts allow seamless integration into complex control circuits, PLCs, and automation systems for interlocking, feedback, and signaling.
5. Overload Protection Integration: Designed to work in conjunction with overload relays to protect motors from overcurrent conditions.

Application

The versatility and robust nature of the Siemens 3MT8300-1AH07 contactor make it indispensable in a wide array of industrial applications, including:

• Heavy-duty industrial motor control
• Pumping systems
• Ventilation and air conditioning units
• Conveyor systems
• Machine tools
• Compressors
• Power distribution panels
• Automation and process control systems
