Siemens 3NA3830 LV HRC Fuse Element NH000, 100A, gG, 500V AC / 250V DC, Front Indicator Original Brand New

Model / SKU3NA3830

High-performance NH000 size LV HRC fuse link designed for general application (gG). Rated at 100A with a switching capacity for both AC (500V) and DC (250V) circuits, it features a front indicator and live grip lugs for secure industrial protection.

$24.29
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 3NA3830 is a high-quality Low Voltage (LV) HRC fuse element, designed for reliable circuit protection in industrial and commercial applications. This NH000 fuse element supports 100 A nominal current, with robust gG characteristic, suitable for both AC (500 V) and DC (250 V) systems. Featuring a front indicator and live grip lugs, it ensures fast fault detection and safe handling.

Key Benefit

  • Reliable Protection: Provides effective overload and short-circuit protection for low-voltage circuits.

  • Easy Installation: NH000 size with live grip lugs allows safe and convenient replacement without power interruption.

  • Quick Fault Detection: Front indicator clearly signals fuse status for faster maintenance.

  • Versatile Application: Suitable for both AC (500 V) and DC (250 V) systems in industrial setups.

  • Durable & Compliant: Engineered to Siemens quality standards for long-lasting performance.

Function & Features

  • Type: LV HRC Fuse Element

  • Size: NH000

  • Nominal Current (In): 100 A

  • Characteristic: gG

  • Voltage Rating: AC: 500 V, DC: 250 V

  • Front Indicator for operational status

  • Live grip lugs for safe and easy handling

  • Industrial-grade reliability for machinery and electrical installations

Visit 3NA3830 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model3NA3830
BrandSIEMENS
product brand nameSENTRON
product designationLV HRC fuse link
design of the productWith blade contacts
design of an identification indicatorFront indicators
design of the switching contactNon-corroding, silver-plated
design of the fuse linkLV HRC fuse link
size of fuse system / acc. to DIN EN 60269-1NH000
operating class of the fuse linkgG
mounting typenon-insulated grip lugs
type of voltage / of the operating voltageAC/DC
supply voltage-
● at DC250 V
protection class IPIP20, with connected conductors
switching capacity current-
● at DC / acc. to IEC 60947-2 / rated value25 kA
● acc. to IEC 60947-2 / rated value120 kA
power loss [W]6.95 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole6.95 W
operational current-
● at 30 °C / rated value98 A
● at 40 °C / rated value95 A
● at 45 °C / rated value92 A
● at 50 °C / rated value90 A
● at 55 °C / rated value88 A
● at 60 °C / rated value86 A
● at AC / rated value100 A
width / of the enclosure21 mm
mounting positionAny, preferably vertical
ambient temperature / during operation-
● minimum-5 °C
● maximum40 °C
environmental category-20 to +50 at 95% relative humidity
environmental category / during storage90% at 20°C
Test Certificatesother Marine / Shipping
Weight0.130 kg

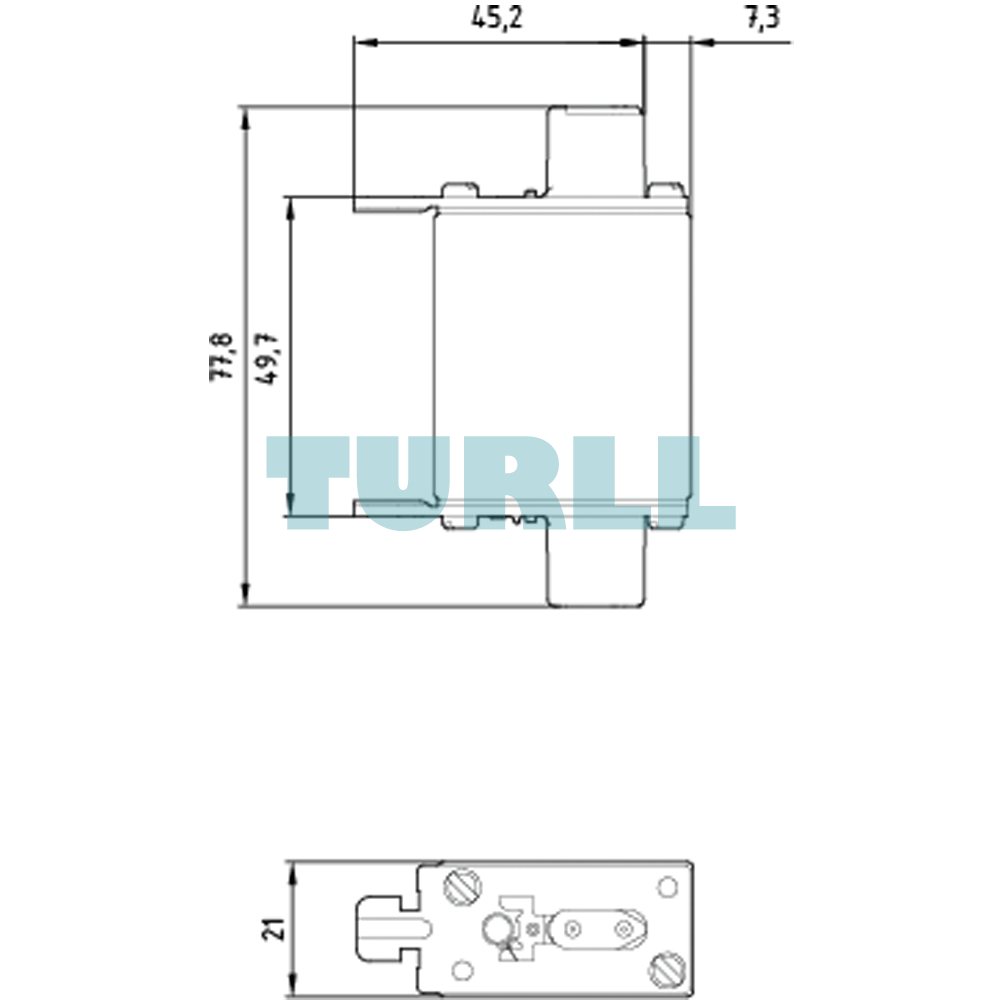

Dimensions65.00 × 84.00 × 62.00 mm
