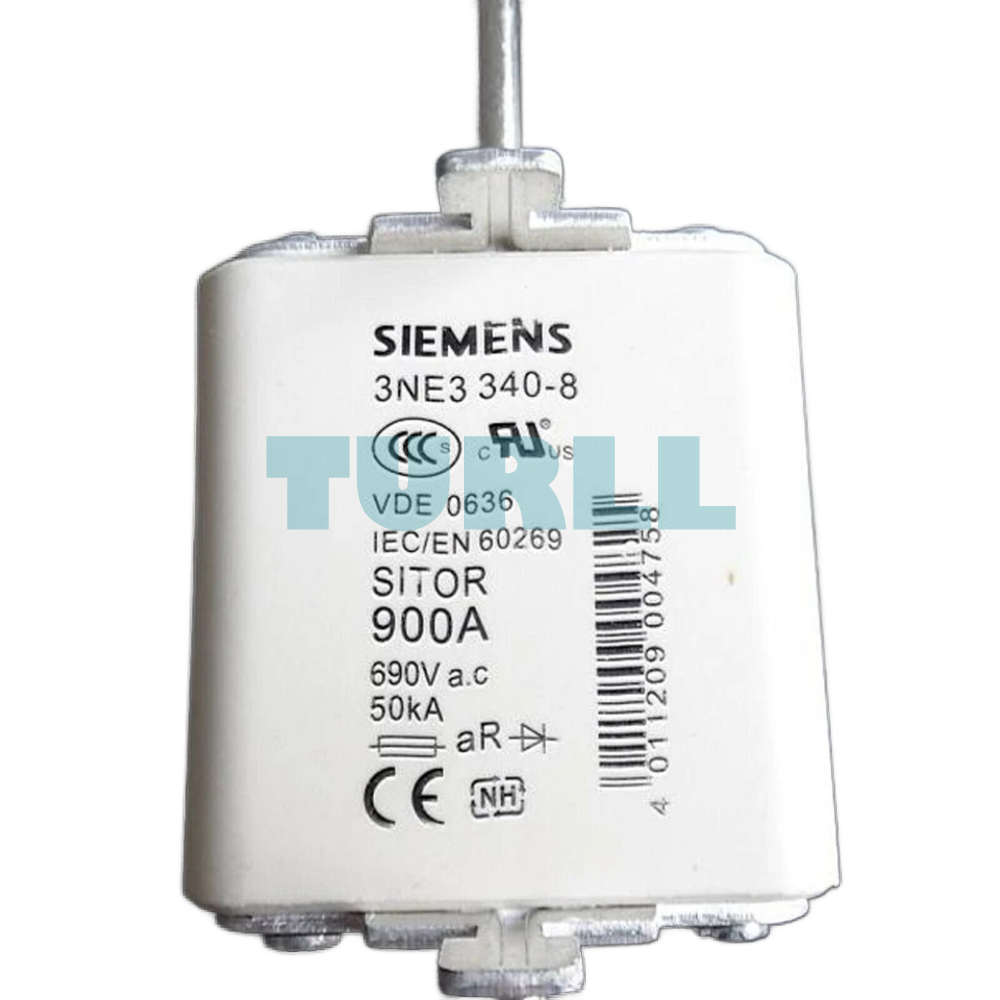

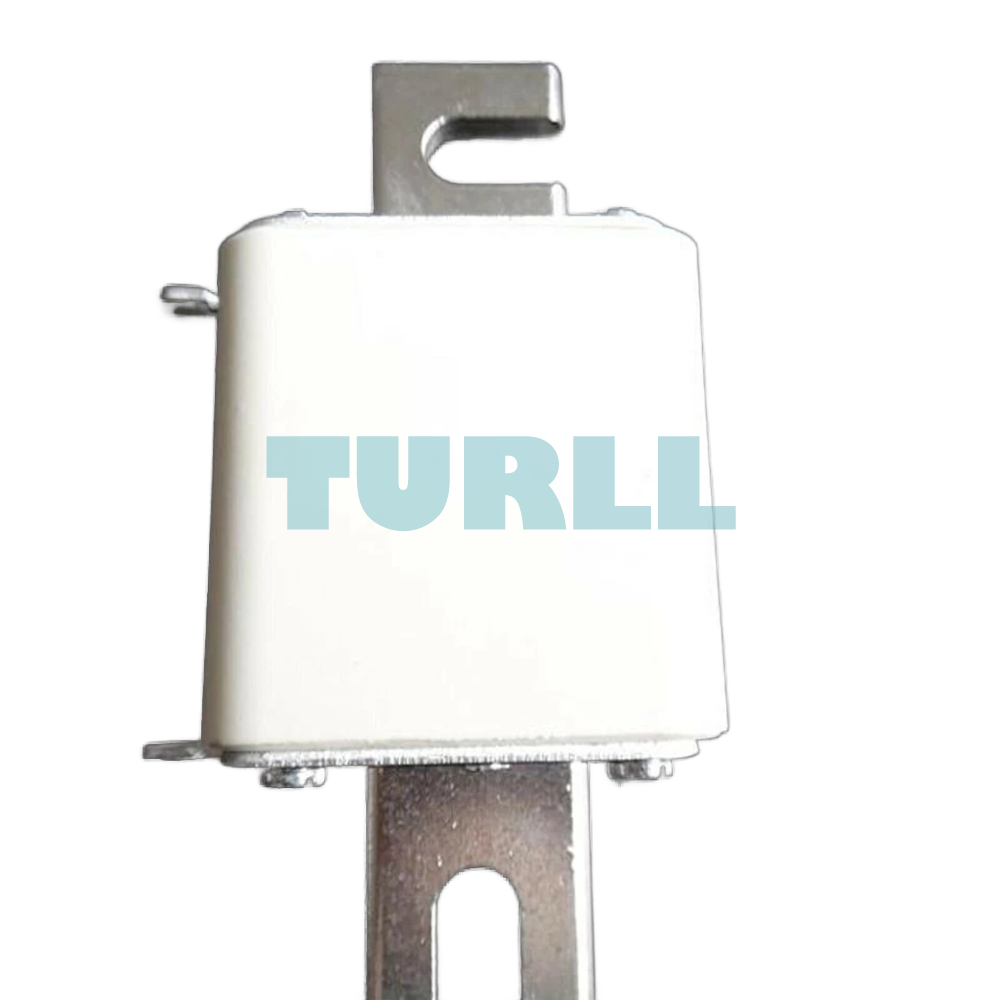

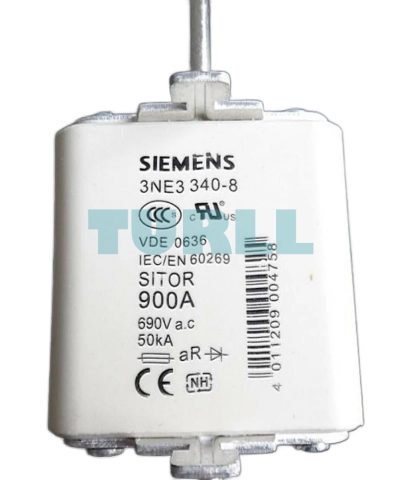

Siemens 3NE3340-8 SITOR NH2 Fuse Link 900A aR 690V with Front Indicator
Siemens 3NE3340-8 SITOR NH2 Fuse Link 900A aR 690V with Front Indicator
Siemens 3NE3340-8 SITOR NH2 Fuse Link 900A aR 690V with Front Indicator
Siemens 3NE3340-8 SITOR NH2 Fuse Link 900A aR 690V with Front Indicator

SIEMENS

Siemens 3NE3340-8 SITOR NH2 Fuse Link 900A aR 690V with Front Indicator Original Brand New

Model / SKU3NE3340-8

Siemens 3NE3340-8 is a high-performance SITOR fuse link designed for semiconductor protection. Featuring an NH2 size body with 900A rated current and aR utilization category, it ensures ultra-fast switching for sensitive power electronics. Includes slotted blade contacts and a front-mounted indicator.

Original price was: $156.70.Current price is: $119.30.
Out of stockSubject to sourcing — request a quote
  • ConditionOriginal Brand New
  • Warranty12 months
Request a Quote
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens SITOR 3NE3340-8 series is engineered specifically for the protection of power semiconductors such as diodes, thyristors, and MOSFETs. Unlike standard NH fuses, SITOR fuses offer a much faster response time to prevent damage to expensive electronic components during short-circuit events. The slotted blade contact design allows for secure mounting in specialized fuse bases or switch disconnectors.

Features & Function

  • Type: SITOR fuse link

  • Model: Siemens 3NE3340-8

  • Rated Current (In): 900 A

  • Rated Voltage (Un AC): 690 V

  • Fuse Class: aR (partial-range protection)

  • Design: NH2 size, slotted blade contacts

  • Front Indicator: Visual status indicator for easy monitoring

  • Durable Construction: Designed for long-term reliability in industrial environments

  • Easy Installation: Compatible with standard NH fuse bases

Benefit

  • Ultra-Fast Response: The aR (Partial Range) classification ensures high-speed clearing of faults, critical for semiconductor safety.

  • Reliable Monitoring: Integrated front indicator provides immediate visual confirmation when a fuse has blown.

  • Optimized Heat Dissipation: Designed to handle high continuous currents (900A) with minimal power loss.

  • Global Standards: Fully compliant with international NH-system standards for industrial reliability.

Visit 3NE3340-8 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model3NE3340-8
BrandSIEMENS
product brand nameSENTRON
product designationSITOR fuse link
design of the productWith slotted blade contacts
design of an identification indicatorfront indicator
design of the switching contactWith blade contacts, silver-plated
design of the fuse linkSITOR, LV HRC design
size of fuse system / acc. to DIN EN 60269-1NH2
operating class of the fuse linkaR
varying load factor (WL)0.95
type of voltage / of the operating voltageAC
supply voltage-
switching capacity current-
● acc. to IEC 60947-2 / rated value100 kA
power loss [W]-
● for rated value of the current / at AC / in hot operating state / per pole165 W
operational current-
● at 30 °C / rated value900 A
● at 40 °C / rated value900 A
● at 45 °C / rated value900 A
● at 50 °C / rated value891 A
● at 55 °C / rated value882 A
● at 60 °C / rated value873 A
● at AC / rated value900 A
product descriptionNot non-interchangeable
mounting positionAny, preferably vertical
ambient temperature / during operation-
● minimum-20 °C
● maximum50 °C
environmental category-20 to +50 at 95% relative humidity
MiscellaneousMiscellaneous
Weight0.804 kg

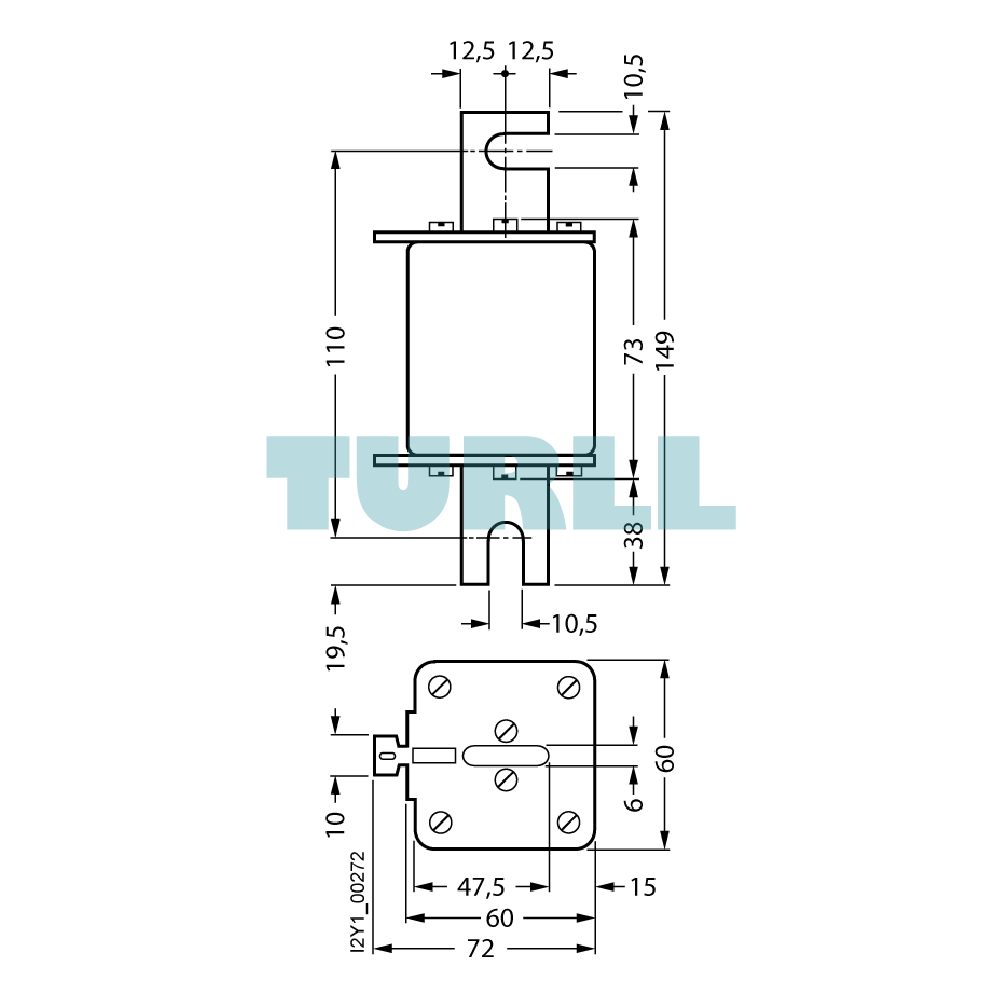

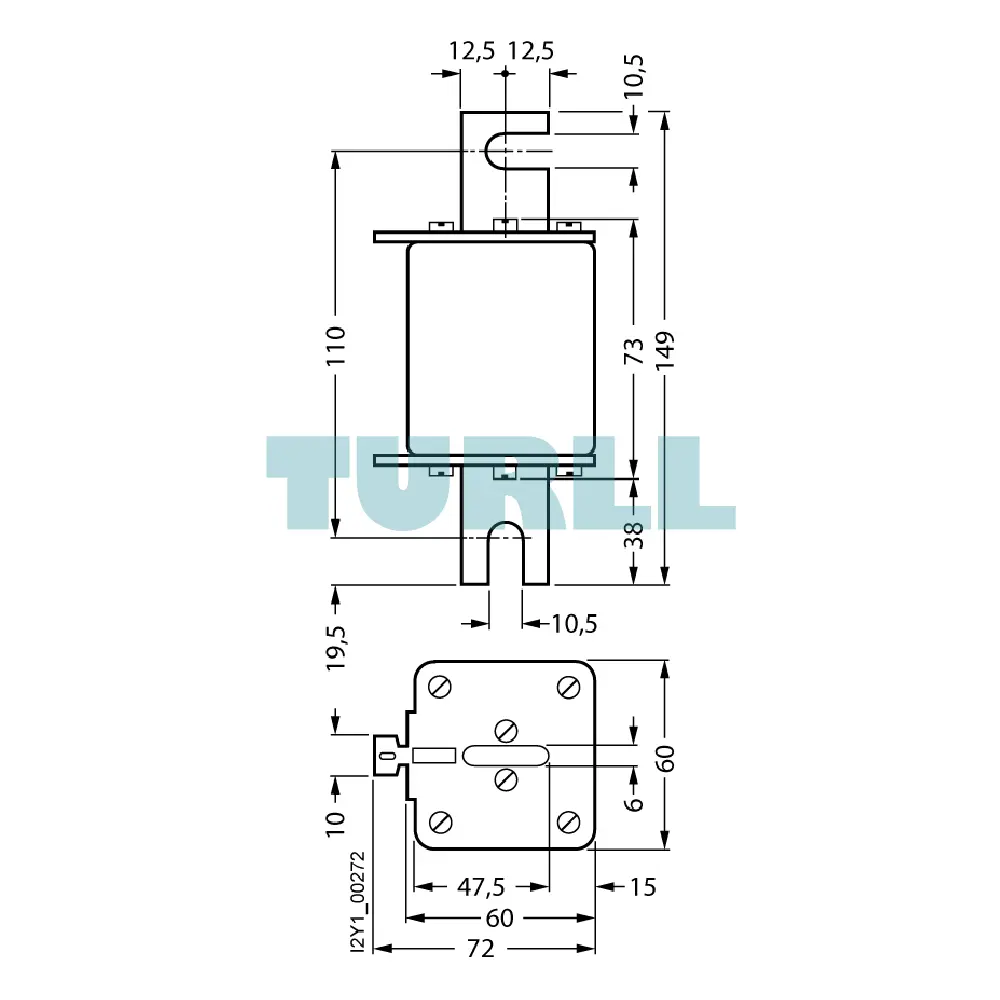

Dimensions270.00 × 200.00 × 105.00 mm
