Siemens 3NE1227-0 SITOR Fuse Link with Blade Contacts, NH1, 250A, 690V AC, 250V DC Original Brand New
$250.64
High-performance SITOR NH1 fuse link designed for semiconductor protection. Featuring a 250A current rating and gS operational class, it provides reliable protection for power semiconductors and cables against short circuits and overloads.
Availability: In stock
Overview
The Siemens 3NE1227-0 SITOR Fuse Link is a high-performance, reliable protective component designed for industrial and commercial electrical systems. Featuring blade contacts, it offers easy integration with NH1 fuse bases and provides essential overcurrent protection for electrical circuits. The fuse link is rated for 250A in AC circuits (690V) and 250V in DC circuits. Its front indicator offers visual confirmation of fuse status, ensuring operational efficiency and safety.
Key Benefit
-
Enhanced Safety: The Siemens 3NE1227-0 provides reliable protection against overcurrents, reducing the risk of electrical damage and system downtime.
-
Efficient Operation: Equipped with blade contacts for quick installation and easy integration into existing fuse bases.
-
Dual Voltage Compatibility: Supports both AC (690V) and DC (250V) circuits, offering versatile protection across different types of systems.
-
Visual Indicator: The front indicator gives clear status feedback, allowing quick checks without the need for disassembly.
-
Durable Construction: Designed to withstand demanding operational environments, ensuring longevity and performance in various industries.
Key Features
-
Product Type: SITOR Fuse Link
-
Fuse Type: NH1
-
Current Rating (In): 250 A
-
Voltage Rating (Un AC): 690 V
-
Voltage Rating (Un DC): 250 V
-
Fuse Class: gS
-
Contact Type: Blade Contacts
-
Indicator Type: Front Indicator
-
Applications: Protection of electrical circuits in industrial and commercial settings.
Visit 3NE1227-0 for more detail info
For more our products visit turll
Download
| Weight | 0.573 kg |
|---|---|

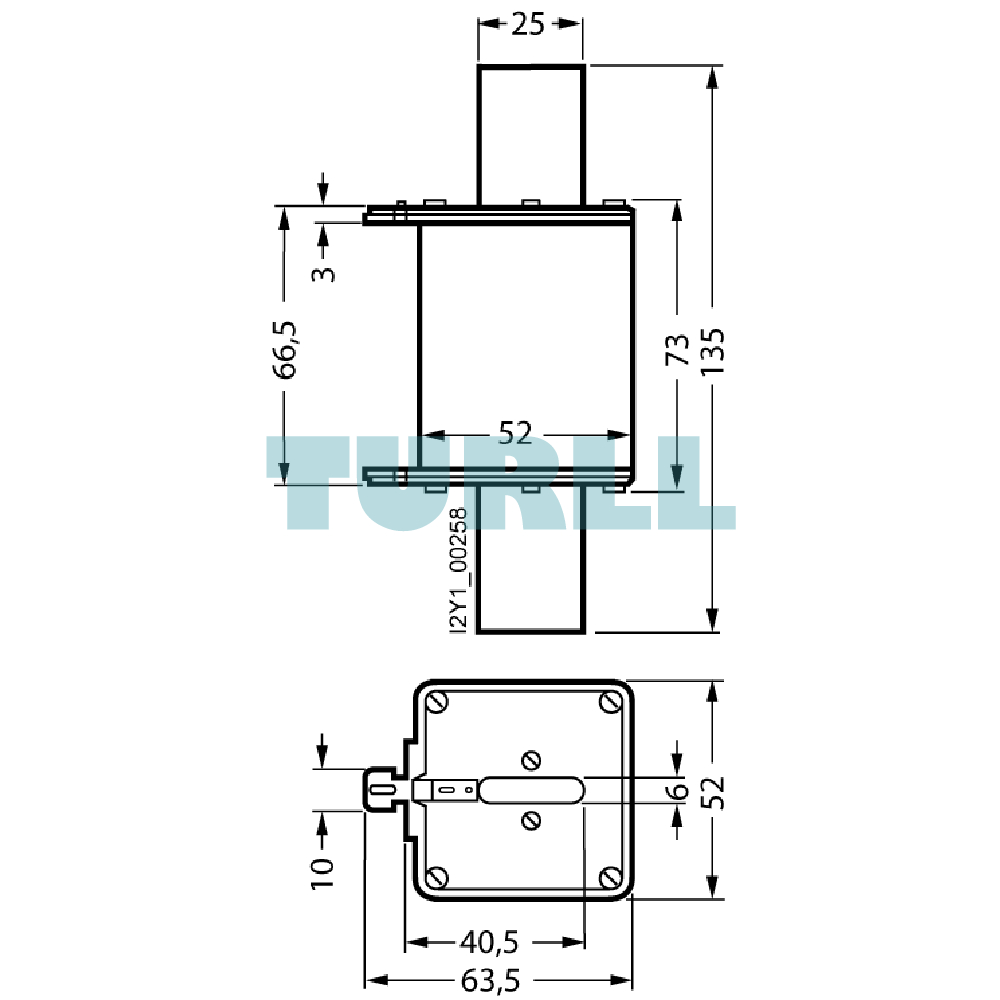

| Dimensions | 178.00 × 200.00 × 85.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | SITOR fuse link |
| design of the product | With blade contacts |
| design of an identification indicator | front indicator |
| design of the switching contact | With blade contacts, silver-plated |
| design of the fuse link | SITOR, LV HRC design |
| size of fuse system / acc. to DIN EN 60269-1 | NH1 |
| operating class of the fuse link | gS |
| varying load factor (WL) | 1 |
| type of voltage / of the operating voltage | AC/DC |
| supply voltage | – |
| ● at DC | 250 V |
| switching capacity current | – |
| ● acc. to IEC 60947-2 / rated value | 100 kA |
| power loss [W] | – |
| ● for rated value of the current / at AC / in hot operating state / per pole | 30 W |
| operational current | – |
| ● at 30 °C / rated value | 250 A |
| ● at 40 °C / rated value | 250 A |
| ● at 45 °C / rated value | 250 A |
| ● at 50 °C / rated value | 247.5 A |
| ● at 55 °C / rated value | 245 A |
| ● at 60 °C / rated value | 242.5 A |
| ● at AC / rated value | 250 A |
| product description | Not non-interchangeable |
| mounting position | Any, preferably vertical |
| ambient temperature / during operation | – |
| ● minimum | -20 °C |
| ● maximum | 50 °C |
| environmental category | -20 to +50 at 95% relative humidity |
| Miscellaneous | Miscellaneous |
