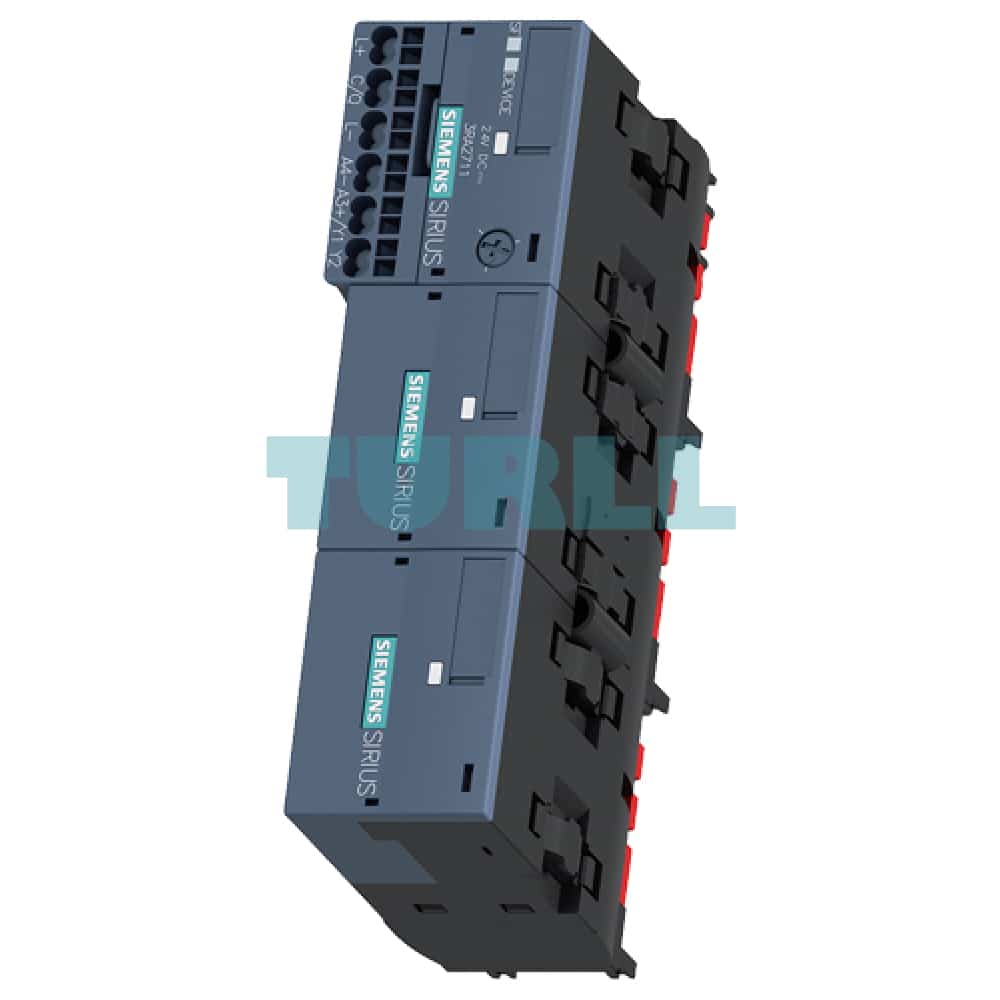

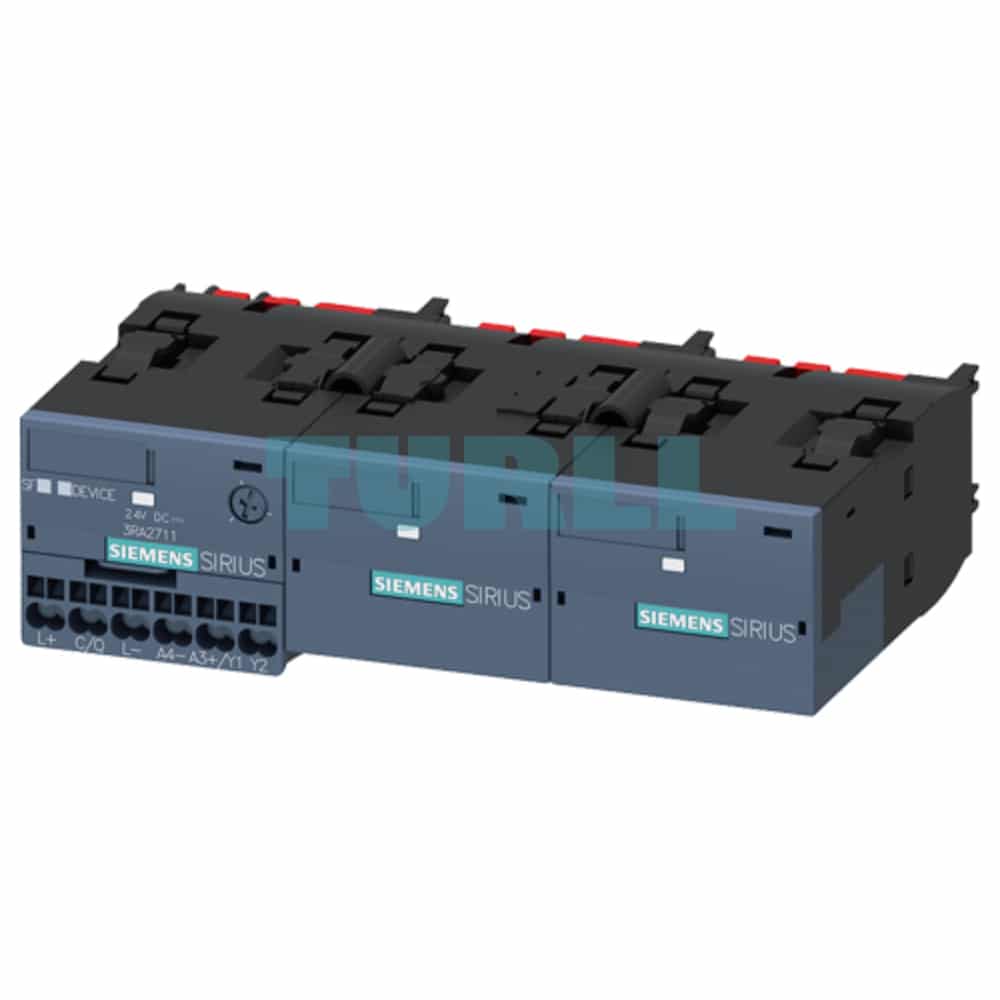

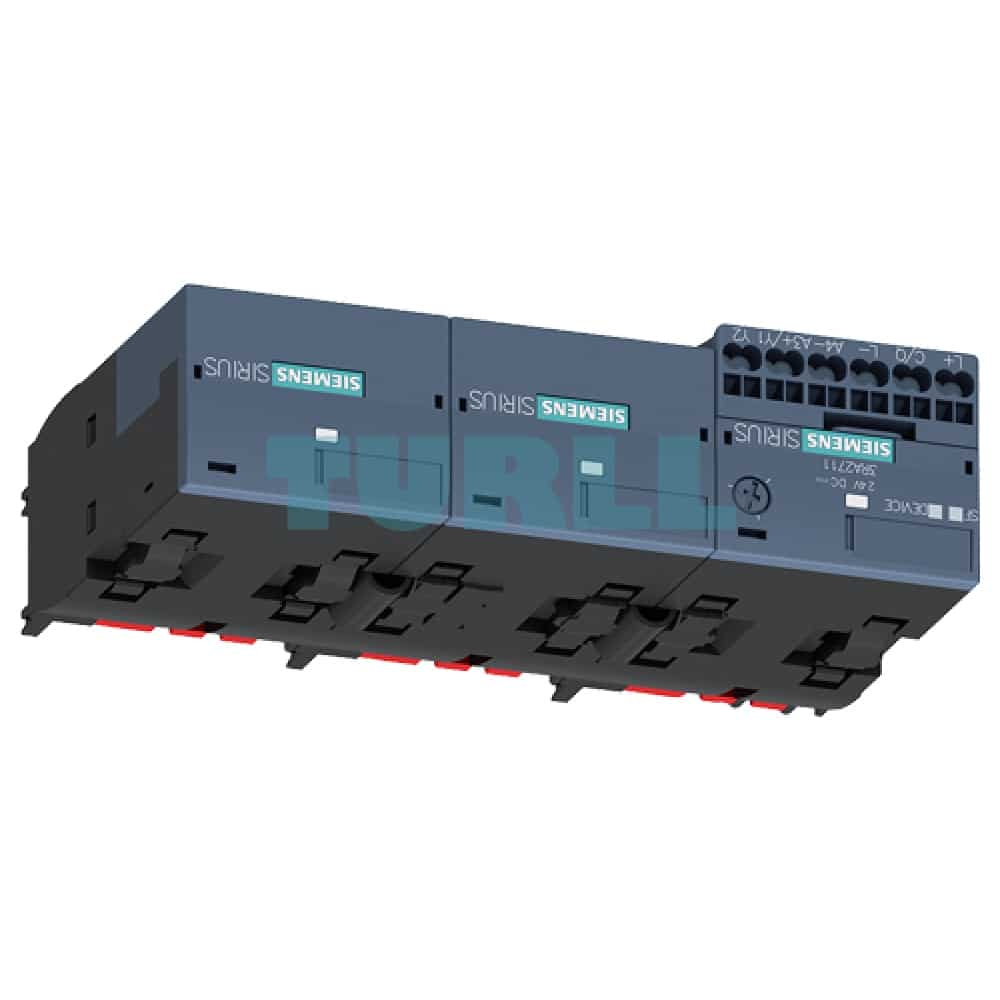

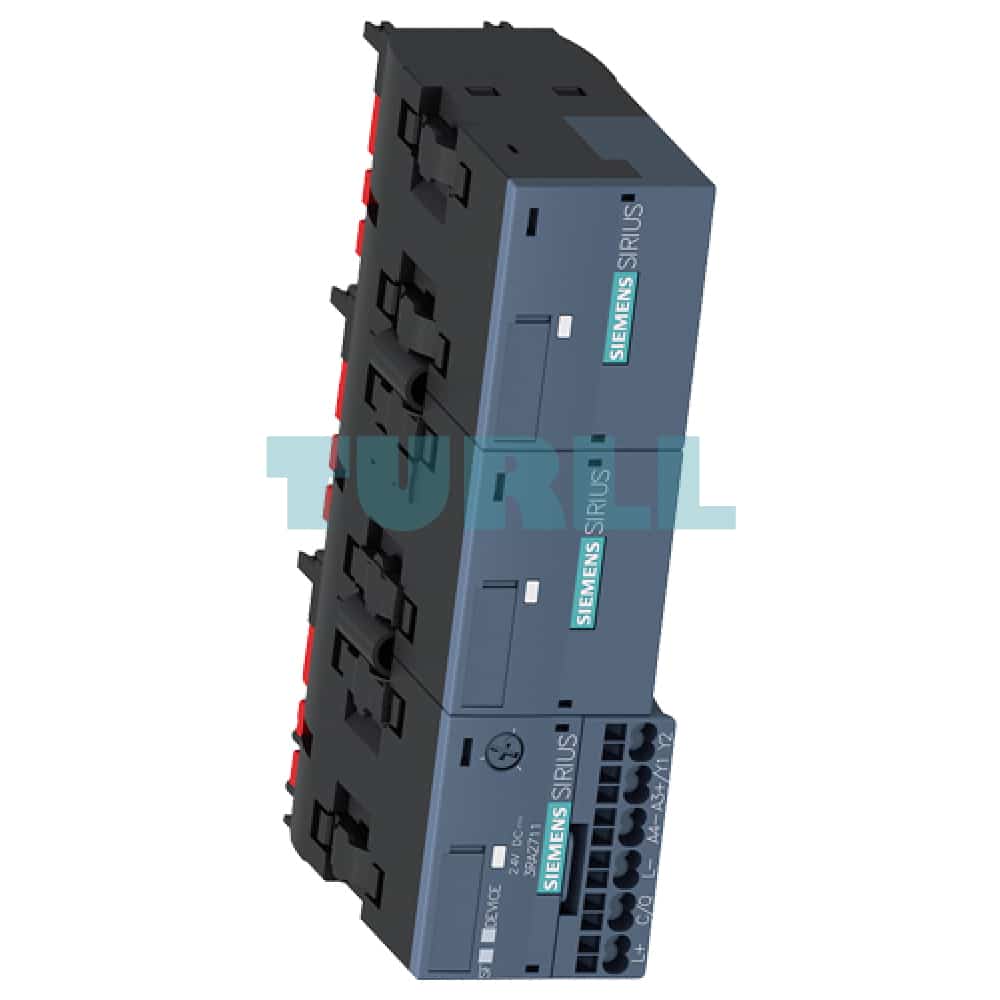

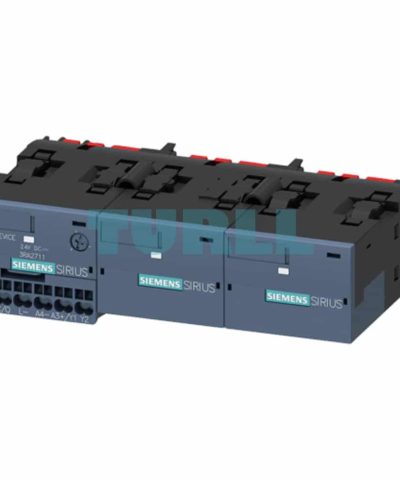

Siemens 3RA2711-2CA00 IO-Link Function Module for Star-Delta Start, SIRIUS 3RT2 Contactor Accessory Original Brand New

Overview

The Siemens 3RA2711-2CA00 is a high-performance IO-Link function module specifically designed to enable intelligent, communication-capable star-delta (also known as wye-delta) starting for electric motors. As part of the SIRIUS Industrial Controls portfolio, this module integrates seamlessly into your automation architecture. It features robust spring-loaded terminals for fast, reliable wiring and is engineered for simple front snapping onto communication-capable contactors (e.g., 3RT20...-.....-0CC0), ensuring quick installation and commissioning. This function module is essential for modern motor control, providing digital data and diagnostics via the IO-Link interface.

Key Features & Technical Specification

• Product Number: 3RA2711-2CA00
• Function: IO-Link control for star-delta (wye-delta) motor starting.
• Compatibility: Designed for front snap-on mounting on communication-capable Siemens SIRIUS 3RT20 contactors (specifically those with an -0CC0 suffix).
• Connection Type: Spring-loaded terminals (cage clamp) for vibration-proof and maintenance-free wiring.
• Interface: IO-Link communication for comprehensive data exchange and diagnostics.
• Application: Ideal for applications requiring reduced starting current and torque for medium to large three-phase motors.
• System Integration: Fully integrated into the SIRIUS system for a cohesive automation solution.

Benefit

• Enhanced Diagnostics: Utilize the IO-Link interface to gain real-time diagnostic data from your star-delta starter, improving preventative maintenance and reducing downtime.
• Simplified Wiring: Spring-loaded terminals drastically reduce wiring time and ensure a secure, long-lasting connection, even in high-vibration environments.
• Space-Saving Design: The compact, front-mounting design minimizes panel space, offering a clean and efficient control cabinet layout.
• Quick Commissioning: The snap-on installation and standardized IO-Link integration allow for rapid setup and configuration.
• Reliable Motor Protection: Enables a controlled, soft start-up of motors, protecting mechanical components and the power grid from high inrush currents.

Function

The 3RA2711-2CA00 module converts the digital signals from the IO-Link Master into the necessary switching commands to control the three contactors of a star-delta starter combination (main, delta, and star contactors).

1. Initial Start-up (Star/Wye): The module first controls the contactors to connect the motor windings in a star configuration, reducing the starting voltage and current.
2. Transition to Delta (Run): After a programmed time delay (managed via the IO-Link Master or associated controller), the module initiates the switchover to the delta configuration for full-voltage operation.
3. IO-Link Communication: Throughout operation, the module transmits status, diagnostic, and parameter data back to the automation controller (PLC) via the single IO-Link point, fulfilling the requirements for Industry 4.0 integration.
