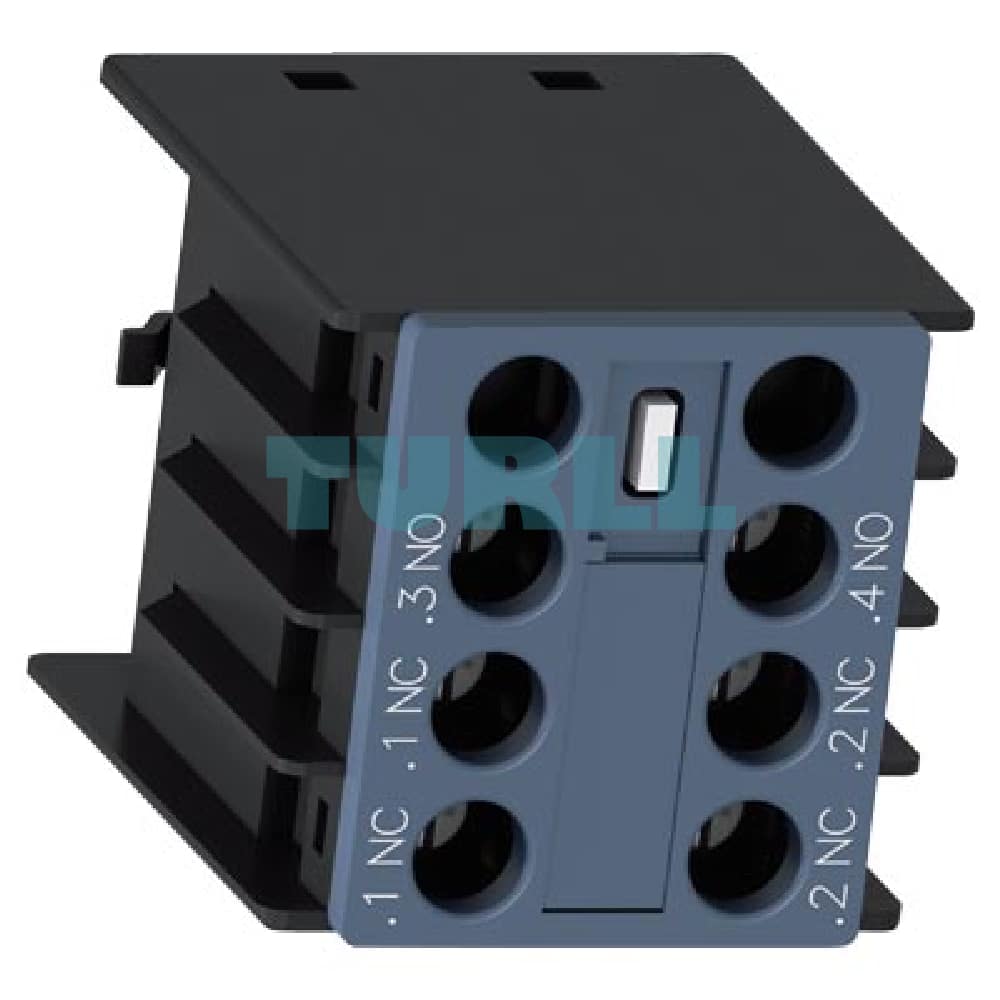

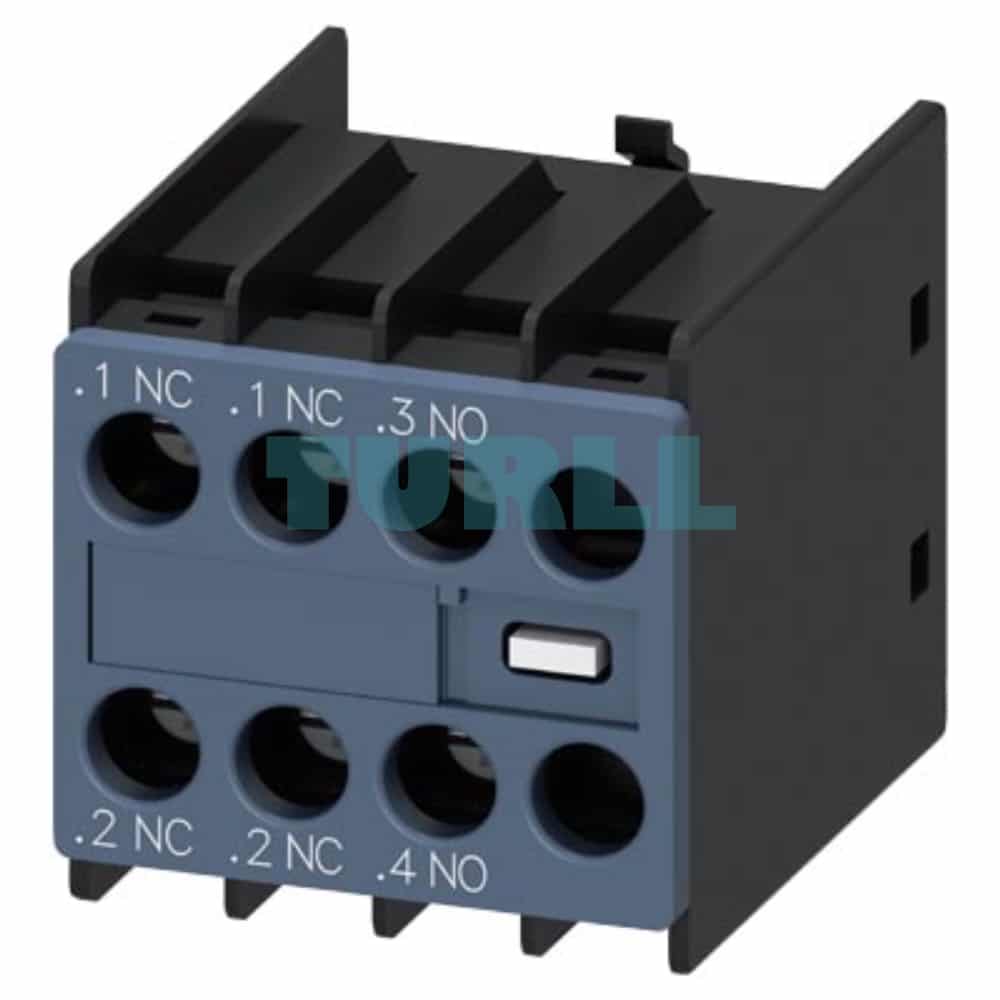

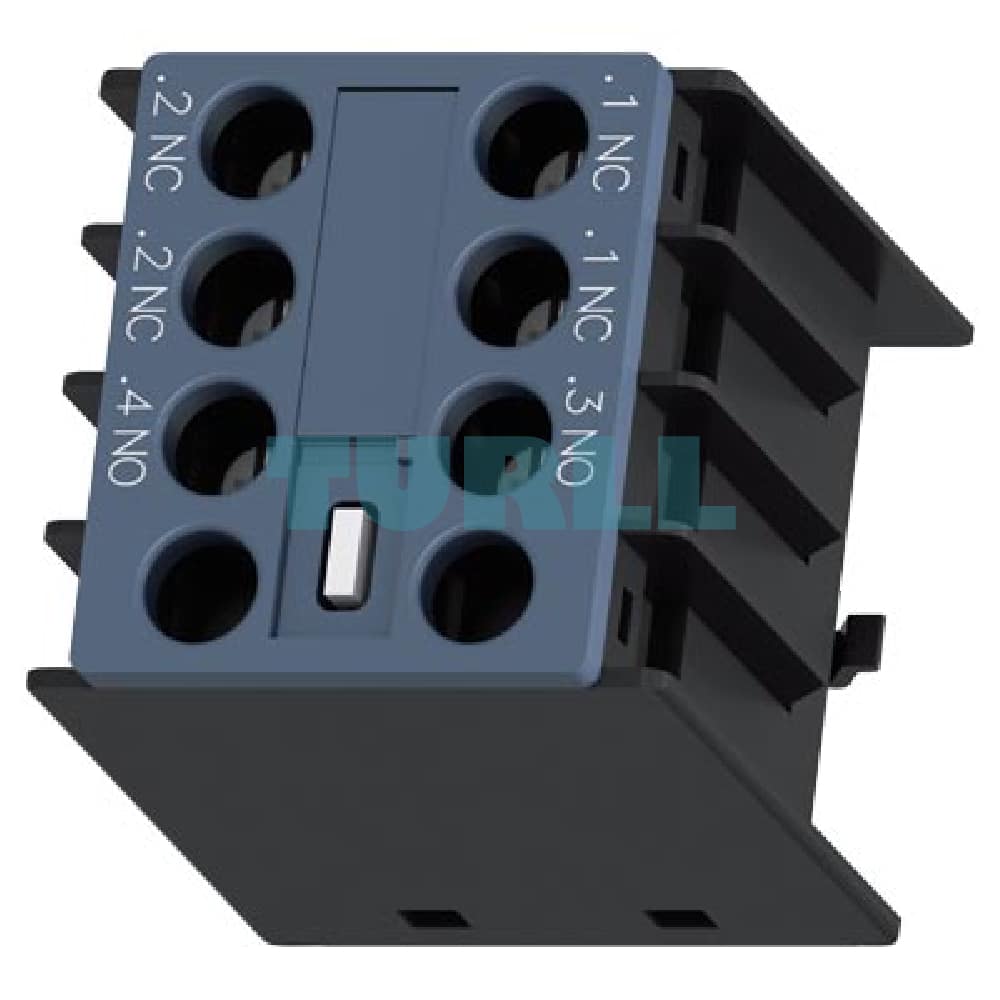

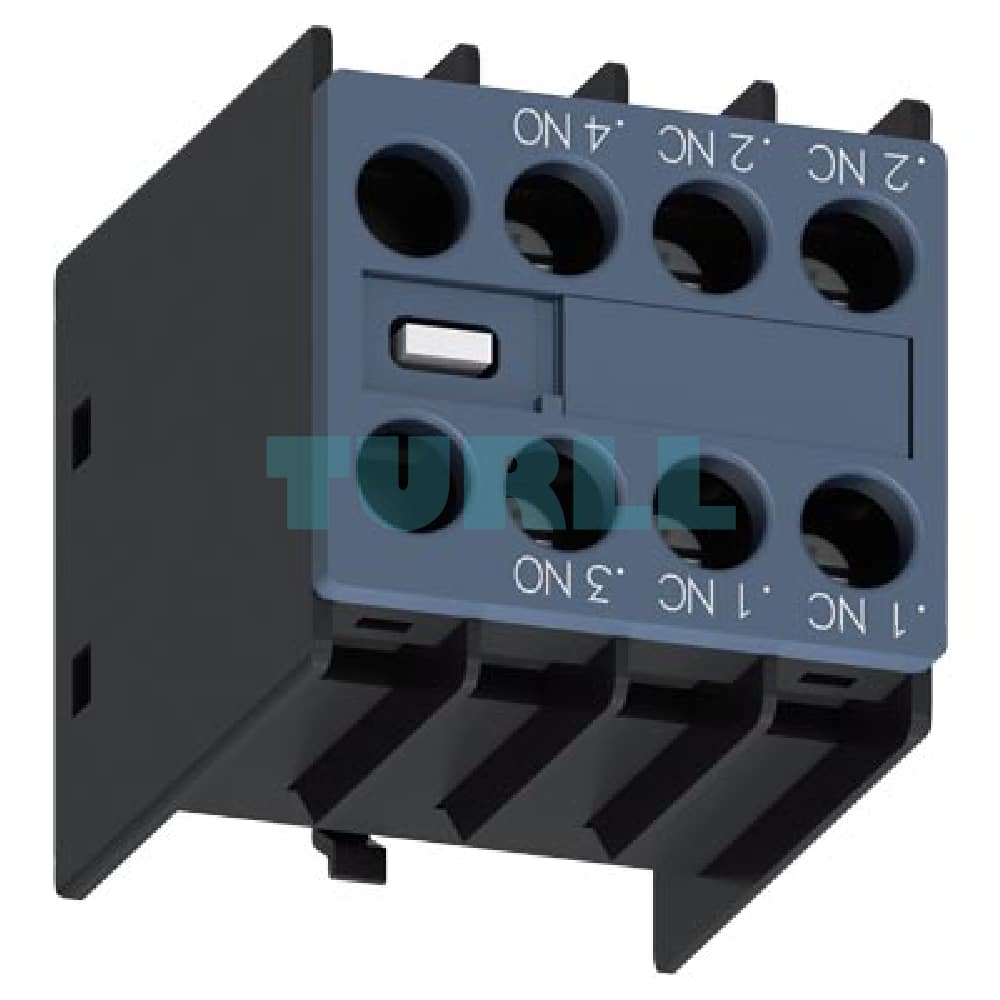

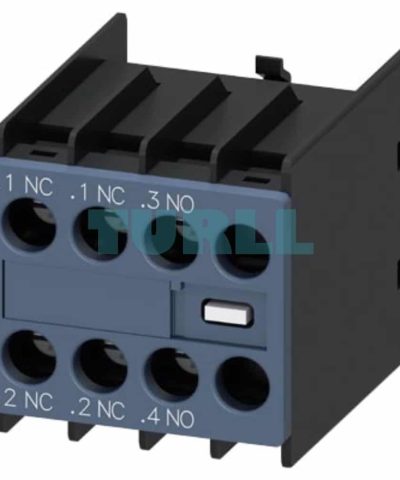

Siemens 3RH2911-1HA12 Auxiliary Switch Block 1 NO + 2 NC, Front Mount, Screw Terminal Original Brand New

Overview

The Siemens 3RH2911-1HA12 is a high-quality, front-mounted auxiliary switch block designed to expand the functionality of Siemens 3RT2 contactors and 3RH2 contactor relays. This essential component provides additional switching contacts for control circuits, ensuring flexible and reliable operation in a wide range of industrial applications.

Featuring a configuration of 1 Normally Open (NO) and 2 Normally Closed (NC) contacts, this auxiliary switch block is an indispensable part of any robust electrical control system. Its intuitive design with screw terminals allows for quick, secure, and straightforward wiring, simplifying installation and maintenance.

Key Features & Benefit

• Enhanced Functionality: Adds 1 NO and 2 NC auxiliary contacts to your contactor or contactor relay, allowing for more complex control circuit designs and signaling options.
• Seamless Compatibility: Specifically engineered for a perfect fit with Siemens SIRIUS 3RT2 contactors and 3RH2 contactor relays, guaranteeing reliable and integrated performance.
• Easy Installation: Designed for simple front-mounting, which saves space and simplifies the assembly process.
• Secure & Reliable Connections: Equipped with robust screw terminals, ensuring a firm and durable connection that resists vibration and environmental stresses.
• High-Quality Construction: Built to Siemens’ rigorous standards, offering long-term reliability and performance in demanding industrial environments.
• Versatile Application: Ideal for use in motor control circuits, interlocking systems, signaling circuits, and other control and automation applications.

Technical Specification

• Product Number: Siemens 3RH2911-1HA12
• Contact Configuration: 1 NO (Normally Open) + 2 NC (Normally Closed)
• Mounting Type: Front-mounted
• Connection Type: Screw terminals
• Compatible Devices: Siemens SIRIUS 3RT2 Contactors and 3RH2 Contactor Relays
• Current Path: 1 NC, 1 NC, 1 NO
• Terminal Designations:
  • NC: .1/.2
  • NC: .1/.2
  • NO: .3/.4

Function

The Siemens 3RH2911-1HA12 auxiliary switch block functions as a critical extension for motor contactors and relays. When the main contactor coil is energized, this auxiliary switch block changes its contact state: the NO contact closes and the NC contacts open. This action provides signals to other parts of the control circuit, enabling functions such as:

• Interlocking: Preventing simultaneous operation of conflicting equipment.
• Status Indication: Activating pilot lights or other indicators to show the status of the main contactor (e.g., “ON” or “OFF”).
• Sequencing: Controlling the order of operation for different components in an automated process.
• Feedback Loops: Providing feedback to a PLC (Programmable Logic Controller) or other control system.
