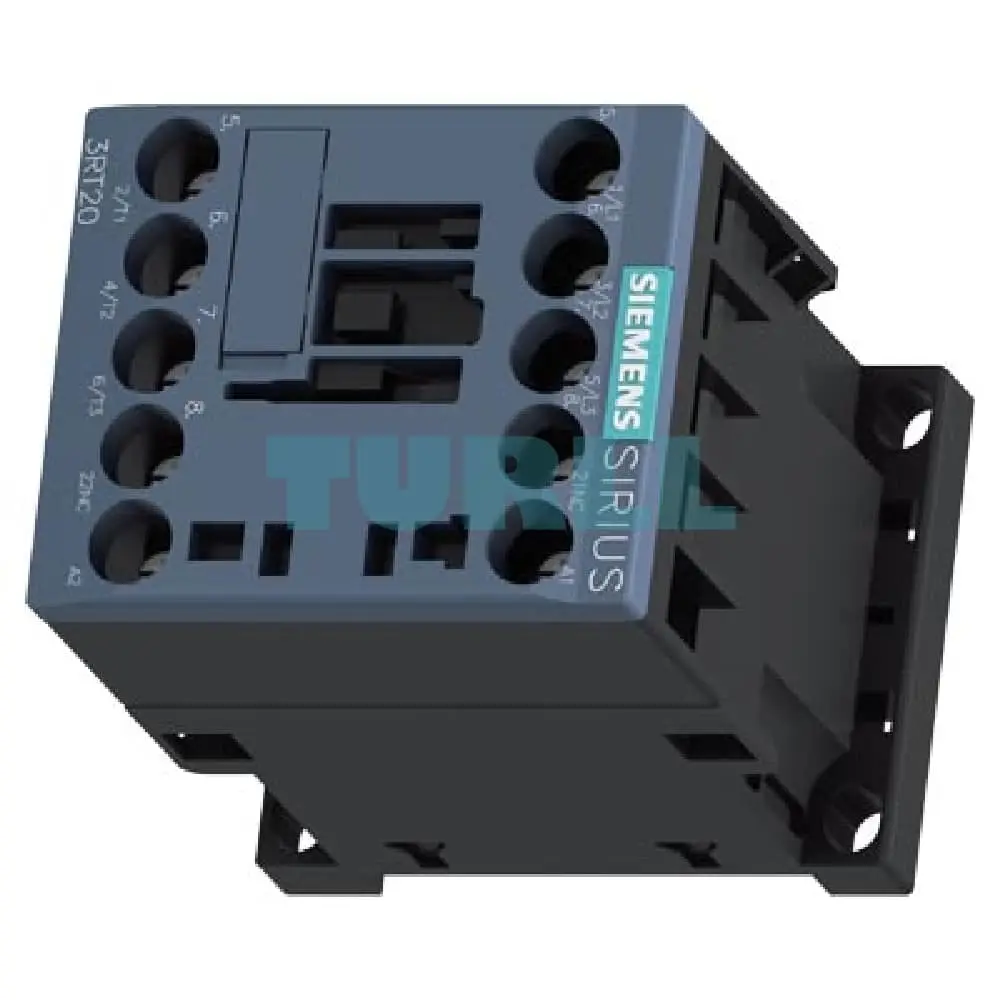

Siemens 3RT2016-1AK62 SIRIUS Power Contactor AC-3e/AC-3, 9A, 4kW, 1 NC, Screw Terminal Original Brand New

Overview

The Siemens 3RT2016-1AK62 is a compact and reliable SIRIUS power contactor designed for efficient switching of three-phase motors and other electrical loads. This contactor is part of the S00 size range, offering a space-saving solution without compromising on performance. It is rated for an operational current of 9 A for AC-3e/AC-3 applications and can handle motor loads up to 4 kW at 400 V.

The 3-pole design ensures robust power control, while the integrated 1 NC auxiliary contact provides additional functionality for monitoring and interlocking circuits. The contactor is equipped with a 110 V AC (50 Hz) / 120 V AC (60 Hz) coil and features secure screw terminals for easy and reliable wiring.

Benefit

• High Performance: Designed for demanding industrial applications, offering reliable switching of motors and electrical loads.
• Space-Saving Design: The compact S00 size allows for high-density mounting in control cabinets, optimizing panel space.
• Versatile Application: Suitable for a wide range of AC-3e/AC-3 applications, including motor control, resistive loads, and general-purpose switching.
• Easy Installation: Screw terminals ensure a secure and straightforward wiring process, reducing installation time and effort.
• Integrated Auxiliary Contact: The built-in 1 NC auxiliary contact simplifies circuit design for feedback and control functions.
• Global Standard Compliance: Meets international standards, ensuring compatibility and reliability for global applications.

Function

• Motor Control: Serves as a primary component for starting and stopping three-phase squirrel-cage motors.
• Load Switching: Efficiently switches various electrical loads, including heating elements, lighting, and transformers.
• Safety and Interlocking: The auxiliary contact can be used for safety circuits, status indication, and interlocking with other devices.
• Remote Operation: The 110/120 V AC coil allows for remote control and automation via pushbuttons, PLCs, or other control systems.

Technical Specification

• Product Number: 3RT2016-1AK62
• Product Type: Power Contactor
• Size: S00
• Number of Poles: 3-pole
• Operational Current (AC-3e/AC-3): 9 A
• Operational Power (AC-3e/AC-3): 4 kW at 400 V
• Coil Voltage: 110 V AC (50 Hz) / 120 V AC (60 Hz)
• Auxiliary Contacts: 1 NC (Normally Closed)
• Terminal Type: Screw Terminal
• Series: SIRIUS
