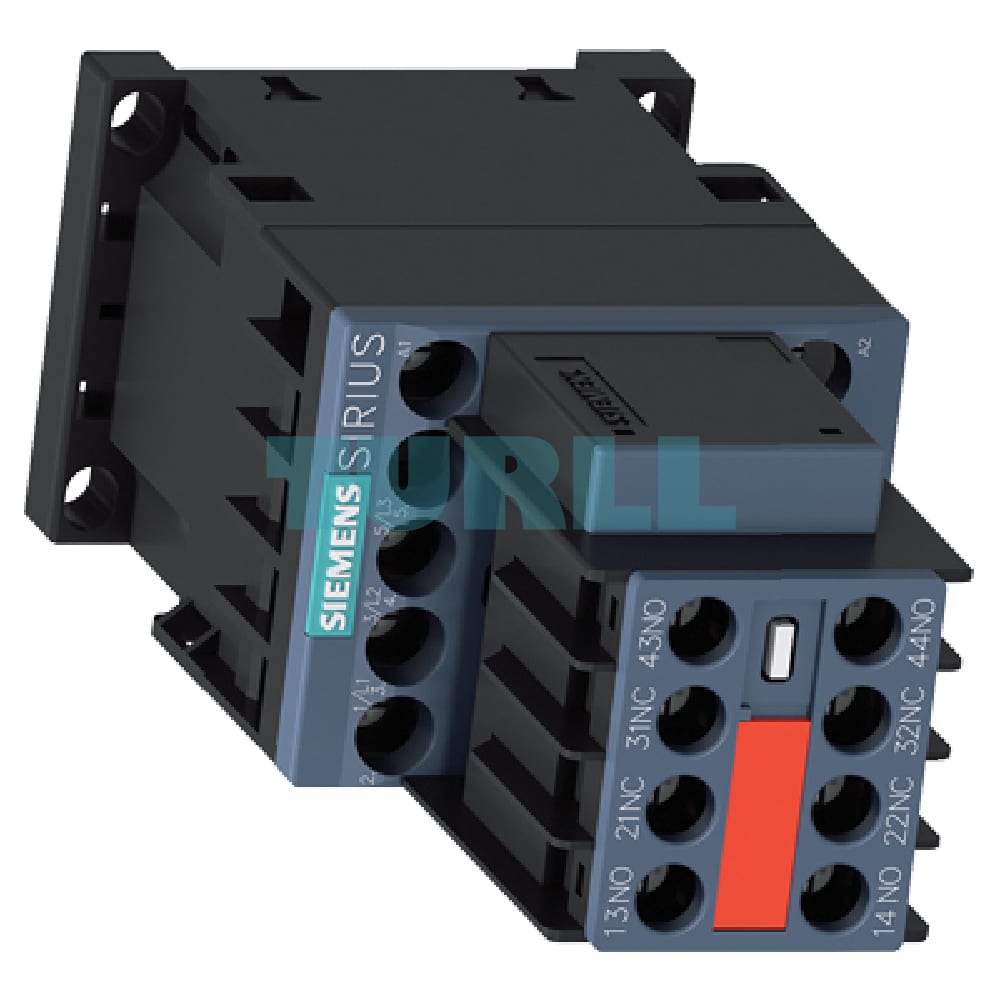

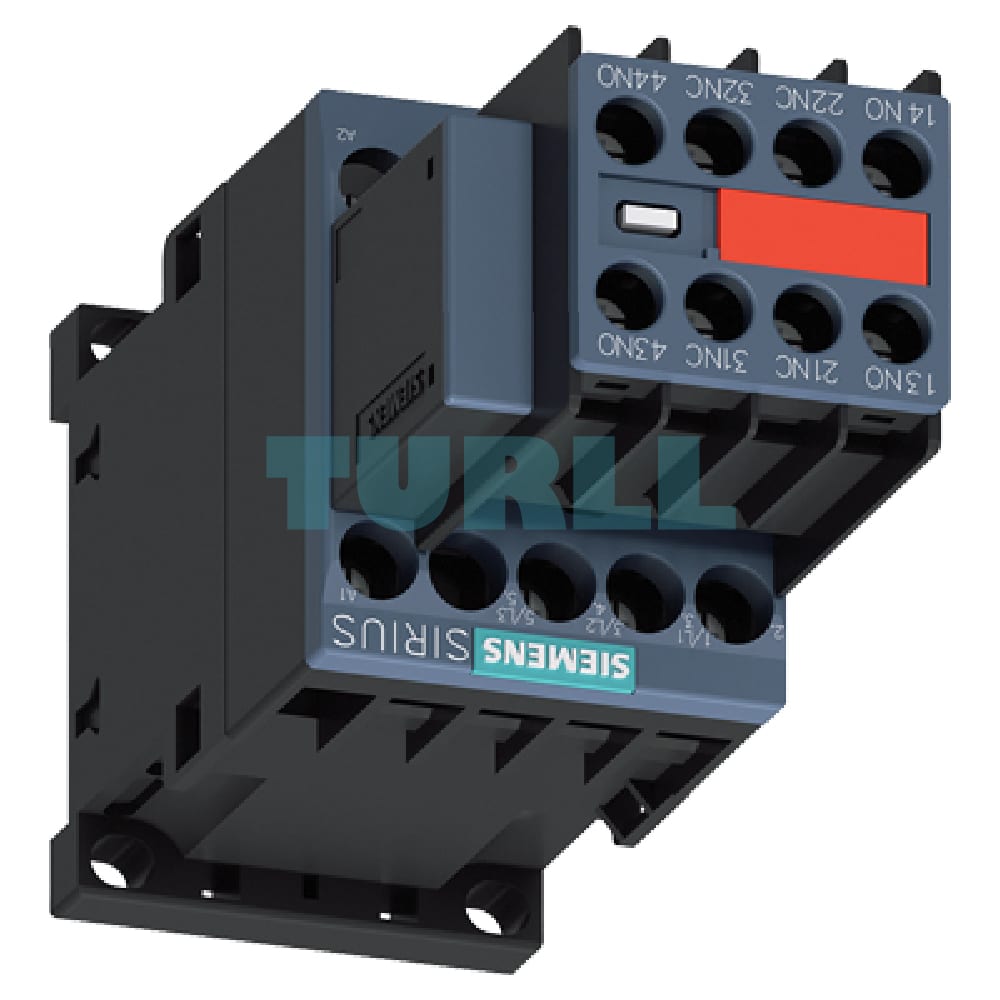

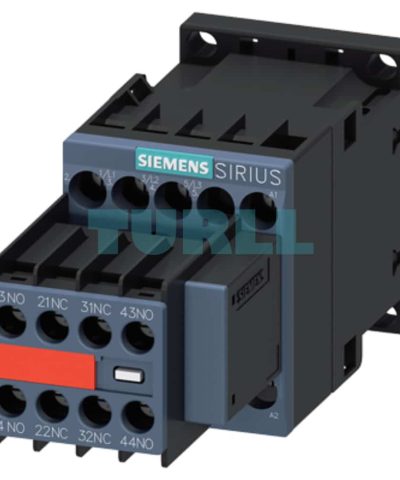

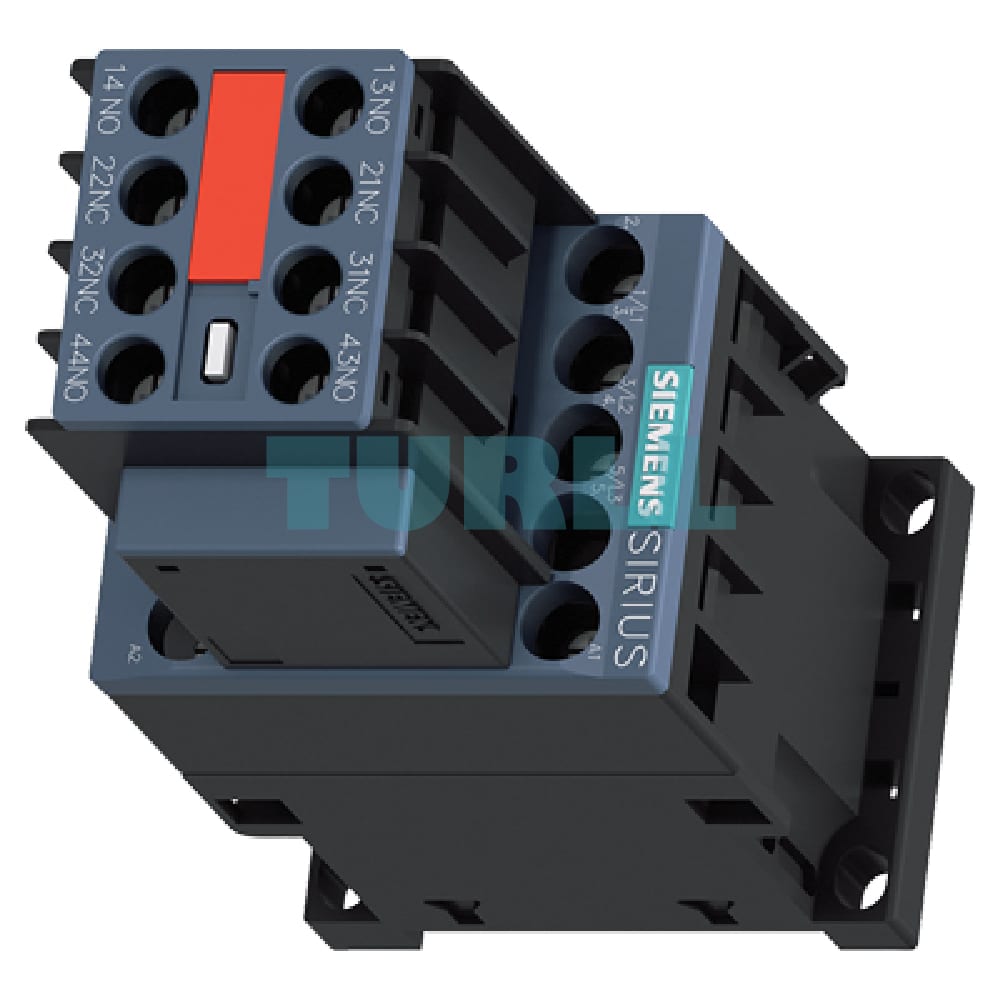

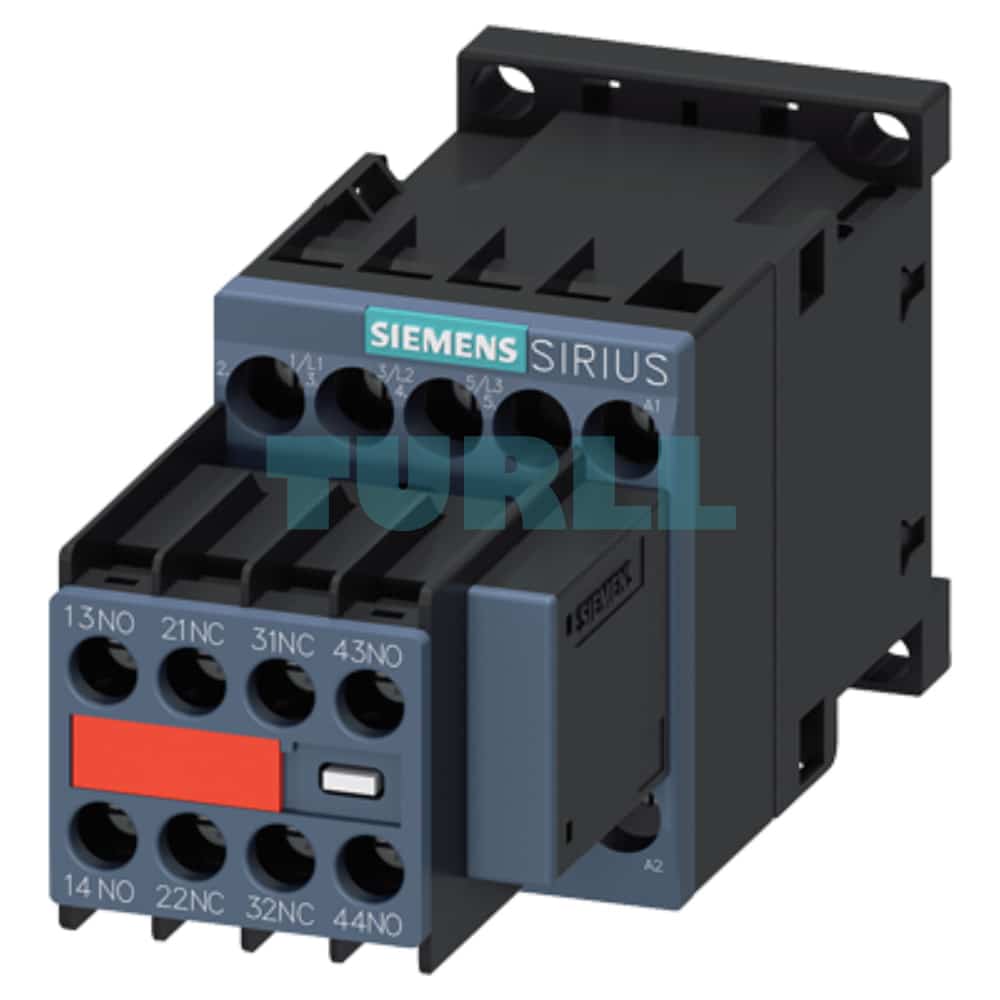

Siemens SIRIUS 3RT2016-1CP04-3MA0 Power Contactor 9A, 4kW, 2NO+2NC, 230V AC Original Brand New

Product Overview

The Siemens SIRIUS 3RT2016-1CP04-3MA0 is a highly reliable, compact 3-pole power contactor designed for safe and functional switching of electrical loads, particularly standard AC motors. Part of the SIRIUS 3RT2 series, this size S00 contactor is engineered for performance in industrial control applications.

It features a $230\text{V AC}$ operating coil with an integrated varistor for surge protection, and comes equipped with a captive auxiliary switch block providing $2\text{NO}+2\text{NC}$ contacts. The robust design and screw terminals ensure a secure and long-lasting connection.

Technical Specification

• Type Designation: 3RT2 (SIRIUS)
• Poles: 3-pole for main circuit switching.
• Operating Current (AC-3e/AC-3): $9\text{ A}$ at $400\text{ V}$.
• Operating Power (AC-3e/AC-3): $4\text{ kW}$ at $400\text{ V}$.
• Coil Voltage: $230\text{ V AC}$, $50/60\text{ Hz}$.
• Auxiliary Contacts: Captive $2\text{ NO}+2\text{ NC}$ auxiliary switch block.
• Surge Protection: Plugged-on varistor included.
• Terminal Type: Screw terminals for main and control circuits.
• Size: S00 (Compact)

Benefit

1. High Reliability & Durability: Designed for a long mechanical service life, ensuring consistent performance in demanding industrial environments.
2. Integrated Surge Protection: The plugged-on varistor protects the coil and control circuit from damaging voltage surges, extending the product lifespan.
3. Space-Saving Design: The compact Size S00 form factor allows for efficient use of space within control cabinets.
4. Simplified Wiring: Features user-friendly screw terminals for quick, secure installation and maintenance.
5. Enhanced Control: The captive $2\text{NO}+2\text{NC}$ auxiliary contacts provide essential feedback and control interfaces for complex automation systems.

Functin

The 3RT2016-1CP04-3MA0 functions as an electromechanical switching device. When the $230\text{V AC}$ coil is energized, the main contacts close, allowing power to flow to the connected load, typically a motor. It is primarily used for:

• Switching Motors: Starting and stopping three-phase AC motors.
• Resistive Loads: Switching non-inductive or lightly inductive loads.
• Interface to Automation: The auxiliary contacts provide signaling for interlocks, status indication, and other control functions within the automation level.
