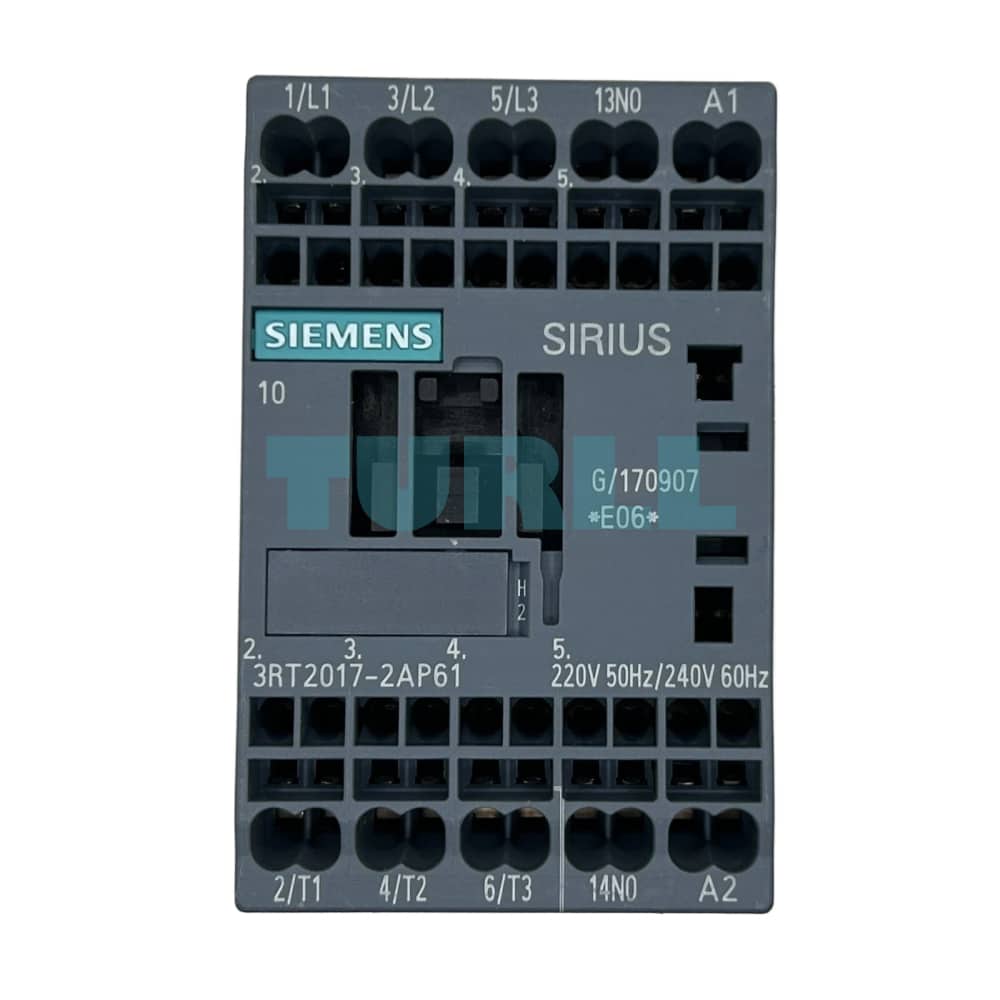

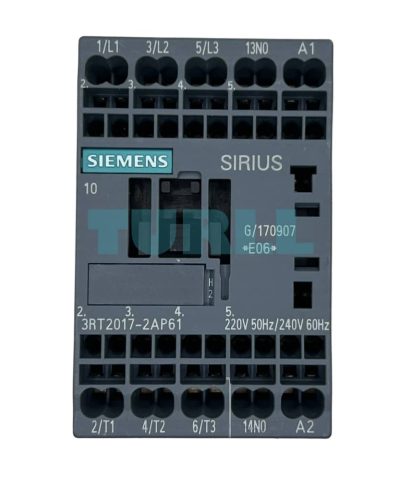

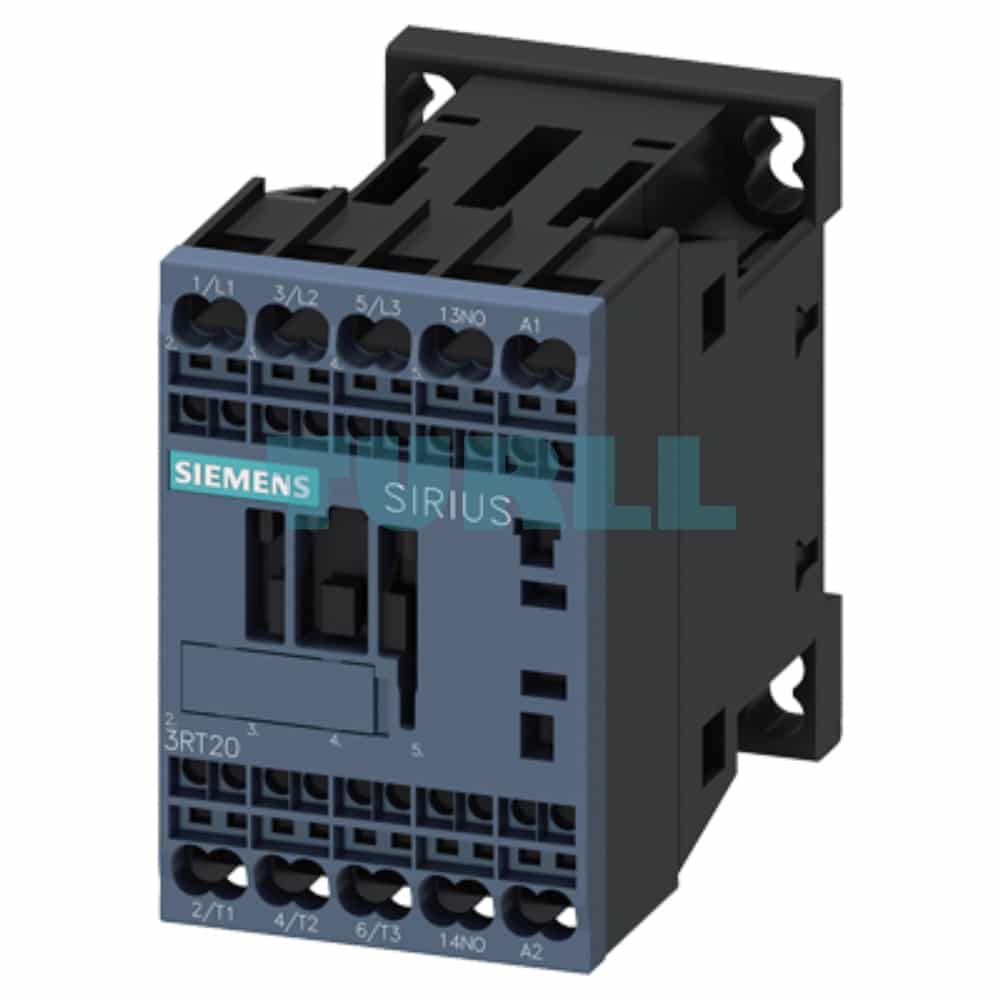

Siemens 3RT2017-2AP61 SIRIUS Power Contactor 12A, 5.5kW, AC-3e/AC-3, 3-Pole, 220V/240V AC Coil, 1NO Aux, Size S00, Spring-Loaded Terminal Original Brand New

Overview

The Siemens 3RT2017-2AP61 is a high-performance SIRIUS power contactor designed for reliable and efficient switching of three-phase loads. This compact S00-size contactor is engineered for use in demanding industrial applications, offering exceptional durability and a long service life.

With a 12 A rating for AC-3e/AC-3 applications and a power rating of 5.5 kW at 400 V, it is a versatile component for motor control and general power switching tasks. Its integrated 220 V AC (50 Hz) / 240 V AC (60 Hz) coil provides reliable operation across different power systems.

Key Features

• Product Number: Siemens 3RT2017-2AP61
• Contactor Type: Power Contactor
• Operating Current (AC-3e/AC-3): 12 A
• Operating Power (AC-3e/AC-3): 5.5 kW at 400 V
• Number of Poles: 3-pole
• Coil Voltage: 220 V AC (50 Hz) / 240 V AC (60 Hz)
• Auxiliary Contacts: 1 NO (Normally Open)
• Terminal Type: Spring-loaded terminal for quick and secure wiring
• Frame Size: S00
• Series: SIRIUS 3RT2

Benefit

• Space-Saving Design: The compact S00 size allows for high-density installation in control cabinets, optimizing panel space.
• Reliable Performance: Built with the trusted Siemens SIRIUS technology, ensuring consistent and dependable switching operations under various load conditions.
• Quick & Secure Wiring: The innovative spring-loaded terminals eliminate the need for screws, significantly reducing installation time and providing a vibration-proof connection.
• Enhanced Safety: The integrated 1 NO auxiliary contact provides feedback for control circuits, enhancing system safety and monitoring capabilities.
• Versatile Application: Ideal for controlling motors, fans, pumps, and other resistive or inductive loads in a wide range of industrial and commercial settings.

Function

The Siemens 3RT2017-2AP61 functions as an electromechanical switch. When the 220 V/240 V AC coil is energized, it generates a magnetic field that pulls the main contacts together. This action closes the circuit, allowing a high current to flow to the connected load (e.g., an electric motor).

When the coil is de-energized, the contacts open, interrupting the power supply to the load. The 1 NO auxiliary contact operates in parallel with the main contacts, providing a signal to a PLC or control system indicating the contactor's status. The spring-loaded terminals ensure a secure, maintenance-free electrical connection.
