Overview

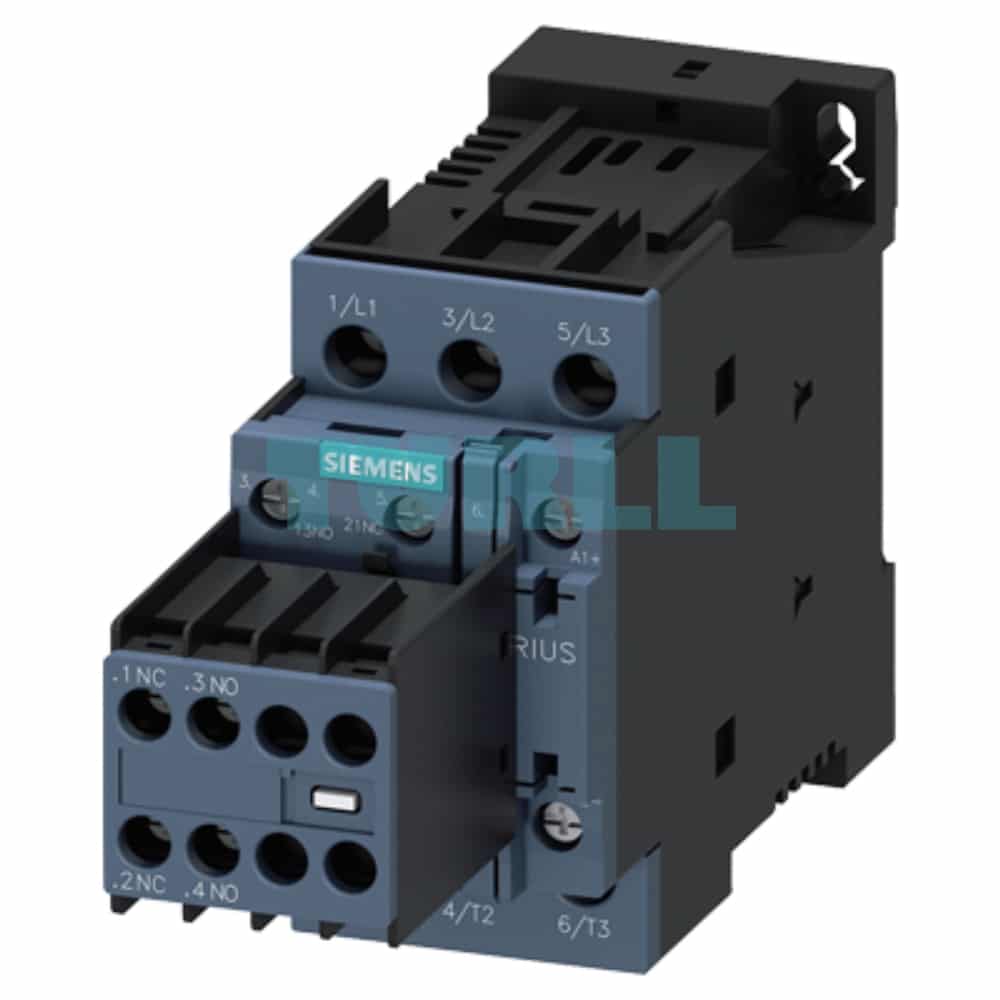

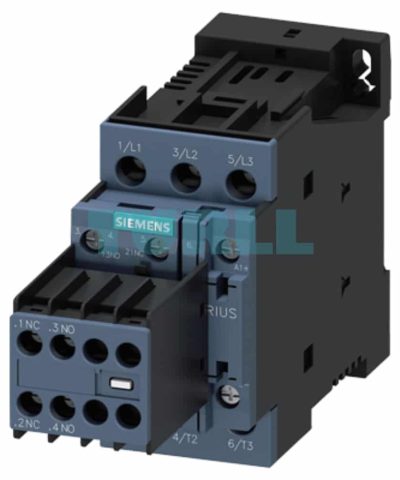

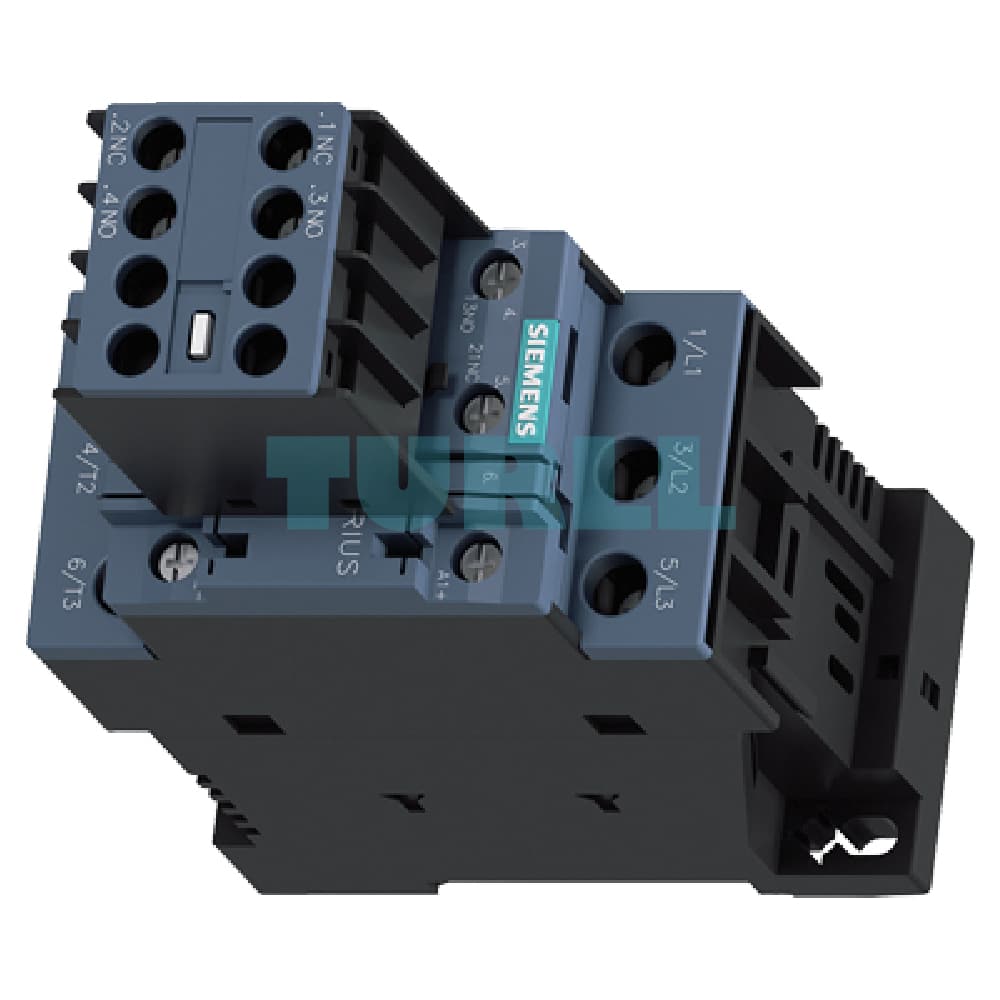

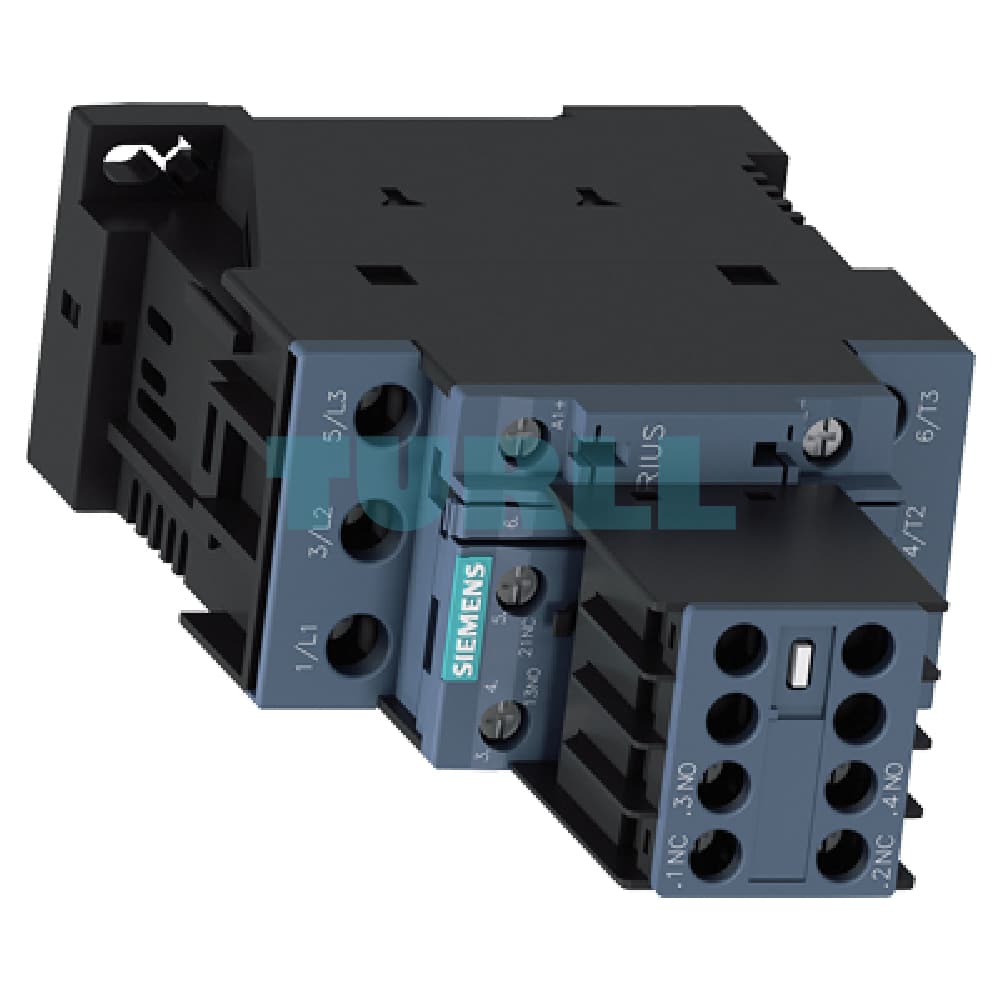

The Siemens 3RT2026-1BW44 is a high-performance power contactor engineered for reliable switching and control of electric motors and other industrial loads. As part of the SIRIUS 3RT2 series, this robust 3-pole contactor is designed for demanding AC-3e/AC-3 applications, offering a substantial 25 A current rating and a power capacity of 11 kW at 400 V. Its compact S0 size makes it ideal for space-constrained installations.
This model features a 48 V DC control voltage, ensuring efficient and reliable operation in DC control circuits. The integrated 2 NO + 2 NC auxiliary contacts provide versatile connectivity for signaling, interlocking, and control logic. The screw terminals offer a secure and easy-to-install connection, while the removable auxiliary switch adds flexibility for maintenance and configuration.
Benefit
- High Performance: Capable of handling significant loads with a 25 A rating and 11 kW power capacity.
- Reliable Operation: Designed for AC-3e/AC-3 applications, ensuring stable performance under heavy-duty conditions.
- Versatile Control: The 48 V DC coil voltage and 2 NO + 2 NC auxiliary contacts allow for seamless integration into various control systems.
- Space-Saving Design: The compact S0 size is perfect for optimizing panel space.
- Easy Installation & Maintenance: Features user-friendly screw terminals and a removable auxiliary switch for simplified setup and servicing.
- Enhanced Safety: The robust design and reliable switching capabilities contribute to safer industrial processes.
Function
- Motor Control: Serves as a primary component for starting, stopping, and reversing AC motors.
- Load Switching: Efficiently switches various resistive and inductive loads in industrial automation.
- Auxiliary Signaling: The 2 NO (Normally Open) and 2 NC (Normally Closed) contacts provide status feedback to PLCs, control relays, or indicator lights.
- Control Circuit Integration: Functions as a critical element within complex control circuits, interlocking, and safety systems.
Technical Specification
- Product Type: Power Contactor
- Product Designation: SIRIUS
- Product Number: 3RT2026-1BW44
- Current Rating (AC-3e/AC-3): 25 A
- Power Rating (AC-3e/AC-3): 11 kW at 400 V
- Number of Poles: 3
- Control Supply Voltage: 48 V DC
- Auxiliary Contacts: 2 NO + 2 NC
- Termination Type: Screw Terminal
- Size: S0
- Special Features: Removable Auxiliary Switch
