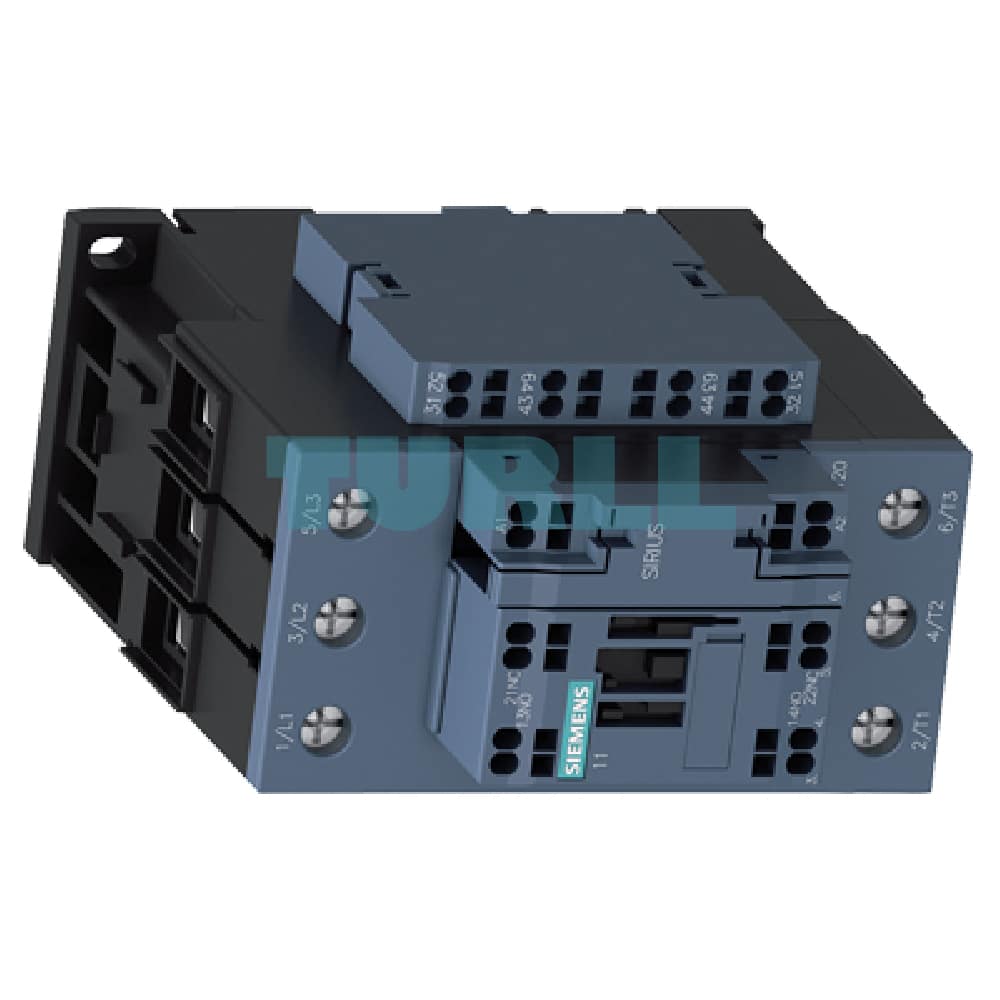

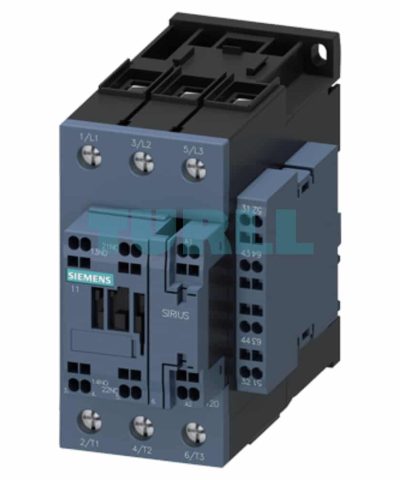

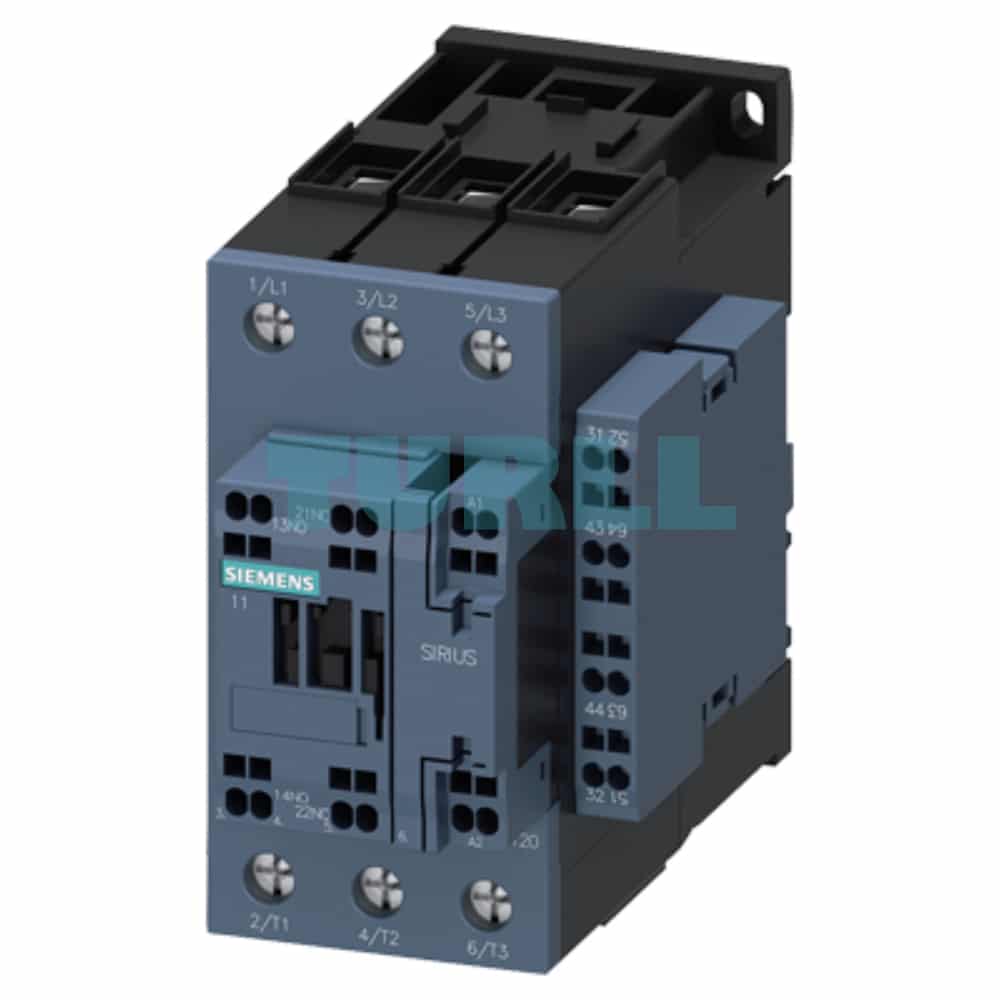

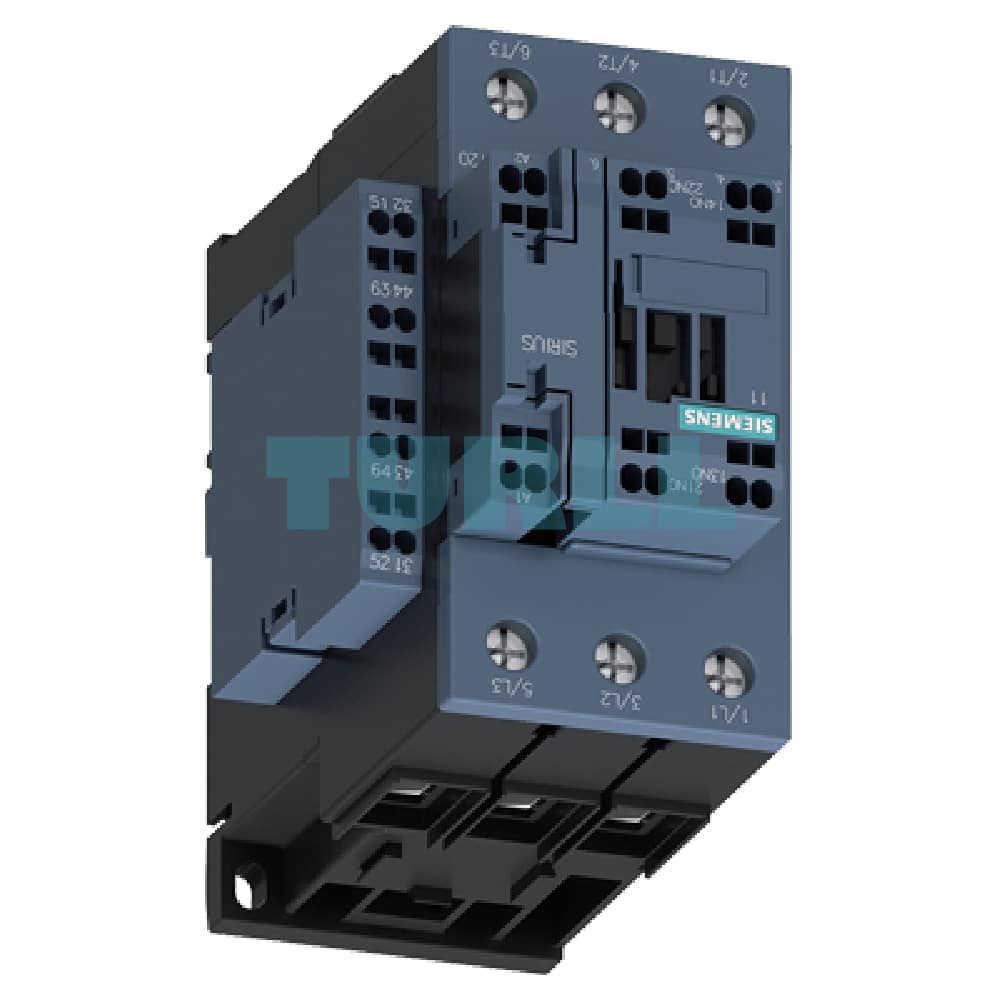

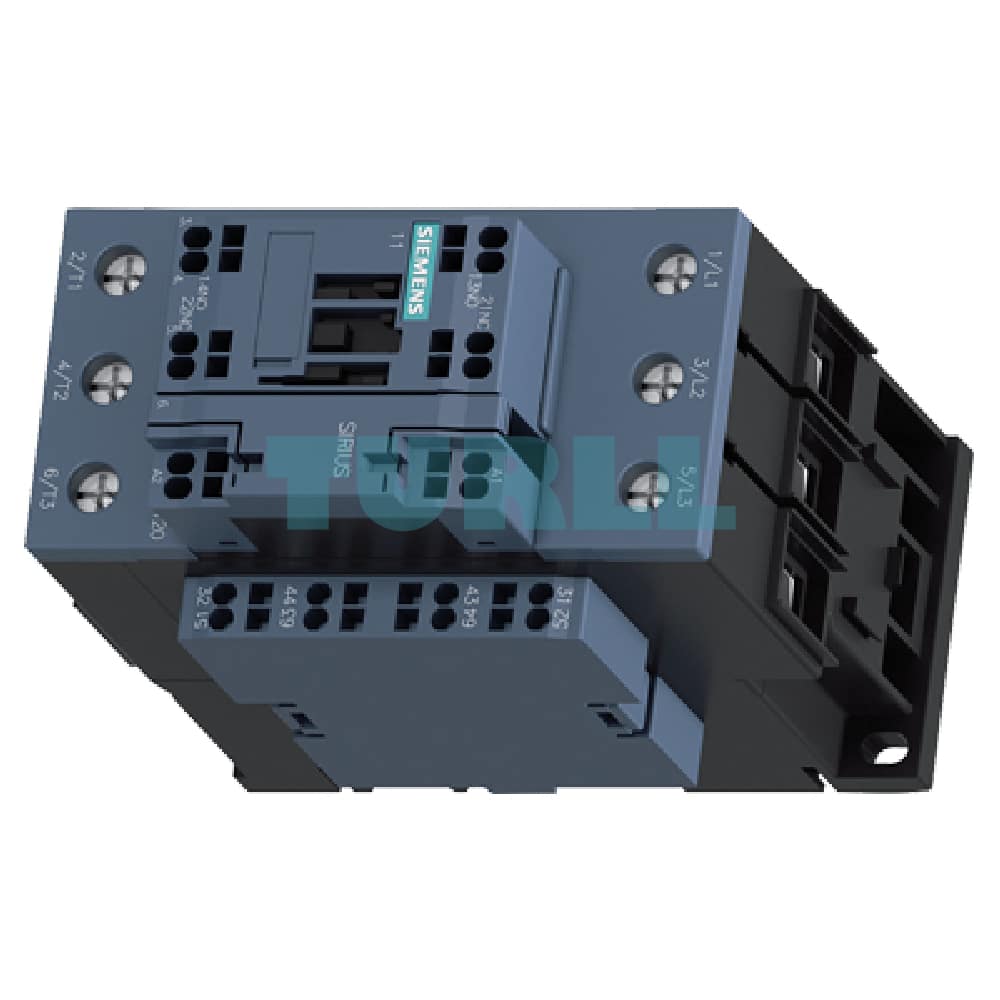

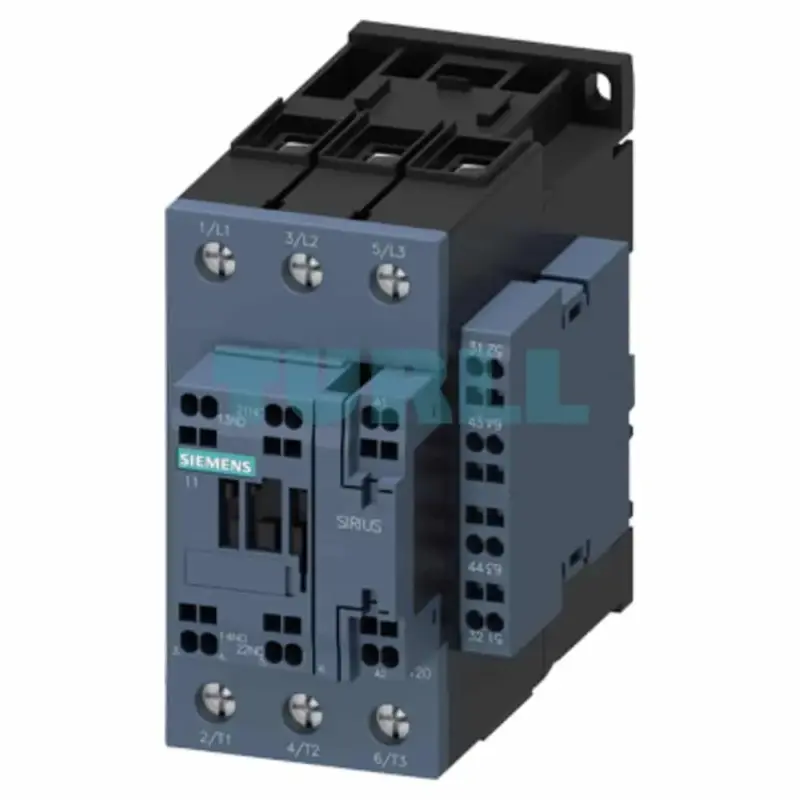

Siemens SIRIUS 3RT2035-3AL16 Power Contactor S2 Size, 41A, 18.5kW, 230V AC Coil, 2NO+2NC Aux Contacts Original Brand New

Overview

The Siemens 3RT2035-3AL16 is a high-performance SIRIUS 3RT2 series power contactor designed for reliable and efficient switching of AC-3e/AC-3 loads. This robust and compact S2-sized contactor is engineered for demanding industrial applications, offering exceptional performance and durability. It features a 230 V AC coil for reliable control, a 3-pole main circuit, and a rated current of 41 A for a power rating of up to 18.5 kW at 400 V.

The integrated 2 NO + 2 NC auxiliary contacts provide versatile control and signaling options, while the innovative combination of screw terminals for the main circuit and spring-loaded terminals for the control and auxiliary circuits ensures secure and time-saving wiring. The lateral auxiliary switch further enhances its functionality, making it a highly adaptable solution for motor control and other switching tasks.

Key Features & Benefit

• High Power Rating: Handles up to 18.5 kW at 400 V, suitable for a wide range of motor and industrial applications.
• Durable Performance: Built for demanding AC-3e/AC-3 switching applications, ensuring long-term reliability.
• Efficient Wiring: Combines secure screw terminals for the main circuit with fast, vibration-resistant spring-loaded terminals for control and auxiliary circuits, reducing installation time and maintenance.
• Versatile Auxiliary Contacts: The integrated 2 Normally Open (NO) and 2 Normally Closed (NC) auxiliary contacts provide flexible control and status feedback options.
• Space-Saving Design: Its compact S2 size allows for efficient panel and cabinet space utilization.
• Lateral Auxiliary Switch: Adds extra functionality and flexibility for complex control schemes.
• Global Compatibility: Operates on a standard 230 V AC, 60 Hz control voltage, making it suitable for many international installations.

Function

The Siemens 3RT2035-3AL16 power contactor is a crucial component in industrial automation and electrical systems. It functions as an electrically controlled switch, allowing for the remote and automatic ON/OFF control of electrical loads, particularly motors. When the 230 V AC control coil is energized, it creates a magnetic field that pulls the main contacts together, closing the circuit and allowing power to flow to the connected load.

The auxiliary contacts simultaneously change their state, providing signals for interlocking, status indication, and other control functions. When the coil is de-energized, the main and auxiliary contacts return to their original state, interrupting the power flow.

Technical Specification

• Product Type: Power Contactor
• Manufacturer: Siemens
• Series: SIRIUS 3RT2
• Product Number: 3RT2035-3AL16
• Rated Current (AC-3e/AC-3): 41 A
• Rated Power (400V): 18.5 kW
• Control Voltage: 230 V AC, 60 Hz
• Poles: 3
• Auxiliary Contacts: 2 NO + 2 NC
• Main Circuit Connection: Screw Terminal
• Control & Auxiliary Circuit Connection: Spring-Loaded Terminal
• Size: S2
• Features: Lateral auxiliary switch
