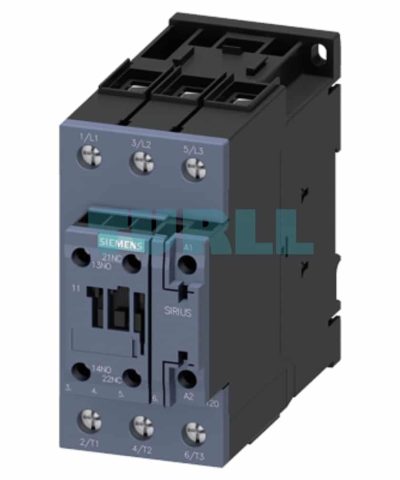

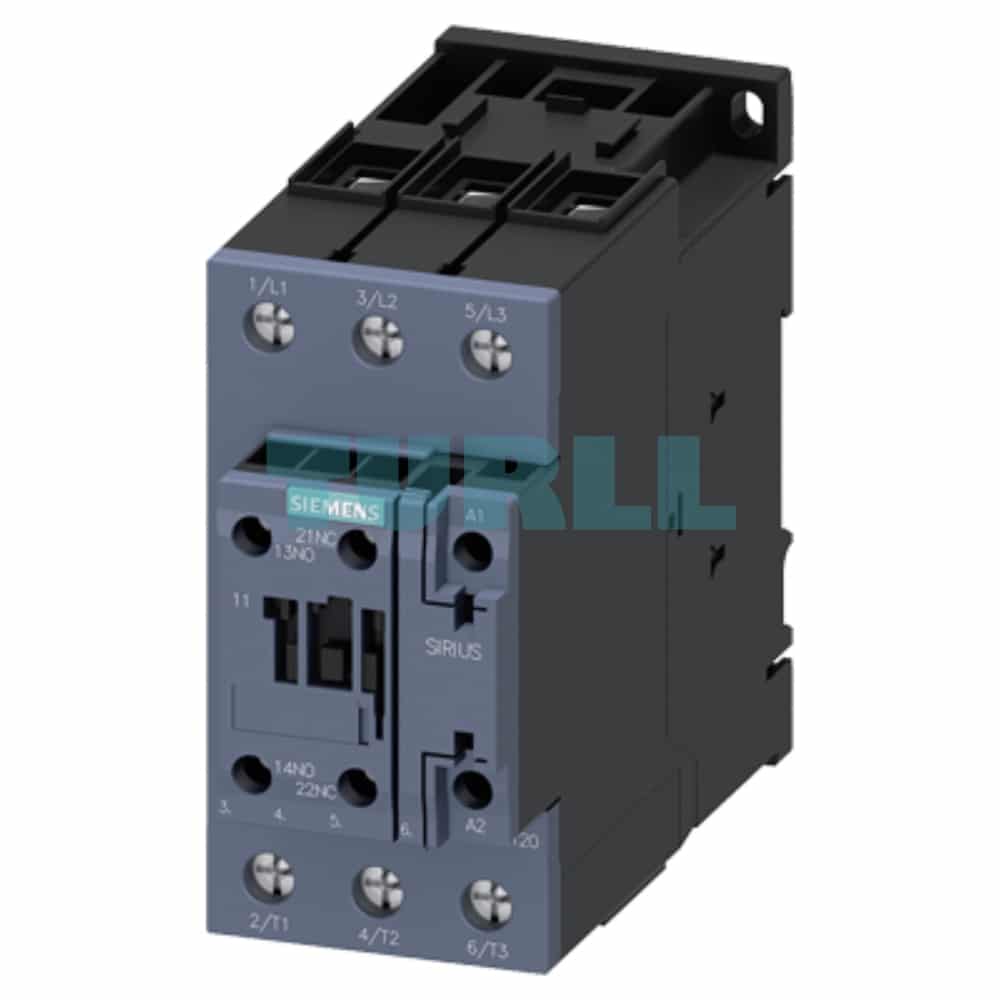

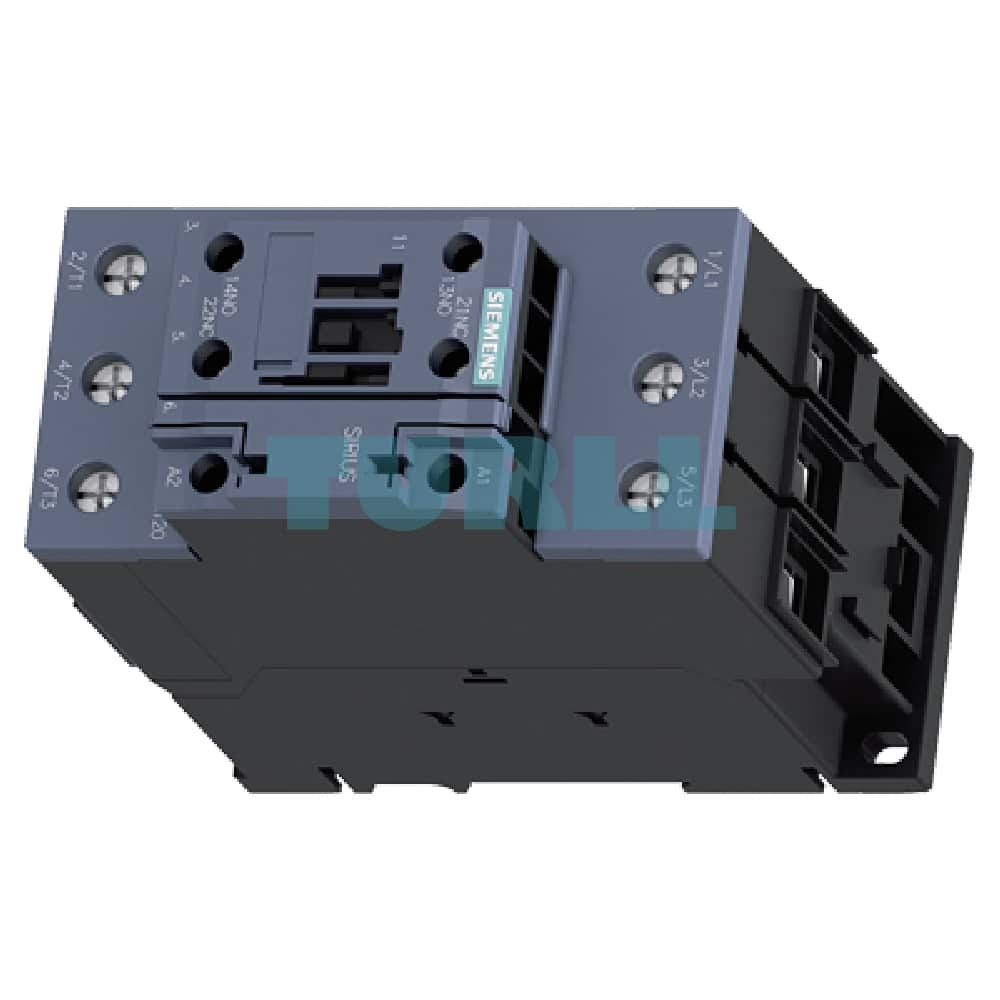

Siemens SIRIUS 3RT2036-1AB00 Power Contactor, 3-Pole, 22kW, 51A, 400V, 24V AC Coil, Size S2 Original Brand New

Product Overview

The Siemens 3RT2036-1AB00 Power Contactor from the SIRIUS 3RT2 series is a high-performance, compact switching device engineered for controlling motors and other electrical loads up to 22 kW (51 A) at $400\text{ V AC}$. This robust, 3-pole contactor is a key component in low-voltage industrial control applications, offering excellent reliability and integration capabilities. It is rated for AC-3e/AC-3 operation, making it ideal for standard motor starting.

Key Technical Specifications

• Product Number: 3RT2036-1AB00
• Manufacturer: Siemens
• Series: SIRIUS 3RT2
• Contactor Type: Power Contactor (Motor Switching)
• Poles: 3-Pole
• Operating Current (Ie​) at AC-3/400 V: $51\text{ A}$
• Operating Power ($\text{P}$) at AC-3/400 V: $22\text{ kW}$
• Control Coil Voltage (Us​): $24\text{ V AC},50\text{ Hz}$
• Size: S2
• Auxiliary Contacts (Integrated): $1\text{ NO}\text{ (Normally Open)}+1\text{ NC}\text{ (Normally Closed)}$
• Main Circuit Connection: Screw Terminal
• Mechanical Life: Typically 10 million operating cycles

Benefit

• Compact Design: The Size S2 frame offers a high power-to-size ratio, saving valuable space in your control cabinet.
• High Reliability: Part of the globally proven SIRIUS modular system, ensuring high contact reliability and long service life (10 million mechanical operations).
• Easy Wiring: Features reliable screw terminals for secure and straightforward main and auxiliary circuit wiring.
• Global Compliance: Approved for worldwide use (e.g., IEC and UL/CSA) and is IE3/IE4-ready, supporting energy-efficient motor solutions.
• Integrated Auxiliary Contacts: The built-in $1\text{ NO}+1\text{ NC}$ contacts reduce complexity and wiring effort, providing immediate feedback for control circuits.
• Seamless Integration: Fully compatible with a wide range of accessories and other components in the SIRIUS modular system, such as overload relays and function modules.

Function and Application

The 3RT2036-1AB00 functions as the primary electrical switch in a motor feeder. When the $24\text{ V AC}$ control voltage is applied to the coil, the main power contacts close, allowing the 3-phase power to flow to the motor.

Typical applications include:

• Switching 3-phase AC motors (Direct-On-Line starting)
• Controlling resistive loads in heating systems
• Integration into complex motor control centers (MCCs)
• Full-Voltage Non-Reversing (FVNR) starters
• General power switching in industrial automation and low-voltage installations
